Break the PoE distance limitation! Wi-Tek provides a robust and cost-effective PoE solution to power up your CCTV, Access point and other IP-based devices which up to 250m away. Support Hi-PoE 60W compatible with more kind of high-power devices such as PTZ cameras, etc. Most robust features like, Extend Mode, PoE Watchdog Function, Port Isolation, provide a lot of value for basic networking needs, creating a versatile and reliable surveillance network to grow your business.
Hi-PoE 60W Design for Higher Powered PoE Devices:
High-PoE switch is the upgraded version of PoE switch with higher PoE power. There are many emerging applications that take advantage of high-power PoE, such as bui lding infrastructure with LED display, PTZ IP cameras, and other high power consumption devices.
PoE 250m Long Distance to Extend Network:
DIP switch provides Extend Mode. All PoE ports can transmit data and power up to 250 meters. No further hardware or configuration is necessary, easy-to-use and cost-saving. Perfect for surveillance camera deployment in large areas
Smart PoE Watchdog to Reboot Camera Automatically:
Watchdog is able to monitor status of camera in real time. Once the camera stops working and does not respond to the switch, the switch will reboot the camera, making surveillance management easier.
Features:

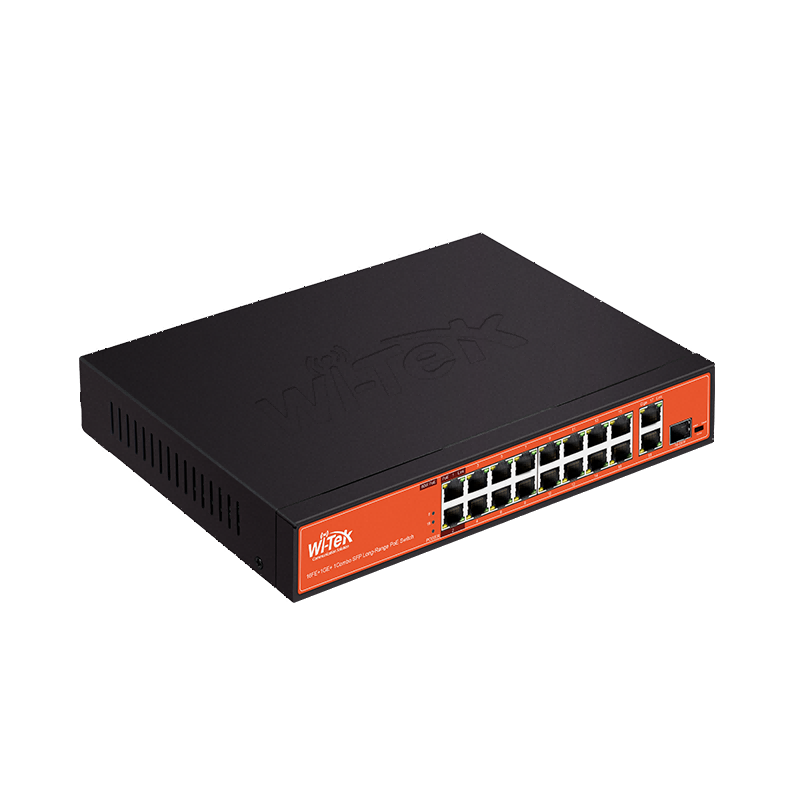

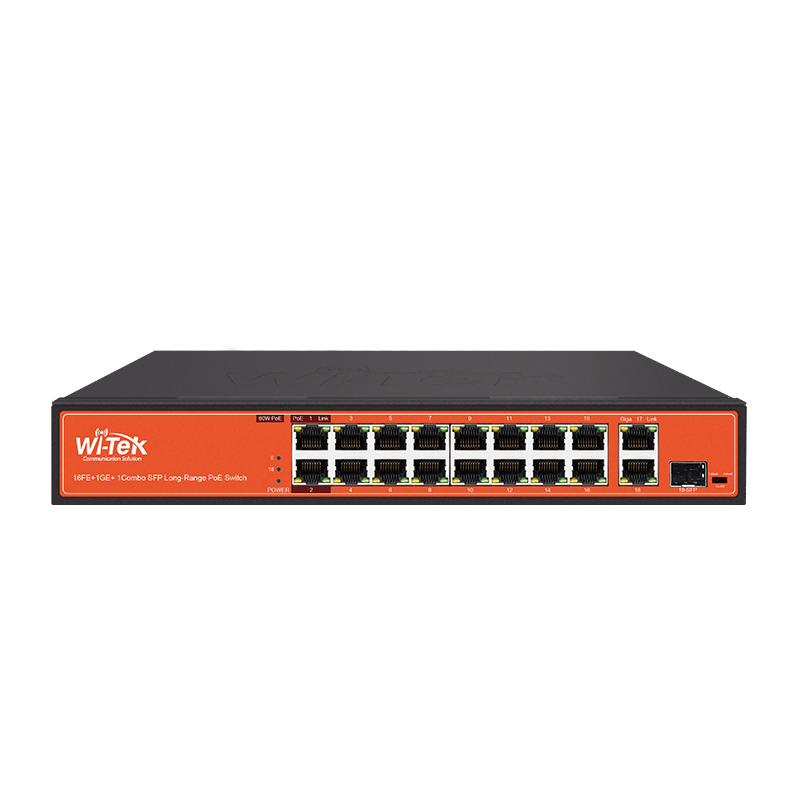

- 16FE+1GE+1Combo SFP 250M Long Range PoE Switch with 16Port PoE
- Supports smart watchdog function to monitor compliant PD
- Port 1-2 supports Hi-PoE power up to 60W fit IEEE 802.3bt compliant PDs
- Port 3-16 supports PoE 30W fit IEEE 802.3af/at compliant PDs
- Internal power adapter supply 200W(upgraded)
- Support 250meters Long range PoE Transmit
- 8K entry MAC address table with auto-learning and auto-aging
- Realtek Switch Chipset+TI PoE Chipset guarantee stable performance
|
|
| |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| |
|
|
|
|
| |
|
|
|
|
