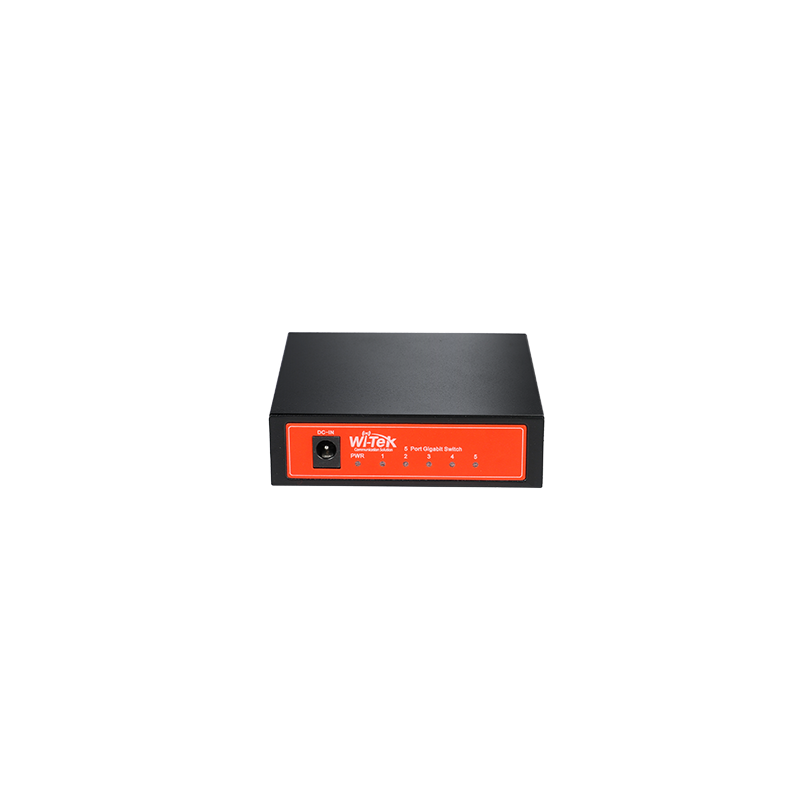

Wi-Tek - WI-SG105 - 5xGigabit Ethernet Switch with steel case
Part number:
WI-SG105
Price:
Wi-Tek Gigabit Ethernet Switches provide an easy way to expand your wired network. With all ports support Auto-MDI/MDIX, there’s no need to worry about the type of cable to use. Featuring full duplex mode can send and receive data at a rate up to 1000Mbps, making it an ideal choice for expanding your high performance network.
Features:
- 5 100/1000Mbps RJ45 Ethernet ports
- Plug and play, zero configuration
- Supports desktop installation
- Energy efficient design compliant with IEEE802.3az
- Silent operation ideal for noise sensitive environment
| HARDWARE FEATURES | WI-SG105 |
| Standards | IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1p |
| Interface | 5 100/1000Mbps RJ45 Ports |
| Network Media | 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) |
| 100BASE-TX/1000Base-T: UTP category 5, 5e, 6 or above cable (maximum 100m) | |
| Fan Quantity | Fanless |
| Exchange Capacity | 1G |
| Packet Forwarding Rate | 7.44Mpps |
| Mac Address Table | 2K |
| Power Adapter | 5V/0.5A |
| Packet Buffer Memory | 1Mb |
| Jumbo Frame | 10240 Bytes |
| Port VLAN | No |
| OTHERS | |
| Certification | CE, FCC, RoHS |
| Package Dimension | 113×115×63 mm |
| Switch Dimension | 88×83×25 mm |
| Gross Weight | 0.32kg |
| Net Weight | 0.18kg |

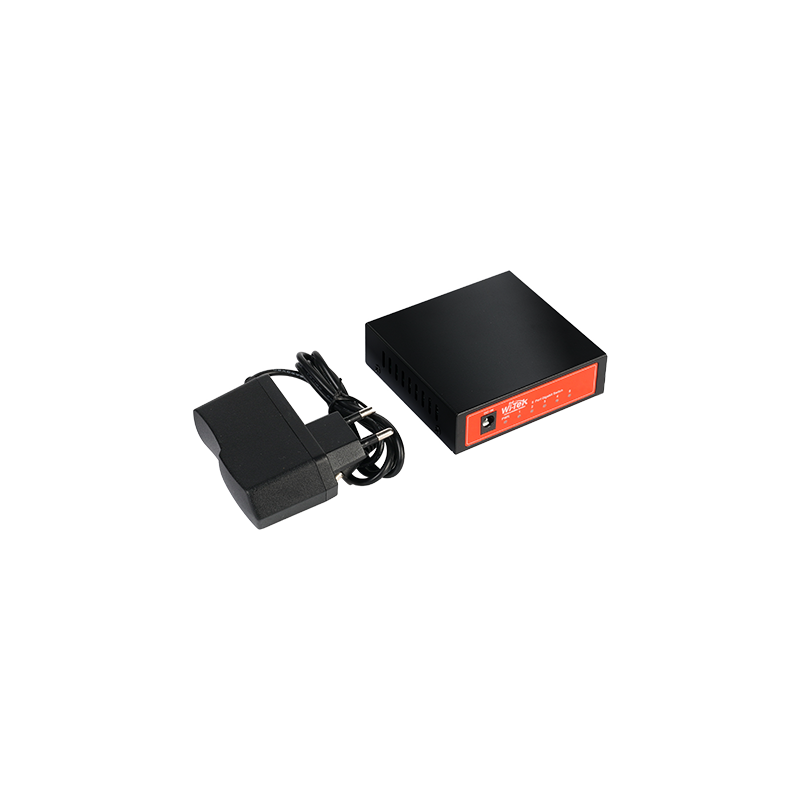

| Package Contents | 1× 100Mbps Switch |
| 1 × Power Cord | |
| 1 × Quick Installation Guide | |
| Working Temperature | -10℃～55℃ |
| Storage Temperature | -40℃～70℃ |
| Working Humidity | 10%～90% RH |
| non-condensing | |
| Storage Humidity | 5%～90% RH non-condensing |
Name
Description
Size
Downloads
File
Data Sheet
0.6mb
File
Quick Guide
0.6mb
