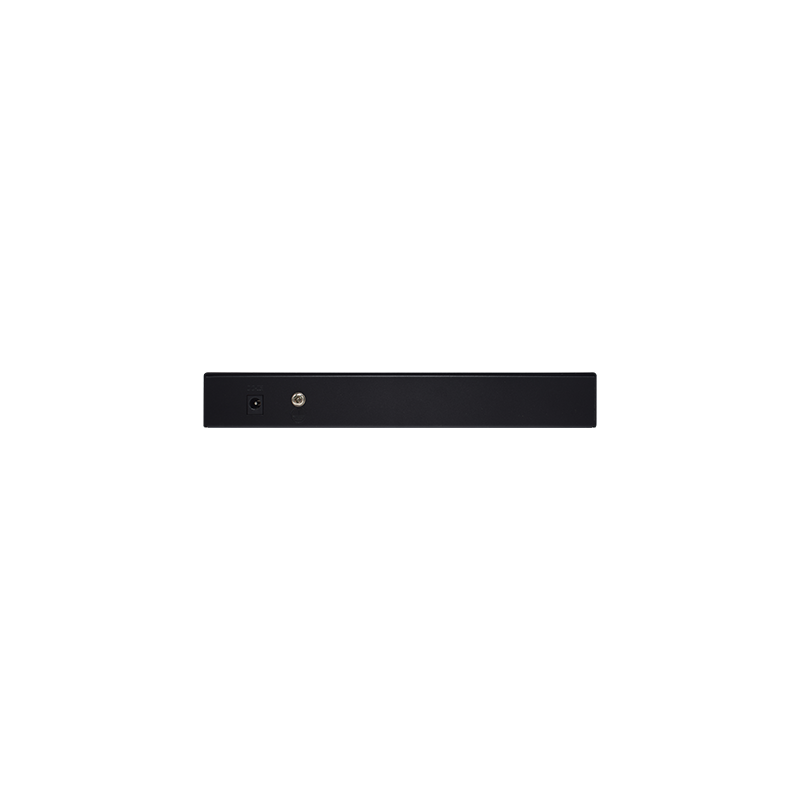

Wi-Tek - WI-SG505G - 5x2.5G Ethernet Switch with steel case
Part number:
WI-SG505G
Price:

Wi-Tek 2.5G Ethernet Switches provide an easy way to expand your wired network. With all ports support AutoMDI/MDIX, there's no need to worry about the type of cable to use. Featuring full duplex mode can send and receive data at a rate up to 2500Mbps, making it an ideal choice for super-fast connections in LAN parties, home entertainment, home and business offices, and instant transfer for the workstation.



Features:

  • 5 100Mbps/1Gbps/2.5Gbp Ports, Auto-Negotiation, Auto-MDI/MDIX
  • 2.5GBASE-T RJ-45 ports provide higher speed
  • An ideal solution for all of high-speed devices
  • Plug and play, zero configuration
  • Work with existing cable: Cat5e, Cat6, and above cable
  • Fanless design to ensure a silent environment at your home and office
  • Built-in IEEE 802.3az Energy Efficient Ethernet (EEE)
HARDWARE FEATURESWI-SG505G
StandardsIEEE 802.3, 802.3u, 802.3ab, 802.3x, 802.1p, 802.3bz
Interface5×100Mbps/1Gbps/2.5Gbp Ports, Auto-Negotiation, Auto-MDI/MDIX
Fan QuantityFanless
External Power SupplyExternal Power Adapter (Output: 12 VDC /2A)
Switching Capacity25Gbps
Packet Forwarding Rate74.4Mpps
MAC Address Table16k
Packet Buffer Memory1.5Mb
Jumbo Frame10240 Bytes
Transfer MethodStore and Forward
Others
CertificationCE, FCC ,RoHS
Package Dimension269×220×69 mm
Switch Dimension114×163×23 mm
Gross Weight0.87kg
Net Weight0.58kg
Package Contents1 × Ethernet Switch
1 × Power Adapter
1 × Quick Installation Guide
Environment• Operating Temperature:-10–55°C
• Storage Temperature: -40–70 °C
• Operating Humidity: 10–90% RH non-condensing
• Storage Humidity: 5–90% RH non-condensing
Name
Description
Size
Downloads
File
Data Sheet
0.5mb
