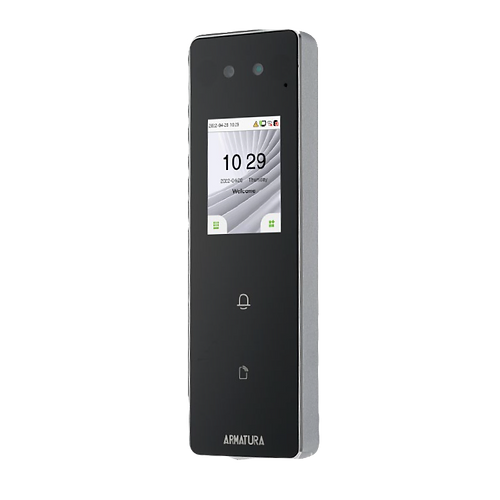

ZKTeco USA - AMT-Omni-AC20-LHF - Standalone Biometric Reader with Palm Recognition
Part number:
AMT-Omni-AC20-LHF
Price:
OmniAC20 - All Weather Outdoor Multi-tech Smart Standalone Terminal
Features:
- Multi-Biometric technology combining palm and face recognition
- IP66 water & dustproof protection rating
- Slim design & form factor for a modern aesthetic design
- Supports 125 kHz and 13.56 MHz frequency credentials
| Primary Power | 12 to 24 VDC (3A min @12V) |
| RS485 connection | Port 1: RS485 standard / OSDP V2.1.7 |
| CPU | 1.2 GHZ Quard Core ARM Processor |
| NPU | 2.4 TOPS NPU |
| Memory | 8 GB Flash + 1 GB RAM |
| Camera | Face Automatic Exposure Palm Automatic Exposure Face tracking Palm tracking WDR HDR 50Hz to 60Hz Automatic Adaption Dual Camera CMOS 2MP （Output image 720P*960P） |
| Primary Host Communication | Ethernet: 10/ 100 Mbps, auto MDI/ MDIX Complies with TLS 1.2 for end to end secure communication channel |
| Ethernet network connection | Port 1:10/ 100 Mbps, auto MDI/ MDIX |
| Data Protection | Complies with TLS 1.2 for end to end secure communication channel (Secured Communication between Standalone Terminal & Server) AES128 (Secured Communication between Standalone Terminal & OSDP Reader & Access Control Panel) |
| Number of Ports | 1*TCP/IP 1*RS-485 Input: 4ch TTL Inputs Output: 1ch TTL Output 3 relays |
| Inputs | Wiegand in, Button, Sensor in, Aux Input |
| Outputs | 3 relays with dry contacts, Wiegand Output, Lock, Alarm, Bell |
Name
Description
Size
Downloads
File
Datasheet
0.2mb
