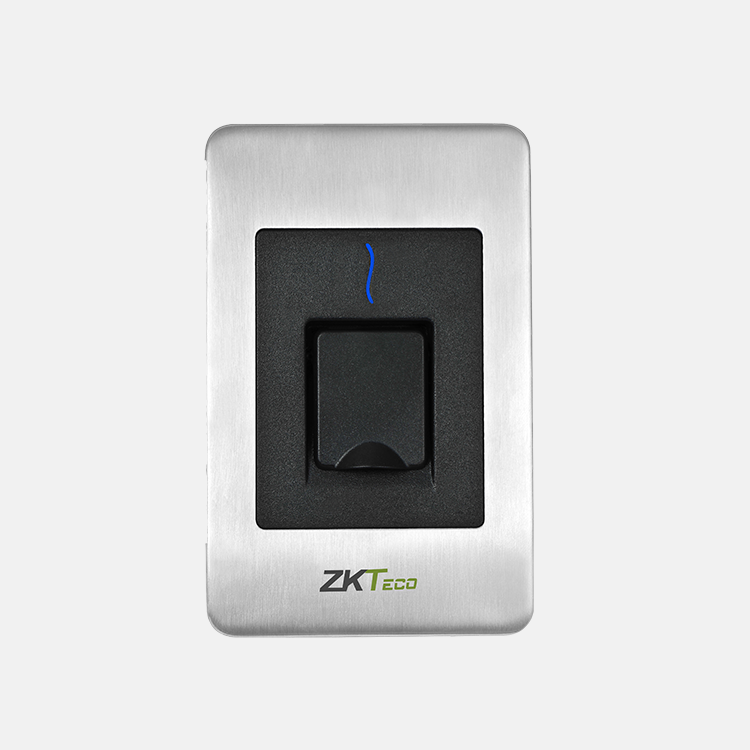

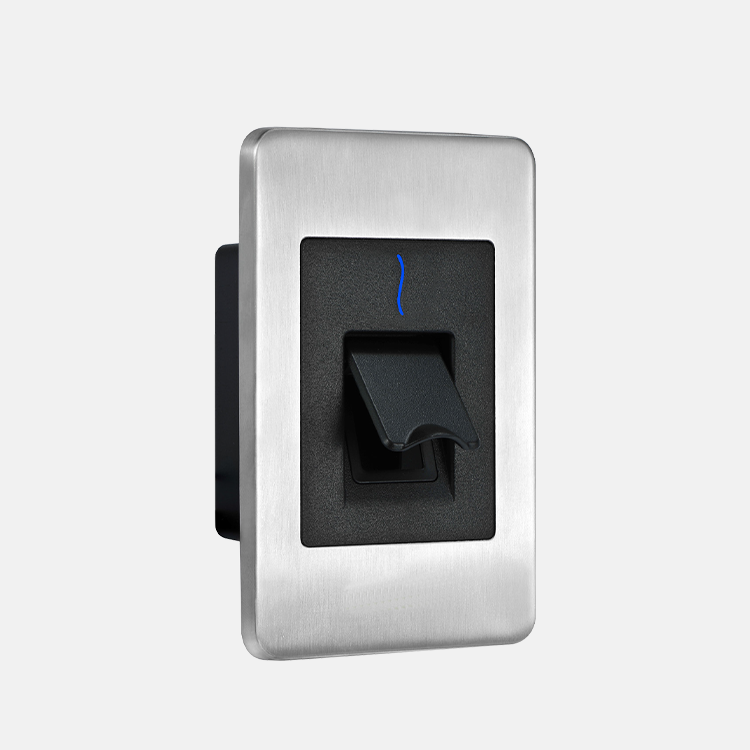

ZKteco USA - FR1500-Milfare - Flush-mounted Slave Fingerprint &Mifare Reader with built in prox reader
Part number:
FR1500-Milfare
Price:
Flush-mounted Slave Fingerprint &Mifare Reader with built in prox reader
Features:
- Sleek Stylish Form Factor: Flush-mounted single-gang stainless steel enclosure with slim and attractive design is ideal for both indoor & outdoor installations where aesthetics are very important.
- Communication: FR1500-ID connects only via RS485 to InBio & InBioPro panels or standalone reader controllers. FR1500-ID does not support Wiegand.
- Easy Operation: Once a user places their finger on the FR1500-ID their fingerprint is subsequently matched by the InBio (or InBioPro) panel. FR1500-ID also provides Visual indication for acceptance/rejection of the fingeprint (and/or prox card) of the users.
- Standard Reader: SilkID fingerprint sensor, Built-in ZKAccess prox card reader, Options for HID and Mifare card readers
| AdditionalInfo | |
| Working Temperature | -10 °C ~ 45 °C |
| Working Humidity | 20 ~ 95% |
| Dimensions(LxWxH) | 121.3 × 77.3 × 38 mm |
| Algorithm | ZKFinger v10.0 |
| PowerSupply | |
| Operating Voltage | 12V DC |
| Stand-by Mode Power Consumption | 12V*60mA=0.72W |
| Peak Current of Fingerprint scanning | 140mA |
| Hardware | 1.0 GHz CPU, ZKSilkID Sensor, Buzzer Prompt,Three-color Indicator Light |
| Compatibility | inBio/inBioPro Controllers, Standalone Fingerprint Devices |
| Standard Features | 125KHz RFID Card |
| Optional Features | 125KHz HID Prox Card, 13.56MHz MifareCard(S50 / S70), 13.56MHz HID Iclass Card |
| Communication | RS485 |
