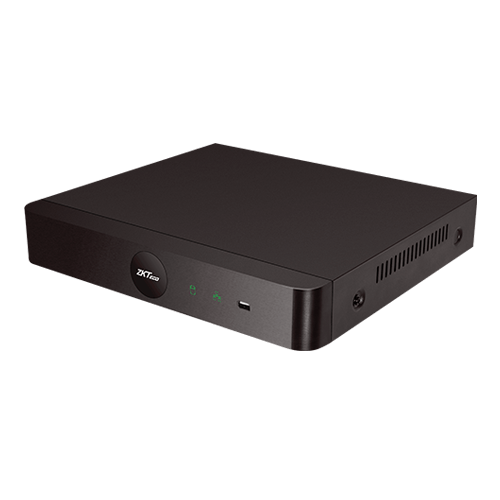

ZKteco USA - Z8608NF-8F - 8CH Facial Recognition NVR (without HDD)
Part number:
Z8608NF-8F
Price:
ZKTeco BioFace Lite NVR series is one of the idealist considerations for small-to-medium scale facial recognition surveillance and analysis project with the ZKTeco industry-leading AI algorithm.
This model supports 16 channels of real-time facial recognition based on a database that stores up to 100,000 face templates and displays real-time facial recognition results. With Blacklist/Whitelist management, the solution can trigger an alarm, take a snapshot, or record faces for further analysis and potential security improvement. Powered by the robust interoperability and ONVIF Profile S, the series is compatible with plenty of 3rd-party IPCs to implement facial recognition.
Features:
- H.265+/H.265/H.264 decoding
- Support 8-channel 4K IP cameras input & previe
- Support 8-channels realtime playback synchronously
- 8 channels realtime facial recognition with face capture cameras
- Up to 50,000 face templates supported
- Support multiple Blacklist/Whitelist alarm events linkage
- Smart face retrieval supported
- Intelligent video analytics functions (up to IPC)
- Support multiple web browsers login
- P2P cloud service supported
| Specification | |
| System | |
| Main Processor | Multi-core embedded processor |
| Operating System | Embedded LINUX |
| Video and Audio | |
| Max IPC Input | 8CH |
| Two-way Talk | Support |
| Audio Compression | G.711u |
| Live View | |
| Display Split | 1/4/8 CH |
| Resolution | 8MP (3840*2160) / 5MP (2592*1944) / 2MP (1920*1080) / 1.3MP (1280*1024) / 1MP (1280*720) / SVGA (1024*768) |
| Live View Capability | 4CH@8MP(25/30fps) / 8CH@D1((25/30fps) |
| Recording | |
| Video Compression | H.265+ / H.265 / H.264 |
| Recording Resolution | 4K/5MP/3MP/1080P/960P/720P/D1/VGA/4CIF/DCIF/2CIF/CIF/QCIF |
| Max. Decoding Capability | 8MP@25/30fps |
| Incoming Bandwidth | 128Mbps |
| Bit rate | Main Stream: 256Kbps ~ 8192Kbps Sub Stream: 50Kbps ~ 700Kbps |
| Record Mode | Schedule, Manual, Motion Detection, IVA Events Alarm |
| Record Interval | 1 ~ 120 min (default: 60 min), Pre-record: 1 ~ 30 sec, Post-record: 10 ~ 300 sec |
| Playback and Backup | |
| Playback Channel | 8CH Synchronously Playback |
| Search Mode | Time/ Date, Alarm Types, IVA Search, Face retrieval |
| Playback Function | Play, Stop, Play Forward, Play Backward, 30 Seconds Forward, 30 Seconds Backward, Fast Play, Slow Play, Single Frame Play, Hide/Show Time Bar, Backup, Snapshot, Full Screen |
| Backup Mode | USB Device / Network Remote |
| Facial Recognition | |
| Performace | 8 CH face recognition with face detection camera 4 CH facial recognition with regular camera |
| Face Processing Speed | up to 25 Faces/Second |
| Face Templates | 50,000 pictures |
| Face Library | Black List/White List/Other List |
| Facial Recognition Channels | 8CH |
| Alarm Linkage Actions | Recording/Buzzer/Monitoring/Center/FTP Upload/Email |
| Create Face Templates | Capturing by Preview/Import, App collect (Antarview Pro)/VMS (AntarVis 2.0) Face Database by USB Device |
| Search by Face | Support |
| IVA Alarm | |
| Local IVA Functions | Line Crossing / Target Counting / Object Left/ Lost / Intrusion / Scene Change / VQD |
| Regular Detection | Motion Detection / Video Shelter / Video Loss |
| AI Search | Support search target video by multiple intelligent conditions |
| Network | |
| Network Protocol | TCP/IP, HTTP, DDNS, SMTP(SSL), DHCP, PPPoE, UPnP, NTP, P2P, ONVIF |
| Max. Online User | 5 |
| Web Browser | IE / Google Chrome / Firefox / Safari |
| Operation System | Windows |
| Management Platform | AntarVis 2.0 / ZKBioSecurity IVS / BioAccess IVS |
| Mobile Application | AntarView Pro (iOS & Android) |
| P2P Cloud Service | Support |
| Interoperability | ONVIF Profile S, SDK, CGI, API |
| Storage & Auxiliary Interface | |
| SATA Ports | 2 SATA Ports, Up to 8 TB capacity for each HDD |
| eSATA | N/A |
| Raid 0/1/5/6/10 | N/A |
| HDMI | 1*HDMI (4K) |
| VGA | Support |
| Network Interface | 2 RJ-45 Ports (10/100/1000Mbps) |
| PoE Ports | N/A |
| USB | 2 USB Ports (1 Rear USB 3.0 , 1 Front USB 2.0 ) |
| Audio Input/Output | 43,831 |
| Alarm Input/Output | 43,925 |
| RS-485 | Support |
| Power | |
| Power Supply | DC 12V/3A |
| Power On/Off Switch | N/A |
| Power Consumption | 20W (without HDD) |
| General | |
| Casing | 1.5U |
| Working Temperature | -10°C ~ 55°C / 14°F ~ 131°F |
| Working Humidity | 10% ~ 90% |
| Dimensions (L*W*H) | 325 * 246 * 50 (mm) |
| Net Weight | 2.5kg (without HDD) |
| Gross Weight | 3kg (without HDD) |
