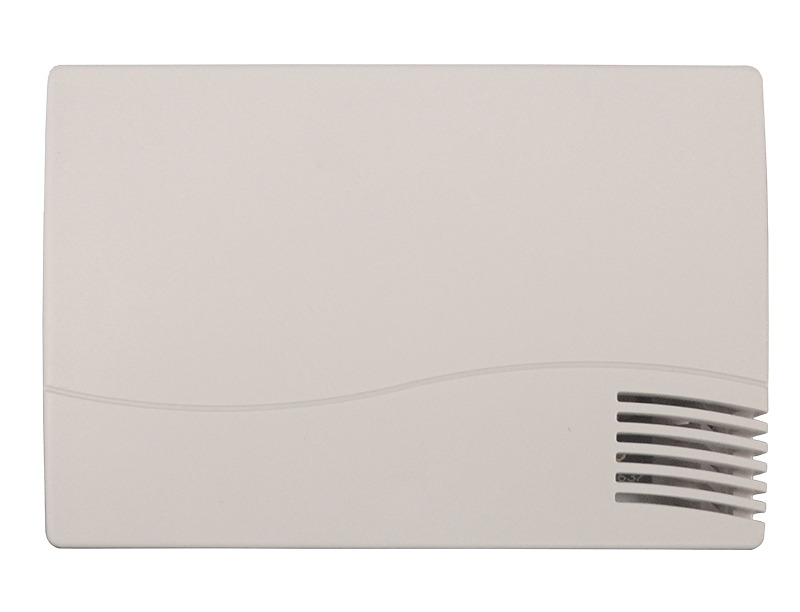

ELK - M1ZTS - Zone Temperature Interface & Sensor -50 to 140 Degrees F
Part number:
M1ZTS
Price:

Monitor high or low temperatures with this add-on remote sensor. Connects to any main zone on the M1 Gold (1-16) or M1EZ8 (1-8). Range is -50 to +140F. Applications include: freeze monitoring, second homes, agricultural uses, etc. Temperature may be accessed from keypad, telephone remote control, or rules.



Features:

  • Internal Built-in Temperature Probe
  • Measures Temperature From: -50 to +140 F
  • Communicates to M1 Control Over 3 Wires
  • Operates On Any Main Board Zone (1-16)
  • Up to 16 Interfaces Allowed per M1 Control
  • Interface May be Placed Up To 1000 ft From M1
  • Suitable for Indoor/Outdoor Use in a Covered Environment



  • Zone Temperature Sensor with Internal Probe
  • Instructions
Operating Voltage12 Volts D.C.
Current Draw10mA
Housing Dimensions3.5" x 2.5" x 0.875"Operating Voltage: 12 Volts D.C.
Name
Description
Size
Downloads
File
Instructions
0.3mb
