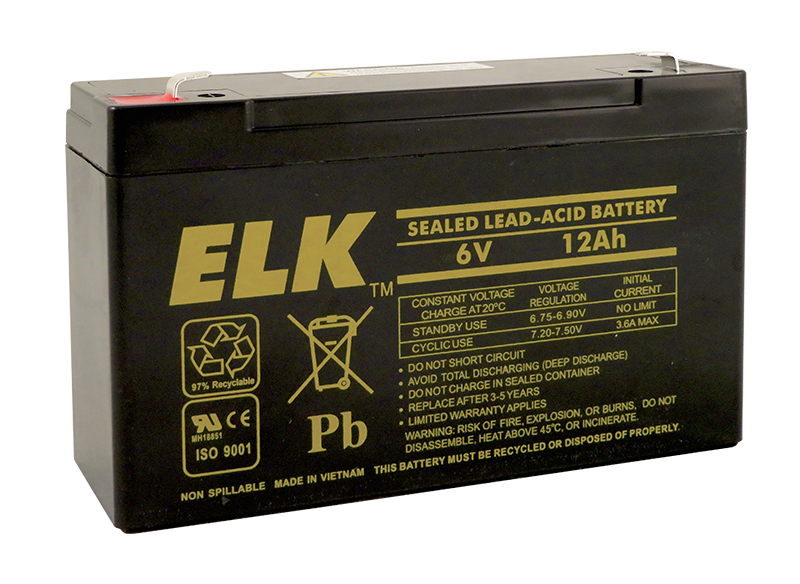

ELK - 06120 - Sealed Lead Acid Battery 6V-12.0Ah

ELK Sealed Lead Acid Batteries are excellent for the following applications with regard to size, Amp hour rating, and proper terminal connections: battery backup (for Access Control Systems, Fire Alarm Systems, and Security Alarm Systems), emergency lights, lighted exit signs, and uninterruptible power supplies.

Features:

  • Rechargeable
  • All virgin materials for long life
  • More lead for greater Ah capacity
  • Size comparable to other manufacturer's lower Ah sizes
  • UL Recognized Component
  • 2 Year Over-the Counter Warranty

What's Included:

  • 6 Volt, 12 Ah SLA Battery with F1 Faston Tab Connectors

Additional Details:

  • Case Quantity: 10
Part number:
06120
Price:
  • Nominal Voltage: 6 Volts
  • Rated Capacity: 12 AH (20 hour rate)
  • Length: 5.91" (150mm)
  • Width: 1.97" (50mm)
  • Height: 3.7 (94mm)
  • Total Height: 3.9" (99mm)
  • Terminals: F1-Faston Tab No. 187
Name
Description
Size
Downloads
File
Data Sheet
0.6mb
File
flyer
0.3mb
