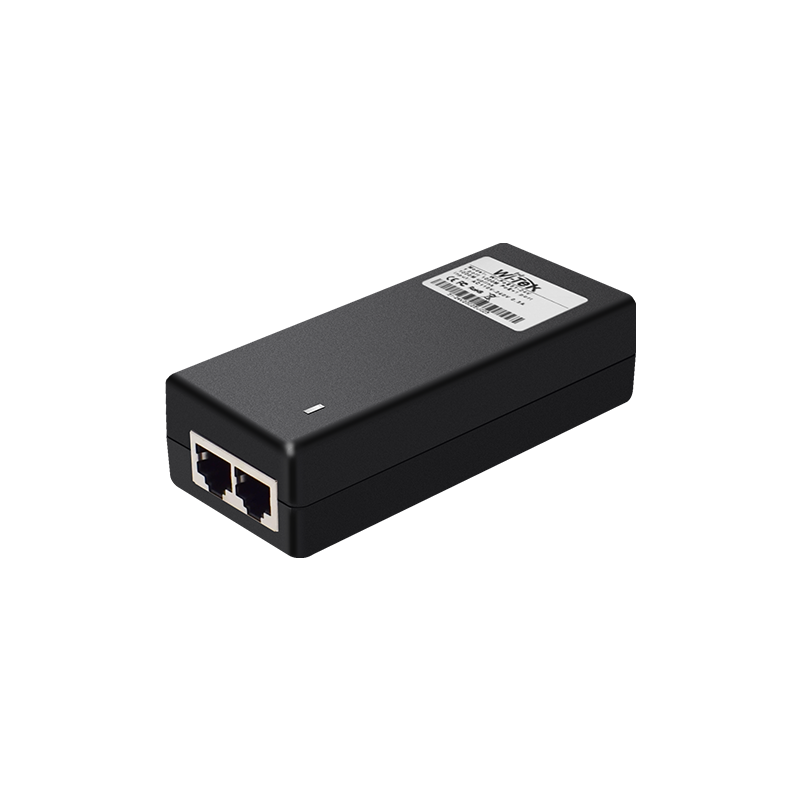

Wi-Tek Power over Ethernet injectors provides different power and high-speed Ethernet data connection anywhere in your network infrastructure. Some of them come with industrial chipsets that can work at -40°C ~ 80°C harsh environments. Wi-Tek PoE injectors are protected by a high-quality metal shell to ensure a long service life. They have passed a series of strict tests and provid you with reliable performance.
Compatible with 802.3af/at/bt:
Wi-Tek PoE injectors are compatible with both 802.3af/at/bt, and allow users to flexibly deploy standard and highpowered devices to transfer data and power simultaneously through one Ethernet cable for up to 100 meters.
Save your Cable and Time:
Your lP camera and wireless AP will not be limited by the locations without a power outlet and no additional AC wiring. Most ost of all, it reduces installation time.
Easy to Install:
Zero configuration, simply connect the injectors to an Ethernet Switch and to the IP-based PoE device to provide power and data for the network with a compact and lightweight design.
Features:
HARDWARE FEATURES | WI-POE31-24V |

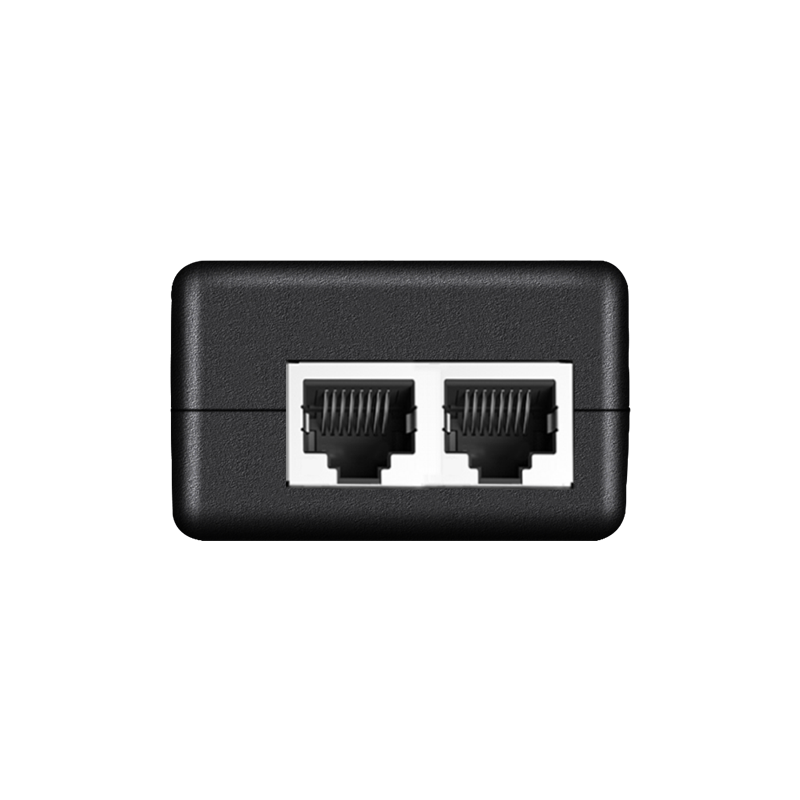

Interface | 1 10/100Mbps PoE RJ45 Port 1 10/100Mbps Ethernet Port |
Network Media | 10BASE-T: UTP category 3, 4, 5 cable (Max 100m) EIA/TIA-568 100Ω STP (Max 100m) 100BASE-TX: UTP category 5, 5e cable (Max 100m) EIA/TIA-568 100Ω STP (Max 100m) |

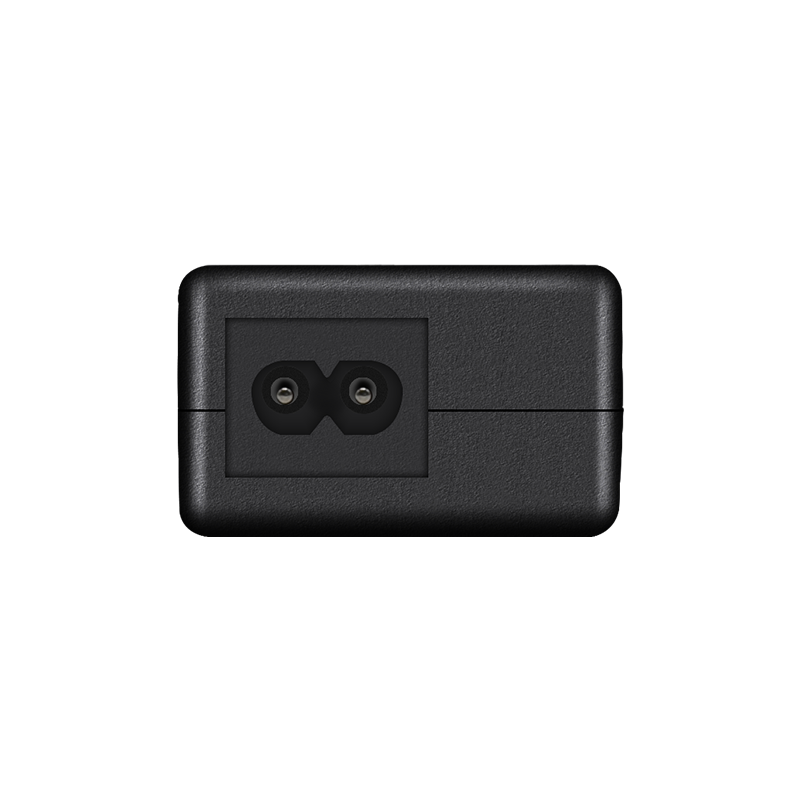

Power Supply | AC IN 100-240V |
Data In/Out | 1 x 10/100Mbps Data In |
Power In/Out Port | 1 x 24V Passive PoE Out |
PoE PIN | 4/5(+) 7/8(-) |
PoE Consumption | 24V 24W |
LED Indicator | PWR-Power |
DIP Switch | N/A |
Fan Quantity | Fanless |
Transmission Method | Store-And-Forward |
Protection Level | 6kV Lightning protection 6kV ESD Contact discharge |
Advanced Functions | Mac Address Auto-Learning And Auto-Aging Store and forward IEEE 802.3x flow control for Full-duplex Mode Backpressure for Half-duplex Mode |
OTHERS | |
Certification | CE, FCC, RoHS |
Package Dimension | 205×134×47mm |
DeviceDimension | 113×48×30mm |
Gross Weight | 0.3kg |
Net Weight | 0.12kg |
Package Contents | 1 x PoE Switch 1 x Power Cord 1 x Quick Installation Guide |
Operating Temperature | -10°C~55°C |
