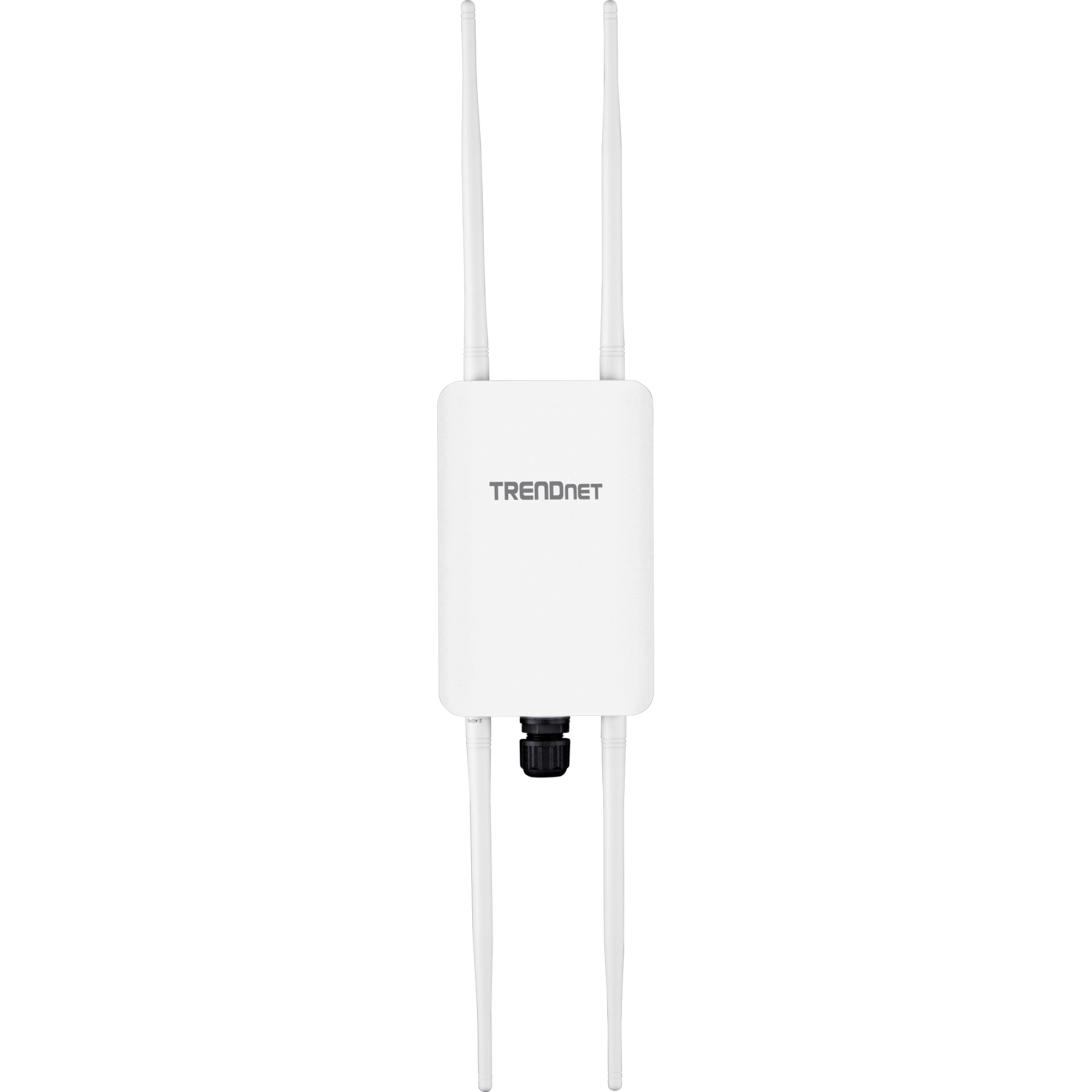

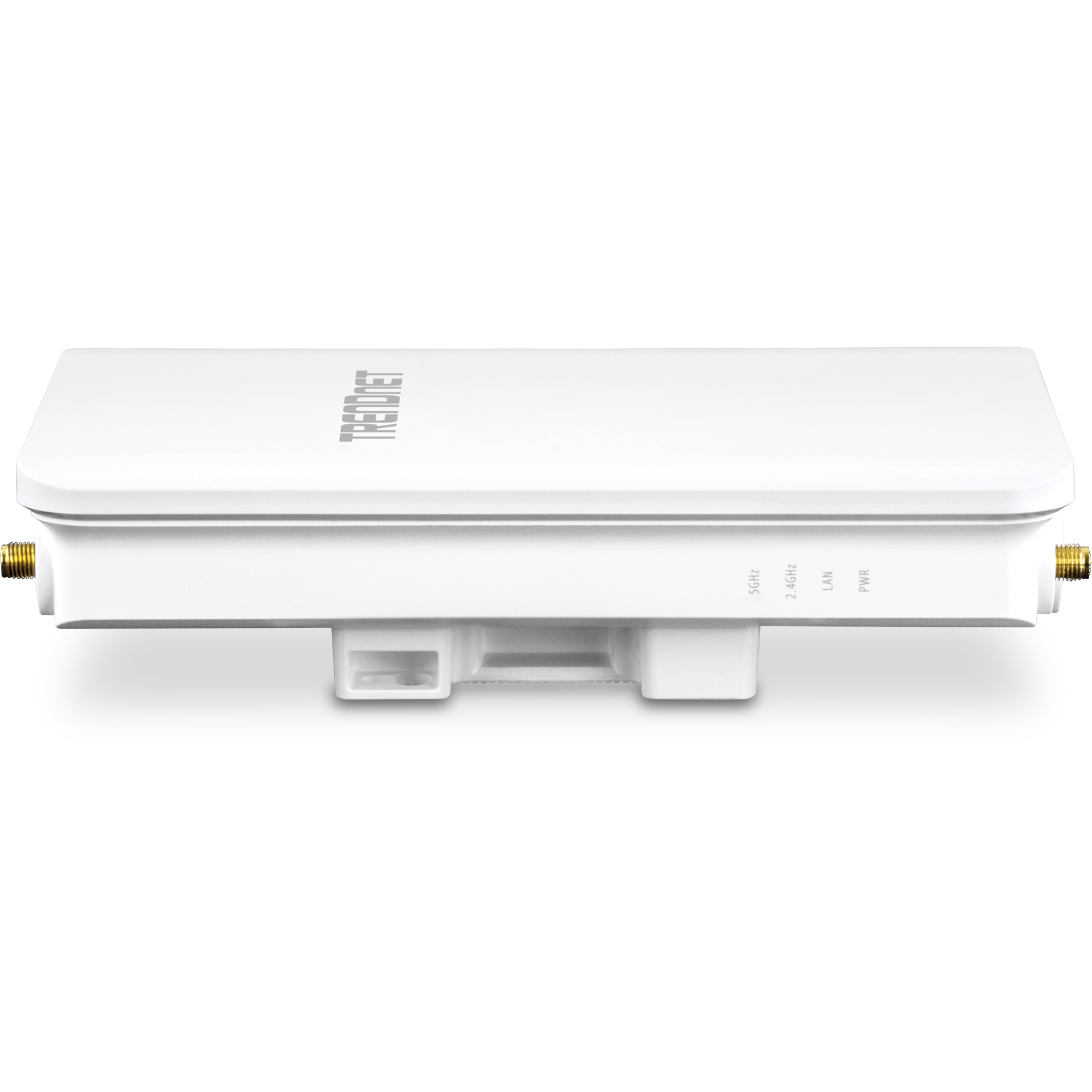

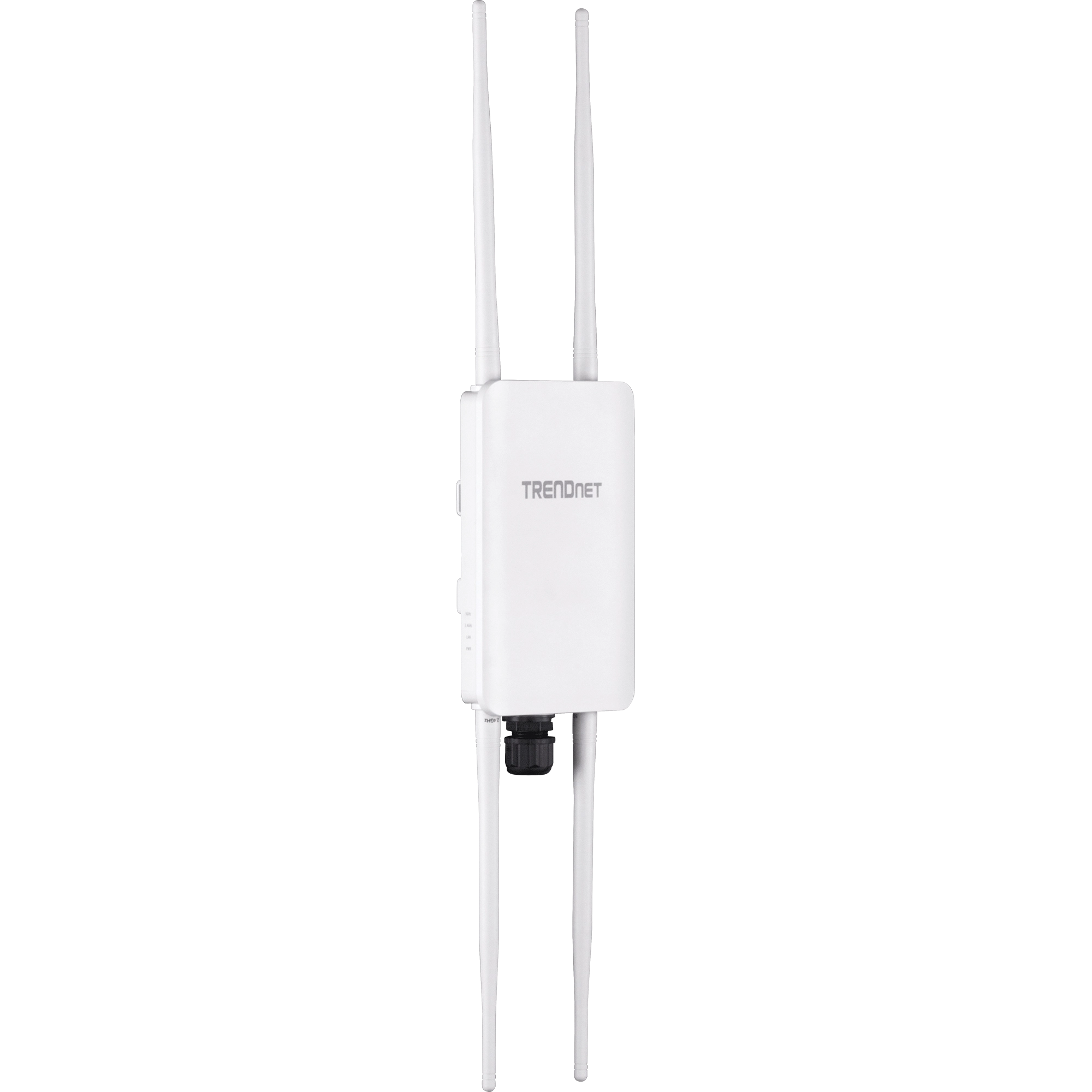

TRENDNET - TEW-841APBO (CA) - 5dBi Wireless AC1200 Outdoor PoE+ Omni Directional Access Point
TRENDNET - TEW-841APBO (CA) - 5dBi Wireless AC1200 Outdoor PoE+ Omni Directional Access Point
Part number:
TEW-841APBO (CA)
Price:
Dealers only
Add to Quote/Project Registration
Description Specifications Downloads

TRENDnet's 5 dBi Wireless AC1300 Outdoor PoE+ Omni-Directional Access Point, model TEW-841APBO, is designed for point-to-point and point-to-multi-point WiFi bridging applications. The wireless multi-point bridge can be powered with a PoE+ switch or PoE+ injector of your choosing. A variety of installation scenarios are facilitated with Access Point, WDS Bridge, WDS Access Point, WDS Station, and Client Bridge modes. The IP67 rated housing on the wireless multi-point bridge is designed for outdoor environments, and includes wall and pole mounting hardware.



Features:

  • Dual band Wireless AC1300 point-to-point and point-to-multi-point bridge
  • 4 x 5 dBi omni-directional antennas
  • Supports Access Point, WDS Bridge, WDS Access Point, WDS Station, and Client Bridge modes
  • Supports IEEE 802.3at PoE+
  • IP67 outdoor weather rated housing
  • NDAA / TAA compliant (U.S. and Canada only)
Standards
  • IEEE 802.3
  • IEEE 802.3u
  • IEEE 802.3x
  • IEEE 802.3ab
  • IEEE 802.3az
  • IEEE 802.3at
  • IEEE 802.1Q
  • IEEE 802.11a
  • IEEE 802.11b
IEEE 802.11g
  • IEEE 802.11n (up to 400Mbps @ 256QAM)
  • IEEE 802.11ac Wave 2 (5GHz: up to 867Mbps @ 256QAM)
Hardware Interface

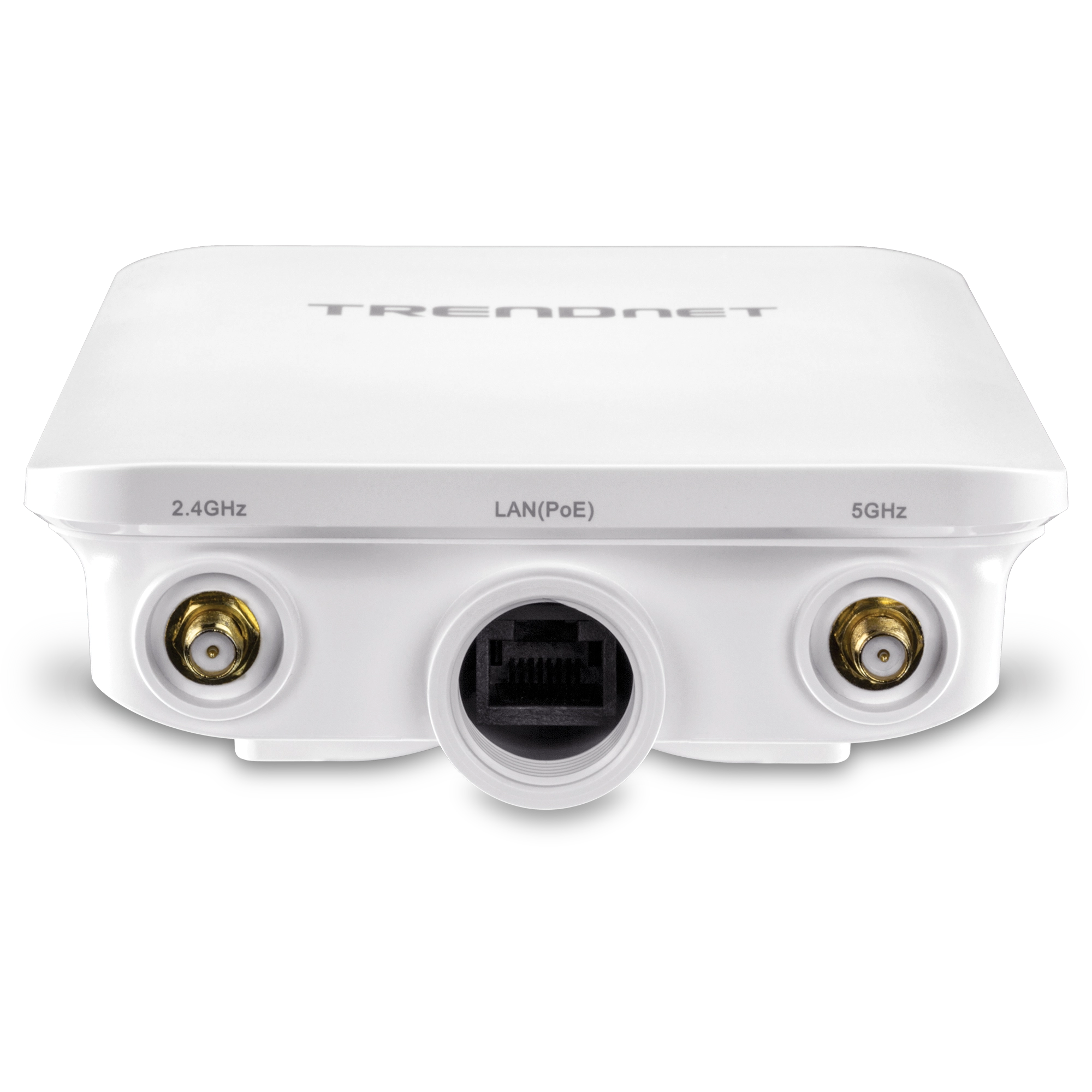

  • 1 x PoE+ Gigabit LAN port (power input)
  • 4 x RP-SMA (female) antenna connectors
  • LED indicators
Features
  • 802.11ac MU-MIMO Wave 2 support
  • IP67 rated housing
  • Concurrent dual band
  • Band steering
  • WiFi traffic shaping
  • 802.1Q VLAN assignment per SSID
  • IPv6 support (Link-Local, Static IPv6)
  • LEDs on/off
  • 802.11k intelligent radio resource management
  • RSSI Threshold (client signal strength and connectivity control)
Operation Modes
  • Access Point
  • Client Bridge
  • WDS Access Point
  • WDS Bridge
  • WDS Station
Management/Monitoring
  • Web based management
  • SNMP v1/v2c/v3
  • STP
  • Event logging
  • Ping test
  • Traceroute
  • Nslookup
  • Telnet
Access Control
  • Wireless encryption: WEP, WPA/WPA2-PSK, WPA/WPA2-RADIUS
  • MAC filter
  • Maximum client limit
QoS
  • WMM
  • Bandwidth control per SSID or client
SSID
  • Up to 8 SSIDs
Frequency
  • 2.4GHz: 2.412 – 2.462GHz
  • 5GHz: 5.180 – 5.240GHz, 5.745 – 5.825GHz
Wireless Channels
  • 2.4GHz: FCC: 1–11
  • 5GHz: FCC: 36, 40, 44, 48, 149, 153, 157, 161 and 165
Modulation
  • DBPSK/DQPSK/CCK for DSSS technique
  • BPSK/QPSK/16-QAM/64-QAM/256-QAM for OFDM technique
Antenna Gain
  • 2.4GHz: 2 x 5 dBi external
  • 5GHz: 2 x 5 dBi external
Wireless Output Power
  • 802.11a: FCC/IC: 19 dBm (max.)
  • 802.11b: FCC/IC: 19 dBm (max.)
  • 802.11g: FCC/IC: 19 dBm (max.)
  • 802.11n (2.4GHz): FCC/IC: 19 dBm (max.)
  • 802.11n (5GHz): FCC/IC: 19 dBm (max.)
  • 802.11ac: FCC: FCC/IC: 19 dBm (max.)
Receiving Sensitivity
  • 802.11a: -72 dBm (typical) @ 54 Mbps
  • 802.11b: -87 dBm (typical) @ 11 Mbps
  • 802.11g: -72 dBm (typical) @ 54 Mbps
  • 802.11n (2.4 GHz): -67 dBm (typical) @ 400 Mbps
  • 802.11n (5 GHz): -61 dBm (typical) @ 400 Mbps
  • 802.11ac: -58 dBm (typical) @ 867 Mbps
Power
  • IEEE 802.3at Type 2 PoE PD Class 4
  • Max. consumption: 12.6W
Operating Temperature
  • -22° – 60° C (-7.6° – 140° F)
Operating Humidity
  • Max. 90% non-condensing
Certifications
  • FCC
  • IC
Dimensions
  • 111 x 174 x 38mm (4.4 x 6.9 x 1.5 in.)
Weight
  • 302g (10.7 oz.)
Warranty:
  • 3 year

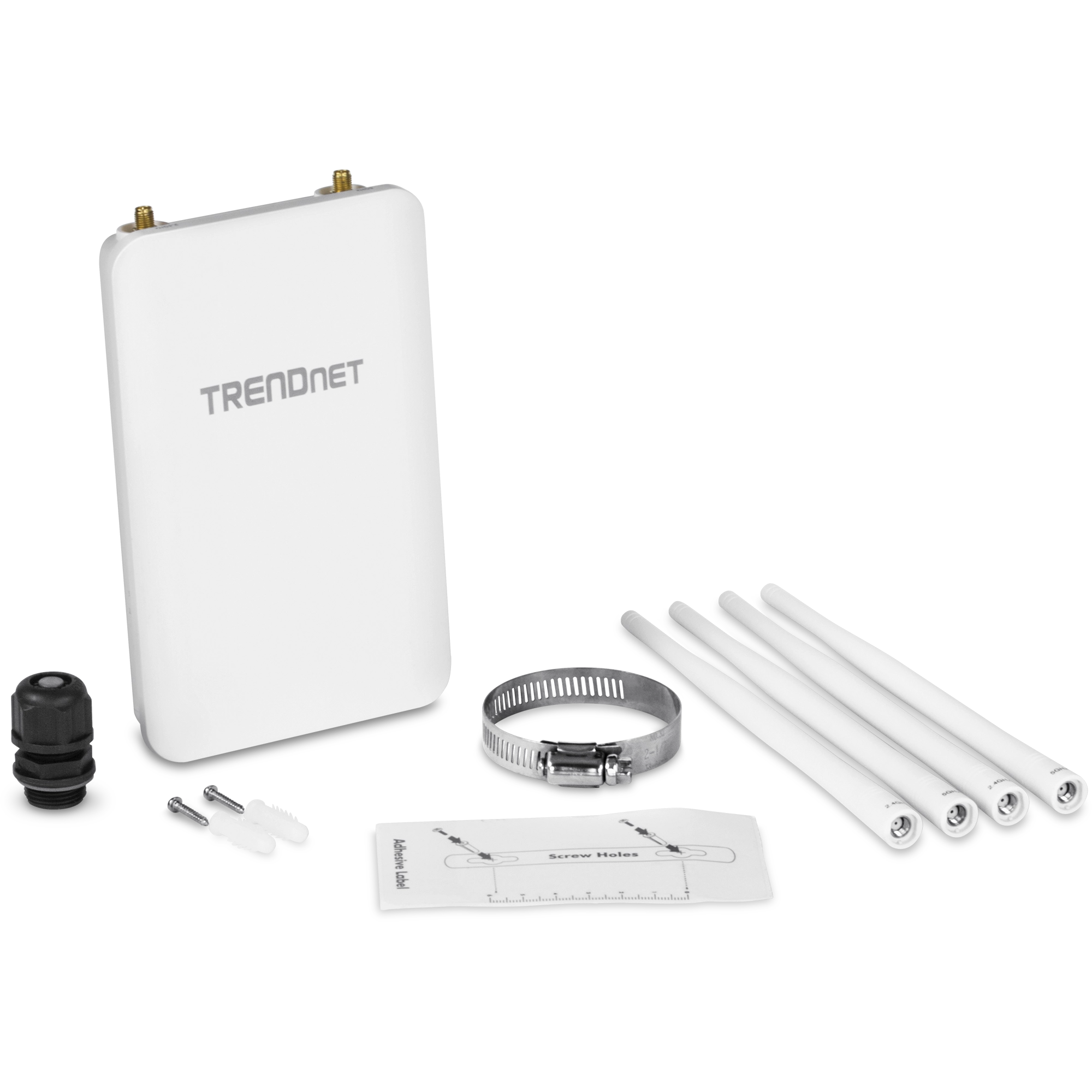

PACKAGE CONTENTS

  • TEW-841APBO
  • 2 x Detachable 2.4GHz 5 dBi antennas
  • 2 x Detachable 5GHz 5 dBi antennas
  • IP67 weather rated cable gland
  • Mounting hardware
  • Quick Installation Guide
Name
Description
Size
Downloads
File
Datasheet
0.9mb
