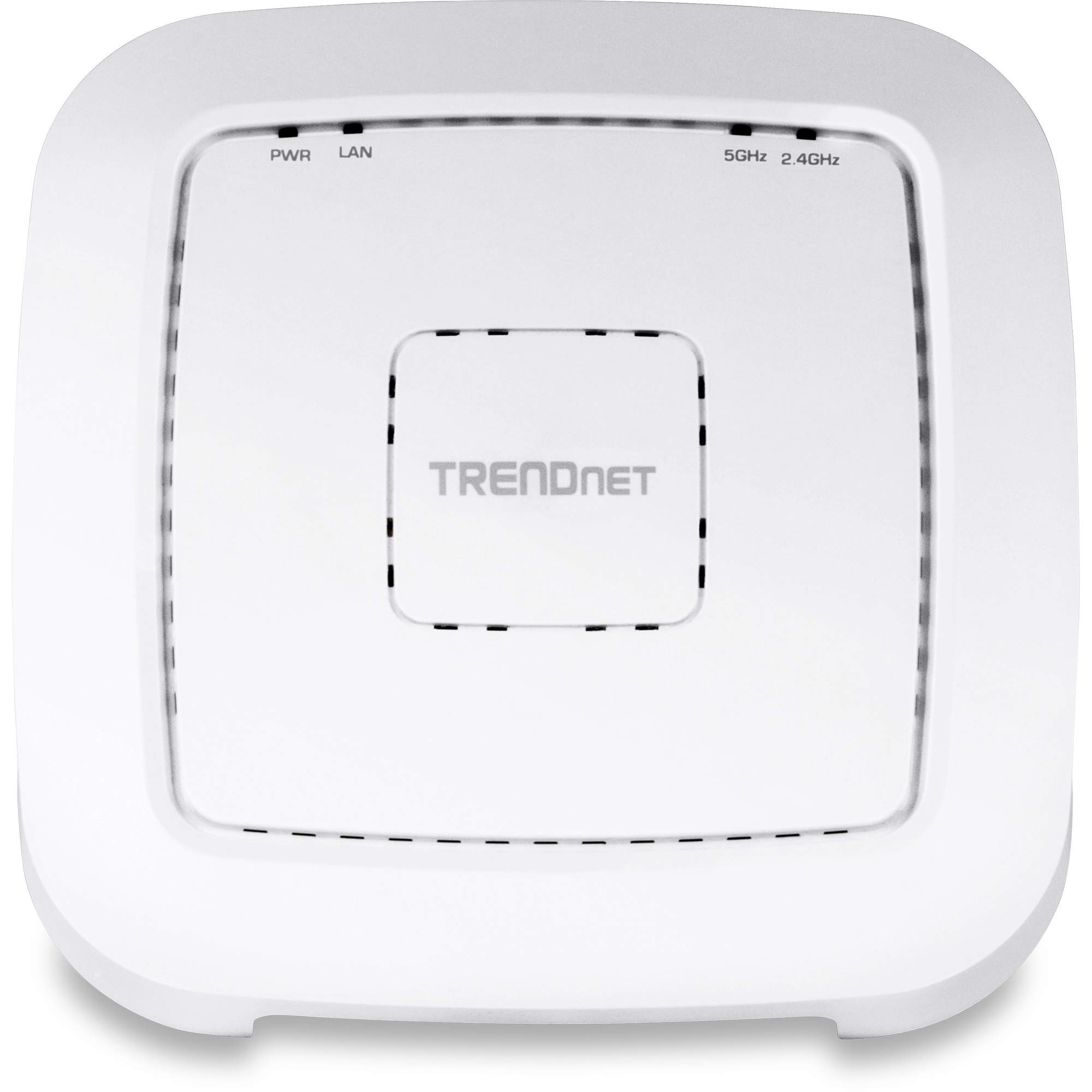

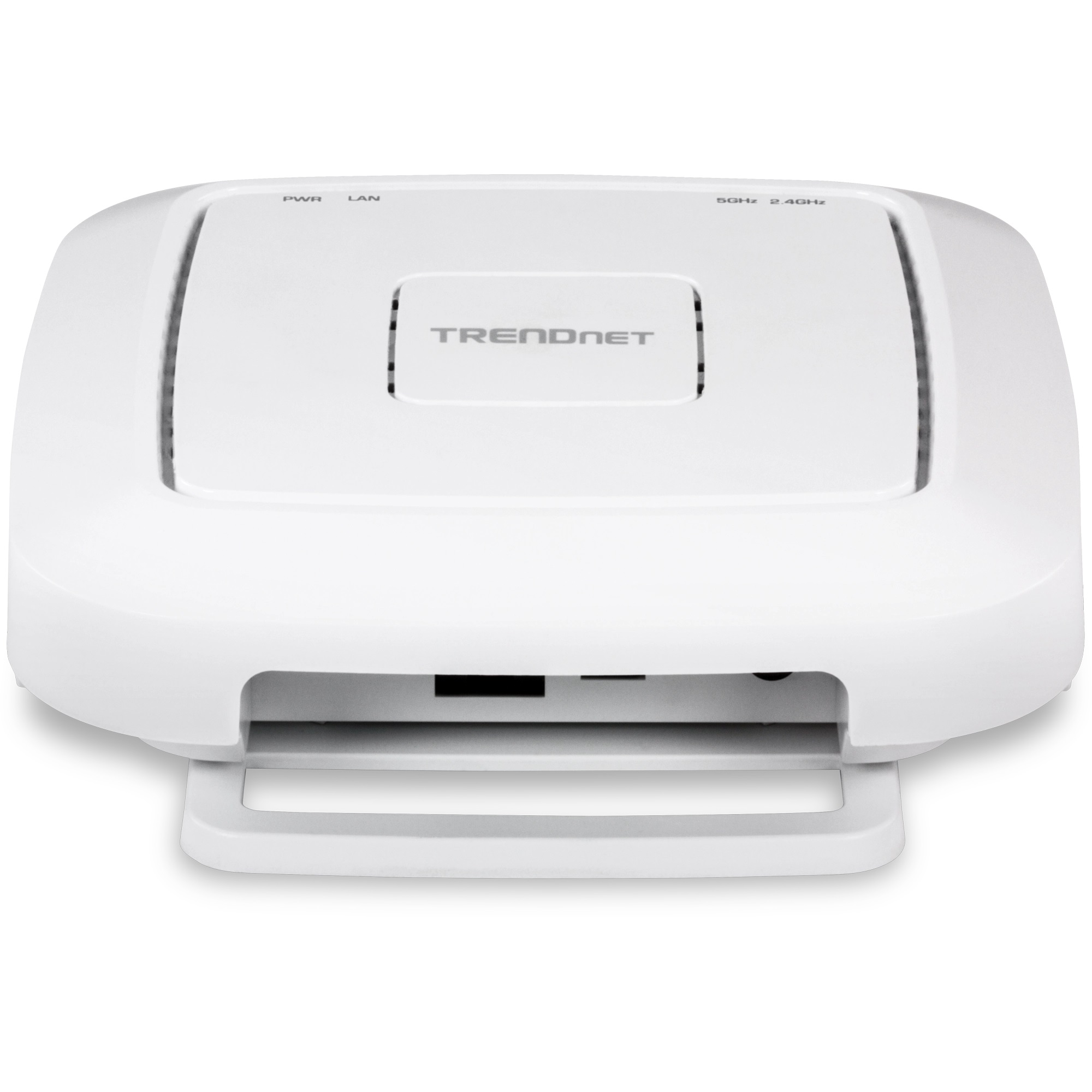

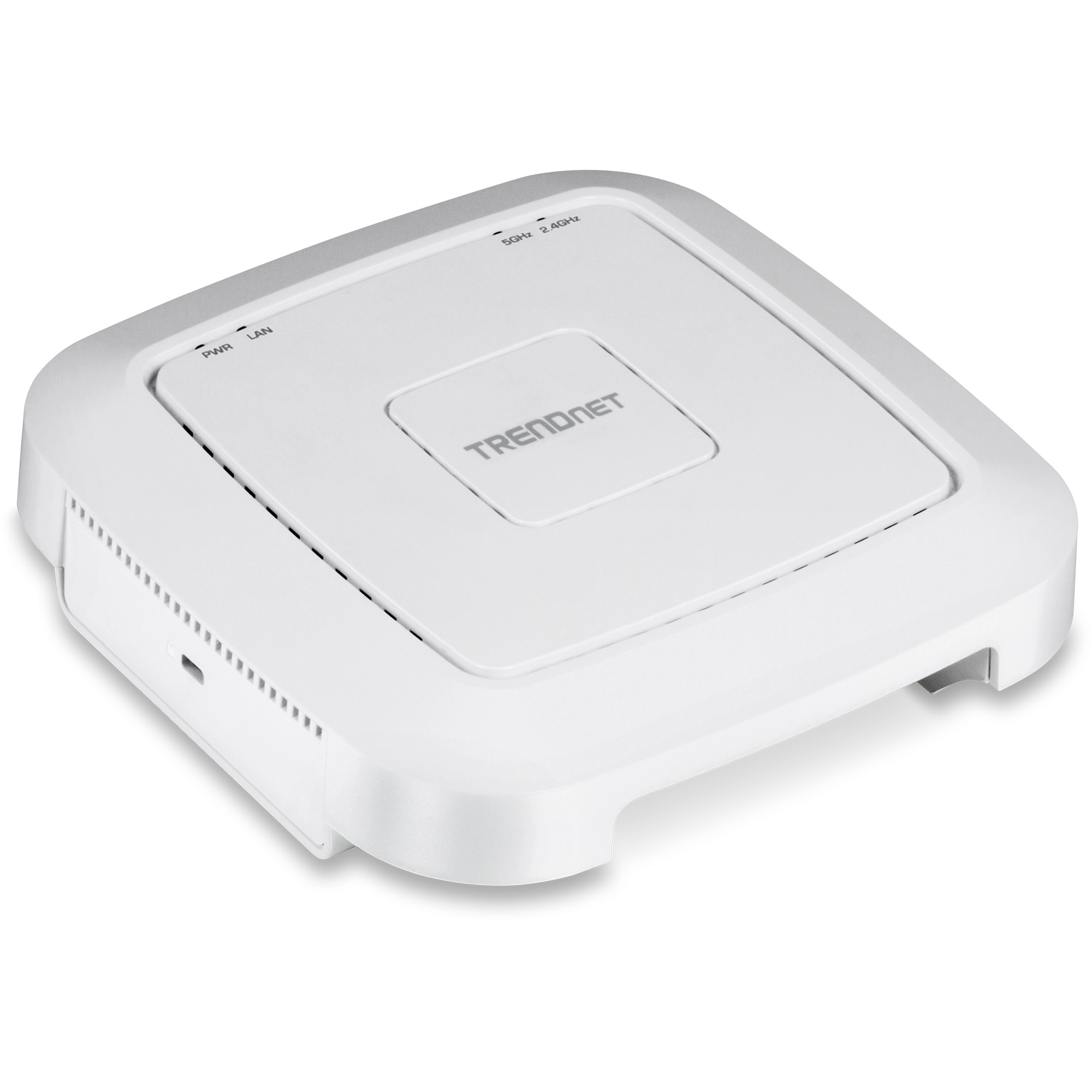

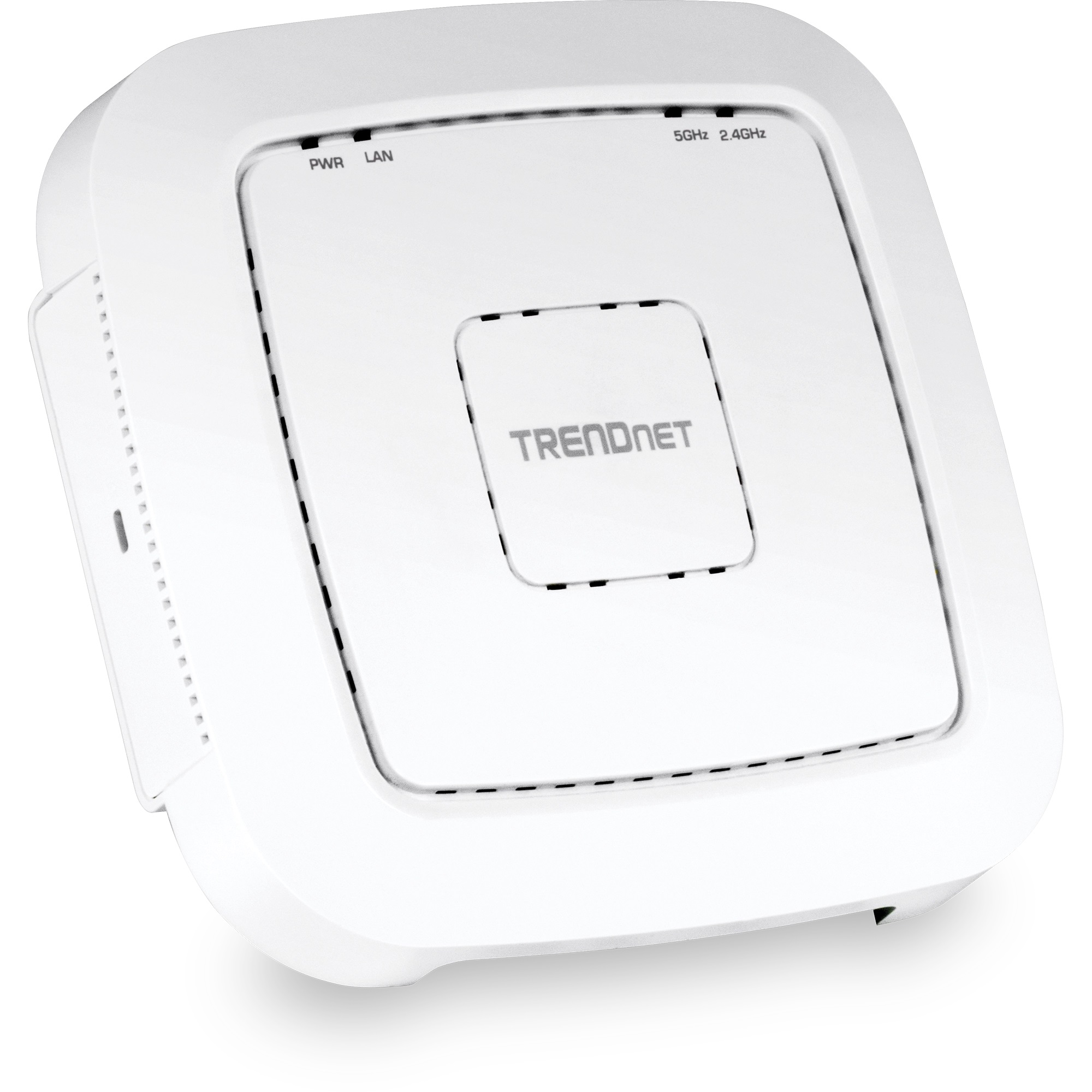

TRENDNET - TEW-821DAP (CA) - AC1200 Dual Band PoE Access Point (with software controller)
TRENDNET - TEW-821DAP (CA) - AC1200 Dual Band PoE Access Point (with software controller)
Part number:
TEW-821DAP (CA)
Price:
Dealers only
Add to Quote/Project Registration
Description Specifications Downloads

TRENDnet’s high performance AC1200 Dual Band Indoor Wireless PoE Access Point, model TEW-821DAP, supports Access Point (AP), Client Bridge, Wireless Distribution System Access Point (WDS AP), WDS Bridge, WDS Station, and Repeater modes. This wireless indoor access point generates concurrent 867Mbps WiFi AC and 300Mbps WiFi N networks. MU-MIMO technology processes multiple data streams simultaneously, increasing real-time WiFi performance when multiple devices access the network. It features advanced access control, QoS, traffic management, band steering, and captive portal support. The low-profile housing design blends into most environments and includes a convenient wall / ceiling mounting plate with cable guard.



Easily manage and configure TRENDnet’s AC1200 Dual Band WiFi 5 PoE Access Point remotely by updating the access point to the latest firmware for access to TRENDnet Hive. TRENDnet Hive is a remote network cloud manager that reduces management time and cost. No additional hardware, server, or personal cloud is required on this WiFI 5 access point with TRENDnet’s reliable cloud service.



Features:

  • High performance AC1200 PoE access point
  • Wireless AC wave 2 MU-MIMO technology boosts performance in a busy home
  • AC1200: concurrent 867Mbps WiFi AC + 300Mbps WiFi N bands
  • Access Point, Client Bridge, WDS AP, WDS Bridge, WDS Station, and Repeater modes
  • Gigabit PoE LAN port
  • Low-profile housing blends into most environments
  • Includes wall / ceiling mounting plate with cable guard
  • Captive portal for hotspot applications
  • Compatible with TRENDnet's TEW-WLC100 and TEW-WLC100P wireless controllers
  • Remote cloud management with TRENDnet Hive (Additional fee applies)
  • NDAA / TAA compliant (U.S. and Canada only)
Standards
  • IEEE 802.3
  • IEEE 802.3u
  • IEEE 802.3x
  • IEEE 802.3ab
  • IEEE 802.3af
  • IEEE 802.1Q
  • IEEE 802.11a
  • IEEE 802.11b
  • IEEE 802.11g
  • IEEE 802.11n (up to 300 Mbps)
  • IEEE 802.11ac Wave 2 (up to 867 Mbps)

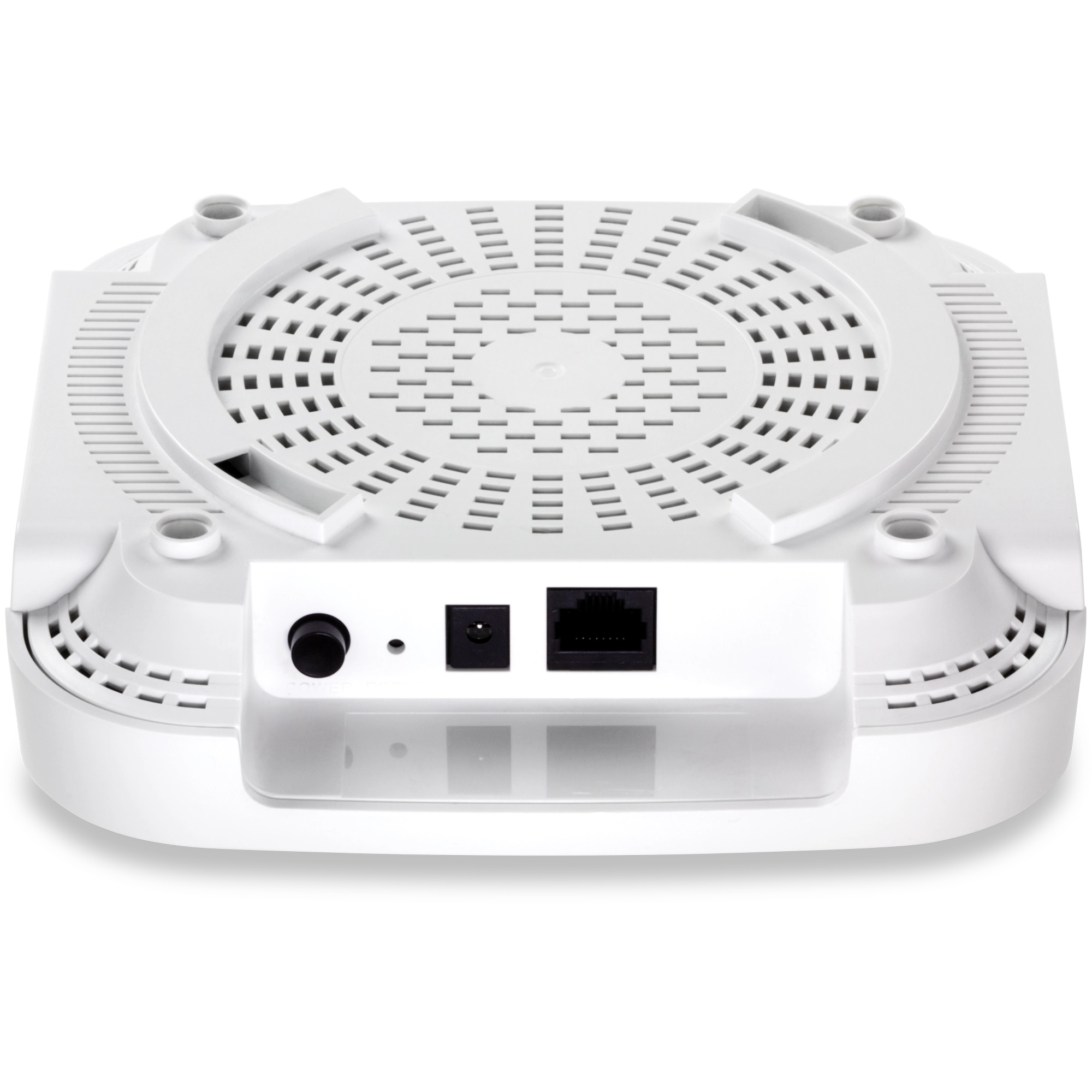

Hardware Interface
  • 1 x PoE Gigabit LAN port
  • Power port (optional non-PoE installation)
  • LED indicators

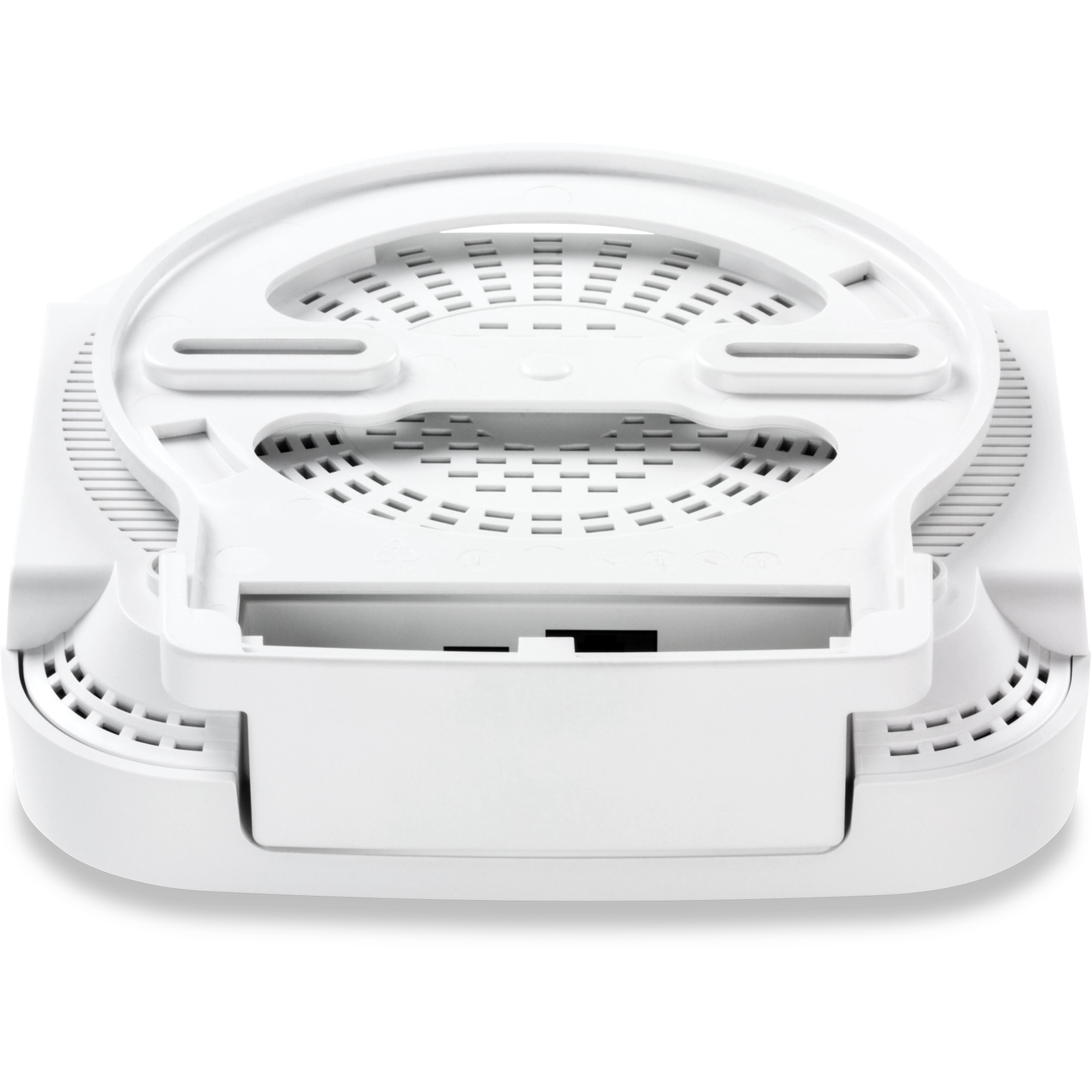

  • Mounting plate and cable guard
  • On/Off power button
  • Reset button
Features
  • 802.11ac MU-MIMO Wave 2 support
  • IP30 rated housing (with mounting plate and cable guard installed)
  • Concurrent dual band
  • Band steering
  • WiFi traffic shaping
  • 802.1Q VLAN assignment per SSID
  • IPv6 support (Link-Local, Static IPv6, Auto-Configuration (SLAAC/DHCPv6))
  • Multi-Language interface, English, French, Spanish, German, Russian
  • LEDs on/off
  • Captive Portal (external Coovachilli server authentication)
  • Internal Captive Portal (Local user account authentication and customizable portal page)
  • 802.11k intelligent radio resource management
  • RSSI Threshold (client signal strength and connectivity control)
  • Airtime Fairness
Operation Modes
  • Access Point
  • Client Bridge
  • WDS AP
  • WDS Bridge
  • WDS Station
  • Repeater
Management/Monitoring
  • Web based management
  • AP software utility
  • SNMP v1/v3
  • STP
  • Event logging
  • Ping test
  • Traceroute
  • CLI
Access Control
  • Wireless encryption: WEP, WPA/WPA2-PSK, WPA/WPA2-RADIUS
  • MAC filter
  • Maximum client limit
QoS
  • WMM
  • Bandwidth control per SSID or client
SSID
  • Up to 8 SSIDs per wireless band (16 total)
Frequency
  • 2.4GHz: 2.412 – 2.472GHz
  • 5GHz: 5.180 – 5.8525GHz
Wireless Channels
  • 2.4GHz: FCC: 1–11, ETSI: 1 – 13
  • 5GHz: FCC: 36, 40, 44, 48, 149, 153, 157, 161 and 165 ETSI: 36, 40, 44, 48 (52, 56, 60, 64, 100,104,108,112,116, 132,136,140)**
Modulation
  • DBPSK/DQPSK/CCK for DSSS technique
  • BPSK/QPSK/16-QAM/64-QAM/256-QAM for OFDM technique
Antenna Gain
  • 2.4GHz: 2 x 3 dBi internal
  • 5GHz: 2 x 4 dBi internal
Wireless Output Power
  • 802.11a: FCC: 19 dBm (max.) / CE: 19 dBm (max.) / IC: 19 dBm (max.)
  • 802.11b: FCC: 23 dBm (max.) / CE: 10 dBm (max.) / IC: 23 dBm (max.)
  • 802.11g: FCC: 19 dBm (max.) / CE: 12 dBm (max.) / IC: 19 dBm (max.)
  • 802.11n (2.4 GHz): FCC: 19 dBm (max.) / CE: 12 dBm (max.) / IC: 19 dBm (max.)
  • 802.11n (5 GHz): FCC: 19 dBm (max.) / CE: 19 dBm (max.) / IC: 19 dBm (max.)
  • 802.11ac: FCC: 18 dBm (max.) / CE: 18 dBm (max.) / IC: 18 dBm (max.)
Receiving Sensitivity
  • 802.11a: -65 dBm (typical) @ 54 Mbps
  • 802.11b: -83 dBm (typical) @ 11 Mbps
  • 802.11g: -65 dBm (typical) @ 54 Mbps
  • 802.11n (2.4 GHz): -64 dBm (typical) @ 300 Mbps
  • 802.11n (5 GHz): -61 dBm (typical) @ 300 Mbps
  • 802.11ac: -51 dBm (typical) @ 867 Mbps
Power
  • IEEE 802.3af Type 1 PoE PD Class 3
  • Input: 100 - 240V AC, 50/60Hz, Output: 12V DC, 1A external power adapter (optional)
  • Max. consumption: 8W
Operating Temperature
  • 0° – 40° C (32° – 104° F)
Operating Humidity
  • Max. 95% non-condensing
Certifications
  • CE
  • FCC
  • IC
Dimensions
  • 163 x 165 x 44mm (6.4 x 6.5 x 1.7 in.)
Weight
  • 372g (13.1 oz.)
Warranty:
  • 3 years

PACKAGE CONTENTS

  • TEW-821DAP
  • Network cable (1.5m/5 ft.)
  • Quick Installation Guide
  • Power adapter (12V DC, 1A)
  • Mounting plate and cable guard
