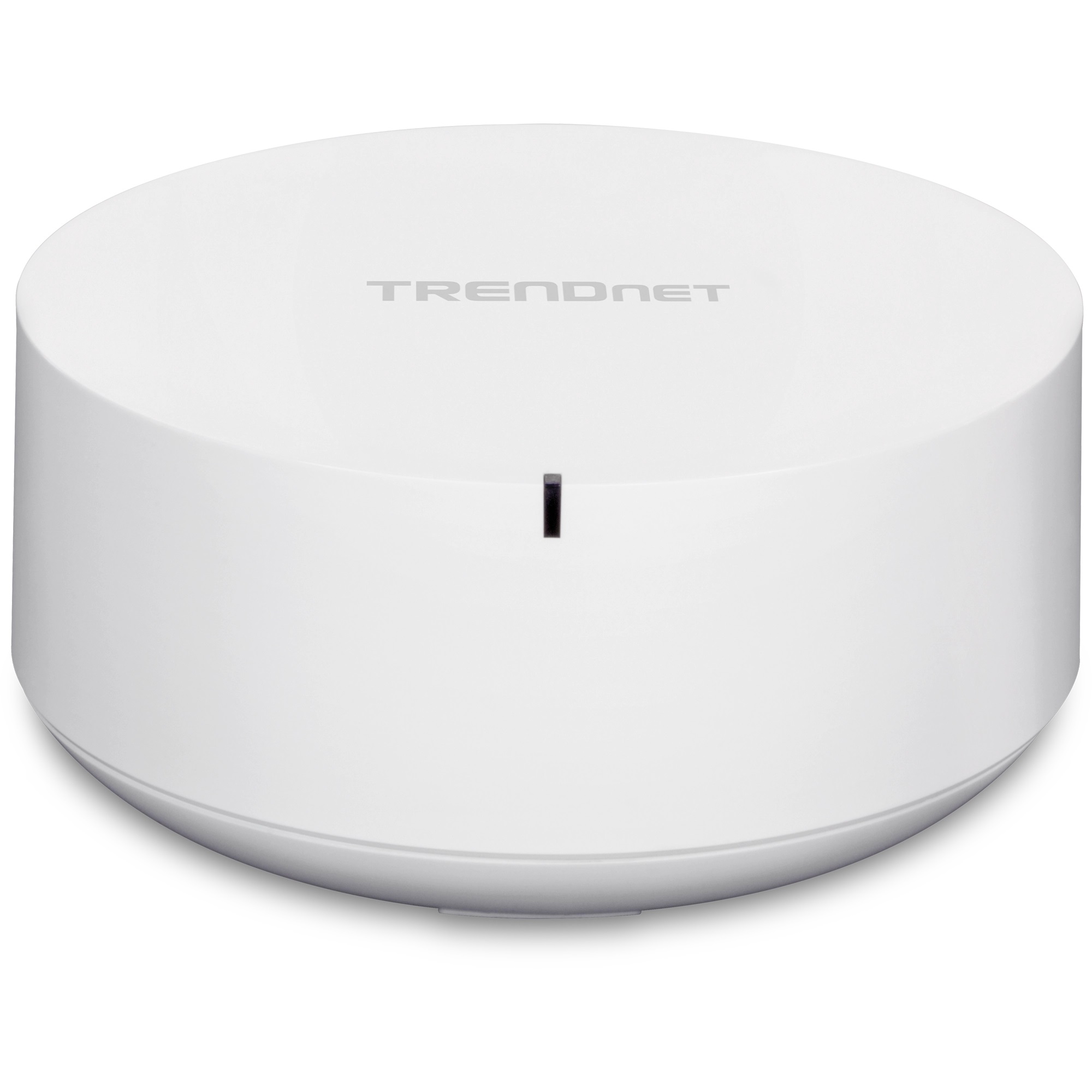

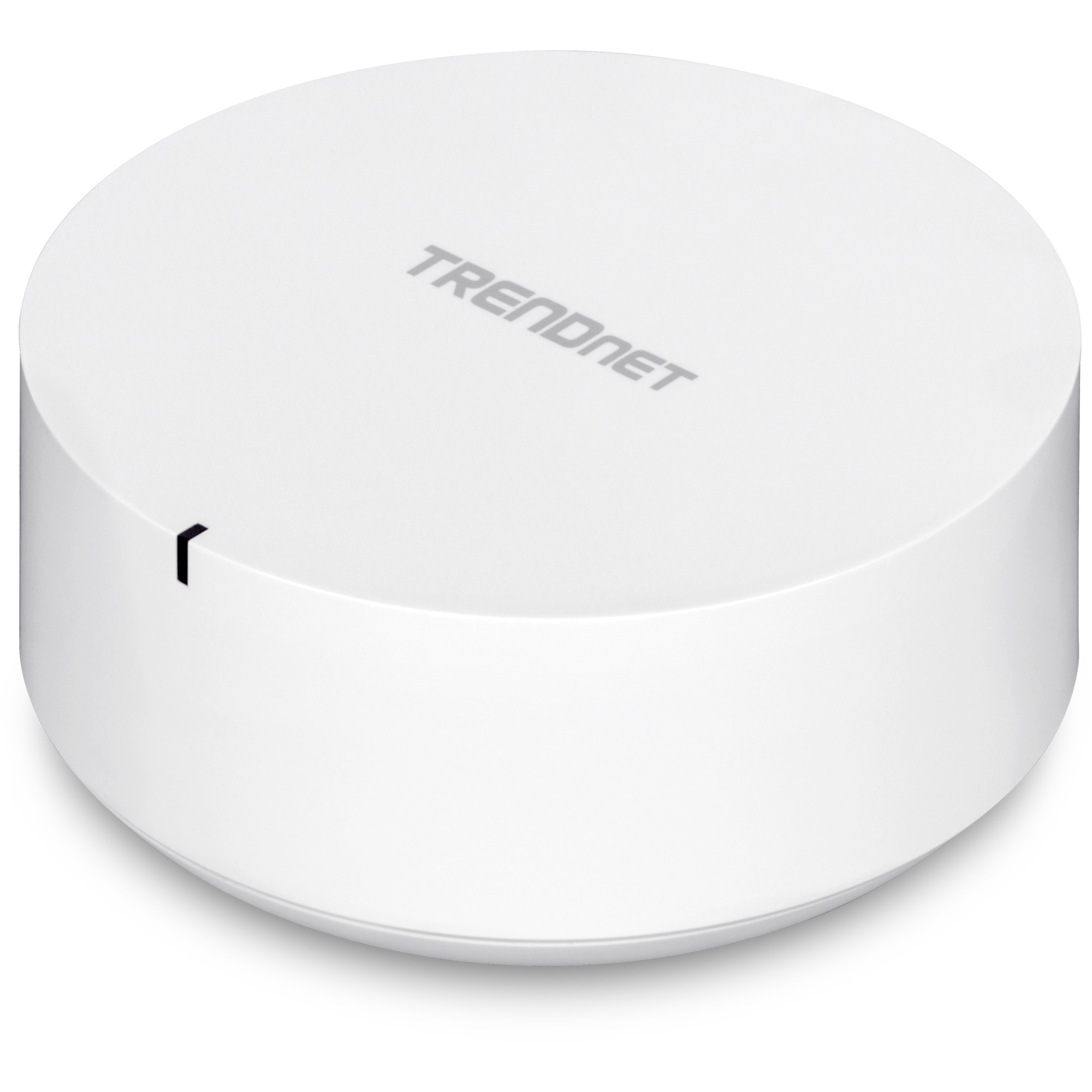

TRENDNET - TEW-830MDR-CA - AC2200 WiFi Mesh Router
TRENDNET - TEW-830MDR-CA - AC2200 WiFi Mesh Router
Part number:
TEW-830MDR-CA
Price:
Dealers only
Add to Quote/Project Registration
Description Specifications Downloads

TRENDnet's AC2200 WiFi Mesh Router System is designed to blanket your home or small office in seamless WiFi coverage. The AC2200 WiFi Mesh Router System provides ample coverage for up to a 2,000 square foot home. For larger homes, simply add additional AC2200 WiFi Mesh Routers to the system for expanded WiFi coverage.



The WiFi mesh router system uses an intuitive app-based installation process, making setup a breeze using our TRENDnet WiFi Mesh app. In minutes, you'll have your AC2200 WiFi Mesh Router System up and running providing whole home WiFi coverage.



Features:

  • AC2200: 5GHz1: 867Mbps WiFi AC | 5GHz2: 867Mbps WiFi AC | 2.4GHz: 400Mbps WiFi N
  • Includes 1 x AC2200 WiFi Mesh Router
  • Designed to replace older WiFi routers, extenders, and signal boosters
  • Intelligent WiFi mesh technology always connects users to the best WiFi Mesh Router
  • Add to existing AC2200 Mesh Router System for expanded WiFi coverage in larger home applications
  • Airtime fairness balances wireless client bandwidth resources
  • Pre-encrypted for your convenience
  • LAN/WAN IPv6 support
  • Multi-User MIMO for increased bandwidth efficiency and better user experience*
  • Seamless WiFi roaming
  • USB 3.0 port with Samba support
  • Implicit/Explicit Beamforming
  • NDAA / TAA compliant (U.S. and Canada only)
Standards
  • IEEE 802.3
  • IEEE 802.3u
  • IEEE 802.3x
  • IEEE 802.3ab
  • IEEE 802.11a
  • IEEE 802.11b
  • IEEE 802.11g
  • IEEE 802.11n (up to 400Mbps @ 256QAM)*
  • IEEE 802.11ac (5GHz1: up to 867Mbps, 5GHz2: up to 867Mbps @ 256QAM)*

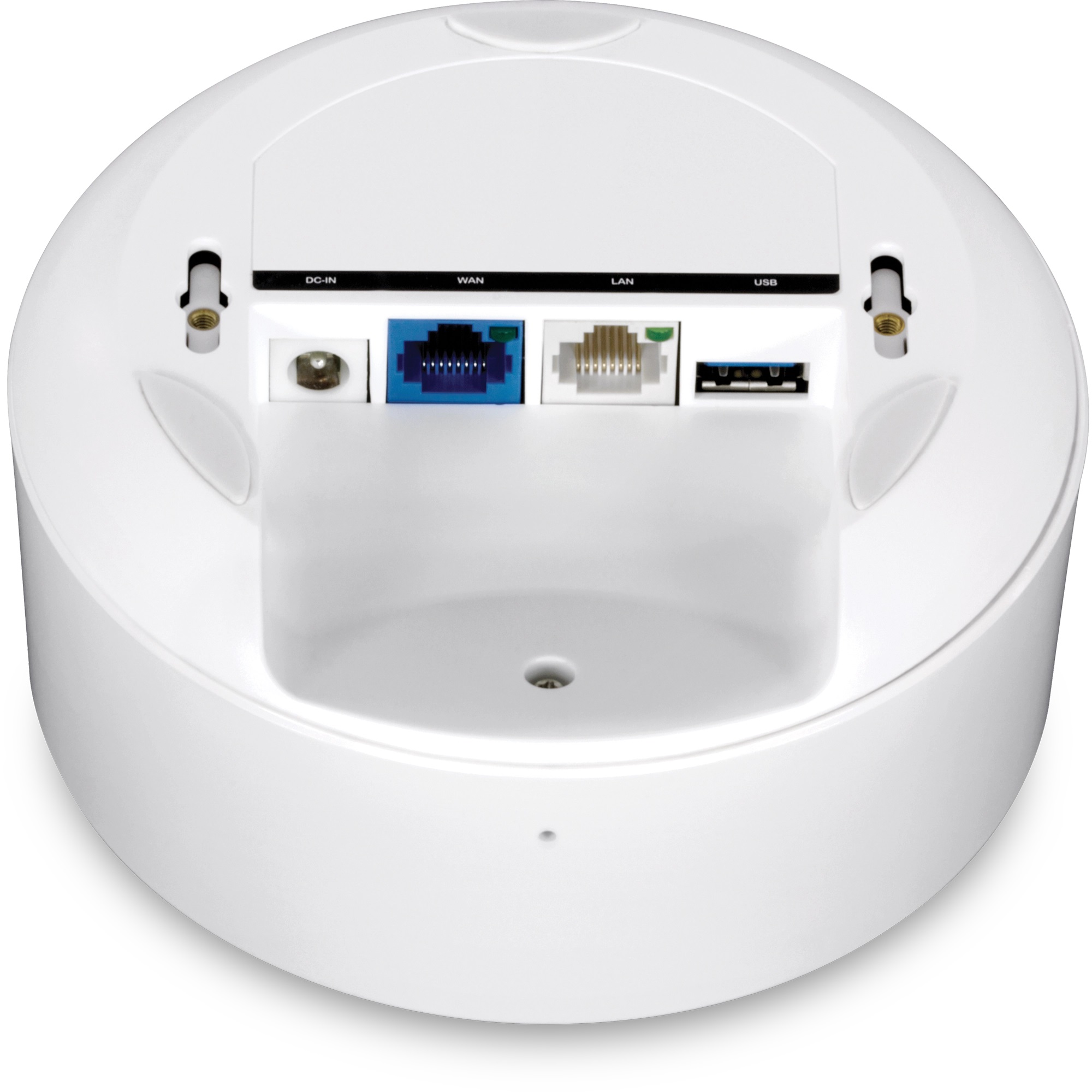

Device Interface
  • 1 x Gigabit LAN port
  • 1 x Gigabit WAN port
  • 1 x USB 3.0 (Samba)
  • Reset button
  • LED indicator
Special Features
  • Easily expand your WiFi mesh network coverage with additional TRENDnet WiFi mesh router
  • Multi-User MIMO for increased bandwidth efficiency and better user experience*
  • Seamless WiFi roaming
  • Multi-Language app interface: English, Traditional Chinese, German, Italian, Swedish, French, Spanish, Dutch
  • IPv6 support
  • Samba support
  • Implicit/Explicit Beamforming
  • Band Steering
Access Control
  • WiFi encryption: WPA/WPA2-PSK AES
  • WiFi Guest network
  • Hide WiFi Name/SSID
  • Wireless client isolation
  • NAT
  • Port forwarding
  • DMZ host
  • UPnP
  • DoS prevention
  • Allow/deny WAN ping requests
  • Parental controls (Set schedules for Internet access or filter by keyword or custom websites)
Quality of Service
  • Set client device priority (Normal/High priority)
  • WMM
Internet Connection Types
  • Dynamic IP (DHCP)
  • Static IP (Fixed)
  • PPPoE (Dynamic IP/Static IP)
  • PPTP (Dynamic IP/Static IP)
  • L2TP(Dynamic IP/Static IP)
  • IPv6 (Static, Auto-configuration (SLAAC/DHCPv6), Link-Local, PPPoE, 6rd)
Management/Monitoring
  • HTTP/HTTPS local/remote web-based management
  • Internal system logging
  • Mesh connection quality display
  • Client device list
  • Internet speed test
  • Manual or online firmware upgrade and notification
  • Backup and restore configuration
  • Internal logging
  • Restore to factory default
  • Router/Bridge operation modes
  • Static routes
Frequency
  • 2.412 - 2.472GHz
  • 5.180 – 5.825GHz
Modulation
  • 802.11b: CCK, DQPSK, DBPSK
  • 802.11a/g: OFDM with BPSK, QPSK and 16/64-QAM
  • 802.11n: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM with OFDM
  • 802.11ac: OFDM with BPSK, QPSK and 16/64/256-QAM
Media Access Protocol
  • CSMA/CA with ACK
Antenna Gain
  • 2.4GHz: 2 x 4.03 dBi (max.) / 5GHz: 4 x 5.64 dBi internal antennas
Receiving Sensitivity
  • 802.11a: -73 dBm (typical) @ 54Mbps
  • 802.11b: -90 dBm (typical) @ 11Mbps
  • 802.11g: -76 dBm (typical) @ 54Mbps
  • 802.11n (2.4GHz): -89 dBm (typical) @ 300Mbps
  • 802.11n (5GHz): -86 dBm (typical) @ 300Mbps
  • 802.11ac: -83 dBm (typical) @ 867Mbps
Wireless Channels
  • 2.4GHz: FCC: 1–11
  • 5GHz: FCC: 36, 40, 44, 48, 149, 153, 157, 161, 165
Power
  • Input: 100 – 240V AC, 50/60Hz
  • Output: 12V DC, 1.5A external power adapter
  • Max. Consumption: 15.12W
Operating Temperature
  • 0° – 40° C (32° – 104° F)
Operating Humidity
  • Max. 90% non-condensing
Certifications
  • FCC
  • IC
Dimensions
  • 126 x 126 x 60mm (4.96 x 4.96 x 2.36 in.)
Weight
  • 372g (13.1 oz.)
Warranty
  • 3 year

PACKAGE CONTENTS

  • TEW-830MDR
  • Quick Installation Guide
  • Network cable 0.5m (1.6 ft.)
  • Power adapter (12V DC, 1.5A)
  • Wall mount screws
