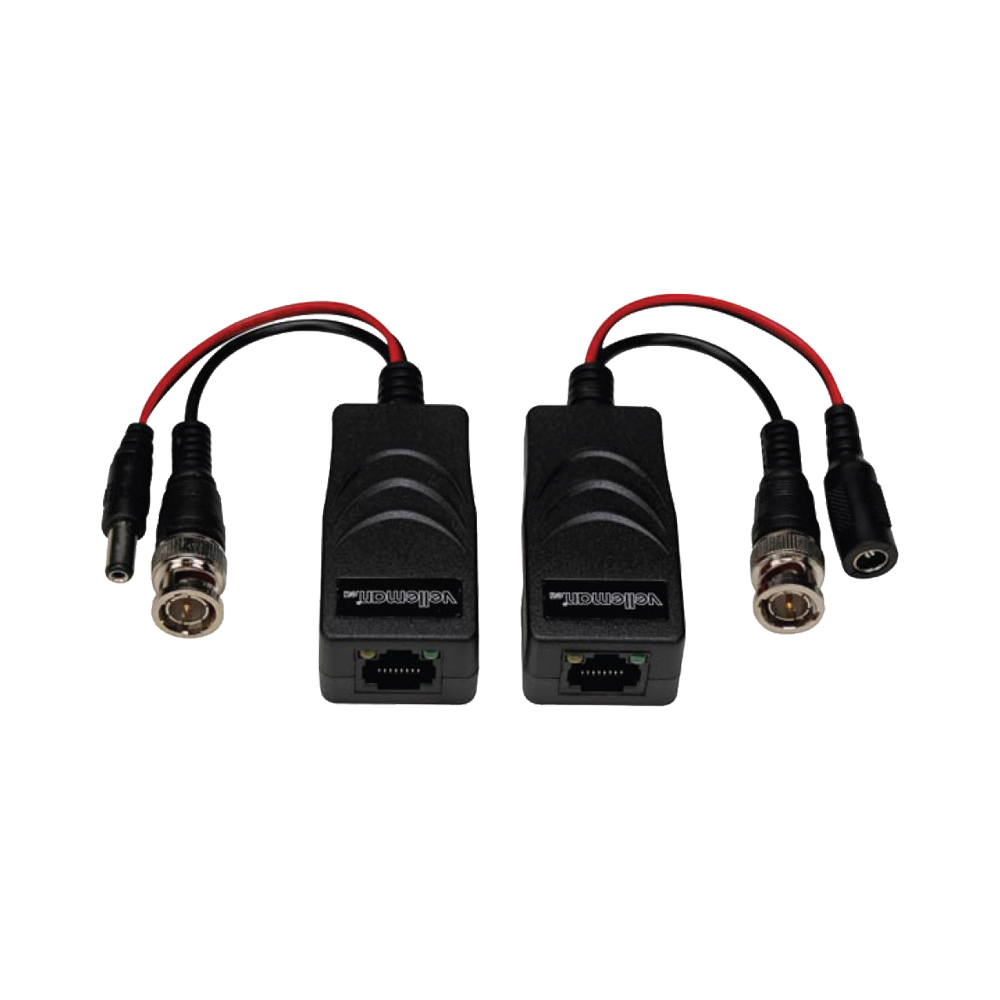

AVYCON - AVA-TVI-VP-BLN - 1 Ch. HD Hybrid balun up to 820ft on HD-TVI, HD-CVI, AHD, and Analog cameras. Transmits HD and Analog video and power, RJ45 input
Part number:
AVA-TVI-VP-BLN
Price:
The AVA-TVI-VP-BLN is a 1 Ch. HD Hybrid balun up to 820ft on HD-TVI, HD-CVI, AHD, and Analog cameras. Transmits HD and Analog video and power, RJ45 input
Features:
- 1 CH passive HD Hybrid balun up to 820ft. on HD-TVI, HD-CVI, AHD, and Analog cameras
- RJ45 connection
- Transmits HD and analog video over twisted pair (Cat5E/6E)
- Plug-and-play solution
| PROPERTIES | |
| Transmission Signal | 1 Channel |
| Transmission Distance | HD-TVI / HD-CVI / AHD Up to 250m (820ft) |
| Category Type | UTP CAT5 / 5E / 6 |
| VIDEO TRANSMISSION | |
| Coaxial Video Connector | BNC-M |
| Twisted-Pair Video Connector | RJ45 |
| Compatible Format | HD-TVI / HD-CVI / AHD / ANALOG (MAGIC) |
| Resolution | Up to 8MP HD for All Video Formats |
| Anti-Interference | >60db |
| PROTECTION | |
| TVS | Built in TVS for Surge Protection |
| Coaxial Cable Connector | 2KV(common-code) Per : IEC1000-4-5 |
| UTP Cable Connector | 2KV(different-code) 4KV(common-code) Per: IEC1000-4-5 |
Name
Description
Size
Downloads
File
Datasheet
0.5mb
