Long Distance Analog Surveillance Transmission System

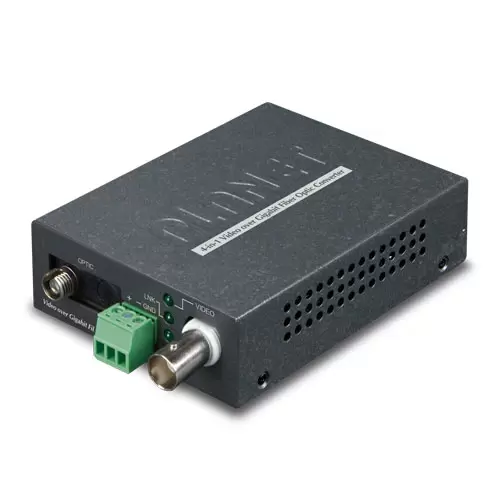

PLANET has developed the video over Gigabit fiber media converter kit, VF-102G-KIT, which is ideal for extending the distance and signal conversion by transmitting the AHD/CVI/TVI/CVBS video and data over the fiber-optic cable. Adopting the intelligent encoding/decoding technology and with the compact box, the VF-102G-KIT video over fiber media converter enables videos to be delivered in high quality at a distance of up to 20km long.
Fiber Optic Communication for Video and Serial Data

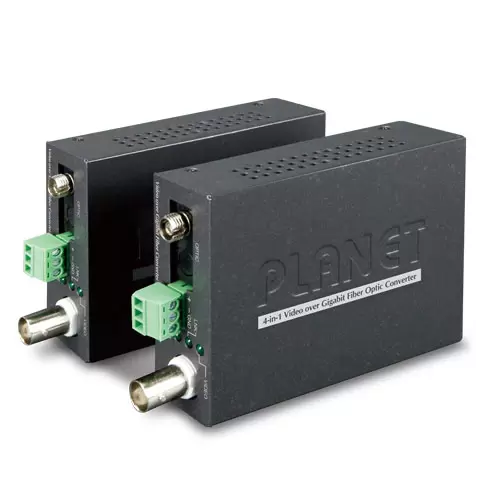

This video over gigabit fiber converter kit consists of a video transmitter and a video receiver:
- VF-102G-T: 1-channel Video over Gigabit Fiber Transmitter
- VF-102G-R: 1-channel Video over Gigabit Fiber Receiver
The VF-102G-KIT is a digital fiber-optic transmission system that brings users a cost-effective solution for transmission of 1 channel uncompressed digital video and one reverse RS485 async data over one single fiber cable. The VF-102G-KIT is an adjustable free device providing high-quality and real-time video transmission. It can be widely used in intelligent transportation systems (ITS), traffic surveillance, security monitoring, automation control, intelligent residential districts, and more.
Easy Installation
Installation of the VF-102G-KIT media conversion is quite easy with it’s simply ‘plug and play’ feature. They can be used as a stand-alone unit or as a slide-in module to the PLANET Media Converter Chassis (MC-700, MC-1500 and MC-1500R). When working with the media converter chassis it provides DC power to VF-102G-T or VF-102G-R to maintain the video over fiber-optic transmission system at the central location.
The VF-102G-KIT, video over Gigabit fiber media converter kit, is ideal for extending the distance and signal conversion by transmitting the AHD/CVI/TVI/CVBS video and data over the fiber-optic cable.
Features:
- Mode: Single Mode
- Wavelength VF-102G-T: TX: 1310nm, RX: 1550nm
- Wavelength VF-102G-R: TX: 1550nm, RX: 1310nm
- Distance: 20km
- Fiber Connection: FC
- TAA Compliant
| Video Characteristics | |||||||||||||
| Video Channel | 1 channel bi-direction | ||||||||||||
| Signal Mode | NTSC/PAL/SECAM | ||||||||||||
| Video Connector | BNC | ||||||||||||
| Supported Video Type | 1080p: AHD/TVI/CVI 480p: CVBS | ||||||||||||
| Video Input/Output Impedance | 75ohm/unbalanced interface | ||||||||||||
| Video Input/Output Voltage | 1.0 Vpp/typical peak-to-peak value | ||||||||||||
| Video Bandwidth | 60MHz | ||||||||||||
| Video Digital Bit Width | 8/10 bit | ||||||||||||
| Differential Gain (DG) | < 1.3% (typical value) | ||||||||||||
| Differential Phase (DP) | < 1.3° (typical value) | ||||||||||||
| SNR Weighted | > 67dB (typical value) | ||||||||||||
| Data Interface | |||||||||||||
| Data Channel | 1 channel | ||||||||||||
| Physical Protocol | RS485 | ||||||||||||
| Operation Mode | Simplex | ||||||||||||
| Data Connector | 3 Pin terminal block with screw clamps | ||||||||||||
| Data Rate | DC-115.2Kbps | ||||||||||||
| Bit Error Rate (BER) | < 10ns | ||||||||||||
| Optical Interface | |||||||||||||
| Optical Connector |
| ||||||||||||
| Distance | 20km for single mode | ||||||||||||
| Optical Wavelength |
| ||||||||||||
| Launch Power (dBm) | Max.: 0, Min.: -9 | ||||||||||||
| Receive Sensitivity (dBm) | -26 | ||||||||||||
| Max. Input Power (dBm) | -3 | ||||||||||||
| Cable | 9/125μm single mode cable | ||||||||||||
| Hardware Specifications | |||||||||||||
| LED Indicators |
| ||||||||||||
| Dimensions (W x D x H) | 94 x 70 x 26 mm | ||||||||||||
| Weight | 200g | ||||||||||||
| Power Requirement | 5V DC, 2A | ||||||||||||
| Power Consumption | 4.8 watts (maximum) | ||||||||||||
| Mechanical | Metal | ||||||||||||
| Installation | Wall-mountable, DIN-rail (with optional kit), chassis installation (with optional chassis) | ||||||||||||
| Compatible Converter Chassis | MC-700/MC-1500/MC-1500R | ||||||||||||
| Standards Conformance | |||||||||||||
| Regulatory Compliance | FCC, CE | ||||||||||||
| Environment | |||||||||||||
| Operating | Temperature: -25 ~ 70 degrees C Relative Humidity: 0 ~ 95% (non-condensing) | ||||||||||||
| Storage | Temperature: -30 ~ 80 degrees C Relative Humidity: 0 ~ 95% (non-condensing) | ||||||||||||
| Standard Accessories | |||||||||||||
| Packet Contents | VF-101G/102G/106G-T x 1 VF-101G/102G/106G-R x 1 User manual x 1 5V/2A power adapter x 2 | ||||||||||||
