Minuteman - ED6200RTXLMB - Endeavor Series Double Conversion, True Sine Wave, Online UPS w/ Maintenance Bypass Switch and Battery Pack, Rackmount/tower, LCD display
Part number:
ED6200RTXLMB
Price:

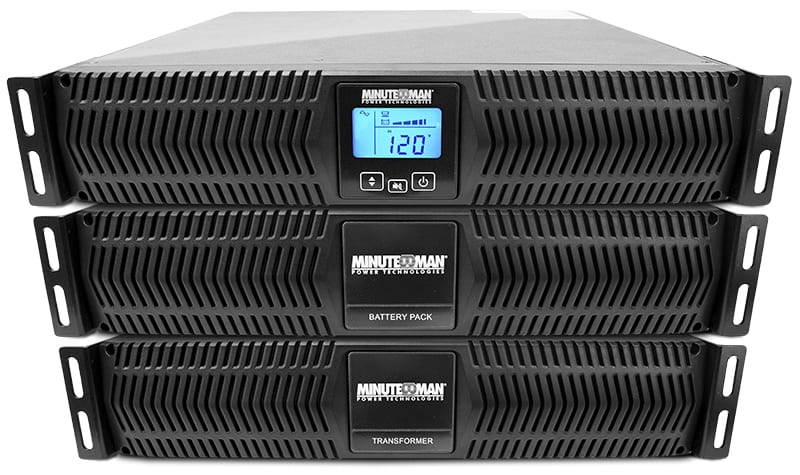

Endeavor®Series: Double conversion, true sine wave, online UPS w/ Maintenance Bypass Switch and Battery Pack, rackmount/tower, LCD display, 6000VA/5400W, 208-240V input and 208-240V output, parallelable to 12kVA, extended runtime capable, 3 min full load and 11 min half load runtime, 0.9 power factor, automatic internal bypass, Independent Battery Bypass, simultaneous communication options, SentryHD®software included, 3-year standard product warranty



Mission critical applications demand the best power quality – Endeavor 5-10kVA systems deliver it in versatile, easily configurable packages that can be tailored to your specific needs.



Endeavor 5-10kVA Series Upgraded Features:

  • User-friendly LCD Display:
    Minuteman’s familiar LCD interface provides real-time status and control of the unit
  • Easy order model numbers:
    No more individual modules for ordering
  • Expands the Endeavor product family:
    Models up to 10kVA in a rack/tower format allows paralleled systems up to 20kVA in capacity
  • Output receptacle configurations on some models:
    All dual-voltage output models will have standard receptacle configurations
  • All 5/6kVA models include an L6-30P/pigtail power cord



Electrical Characteristics :

Digital Signal Processor

  • Reduced number of components in the UPS also reduces the potential for defects or malfunctions
  • Digital Signal Processor, (DSP), combines many components into a single processor, increasing the reliability of the UPS and reducing any downtime potential
  • Helps ensure stable, quality power and long life span

High Output Power Factor

  • All models feature an output power factor of 0.9 which increases the Watt capacity of the units
  • Larger capacities in a smaller UPS VA rating can reduce the overall cost of the UPS solution for a specific load requirement

Output T.H.D.

  • Endeavor units maintain an output AC signal within 2% of a true sine wave pattern (Total Harmonic Distortion)
  • Prevents equipment damage from internal heat build up on sensitive connected equipment

Overload Capacity

  • Sudden spikes can occur when supporting IT infrastructure, industrial equipment, security installations or any electrically-driven load
  • Endeavor UPSs are designed to support such situations with the ability to absorb up to 150% of its rated load for up to 30 seconds
  • Allows the UPS to be sized for maximum capacity without worry of overload and shutdown, providing cost-savings

Independent Battery Bypass

  • An independent battery circuit allows the Endeavor UPS to operate in Normal Mode, even with weak, dead, or defective batteries
  • Endeavor UPSs monitor internal battery status at regular intervals; If the UPS detects weak or bad batteries, it will engage an audio alarm and also any preconfigured electronic notifications
  • Normal AC output will be maintained as long as utility power is supplied within the UPS’ nominal input range
  • The UPS will have a constant 120/208/240V signal and protection from any dangerous spikes or surges while allowing time to replace batteries without having to shut down connected equipment

Optional 240V Output

  • Endeavor units can be configured from the factory for use with 240V input and output applications for an additional charge
  • Include ED-240VAC with Endeavor 5-10 order for 240V configuration
  • For more information about this option, please contact your Minuteman representative



Other Features:

Minuteman Reliability for Large Applications

  • RoHS 2 Compliant:
    as defined by the EU for the reduction of hazardous substances in electrical equipment: 2011/65/EU
  • 3-yr Standard Warranty
    covering all parts and labor, as well as non-pro-rated coverage of batteries
  • 5-year Extended Warranty Plans available
  • Platinum Protection Plan
    Insures properly connected equipment up to $200,000 (Continental U.S. and Canada only)



Key features include:

  • True double-conversion online technology:
    Maximum protection for critical equipment
  • Digital Signal Processor Design
    Higher reliability through reduced number of components used in the UPS
  • Higher power factors (0.9pf)
    Increases the real power capacity of each individual model
  • 120VAC/208VAC models with standard receptacles
    Provides flexibility for support of multiple voltages used on connected loads
  • Real-time LCD status display
    See power and unit status, estimated runtime, and more in real time
  • Parallelable to 20kVA
    Scalable capacity to grow with the customer’s loads
  • 240V input/output configuration optional
    Units can be configured for 240V power for an additional charge
  • Automatic Internal Bypass
    The UPS will sound an alarm and go to bypass mode when an internal fault, (either hardware or battery), is detected
  • Independent Battery Bypass
    The unit can operate as a voltage regulator, even with dead or defective batteries
  • Smart Fan Control
    Variable speed fan control maximizes the cooling of the UPS while maintaining optimum efficiency
  • Cold Start Function
    Start UPS even without utility power
  • Simultaneous Communication Options
    Greater flexibility in the management and monitoring of the UPS system
Model - 208/240V Output Only (120V Capable)ED6200RTXLMB
Maximum Power Capacity6000VA / 5400W (5556VA / 5000W)
TopologyDouble Conversion Online, True Sine Wave
Input Plug TypeHardwire Only (Hardwire / L6-30P/pigtail cord included)
Output Outlet Type(6 - NEMA 5-15/20R, 1 - L6-20R, 1-L6-30R)
Input
Single (1Φ 2W + G)
Nominal Voltage208VAC
Acceptable Input Voltage0 - 300VAC
Voltage Range156 - 280VAC
Power Factor Correction=99% at Full Load
Frequency Limits40 to 70Hz at Full Load
Low Voltage Transfer Point156/180 resets to Utility Power at 166/190VAC or higher
High Voltage Transfer Point280VAC resets to Utility Power at 270VAC or lower
Input ProtectionResettable Circuit Breaker
Output: Online
Voltage Range208VAC: 204 - 212VAC
Voltage RegulationNominal +/-2%
Frequency Range50/60Hz, auto sensing, +/-00.1Hz (unless synchronized to utility)
Efficiency (On-Line Mode)>90% (Full Load)
Output: Battery
Waveform TypeTrue Sine Wave
Nominal VoltageDefault: 208VAC, User-selectable:220/230/240VAC
Voltage RegulationNominal +/-2% (until Low Battery warning)
Frequency50/60Hz, +/-0.1Hz
Votlage T.H.D.=2% (Linear Load)
Dynamic Response+/-5% @ 100% Load change in 30ms
Transfer Time0 ms
Slew Rate=1Hz / second
Crest Factor3 : 1
Overload Capacity=106% - =110% for 10 minutes / =111% - =125% for 5 minutes / =126% - =150% for 30 seconds
Battery
System Voltage192VDC
Runtime: Half Load (minutes)11
Runtime: Full Load (minutes)3
Surge Protection
Surge Energy Rating1050J
Surge Current Capability6500 Amps total
Surge Response Time1.2µs normal mode; <50µs common mode
Surge voltage let-through (as a percentage of an applied ANSI C62.41 Cat. B +/-4kV)<10%
Noise Filternormal and common mode EMI/RFI suppression
Audible Noise at 1m (3 ft.)<60dBA
Environmental
Operating Temperature (max)0 to +40°C (+32 to +104°F)
Storage Temperature-15 to +50°C (+5 to +122°F)
Operating/Storage Humidity0 ~ 95% Non-Condensing
Operating Elevation0 to 2,000m (0 to +6,562 ft.)
Storage Elevation0 to 15,000m (0 to +49,213 ft.)
Surge Protection and Filtering
Surge Energy Rating (Joules)140J
Surge Protection
Safety and ApprovalscTUVus (Conforms to UL1778 4th Edition & CSA 22.2 no. 107.3-05), RoHS 2 Certified
EMC VerificationFCC Class B, CE Certified
Warranty - Platinum ProtectionThree-years parts, labor, and battery (non-prorated); 5-year extended plans available - $200,000
