Planet - LRP-101CE - 1-Port 10/100TX POE PSE + 1-Port Coax Long Reach POE Extender, -20 to 70 Degree C

Product Overview

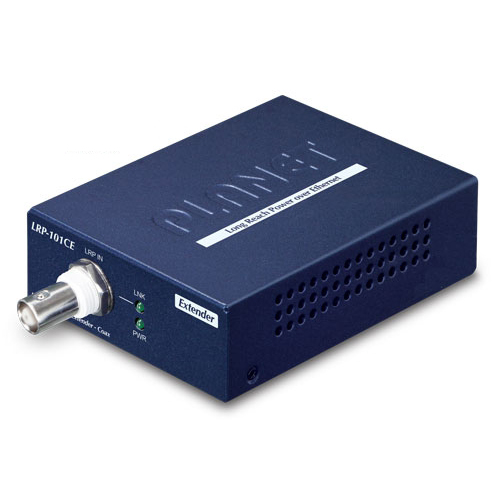

The Planet LRP-101CE is a long-reach PoE+ extender that carries data and power over existing coaxial cabling up to 1,000m when used with compatible LRP injectors or switches. It provides a 10/100BASE-TX PoE output up to 25W for IP devices and uses a BNC interface for coax transmission, with AES encryption and OFDM technology ensuring stable and secure long-distance performance.

Key Configuration

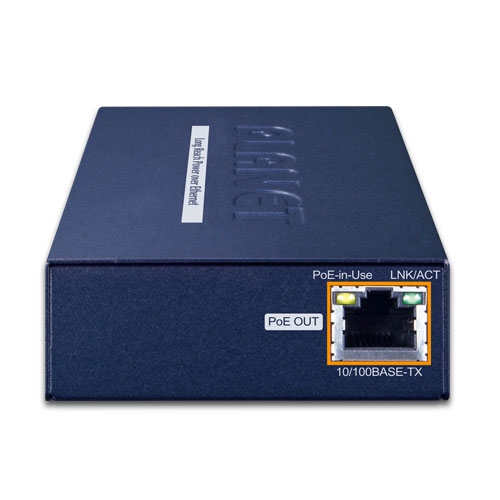

• Copper port: 1 × 10/100BASE-TX RJ45 (auto-MDI/MDI-X, PoE PSE output).

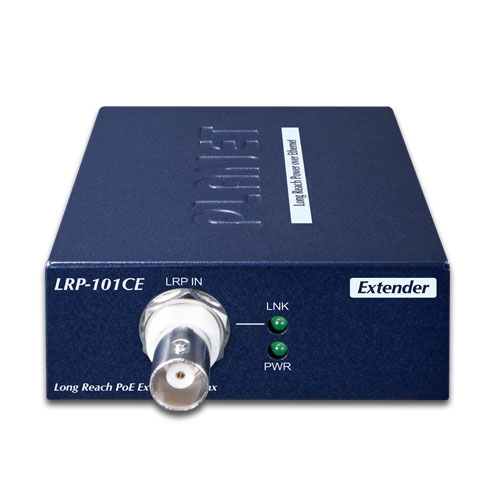

• Long Reach port: 1 × BNC female (75Ω coax, RG-6/U or RG-59/U).
• PoE output: 48–56V DC, up to 25W (802.3at/af End-span, pins 1/2+, 3/6-).
• Power input: 44–56V DC via coax (center +, shield -).
• Distance: up to 200m with PoE+, 600m with PoE, 1200m data only.
• Tech: IEEE 1901 Wavelet-OFDM with 128-bit AES encryption.
• Dimensions: 94 × 70 × 26 mm; weight: 375g.

Key Features

Extends PoE + Ethernet over existing coax for CCTV-to-IP migration without rewiring. Supports long-reach operation up to ~1km and daisy-chaining via BNC T-connectors for multi-device setups. Designed for the Planet LRP system with plug-and-play deployment and rugged metal housing for industrial/outdoor use.

Technical Context

Works as part of a Long Reach PoE solution, delivering data and power over coax from a central LRP injector. Performance and PoE power scale with distance, enabling flexible deployment of IP cameras or APs over legacy cabling. AES encryption secures transmission across long distances.

Installation Notes

Compact RJ45 + BNC unit powered via LRP coax input (44–56V DC). Uses 75Ω RG-6/RG-59 cable and supports 802.3af/at PoE output. Operating range ~-20°C to 70°C with LED status indicators. Compatible only with Planet LRP series.
