Gigabit PoE Extender
PoE Solution for Breaking RJ45 100m Limitation
PLANET POE-E202 is a 1-port PoE+ to 2-port 802.3af/at Gigabit PoE Extender designed especially for point to multipoint PoE application. The POE-E202 can obtain a maximum of 30-watts PoE power from PoE+ input port. The two PoE output ports supply a maximum of 25-watts PoE power budget. The POE-E202 can extend both the Gigabit Ethernet Data and IEEE 802.3at/802.3af Power over Ethernet over the standard 100m (328 ft.) Cat. 5/5e/6 UTP cable. The unit will extend up to two 200m powered devices at the same time.
The POE-E202 provides a simple solution for adding PoE ports without running more cabling and achieves more flexible network applications without requiring an external power adapter.
Plug and Play Installation

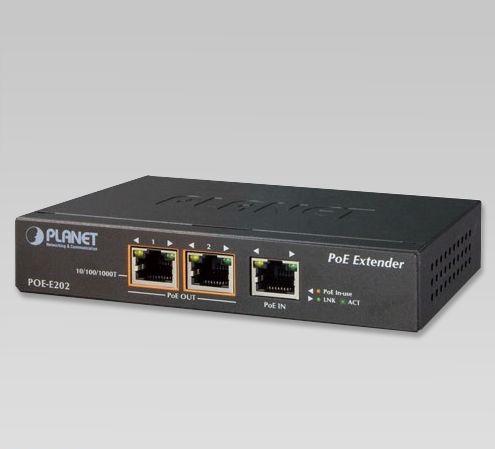

The POE-E202’s simple plug and play design can use either a power source equipment (PSE) or a powered device (PD). The POE-E202 injects power to the PD without affecting the data transmission performance. The POE-E202 offers a cost-effective and quick solution to doubling the standard range of PoE from 100 to 200 meters. The POE-E202 is designed in a compact box containing three RJ45 ports; one “PoE IN” port functioning as PoE (Data and Power) input and the other two “PoE OUT” ports functioning as PoE output. The “PoE OUT” port is also the power injector that transmits DC voltage over the Cat5/5e/6 cable and transfers data and power simultaneously between the PSE and PD.
The POE-E202 is a 1-port PoE+ to 2-port 802.3af/at Gigabit PoE Extender designed especially for point to multipoint PoE application.
Features:
- Network Connector: 10/100/1000TX
- Type: End-span/Mid-span
- Standard: 802.3af/at
- Max PoE Power:
- PoE-In: 52~56V DC, 30.8W
- PoE-Out: 44~55V DC, 25W
- Operating Temperature: 0 to 50°C
- TAA Compliant
| Interfaces | |
| PoE IN | 1 x 10/100/1000BASE-T Ethernet with IEEE 802.3at PoE “Data + DC power” in auto MDI/MDI-X, auto-negotiation RJ45 connector |
| PoE OUT | 2 x 10/100/1000BASE-T Ethernet with IEEE 802.3at/802.3af PoE “Data + DC power” out auto MDI/MDI-X, auto-negotiation RJ45 connector |
| Power over Ethernet | |
| PoE Standard | “PoE In” Port IEEE 802.3at Power over Ethernet Plus end-span/mid-span PD class 4 PD Per “PoE Out” Port IEEE 802.3at Power over Ethernet Plus end-span PSE IEEE 802.3af Power over Ethernet end-span PSE |
| PoE Power Supply Type | End-span (Type A) |
| PoE Power | PoE In” Port 52~56V DC, max. 30.8 watts Per “PoE Out” Port 44~55V DC, max. 25 watts |
| Power Pin Assignment | “PoE In” Port 1/2 (+), 3/6 (-); 4/5 (+), 7/8 (-) Per “PoE Out” Port 1/2 (+), 3/6 (-) |
| Hardware Specifications | |
| Data Rate | 10/100/1000Mbps |
| MAC Address Table | 2K |
| Data Buffer | 2Mbits |
| Switch Architecture | Store-and-Forward |
| Switch Fabric | 6Gbps |
| Switch Throughput | 4.46Mpps @ 64 bytes |
| Jumbo Frame | 10KB |
| Flow Control | IEEE 802.3x pause frame for full duplex Back pressure for half duplex |
| LED Indicators | “PoE In” Port: PoE-in-Use x 1 (Orange), LNK/ACT x 1 (Green) “PoE Out” Port 1: PoE-in-Use x 1 (Orange), LNK/ACT x 1 (Green) “PoE Out” Port 2: PoE-in-Use x 1 (Orange), LNK/ACT x 1 (Green) |
| Protection | ESD (Ethernet): 2KV (TBD) Surge (EFT for power) : 2KV (TBD) |
| Enclosure | Metal |
| Installation | Wall mountable |
| Dimensions (W x D x H) | 140 x 77 x 28 mm |
| Weight | 234g |
| Power Requirements | IEEE 802.3at compliant with voltage within 52V-56V DC |
| Power Consumption | 1.6 watts/5.5BTU (System on with PoE input) 2.2 watts/7.5BTU (Ethernet full loading without PoE function) 36 watts/122.8BTU (Full loading with PoE function) |
| Network Cable | 10BASE-T: 4-pair UTP Cat. 5 up to 100m (328ft) 100BASE-TX: 4-pair UTP Cat. 5 up to 100m (328ft) 1000BASE-T: 4-pair UTP Cat. 5e, 6, up to 100m (328ft) EIA/TIA-568 100-ohm STP (100m, 328ft) |
| Standard Conformance | |
| Regulatory Compliance | FCC Part 15 Class A, CE |
| Standard Compliance | IEEE 802.3 10BASE-T Ethernet IEEE 802.3u 100BASE-TX Fast Ethernet IEEE 802.3ab 1000BASE-T Gigabit Ethernet IEEE 802.3af Power over Ethernet IEEE 802.3at Power over Ethernet Plus IEEE 802.3x Flow Control |
| Environment | |
| Operating | Temperature: 0 ~ 50 degrees C Relative Humidity: 5 ~ 95% (non-condensing) |
| Storage | Temperature: -10 ~ 70 degrees C Relative Humidity: 5 ~ 95% (non-condensing) |
