Planet - LRP-101UH - 1-Port Long Reach POE over UTP Injector, -20 to 70 Degree C, up to 500 Meter

Product Overview

The Planet LRP-101UH is a 1-port Long Reach PoE injector extending power and data over UTP cable up to 500m (1,640ft) when paired with LRP-101UE, delivering up to 25W PoE output to 802.3af/at PDs. Features 10/100BASE-TX RJ45 with PoE PD input (48-56V DC), IEEE 1901 Wavelet-OFDM modulation, 128-bit AES encryption, and metal enclosure with -20°C to 70°C operating temperature.

Key Configuration

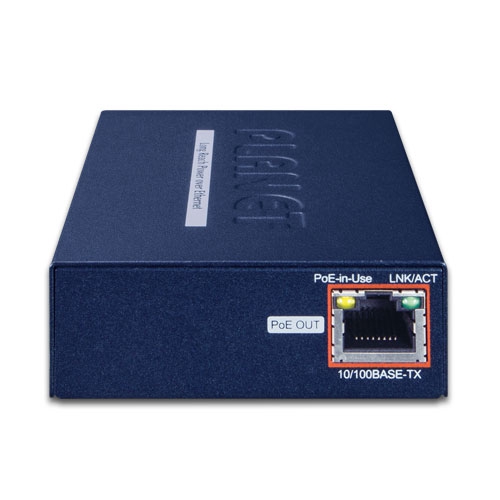

• PoE input: RJ45, 10/100BASE-TX, 802.3at/af PD, 48-56V DC (End-span or Mid-span)

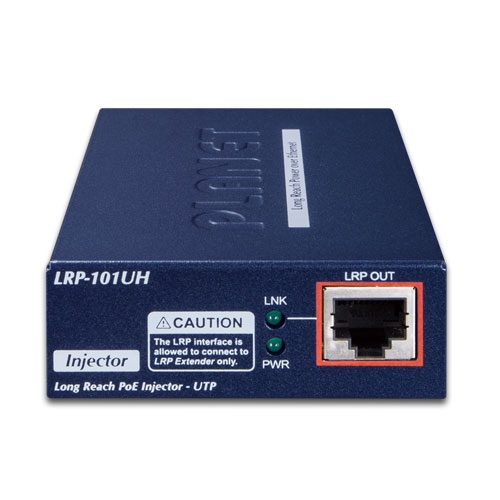

• Long Reach output: 1 × RJ45 connector, PoE PSE, 41-56V DC (pins 1,3,5,7 VCC+; 2,4,6,8 VCC-)
• Maximum distance: 500m with PoE output, 1000m without PoE
• PoE output capability: up to 30W at 100-300m, 18W at 500m (with 56V DC input)
• Long Reach standard: IEEE 1901, Wavelet-OFDM, 128-bit AES, 2-28 MHz
• Dimensions: 94 × 70 × 26 mm; weight: 193g

Key Features

This TAA-compliant central-side injector utilizes IEEE 1901 Wavelet-OFDM modulation and 128-bit AES encryption to transmit data and power over long-reach links. It delivers symmetric upload/download rates of 94/94 Mbps at 100m and 30/30 Mbps at 500m using 1-pair UTP structures, such as Cat3/4 or legacy telephone wire. The hardware features 4KV DC ESD protection paired with a 2KV Electrical Fast Transient (EFT) defense rating.

Technical Context

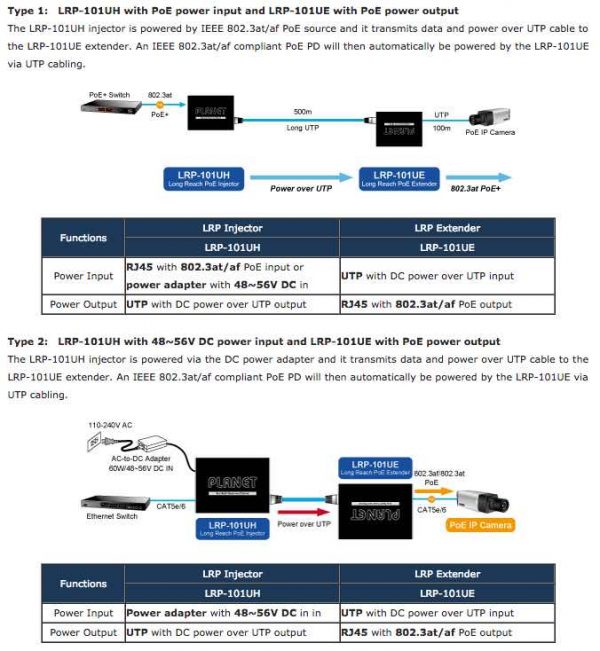

Designed to act as the head-end master node, this device pairs across the line with a separate LRP-101UE remote extender. It accepts dual-source power inputs via an RJ45 connection from an upstream 802.3af/at switch or an external 48–56V DC line. When driven by a 56V input, it supplies a 30W PoE threshold between 100–300m, which drops to an 18W ceiling at 500m, or transitions into a data-only connection stretching up to 1000m.

Installation Notes

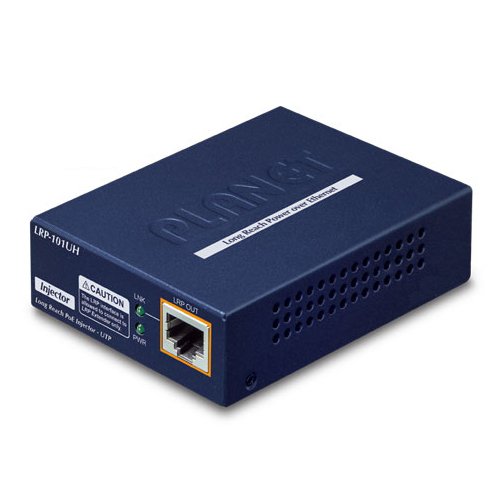

Weighing 193g (0.43 lb) and measuring 94 × 70 × 26 mm, the compact metal housing supports wall mounting or optional DIN-rail deployment. It operates from -20°C to 70°C (5–95% non-condensing humidity) and tolerates storage environments from -40°C to 75°C. Diagnostics are handled via a 4-LED green array tracking Power (PWR), Long Reach PoE Link (LRP LNK), PoE Input Status (PoE IN), and Ethernet Activity (LNK/ACT).
