TRENDNET - TU-S9E - 1-Port Serial to IP Ethernet Converter
Part number:
TU-S9E
Price:

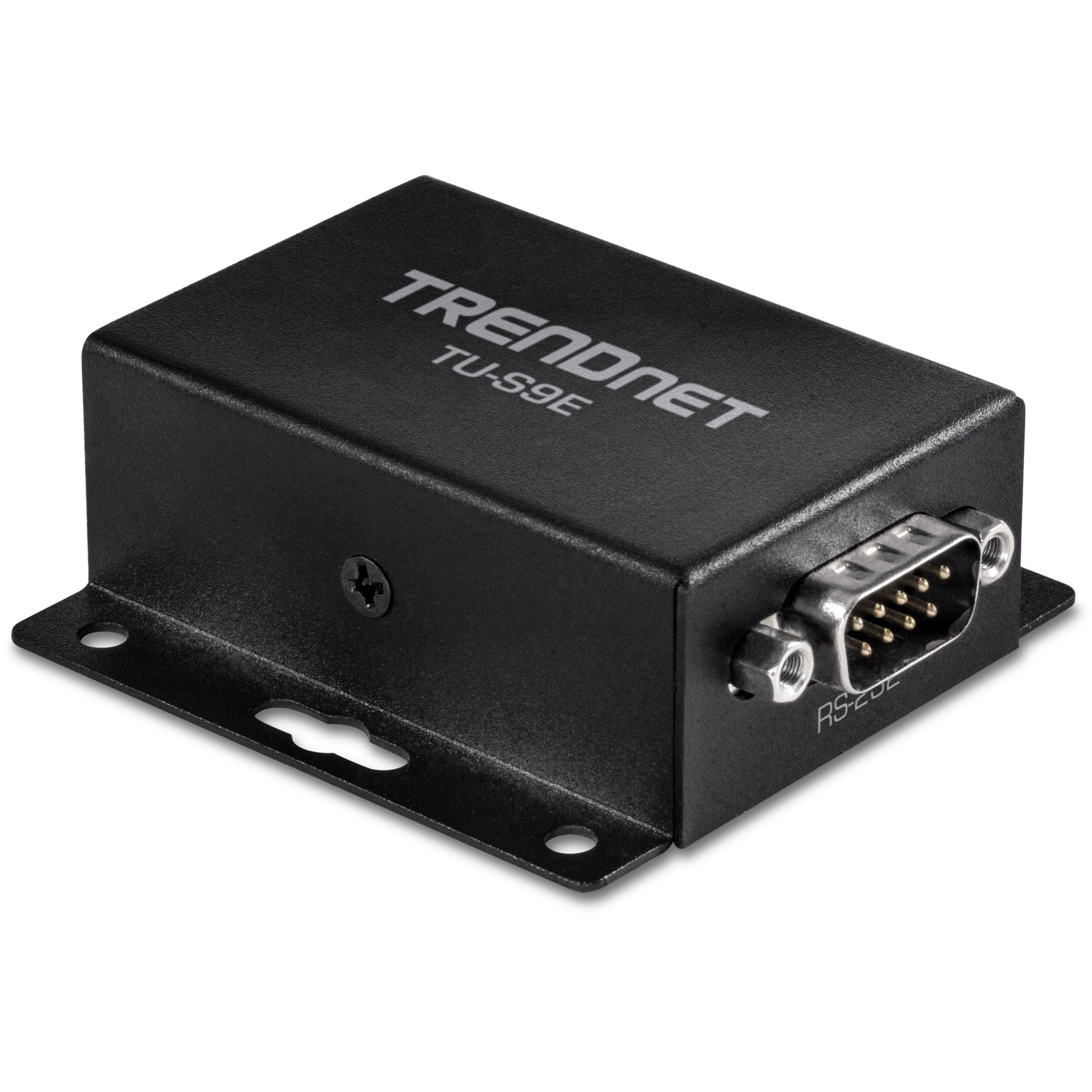

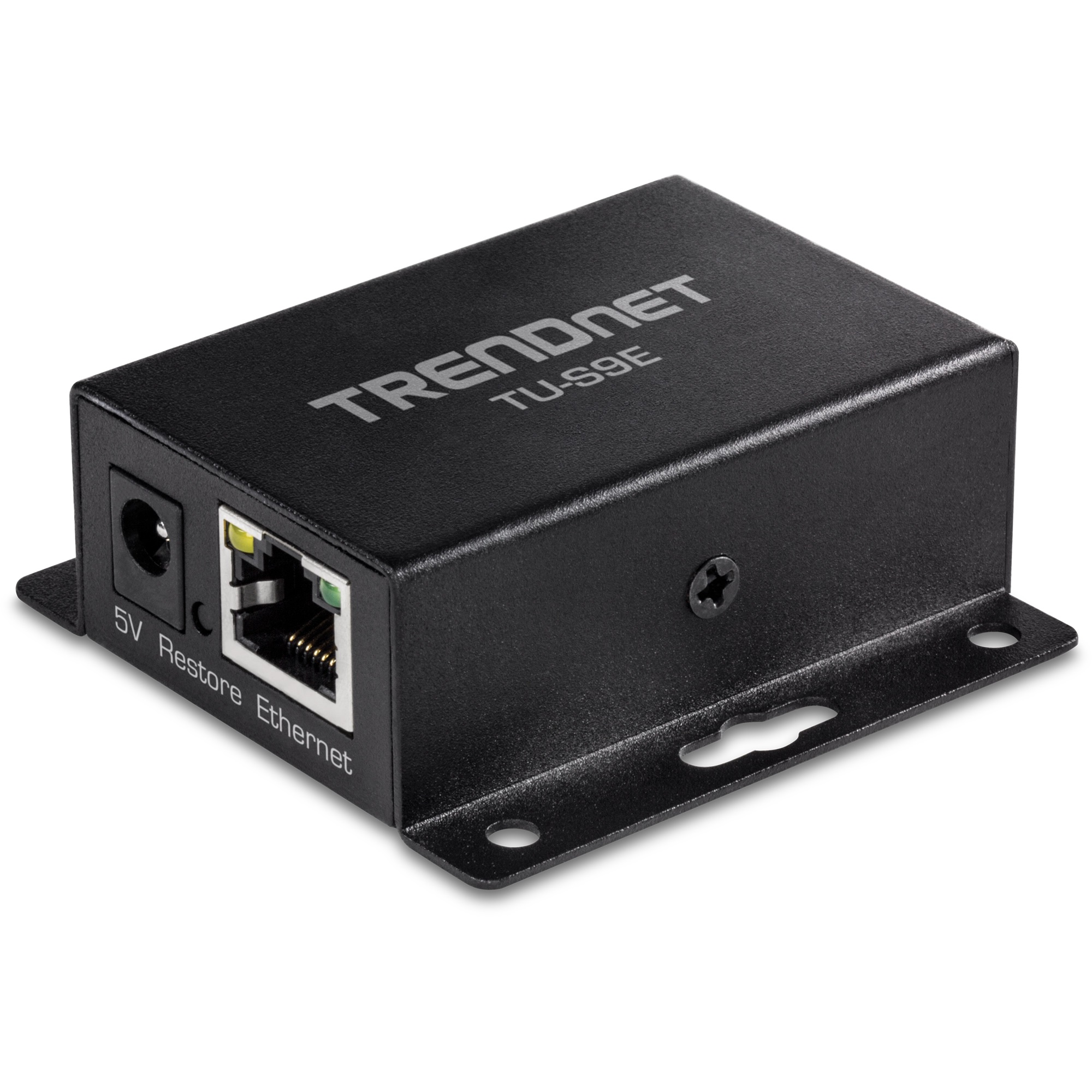

TRENDnet’s 1-Port Serial to IP Ethernet Converter, model TU-S9E, allows you to easily and remotely manage an RS-232 serial device within your local network. With a flat and compact size, the RS-232 to Ethernet converter is ideal for cabinet installations where space can be limited. The rugged housing design is suited for most installation environments, including harsh and industrial environments. Setup is easy and the included software offers simple configuration for customizing the RS-232 to Ethernet converter to seamlessly fit your network application.



Features:

  • Remotely connect and configure your serial device over your local network
  • Easy setup with software or web browser
  • Supports virtual serial port, DHCP server and TFTP
  • Rugged and durable metal housing
  • Software utility included
  • NDAA compliant
Interface

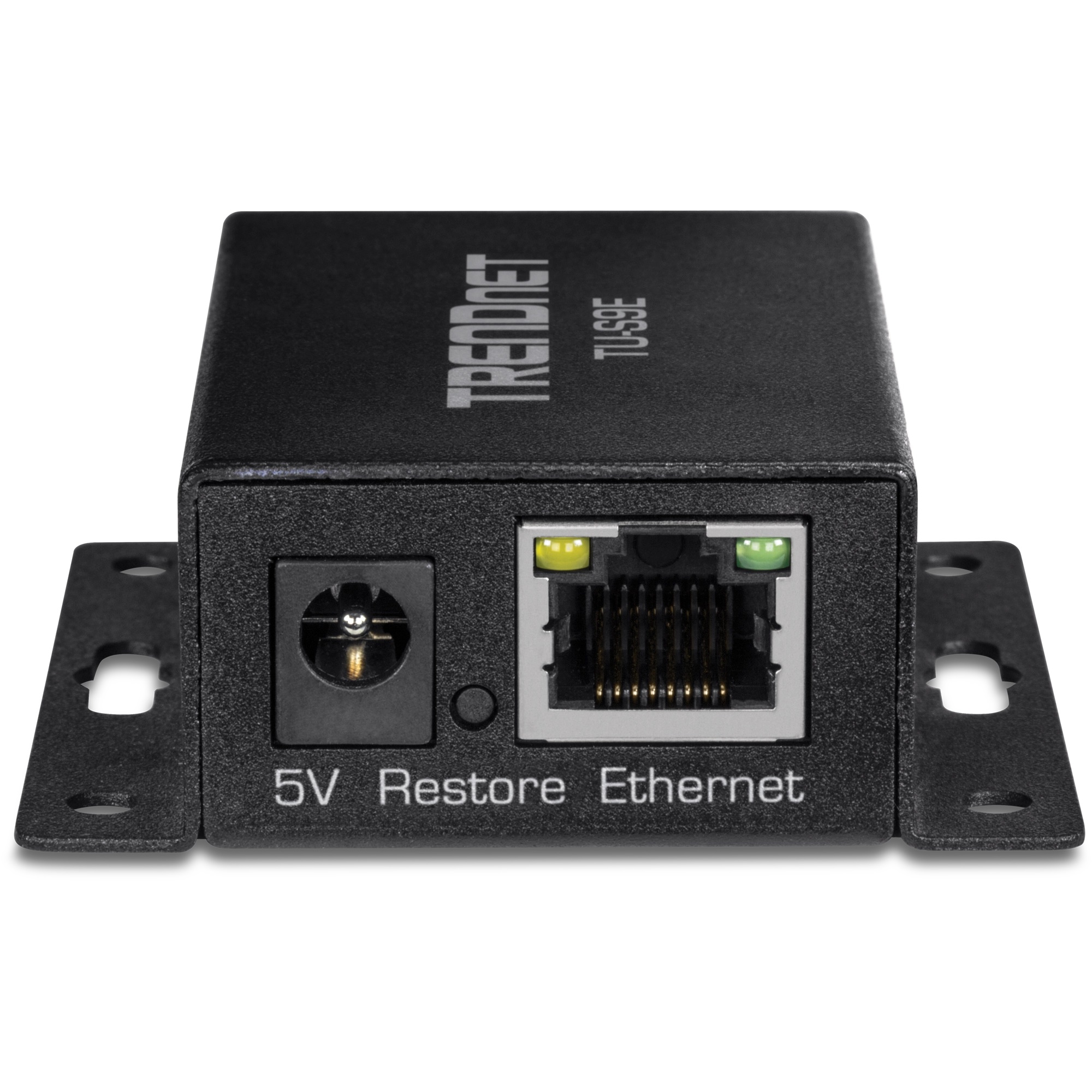

  • 1 x 10/100Mbps port

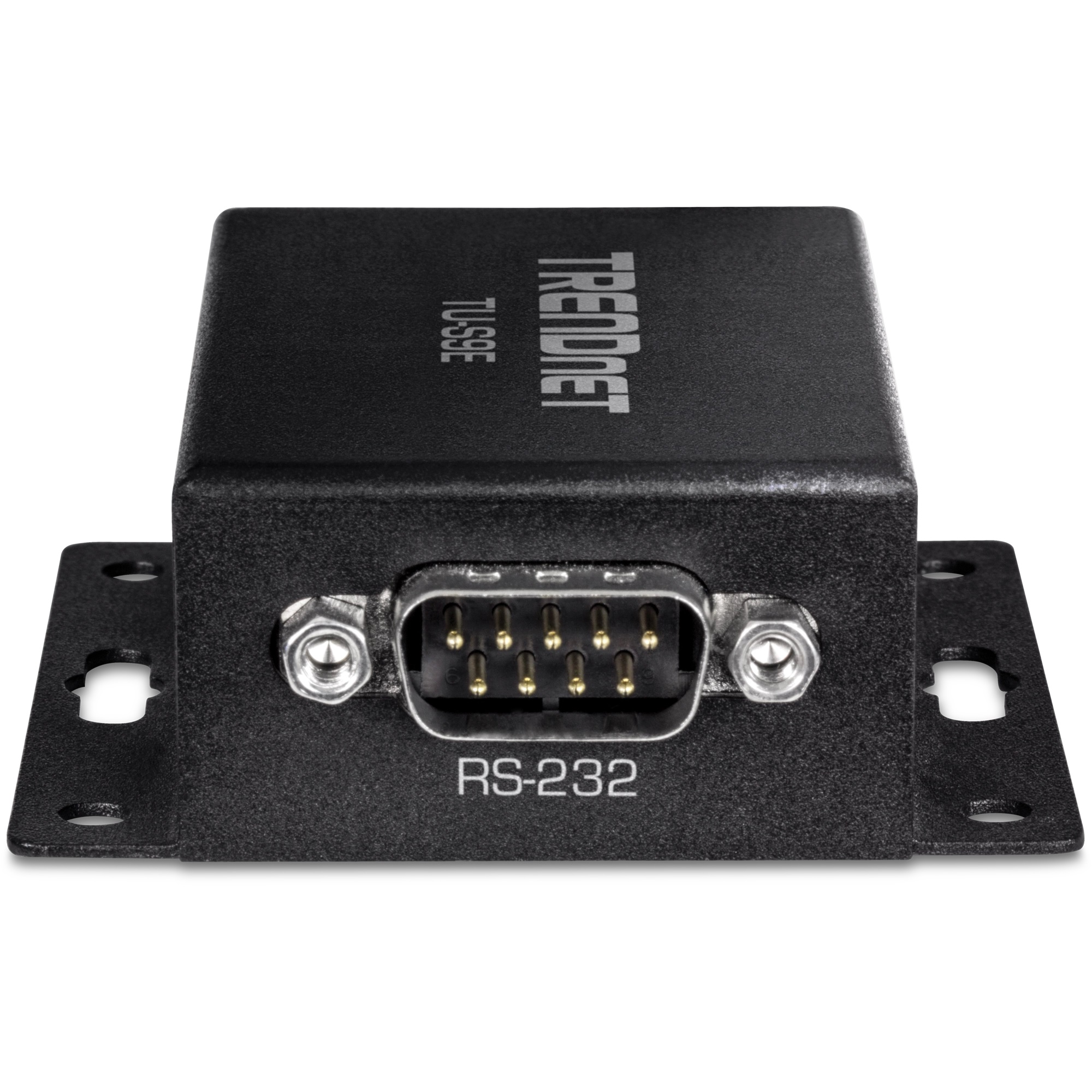

  • 1 x RS-232 (9-pin) male
Data Rate
  • RS-232 port: Up to 921.6Kbps
  • Ethernet port: Up to 100Mbps
Operating Temperature
  • 0° – 40° C (32° – 104° F)
Operating Humidity
  • Max. 95% non-condensing
Pinout
Pin123456789
SignalDCDRxDTxDDTRGNDDSRRTSCTSRI
Power
  • Input: 100 – 240V AC, 50/60Hz, 0.25A
  • Output: 5V DC, 1A external power adapter
  • Max. consumption: 1.1W
Compatibility (Utility)
  • Windows
Dimensions
  • 62 x 42 x 23mm (2.44 x 1.65 x 0.9 in.)
Weight
  • 102g (3.6 oz.)
Certifications
  • CE
  • FCC
Warranty
  • 2 year

PACKAGE CONTENTS

  • TU-S9E
  • Quick Installation Guide
  • Power Adapter (5V DC, 1A)
Name
Description
Size
Downloads
File
Datasheet
0.5mb
File
Setup Guide for Serial to Ethernet Converter
1.4mb
