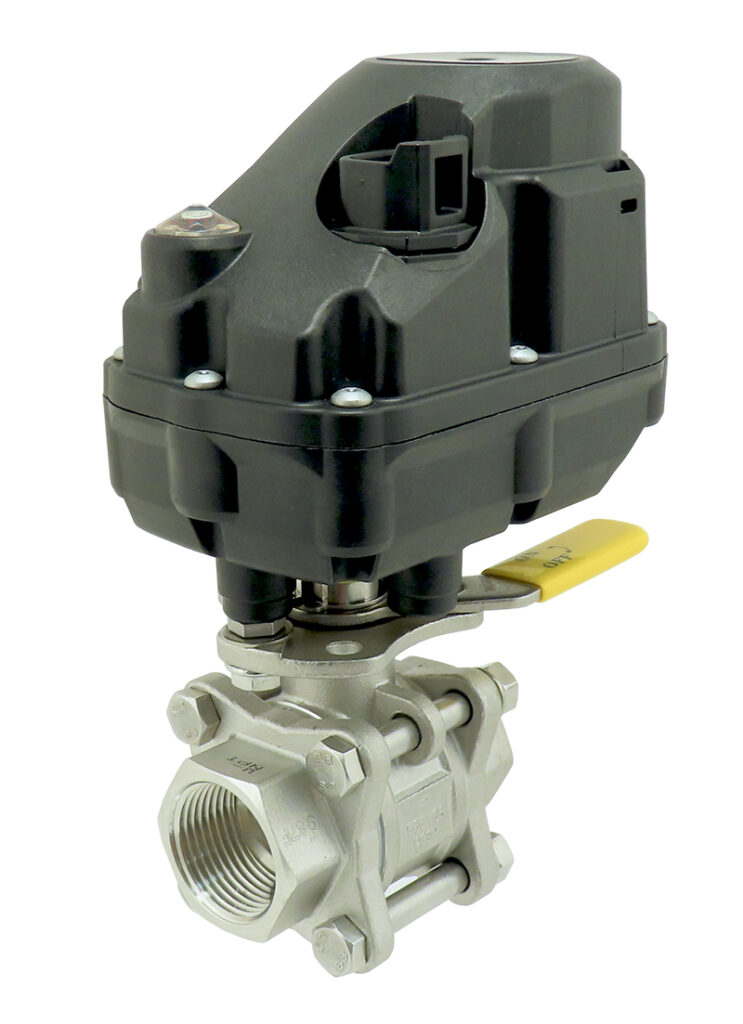

ELK - WSV3 - 1" Water Shutoff Valve with Manual Override, 12Vdc Motor with LED Indicator

Product Overview

The ELK-WSV3 is a professional-grade 1" stainless steel electric water shutoff valve designed for residential and light commercial use. It features a high-torque 12VDC actuator that closes in under one second, paired with a manual handle for emergency operation during power outages. With its full-bore design and Grade 316 construction, it ensures zero flow restriction and is completely safe for drinking water systems.

Key Configuration

• • Ball valve: full port, 2-way; Grade 316 stainless steel
• • Pipe connections: 1" NPT threaded
• • Power supply: 12 VDC required; operating current draw: 3.2 A; standby current: 50 mA
• • Actuating speed: < 1 second
• • Overall dimensions: 7.5" × 5.2" × 3.3"; actuator enclosure rating: IP68M

Key Features

Built with Grade 316 stainless steel, this 1" full-bore valve ensures no flow restriction and is safe for drinking water. It features a permanently lubricated gear drive capable of overcoming mineral buildup even after long periods of inactivity.

Technical Context

It is a rugged, IP68M-rated electric water shutoff valve featuring a 1" NPT stainless steel body and a high-torque 12VDC motor. Designed for demanding environments, it operates under high pressure and includes a manual override handle for emergencies. Measuring 7.5" × 5.2" × 3.3", it integrates easily with leak detectors, security controllers, or manual buttons to provide rapid, reliable water control.
