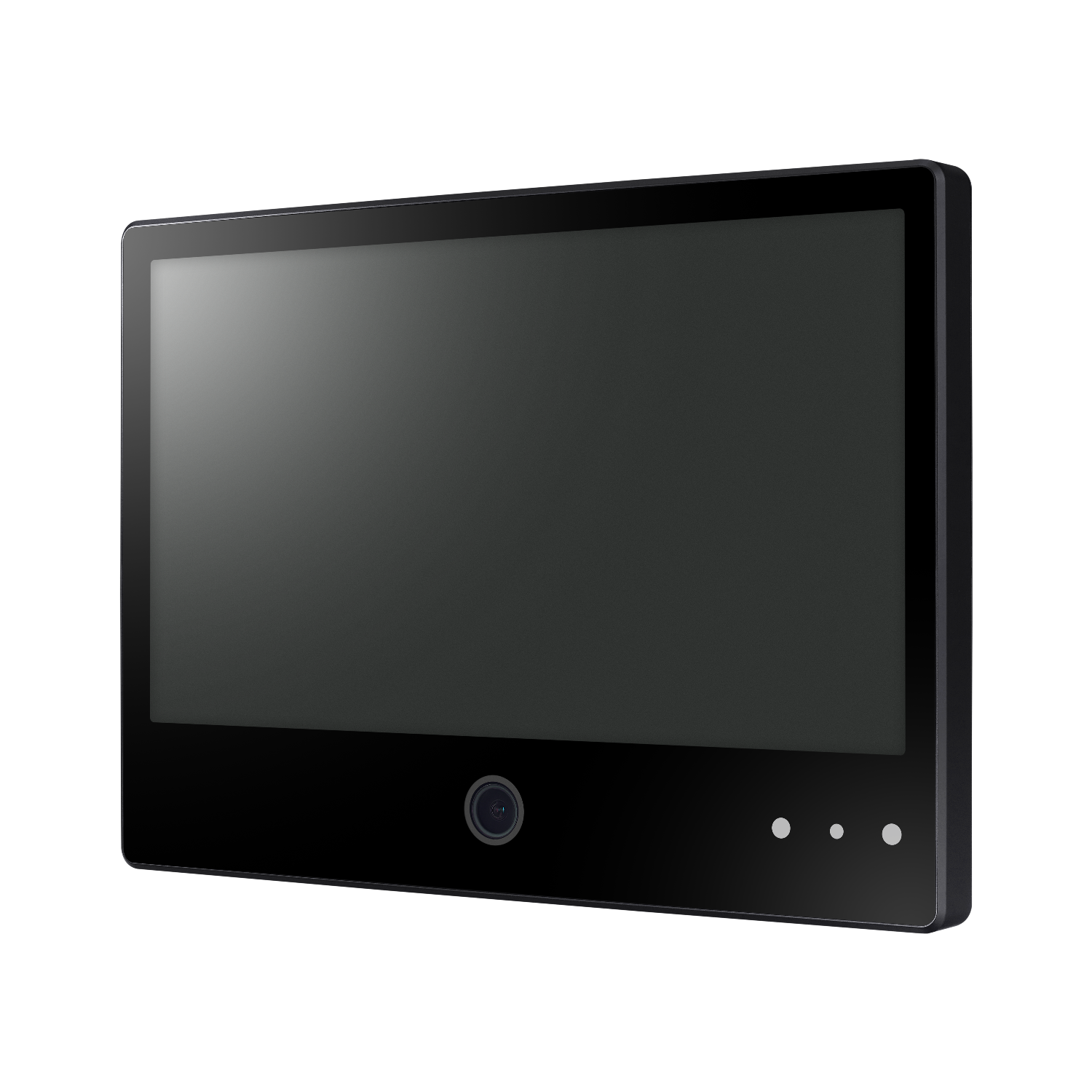

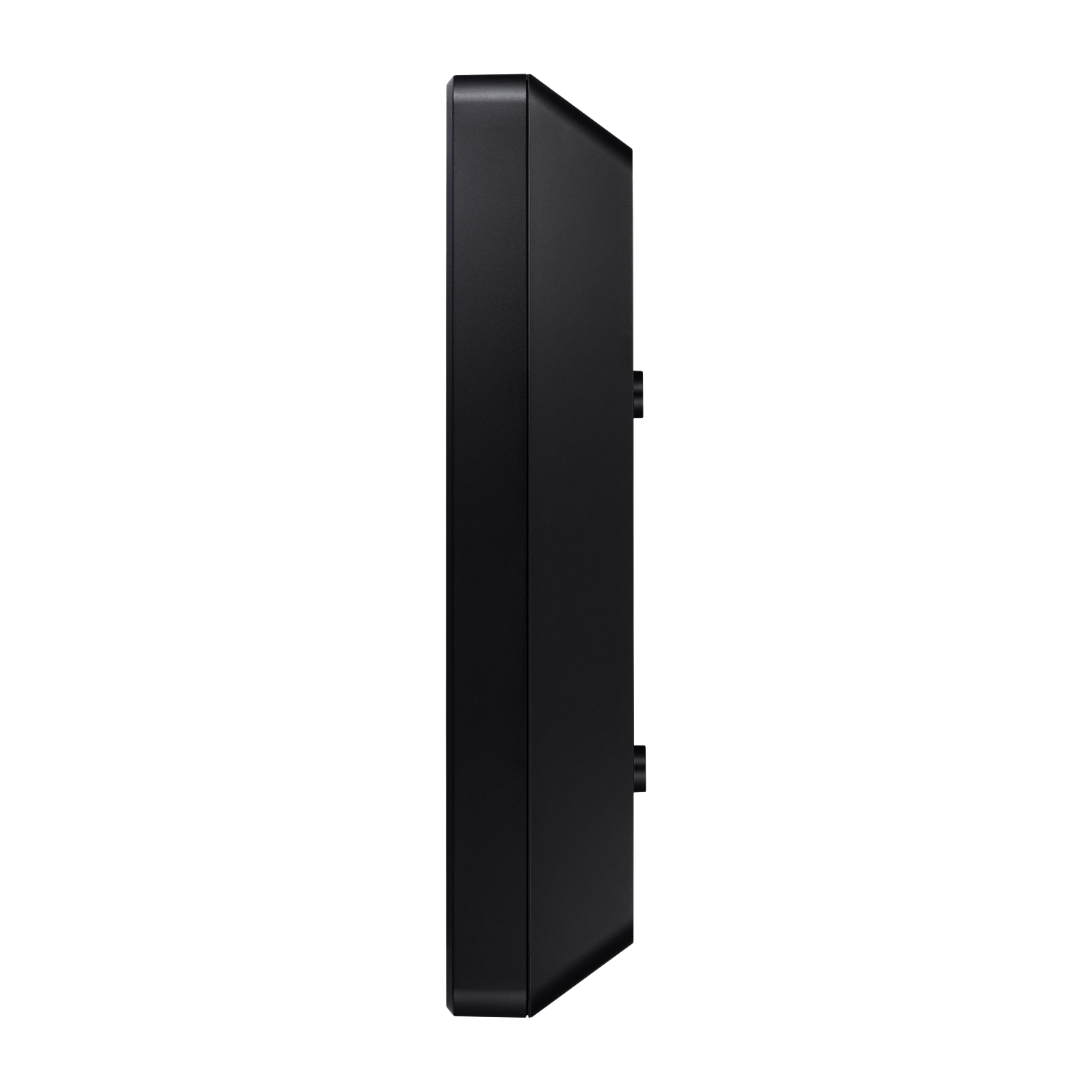

Hanwha - SMT-1031PV - 10-inch (10.1") AI Enabled IP Public View Monitor (AI PVM), Black Color, 1024x600 60Hz, Ethernet, Built-in Speakers (1W x2), AI Object Classification and Analytics, Face Detection, Motion Activated LED and Audio Alarm, Customiza
Part number:
SMT-1031PV
Price:
10.1" AI Enabled IP Public View Monitor (AI PVM), Black Color ,1080p (1024x600 @60Hz), HDMI, Ethernet, 16:9 Aspect Ratio, Built-in Speaker (1W x 2), VESA mountable (75 x 75mm), AI Face & Object Detection Display for Visual Deterrent, OSD, Live Video, Slide Show and Logo Image Support, 2MP IP Built-In Camera, 3.06mm Fixed Lens(107.7" H and 59.0V), 120dB WDR, H.265/H.264/MJPEG, PoE+ 802.3at, DC 24V. ***Power adapter not included***
Features:
- 2MP AI Camera, f1.6
- SUNAPI/Onvif Profile S/G/T/M
- AI Object Classification and Analytics
- Motion and event activated LED and audio alarm
- Face Detection box
- Image Slide Show (No additional storage is required)
- Customizable text overlay with default "Recording in progress“ message
- On-screen custom logo image
- Monitor management via WebUI (Power On/Off/Scheduling, Banner etc.)
- Dual power PoE+ (802.3at) and DC24V (adapter* is not included)
* DC 24V Power Adapter (SPU-60240)
| Display | ||
| Type | LED Monitor | |
| Screen Size | 10.1" | |
| Max. Resolution | 1024 x 600 60Hz | |
| Brightness | 500cd/m² | |
| Contrast Ratio | 500:1 | |
| Aspect Ratio | 16:9 | |
| Viewing Angle (H/V) | 140° / 120° | |
| Display Color | 16.7M Colors | |
| Response Time | 20ms | |
| Panel Life | 50,000 hours | |

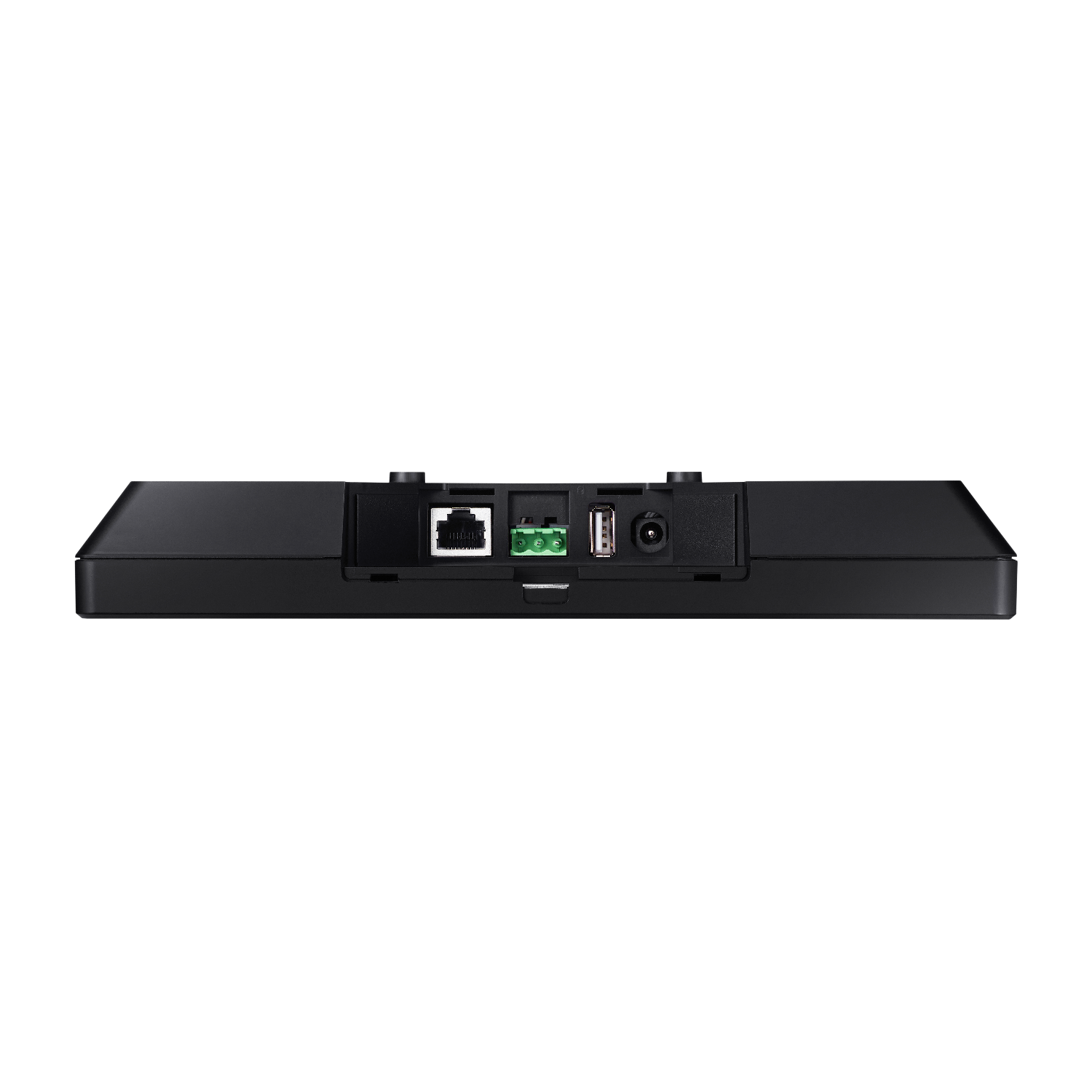

| Interface | ||
| Video | Connectors | Camera(Internal) |
| Audio | Output Signal | Speakers : 8Ω 1Wx 2 |
| Alarm | Alarm I/O | Input 1ea / Output 1ea |
| Network | Ethernet | 1 RJ-45 10/100BASE-T, |
| General | Edge Storage | Micro SD/SDHC/SDXC 1slot 256GB |
| On Screen Display | ||
| Functions | VESA™ DPM Compatible | |
| Language | English, Spanish, French | |
| General | ||
| Electrical | Input Voltage | DC24V, PoE+ 802.3at |
| Power Consumption | 14W | |
| Environmental | Operating Temperature | 0 ~ +40°C (+32°F ~ +104°F) |
| Operating Humidity | 10% ~ 80% (non-condensing) | |
| Mechanical | Dimensions without Stand (WxHxD) | 245.5mm(W) x 178.2mm(H) x 35.5mm(D) |
| Weight | 900g | |
| Cabinet Color | Black | |
| VESA Mounts Interface | VESA 75 x 75mm | |
| Camera | ||
| Video | Imaging Device | 1/2.8" 2MP CMOS |
| Max. Framerate | H.265/H.264: Max. 30fps/25fps(60Hz/50Hz) MJPEG: Max. 15fps/12fps(60Hz/50Hz) | |
| Min. Illumination | Color: 0.03Lux (F1.6, 1/30sec) |
Name
Description
Size
Downloads
File
Datasheet
0.4mb
File
CAD_SMT-1031PV
0mb
