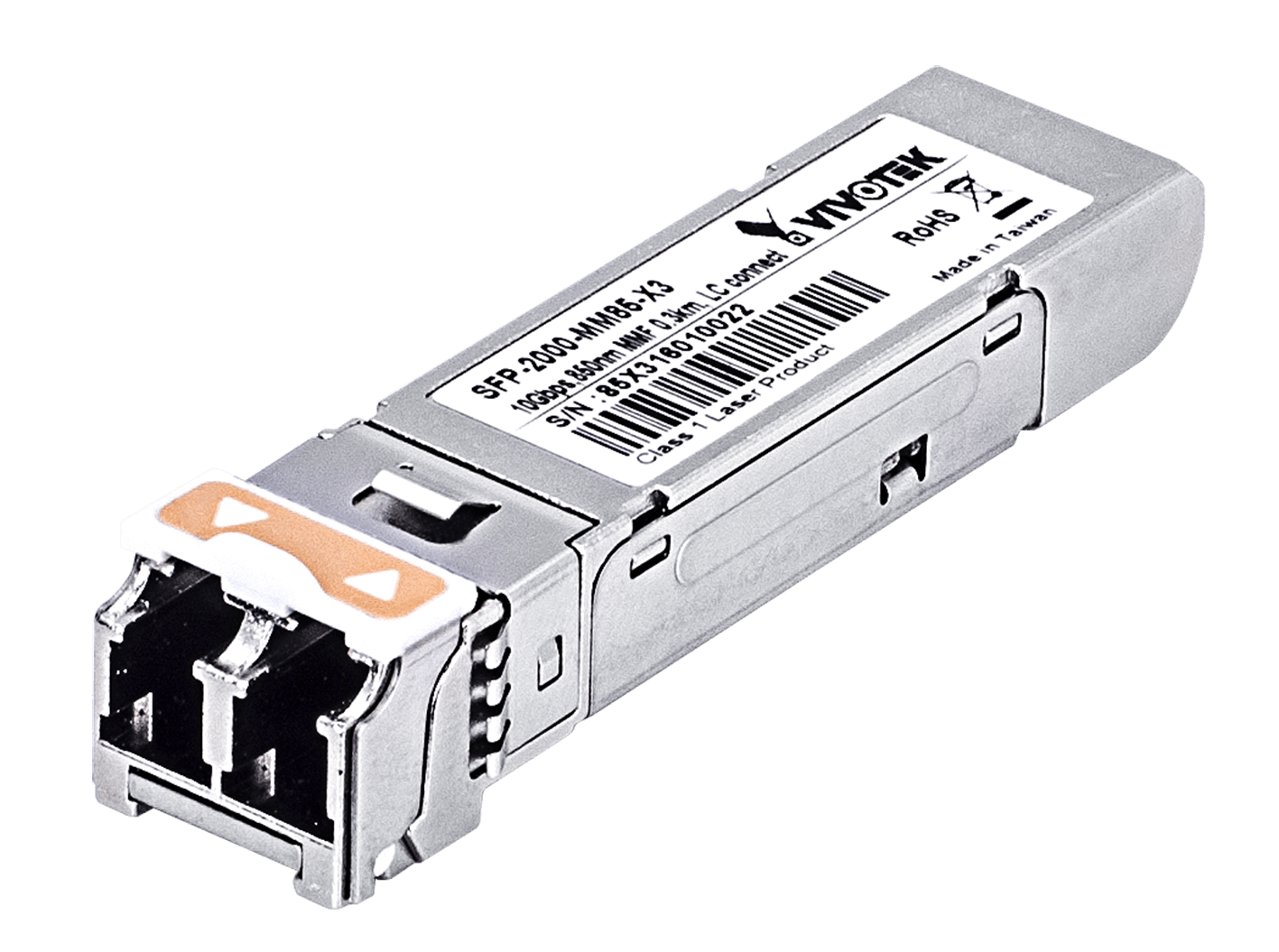

Vivotek - SFP-2000-MM85-X3 - 10 Gigabit Mini GBIC Multi Mode 850nm 0.3KM, LC Connector
Part number:
SFP-2000-MM85-X3
Price:
10 Gigabit Mini GBIC Multi Mode 850nm 0.3KM, LC Connector.
Features:
- Data Rate Gigabit 10G
- Type SFP+
- Center Wave Length 850 nm
- Laser Type VCSEL
- Tx -1 ~ -7 dBm
- Rx -1 ~ -9.9 dBm
- Voltage 3.3V
- Transmission Range 50/125μm, up to 0.3km
- Fiber Type (MMF/SMF) MMF
- Connector LC
- Dimensions (L x W x H) 55.9 x 14.69 x 12.39 mm
- Operating Temperature 0°C ~ 70°C (32°F ~ 158°F)
- Storage Temperature -40°C ~ 85°C (-40°F ~ 185°F)
- Humidity 5 ~ 90% (non-condensing)
- MSA Compliant Yes
- Certifications IEC 825, EN60825-1, FDA 21 CFR 1040.10 and 1040.11
| Data Rate | 10G |
| Wave Length | 850 nm |
| Laser Type | VCSEL |
| Tx | -1 ~ -7 dBm |
| Rx | -1 ~ -9.9 dBm |
| Voltage | 3.3V |
| Transmission Range | 50/125μm, up to 0.3km |
| Fiber Type (MMF/SMF) | MMF |
| DDM (Digital Diagnostics Monitoring) | Yes |
| Connector | LC |
| Dimensions (L x W x H) | 55.9 x 14.69 x 12.39 mm |
| Operating Temperature | 0XC ~ 70XC (32XF ~ 158XF) |
| Storage Temperature | -40XC ~ 85XC (-40XF ~ 185XF) |
| Humidity | 5 ~ 90% (non-condensing) |
| MSA Compliant | Yes |
| Certifications | IEC 825, EN60825-1, FDA 21 CFR 1040.10 and 1040.11 |
Name
Description
Size
Downloads
File
Specification Sheet
0.4mb
