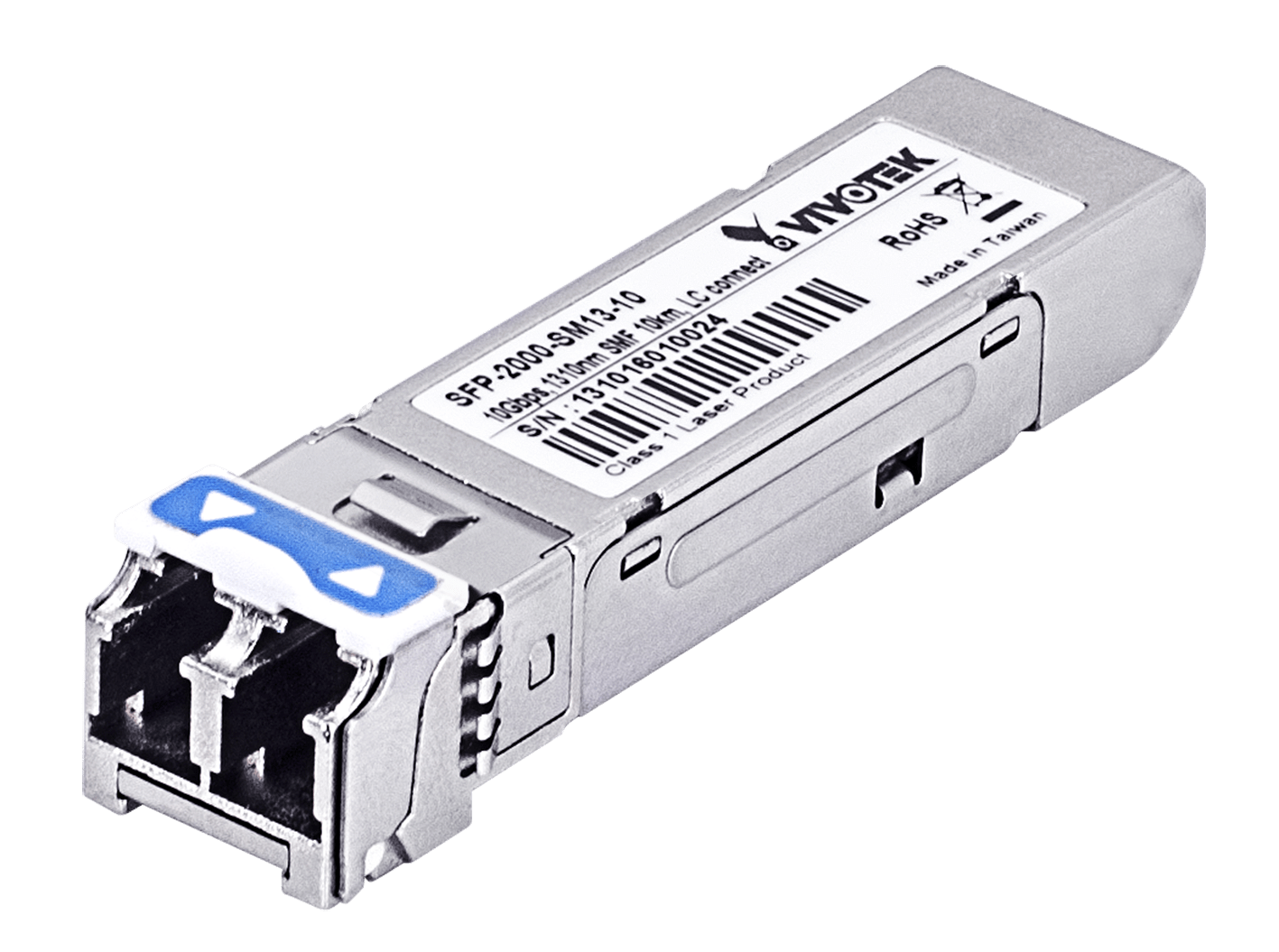

Vivotek - SFP-2000-SM13-10 - 10 Gigabit Mini GBIC Single Mode 1310nm 10KM, LC Connector
Part number:
SFP-2000-SM13-10
Price:
10 Gigabit Mini GBIC Single Mode 1310nm 10KM, LC Connector.
Features:
- Data Rate Gigabit 10G
- Type SFP+
- Center Wave Length 1310 nm
- Laser Type DFB
- Tx -8 ~ 0.5 dBm
- Rx -1 ~ -14.4 dBm
- Voltage 3.3V
- Transmission Range 9/125μm, up to 10km
- Fiber Type (MMF/SMF) SMF
- Connector LC
- Dimensions (L x W x H) 55.9 x 14.69 x 12.39 mm
- Operating Temperature 0°C ~ 70°C (32°F ~ 158°F)
- Storage Temperature -40°C ~ 85°C (-40°F ~ 185°F)
- Humidity 5 ~ 90% (non-condensing)
- MSA Compliant Yes
- Certifications IEC 825, EN60825-1, FDA 21 CFR 1040.10 and 1040.11
| Data Rate | 10G |
| Wave Length | 1310 nm |
| Laser Type | DFB |
| Tx (dBm) | -8 ~ 0.5 dBm |
| Rx (dBm) | -1 ~ -14.4 dBm |
| Voltage | 3.3V |
| Transmission Range | 9/125μm, up to 10km |
| Fiber Type (MMF/SMF) | SMF |
| DDM (Digital Diagnostics Monitoring) | Yes |
| Connector | LC |
| Dimensions (L x W x H) | 55.9 x 14.69 x 12.39 mm |
| Operating Temperature | 0XC ~ 70XC (32XF ~ 158XF) |
| Storage Temperature | -40XC ~ 85XC (-40XF ~ 185XF) |
| Humidity | 5 ~ 90% (non-condensing) |
| MSA Compliant | Yes |
| Certifications | IEC 825, EN60825-1, FDA 21 CFR 1040.10 and 1040.11 |
Name
Description
Size
Downloads
File
Specification Sheet
0.4mb
