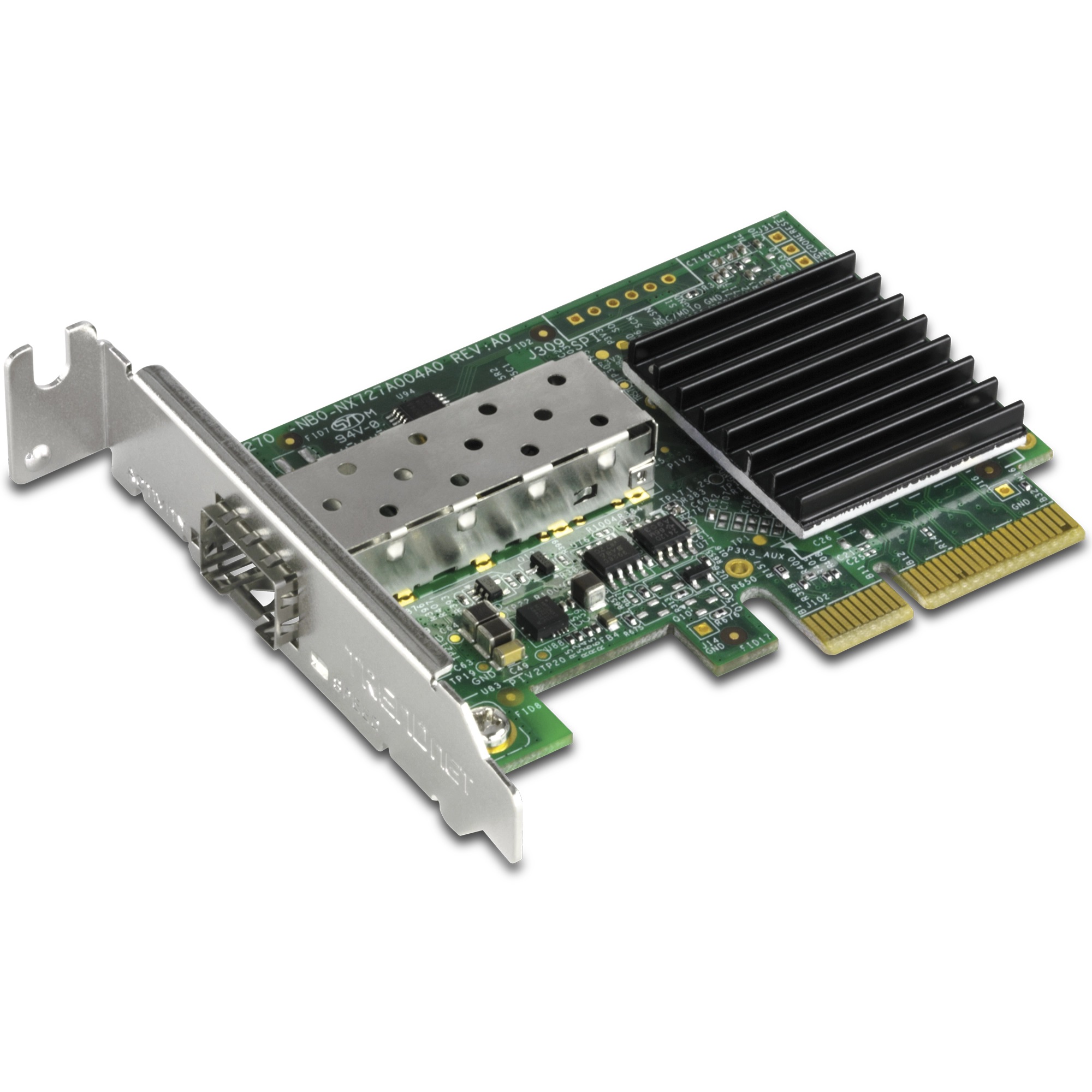

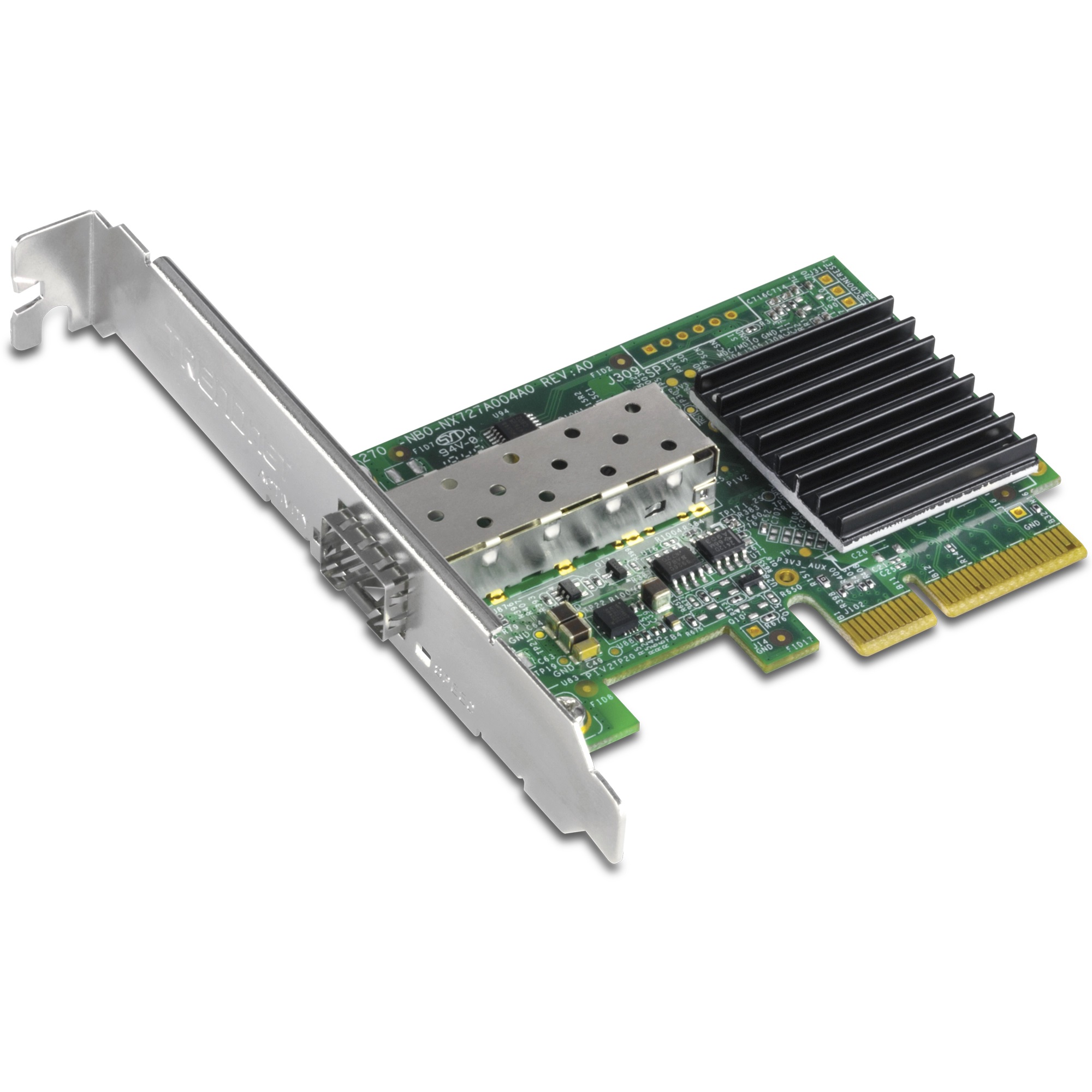

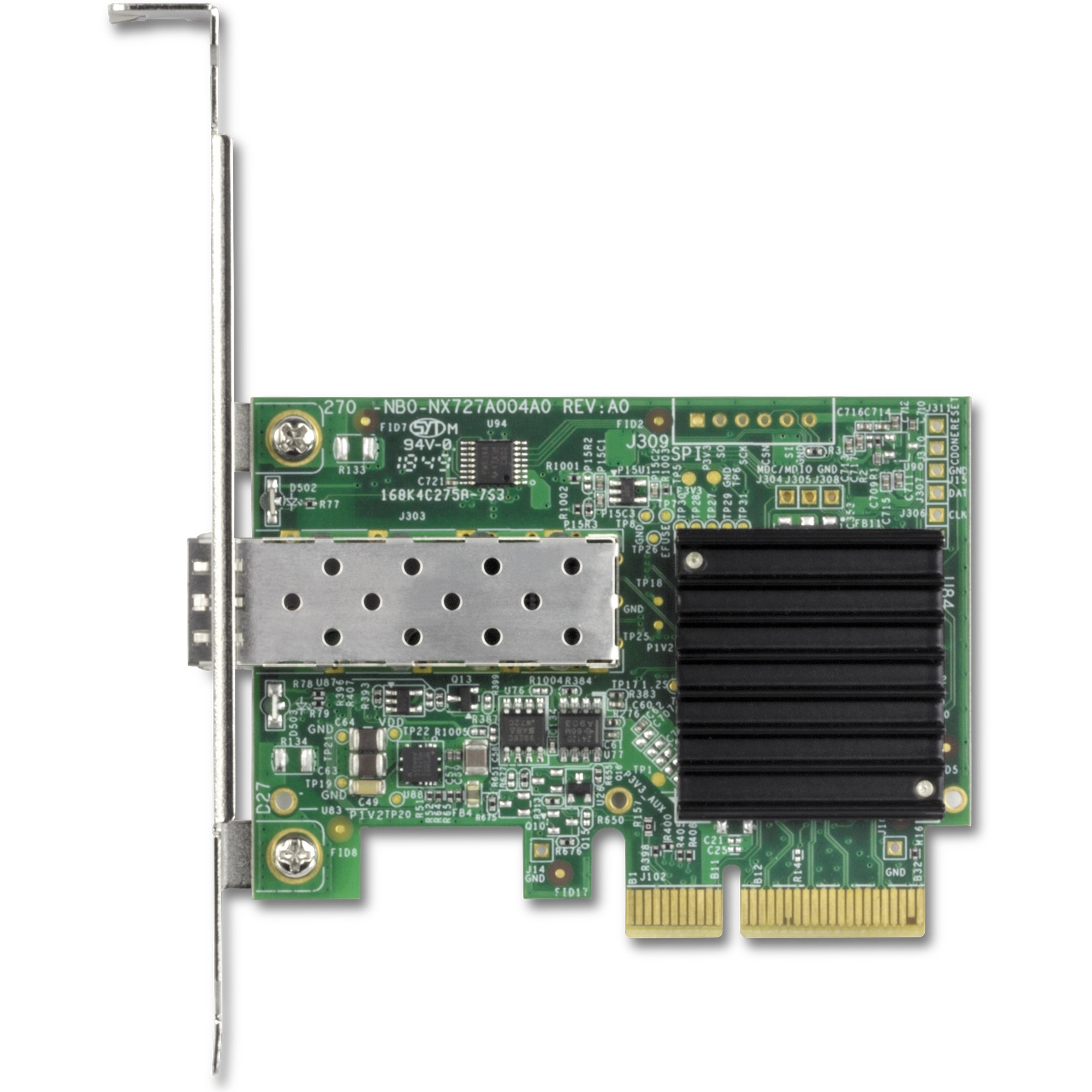

TRENDNET - TEG-10GECSFP - 10 Gigabit PCIe SFP+ Network Adapter

Name: TRENDNET - TEG-10GECSFP - 10 Gigabit PCIe SFP+ Network Adapter
Brand: Trendnet
SKU: TEG-10GECSFP

Part number:

TEG-10GECSFP

Price:

Dealers only

Add to Quote/Project Registration

Description Specifications Downloads

TRENDnet's 10 Gigabit PCIe SFP+ Network Adapter, model TEG-10GECSFP, converts a free PCI Express slot into a 10 Gigabit SFP+ slot. The 10G SFP+ PCIe adapter includes advanced features such as jumbo frame and VLAN tagging support. The included standard and low profile brackets are compatible with Windows® and Linux® desktop computer designs.

Features:

Converts a PCIe slot into a 10G SFP+ Slot
Supports 802.1Q VLAN Tagging
Includes standard and low-profile brackets
Windows® and Linux® support
NDAA / TAA compliant (U.S. and Canada only)

Standards	IEEE 802.1Q IEEE 802.3ae IEEE 802.3x IEEE 802.3bz IEEE 802.3u
Hardware Interface	PCIe 2.0 x4 interface 1 x 10Gbps SFP+ slot (Supported speeds: 10Gbps / 5Gbps / 2.5Gbps / 1Gbps / 100Mbps) (SFP+ modules sold separately: TEG-10GBSR, TEG-10GBS10, TEG-10GBS40) LED indicator
Data Transfer Rate	SFP: 1000Mbps (full duplex), 10Gbps (full duplex)
Compatibility	Windows® 10, 8.1, 8, 7 Windows® Server 2012, 2012 R2, 2008, 2008 R2 Linux® 2.6.x, 3.x.x, 4.6.x or later Microsoft® Hyper-V Oracle® VirtualBox
Jumbo Frames	Up to 16KB
Special Features	10G SFP+ for high speed network connectivity Compatible with standard 10G SFP+ modules and Direct Attach Copper (DAC) cables Windows Server support Microsoft® Hyper-V hypervisor support for virtualization
Additional Support	802.1Q VLAN Tagging Microsoft Scalable Networking Receive-side scaling (RSS) Message Signaled Interrupts (MSI) IP, TCP, and UDP checksum offloading Minimize overhead with reduced host bus traffic and CPU utilization
Power	Max. Consumption: 1.5W
Operating Temperature	0° – 40° C (32° – 104° F)
Operating Humidity	Max. 90% non-condensing
Certifications	CE FCC
Dimensions	87 x 62 x 18mm (3.4 x 2.4 x 0.7 in.)
Weight	58g (2 oz.)
Warranty	3 year

PACKAGE CONTENTS

TEG-10GECSFP
Quick Installation Guide
Standard & low-profile brackets
