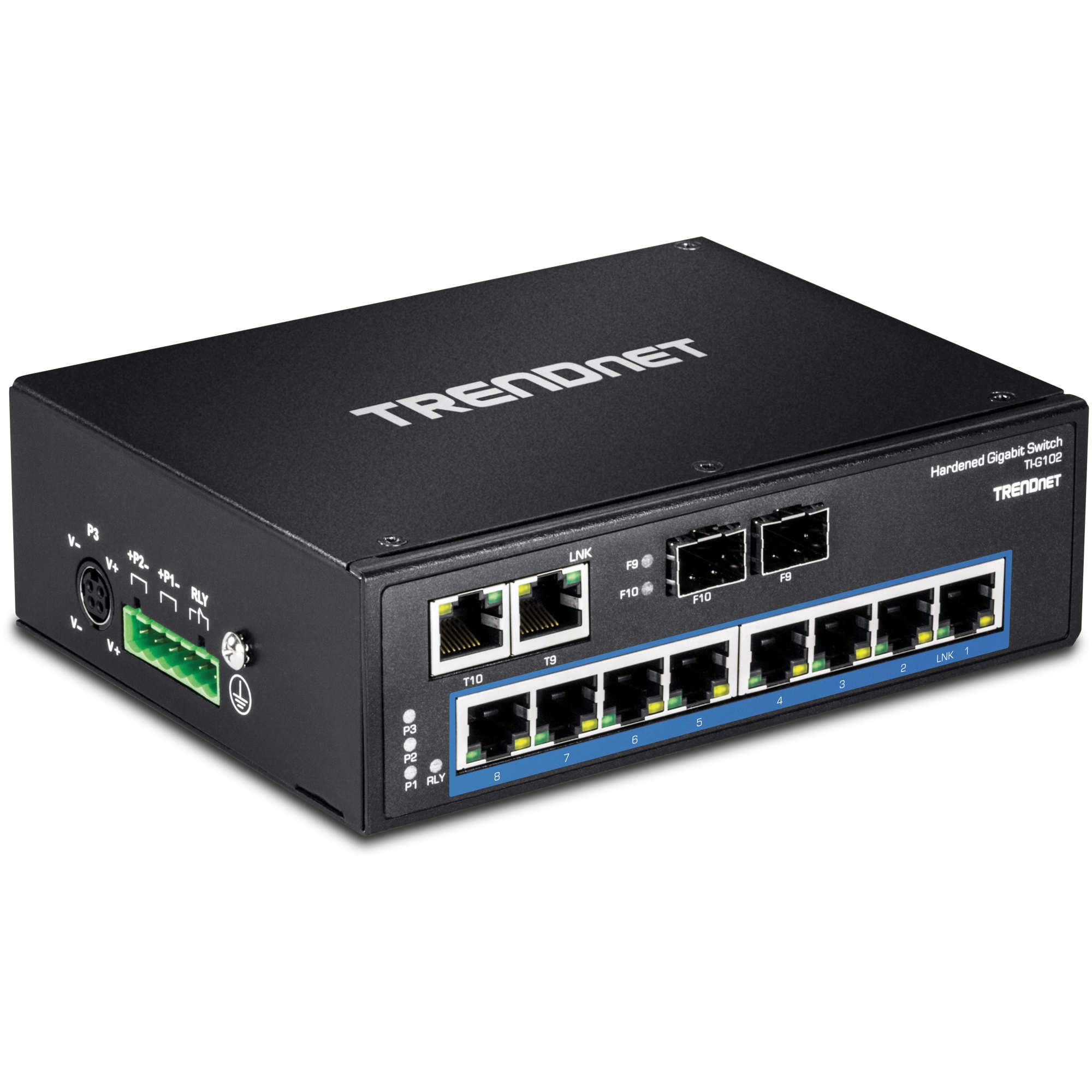

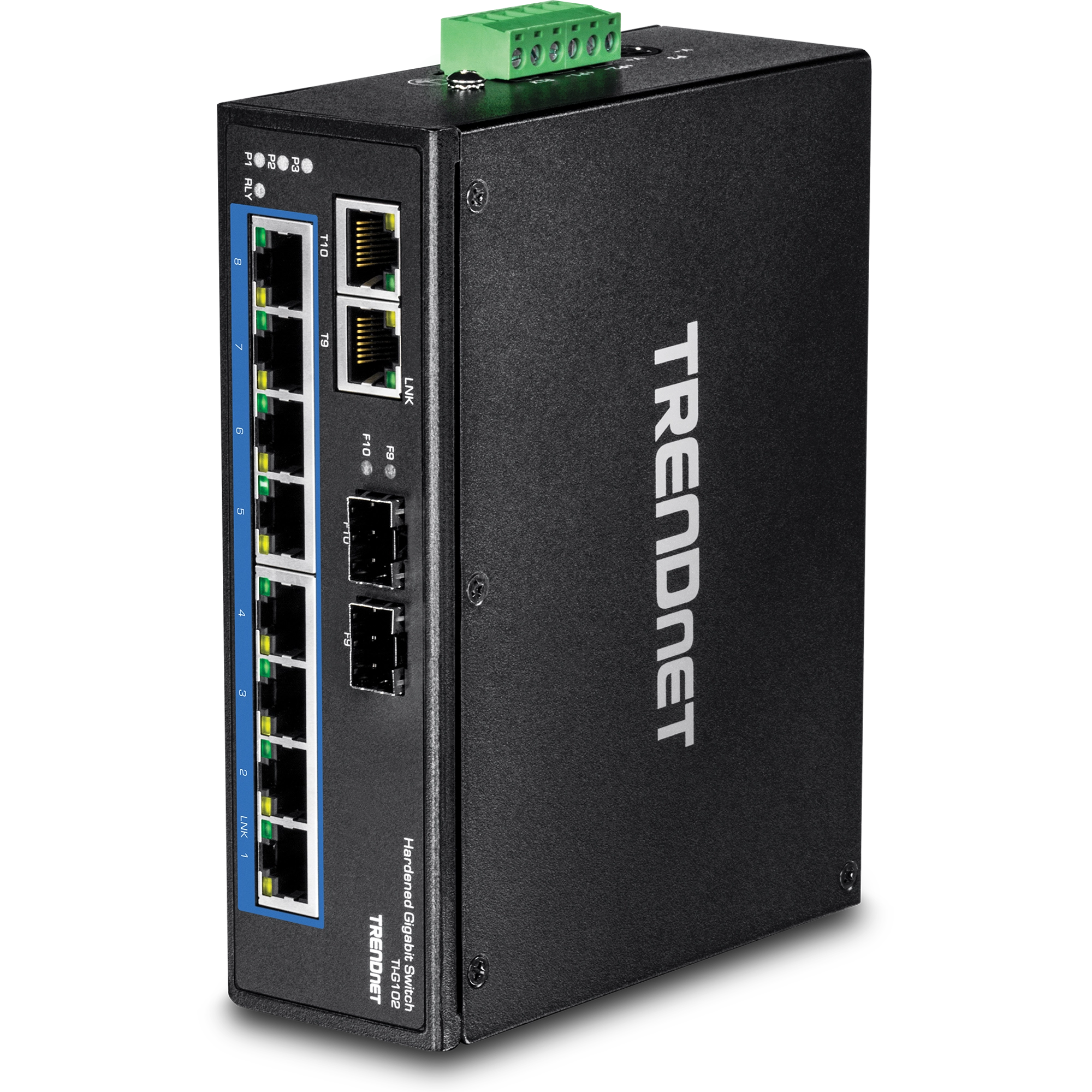

TRENDnet's 10-Port Hardened Industrial Gigabit DIN-Rail Switch, model TI-G102, has eight dedicated gigabit ports, plus two gigabit RJ-45 / SFP shared ports. Users are able to connect eight devices to the switch, while still providing two gigabit ports for additional network connections. The switch is equipped with an IP30 rated metal enclosure, designed to withstand a high degree of vibration and shock, while operating within a wide temperature range of -40° – 75°C (-40° – 167°F) for industrial environments.
Gigabit Speeds
Ten gigabit ports provide high-speed network connections to devices, and a 20 Gbps switching capacity allows data traffic to flow smoothly, reducing traffic bottlenecks.
Fault Tolerance
Features redundant power inputs with output alarm relay.
Industrial Hardened Design
Equipped with an IP30 rated metal enclosure, designed to withstand a high degree of vibration and shock, while operating within a wide temperature range of -40° – 75°C (-40° – 167°F) for industrial environments.
Features:

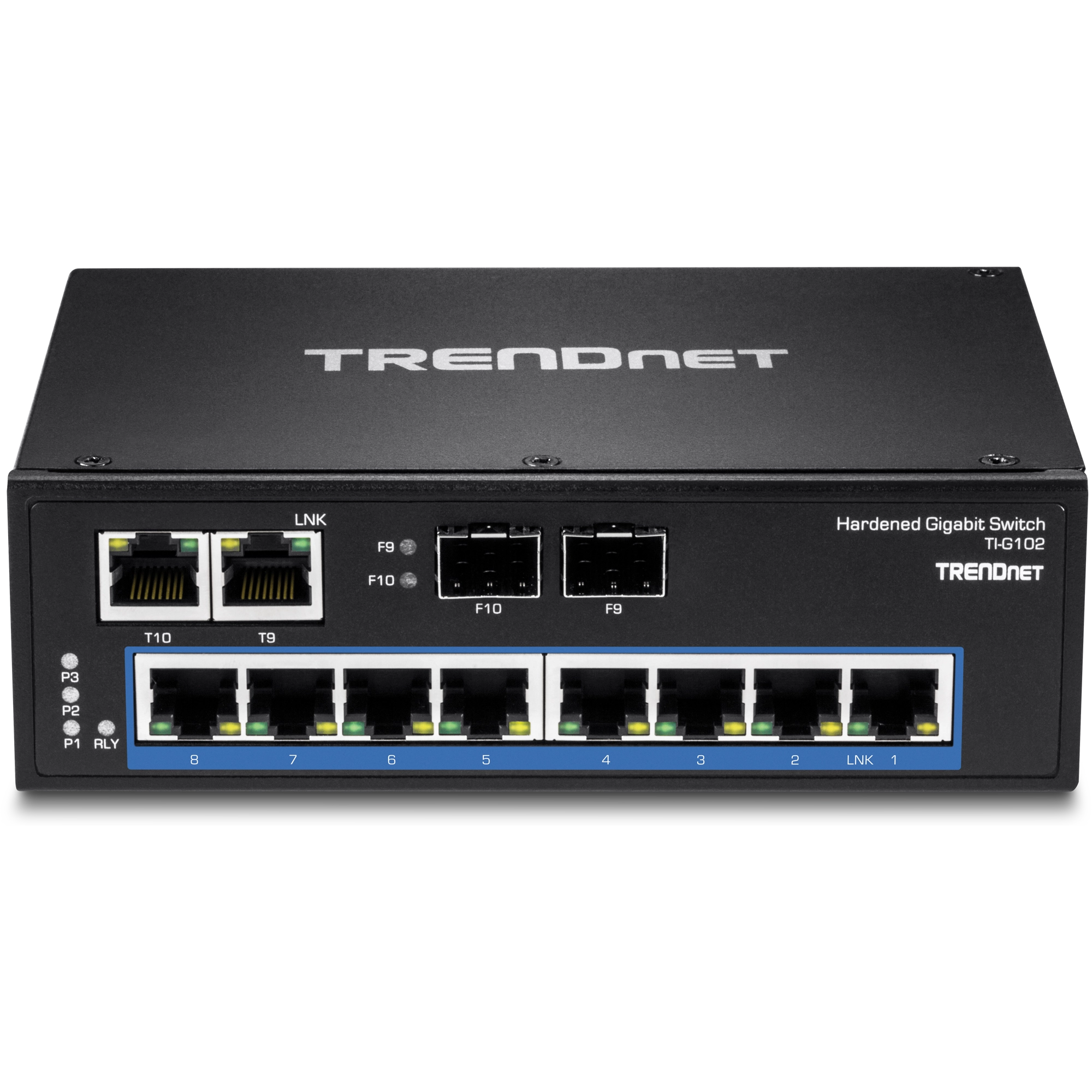

- 8 x Gigabit ports
- 2 x Gigabit RJ-45 / SFP shared ports
- 20Gbps switching capacity
- Hardened IP30 rated metal switch

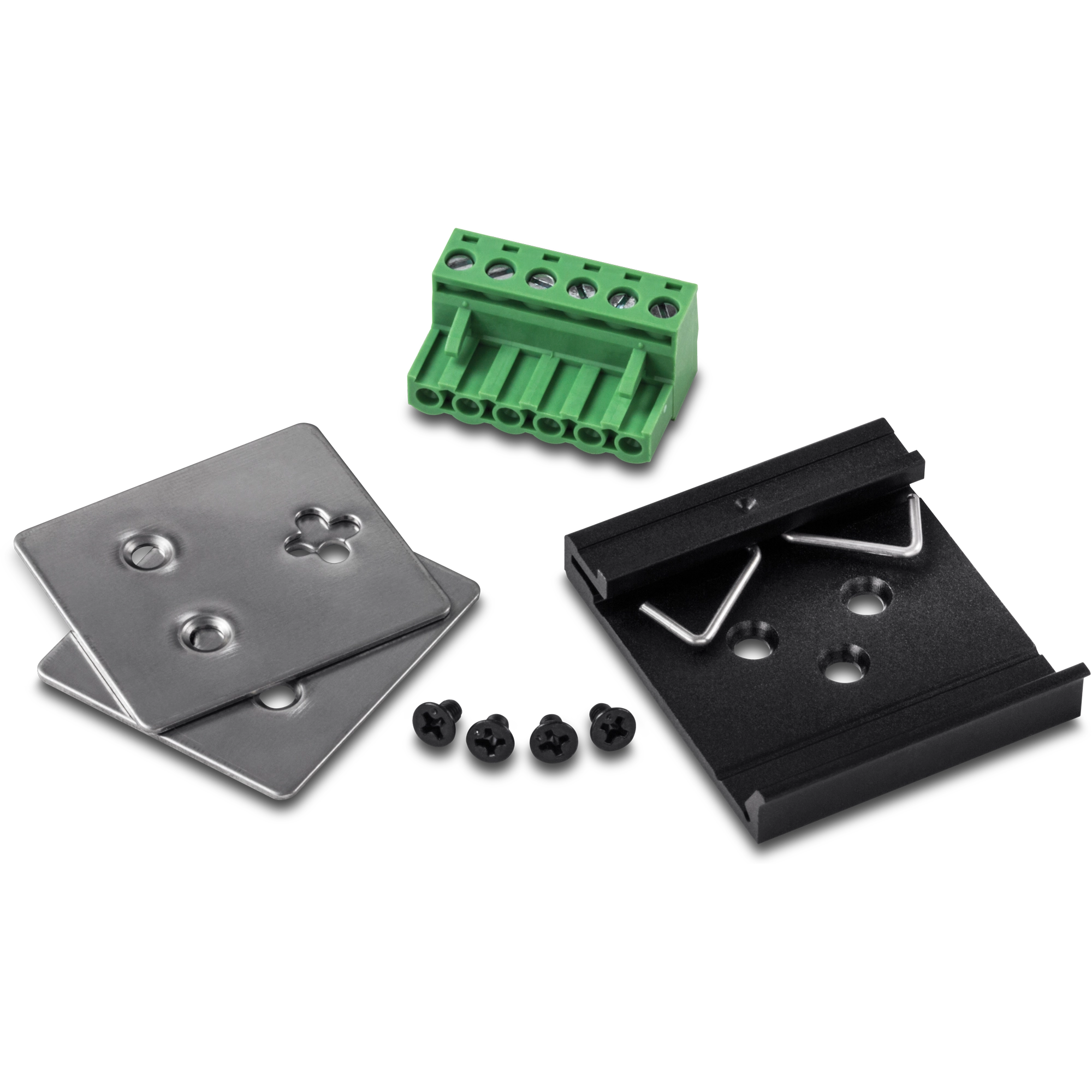

- Includes DIN-rail and wall mounts
- Operating temperature range of -40° – 75°C (-40° – 167°F)
- Redundant power inputs with overload current protection
- Alarm output triggered by power failure
- Power supply sold separately (models: TI-M6024 / 48VDC3000)
- NDAA / TAA compliant
- Lifetime Warranty*
| Technical Specifications | |
| Standards | IEEE 802.3 |
| IEEE 802.3u | |
| IEEE 802.3ab | |
| IEEE 802.3z | |
| IEEE 802.3x | |
| Device Interface | 8 x Gigabit ports |
| 2 x Gigabit Ethernet ports | |
| 2 x Shared SFP slots | |
| 6-pin removable terminal block | |
| LED indicators | |
| DIN-Rail mount | |
| Wall mount | |
| Grounding point | |
| Data Transfer Rate | Ethernet: 10 Mbps (half duplex), 20 Mbps (full duplex) |
| Fast Ethernet: 100 Mbps (half duplex), 200 Mbps (full duplex) | |
| Gigabit: 2000 Mbps (full duplex) | |
| Performance | Data RAM Buffer: 256 KB |
| Switching Fabric: 20 Gbps | |
| MAC Address Table: 16 K entries | |
| Jumbo Frame: 10KB | |
| Forwarding rate: 14.8 Mpps (64-byte packet size) | |
| Special Features | Hardened components rated for extreme temperatures |
| Redundant power inputs | |
| Auto-Negotiation | |
| Auto store and forward architecture | |
| Automatic address learning and address aging | |
| ESD 6KV protection | |
| Power | Input: 12 - 56 V DC |
| Compatible power supply: TI-M6024 (sold separately) | |
| Consumption: 5.76 W max. | |

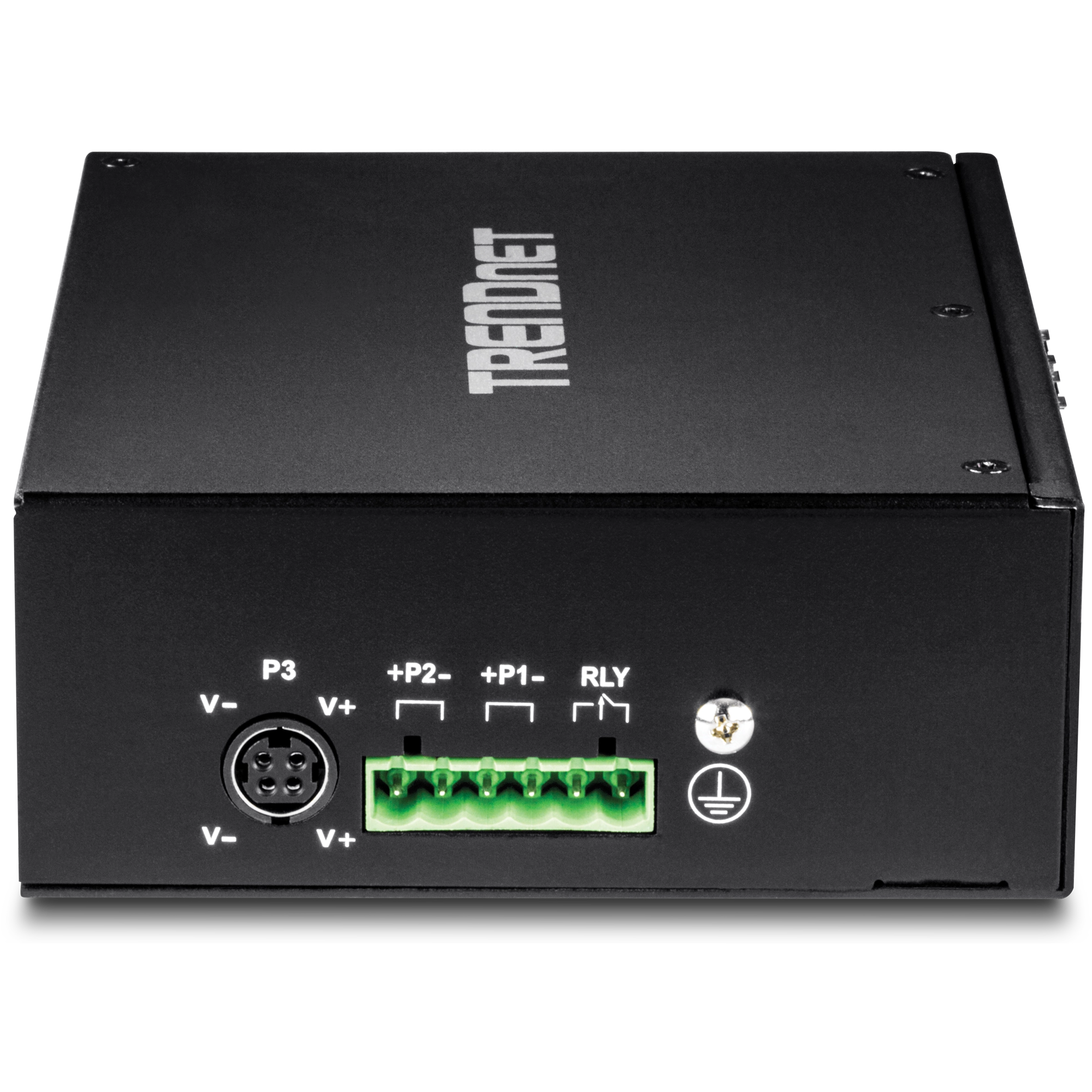

| Terminal Block | Redundant power inputs, alarm relay contact, 6 pin |
| Wire range: 0.34 mm^2 to 2.5 mm^2 | |
| Solid wire (AWG): 12-24 / 14-22 | |
| Stranded wire (AWG): 12-24 / 14-22 | |
| Torque: 5 lb. – In / 0.5 Nm / 0.56 Nm | |
| Wire strip length: 7-8 mm | |
| Alarm Relay Contact | Relay outputs with current carrying capacity of 1 A, 24 V DC |
| Open circuit mode when two power sources are connected | |
| Short circuit mode when only one power source is connected | |
| MTBF | 510,400 hours |
| Housing | IP30 metal case |
| DIN-rail mount | |
| Wall mount | |
| Grounding point | |
| ESD 6 KV protection | |
| Operating Temperature | - 40 to 75 °C (-40 to 167 °F) |
| Operating Humidity | Max. 95 % non-condensing |
| Dimensions | 155 x 120 x 48 mm (6.1 x 4.7 x 1.9 in.) |
| Weight | 415 g (1.1 lb) |
| Certifications | CE |
| FCC | |
| Shock (EN 60068-2-27) | |
| Freefall (EN 60068-2-32) | |
| Vibration (EN 60068-2-6) | |
| Warranty | Lifetime Warranty* |
