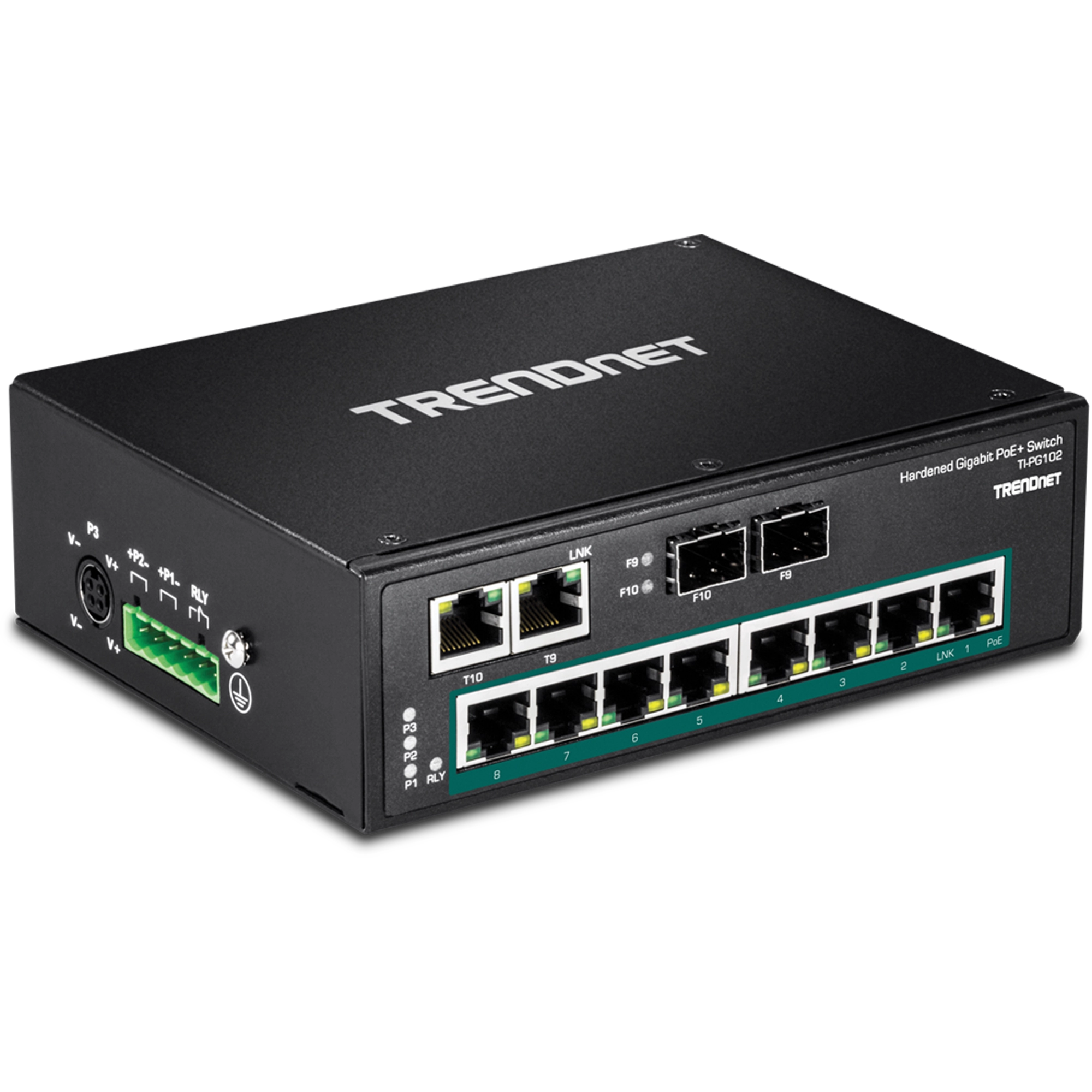

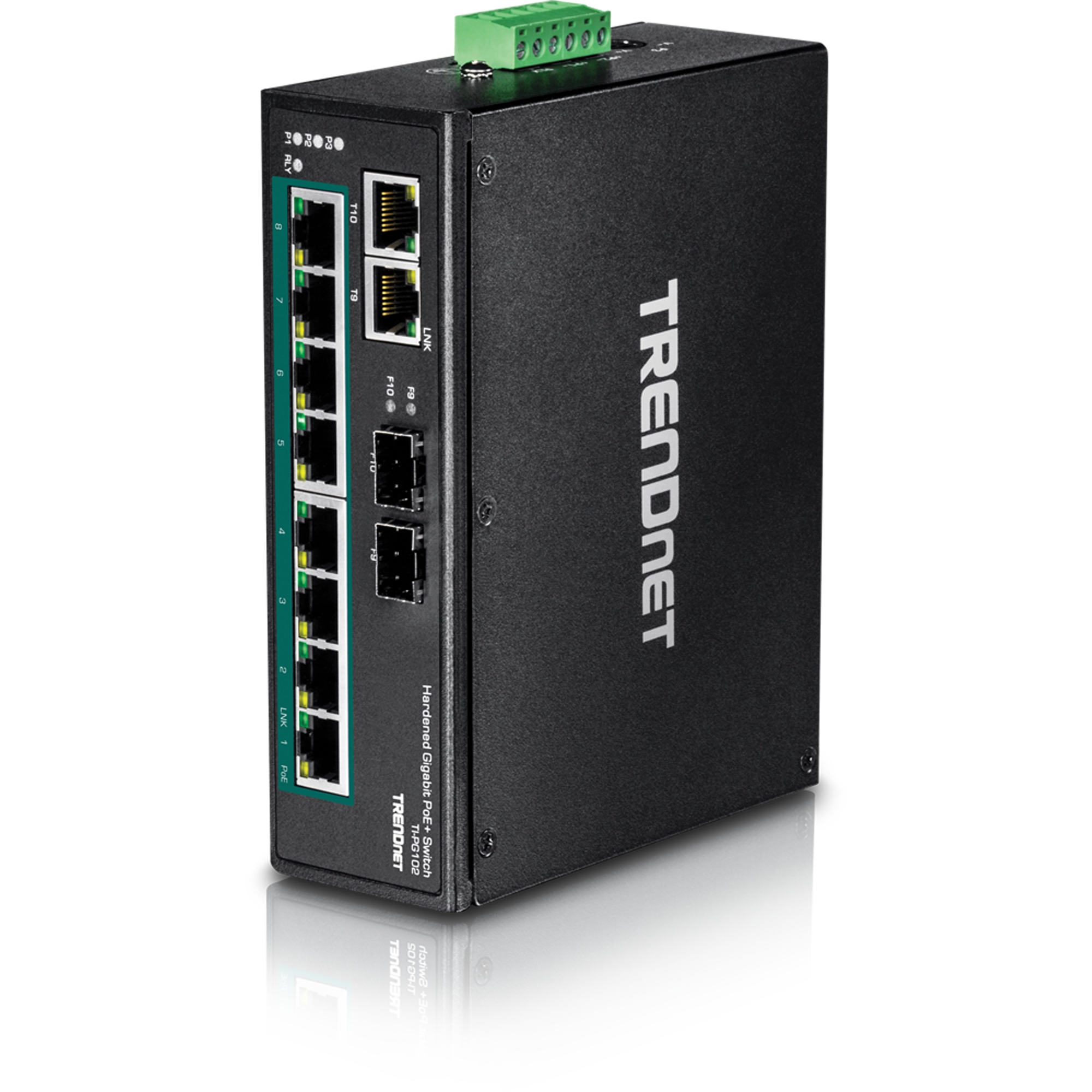

TRENDnet's 10-Port Industrial Gigabit PoE+ DIN-Rail Switch, model TI-PG102, has eight gigabit PoE+ ports with a 240 W PoE power budget, plus two gigabit RJ-45 / SFP shared ports. Users are able to connect eight PoE+ devices to the switch, while still providing two gigabit ports for additional network connections. The switch is equipped with an IP30 rated metal enclosure, designed to withstand a high degree of vibration and shock, while operating within a wide temperature range of -40° – 75°C (-40° – 167°F) for industrial environments.
PoE Power
A 240 W PoE+ power budget supplies up to eight Power over Ethernet devices with PoE+ power.
Fault Tolerance
Features Redundant power inputs with output alarm relay.
Industrial Hardened Design
Equipped with a rugged IP30 rated housing, designed to withstand a high degree of vibration, shock, and operate within a wide temperature range of -40 – 75°C (-40 – 167°F).
Features:

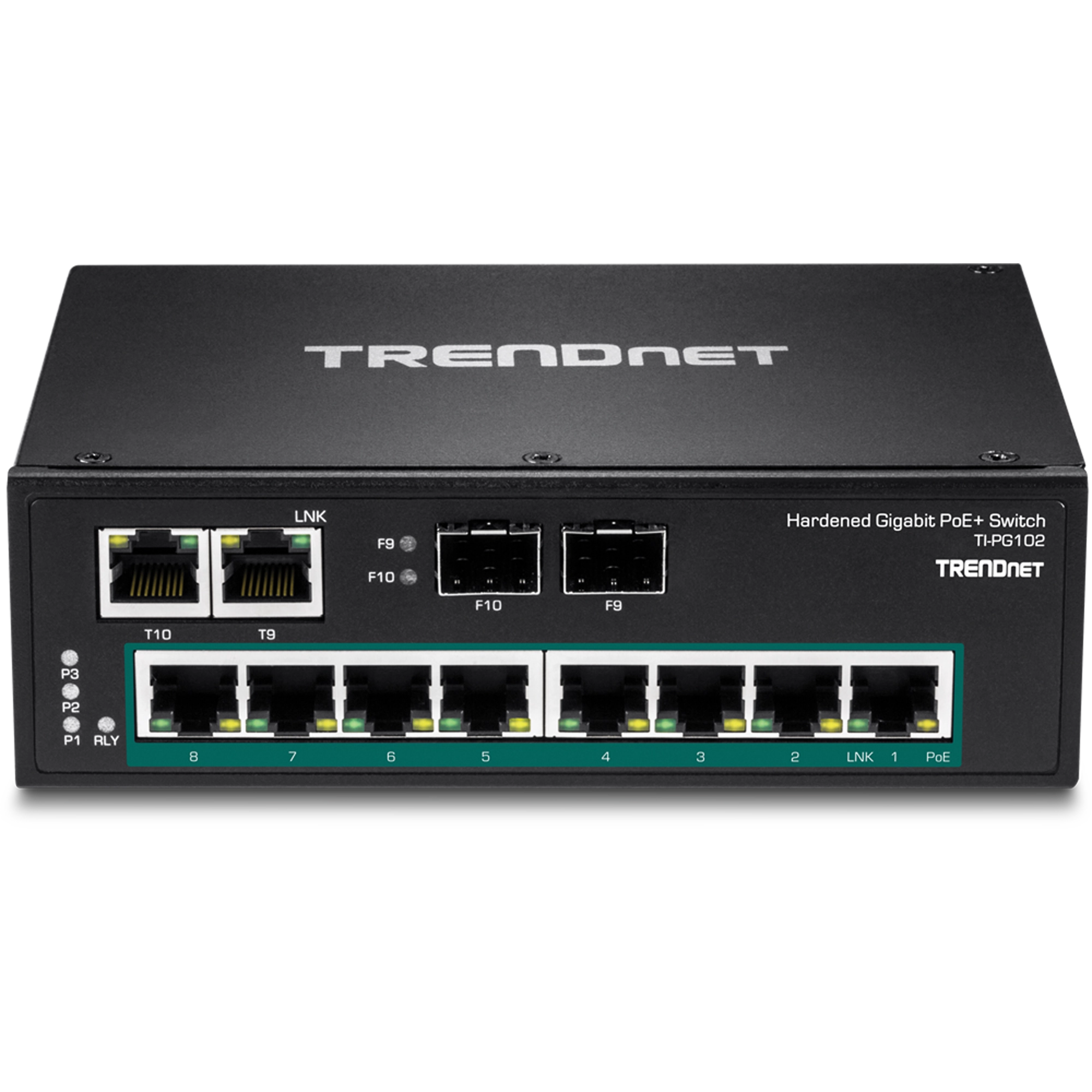

- 8 x Gigabit PoE+ ports
- 2 x 1000Base TX/SX RJ-45/SFP shared ports
- 240 W PoE power budget
- 20 Gbps switching capacity
- Hardened IP30 rated metal switch

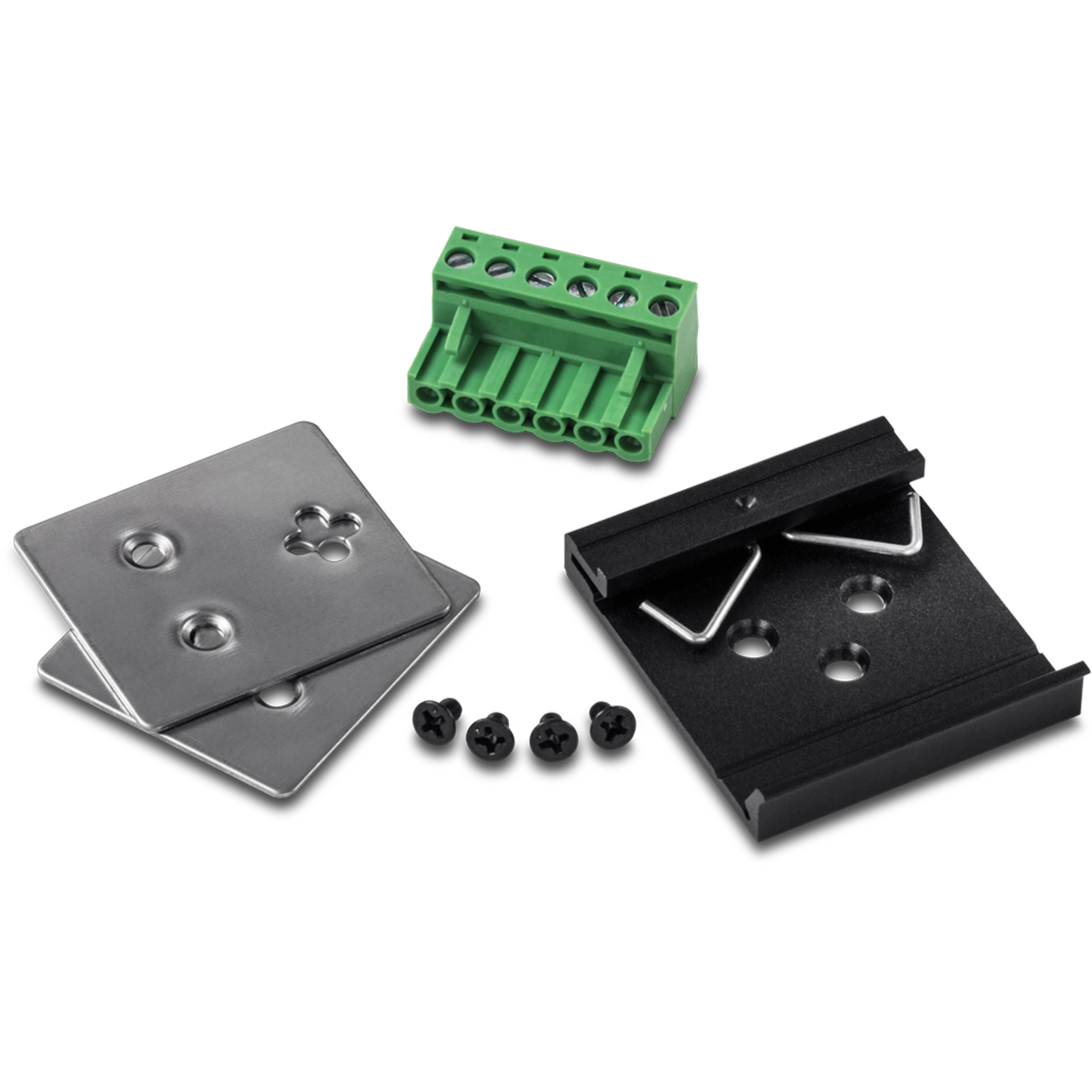

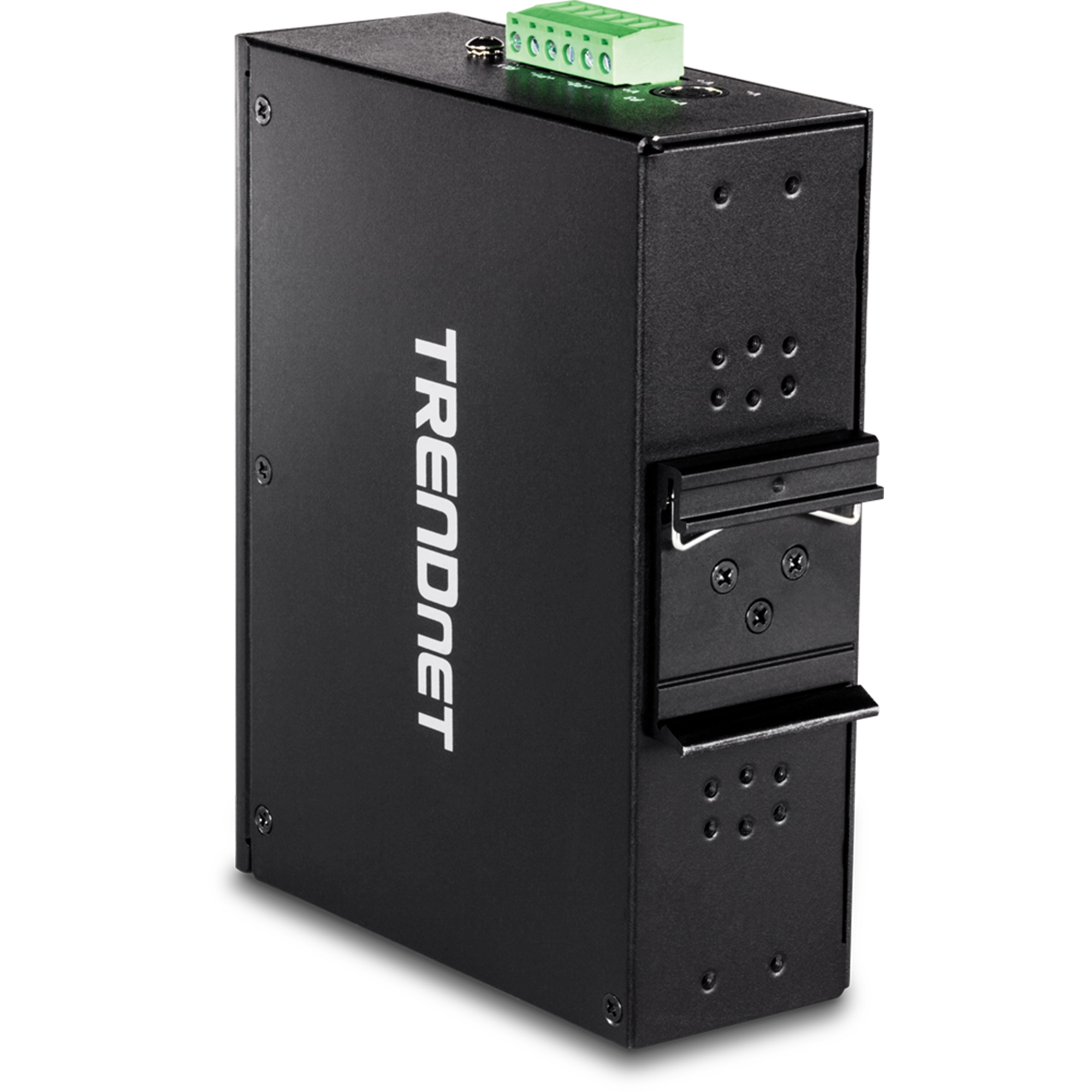

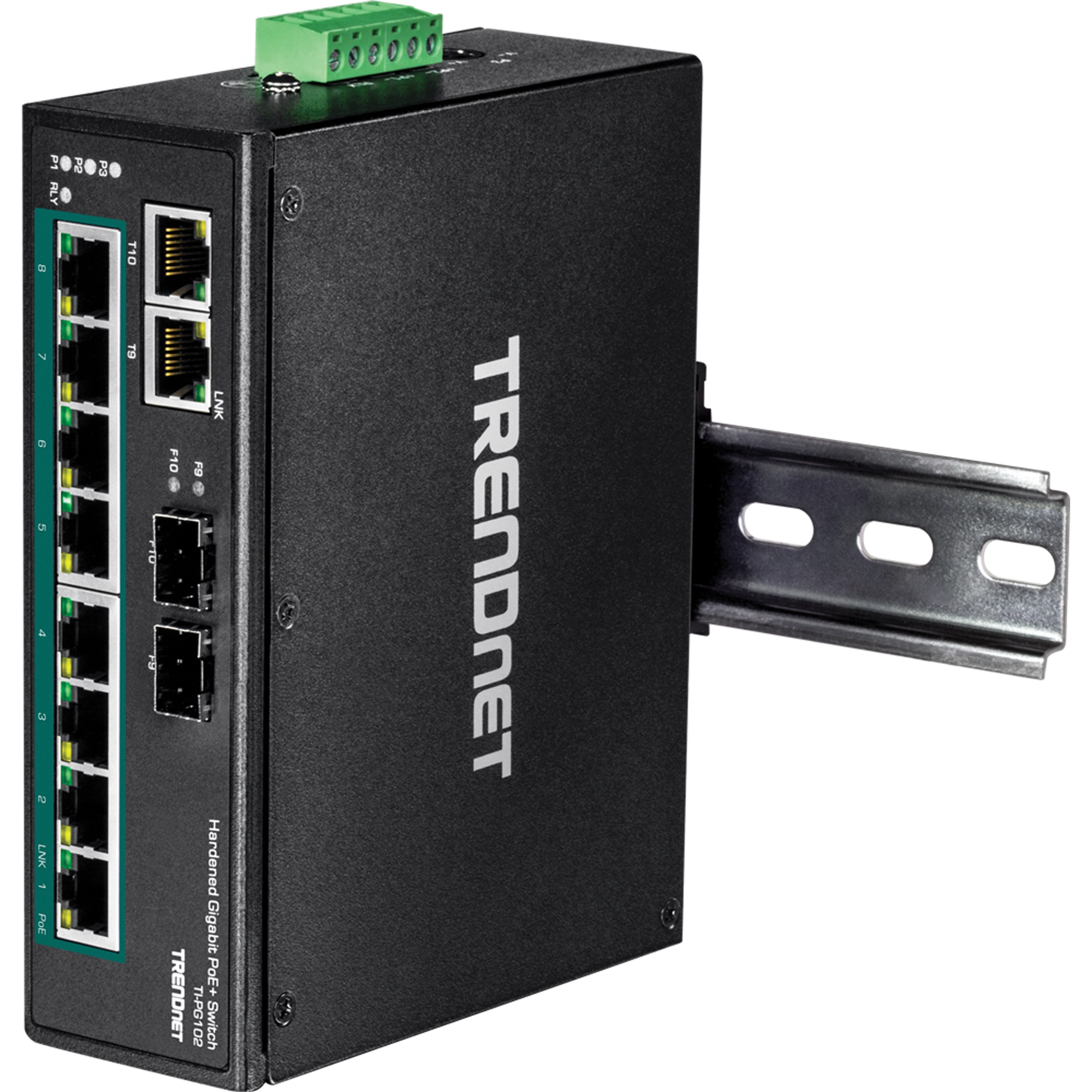

- Includes DIN-rail and wall mounts
- Operating temperature range of -40° – 75°C (-40° – 167°F)

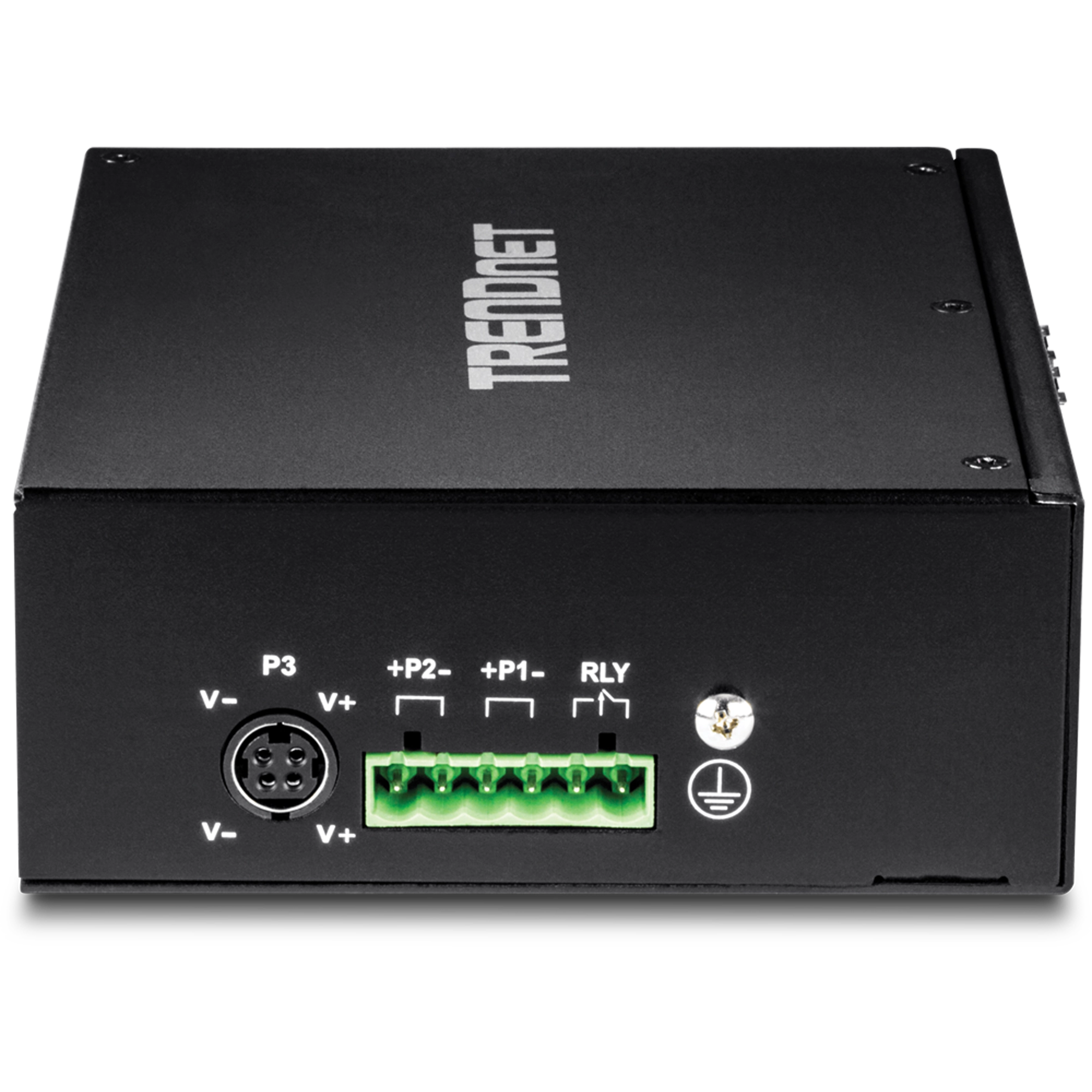

- Redundant power inputs with overload current protection
- Alarm output triggered by power failure
- Power supply sold separately (models: TI-S24052, TI-S24048, 48VDC3000)
- NDAA / TAA compliant
- Lifetime Warranty*
| Technical Specifications | |
| Standards |
|
| Device Interface |
|
| Data Transfer Rate |
|
| Performance |
|
| Power |
|
| AC Power |
|
| PoE |
|
| Terminal Block |
|
| Alarm Relay Contact |
|
| Housing |
|
| Operating Temperature |
|
| Operating Humidity |
|
| Dimensions |
|
| Weight |
|
| Certifications |
|
| Warranty |
|
