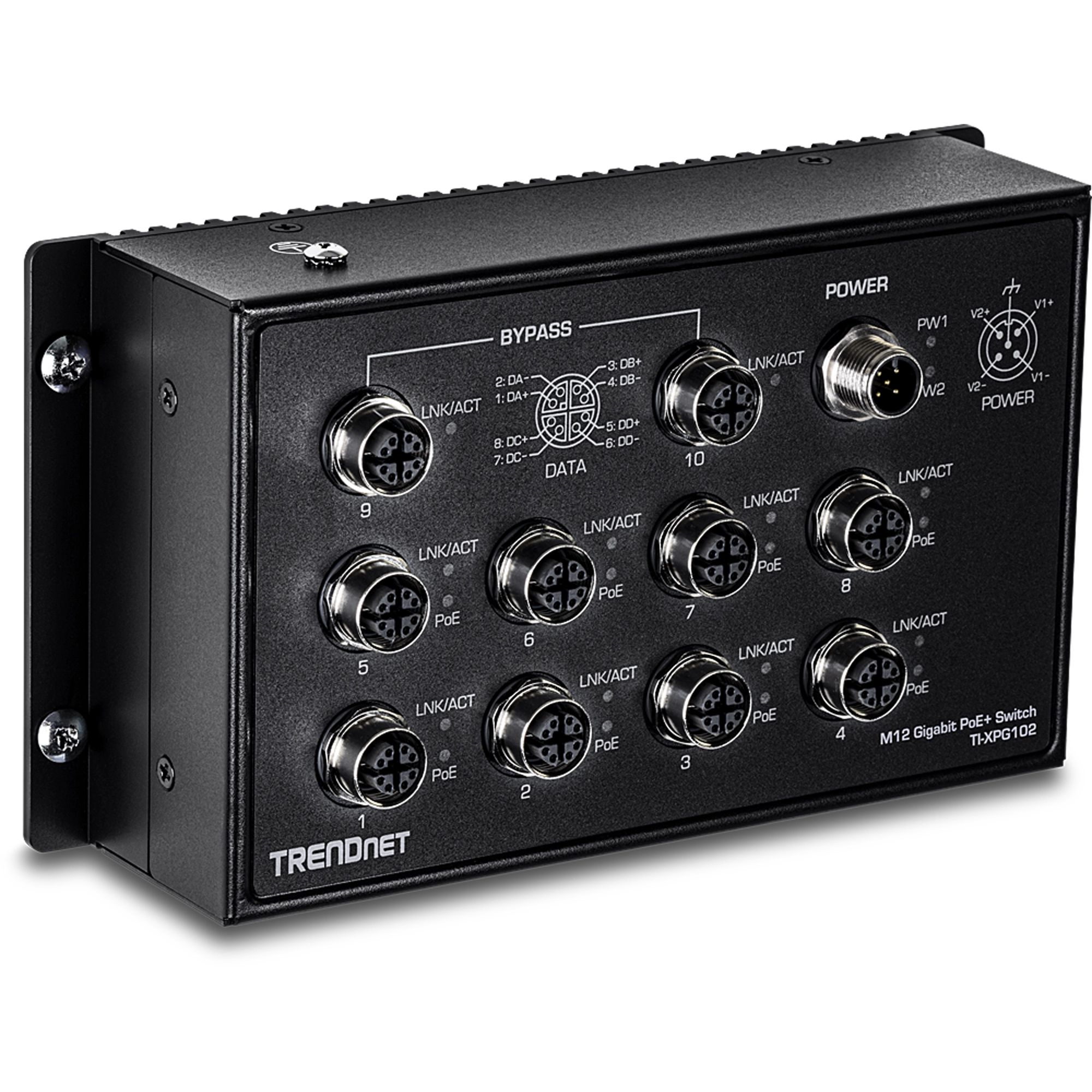

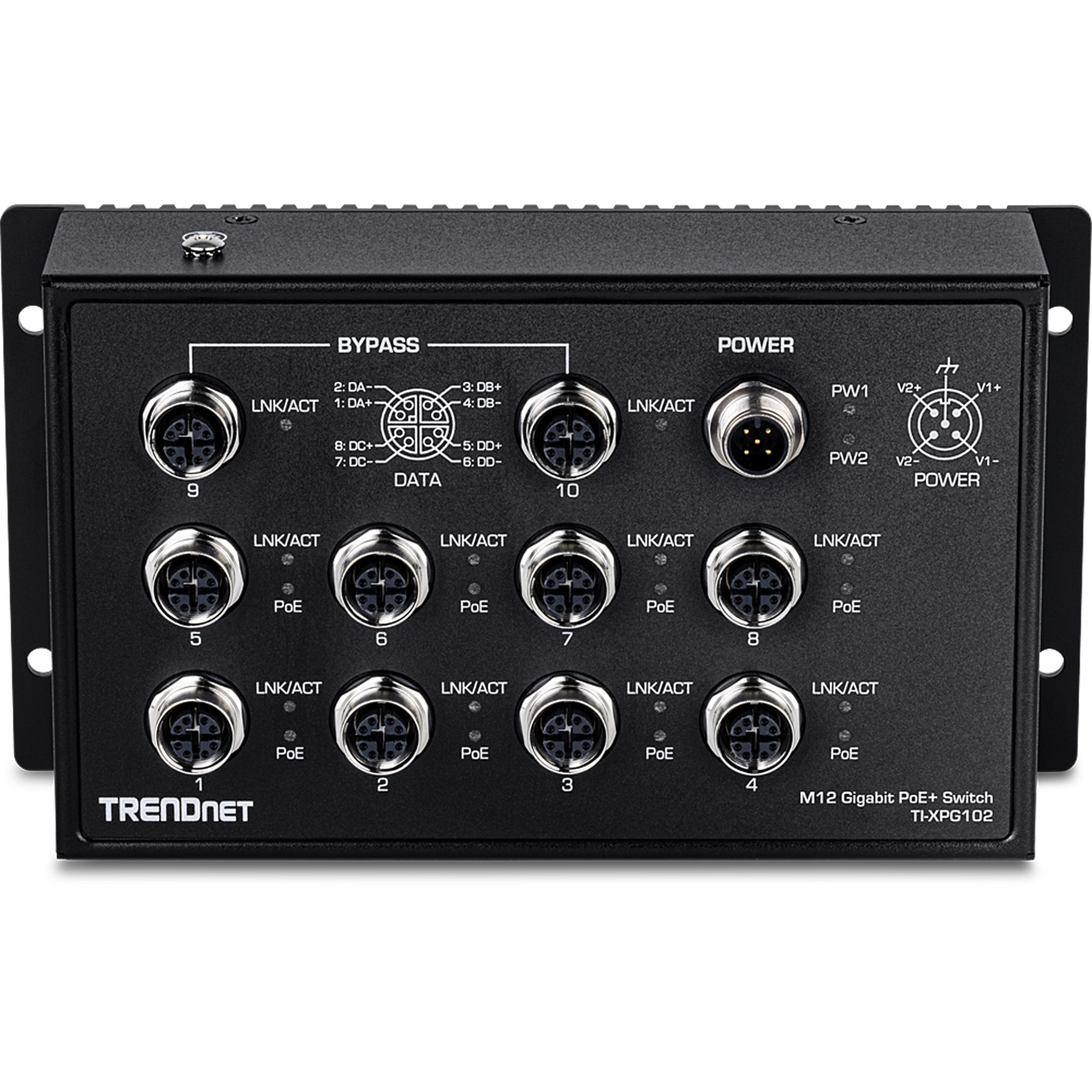

TRENDnet’s 10-Port Industrial EN 50155 M12 Gigabit PoE+ Railway Switch, model TI-XPG102, has eight M12 gigabit PoE+ ports, two M12 gigabit ports, and one M12 power port with a total PoE budget of up to 200W with 56VDC input. This M12 Ethernet switch is equipped with an IP40 rated metal enclosure, designed to withstand a high-degree of vibration and shock, while operating within an extreme temperature range of -40° – 75° C (-40° – 167° F) for industrial EN 50155 applications. The M12 Ethernet switch is designed and tested for bus, train, automobile, and telecom applications.

EN 50155 Compliant

This M12 Ethernet switch supports an input voltage range from 24 – 56V DC, with M12 interfaces for moving bus, train, automobile and other rolling stock applications.

Industrial Design

Equipped with an IP40 rated metal enclosure, the M12 switch is designed to withstand vibration and shock, with an extreme operating temperature range of -40° – 75° C (-40° – 167° F).

Power over Ethernet (PoE+)

Eight M12 gigabit PoE+ ports deliver up to 30W of PoE+ power per port with a total power budget of 200W @ 56V DC.

Features:

• 8 x M12 (X-code) Gigabit PoE+ ports
• 2 x M12 (X-code) Gigabit port with Bypass function
• 1 x M12 (A-code) power port
• PoE power budget: 200W @ 56V DC / 100W @ 24V DC
• EN 50155 compliant for rolling stock and railway applications
• Hardened IP40 rated metal housing
• 20Gbps switching capacity
• Operating temperature range of -40° – 75° C (-40° – 167° F)
• M12 cables sold separately (models: TI-CD02, TI-CD05, TI-CP02)
• Power supply sold separately (model: TI-S24052)
• NDAA / TAA compliant
• Lifetime Warranty*
