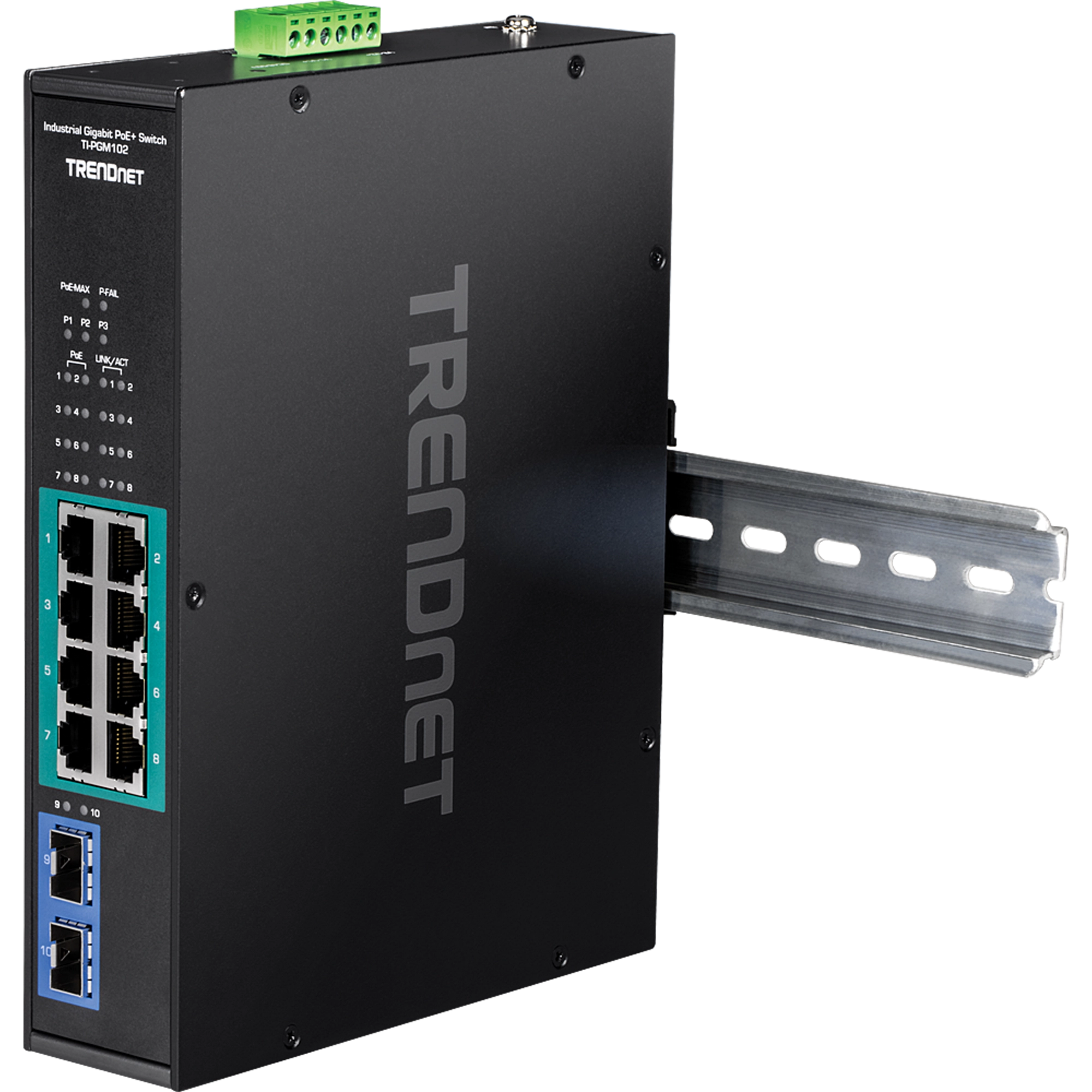

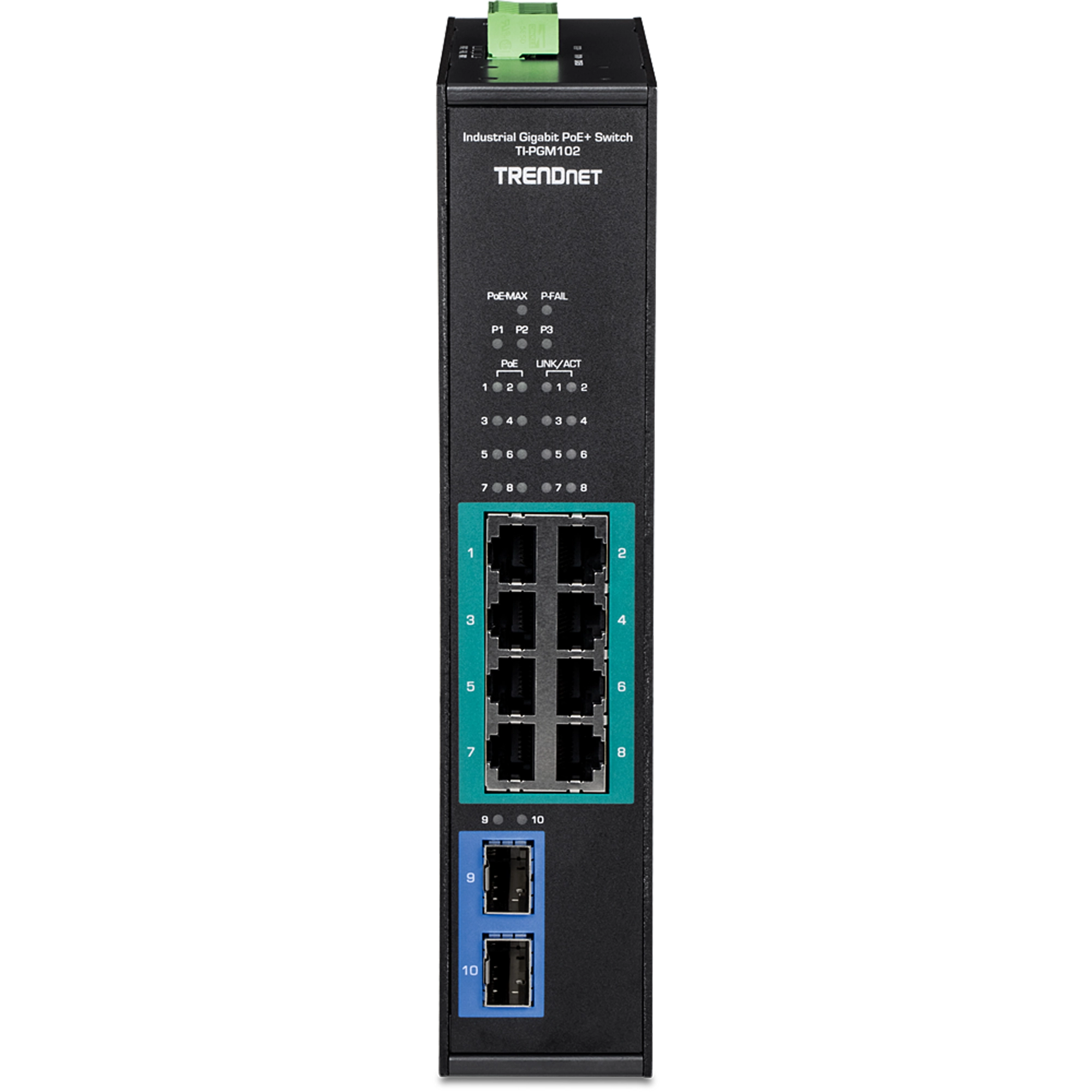

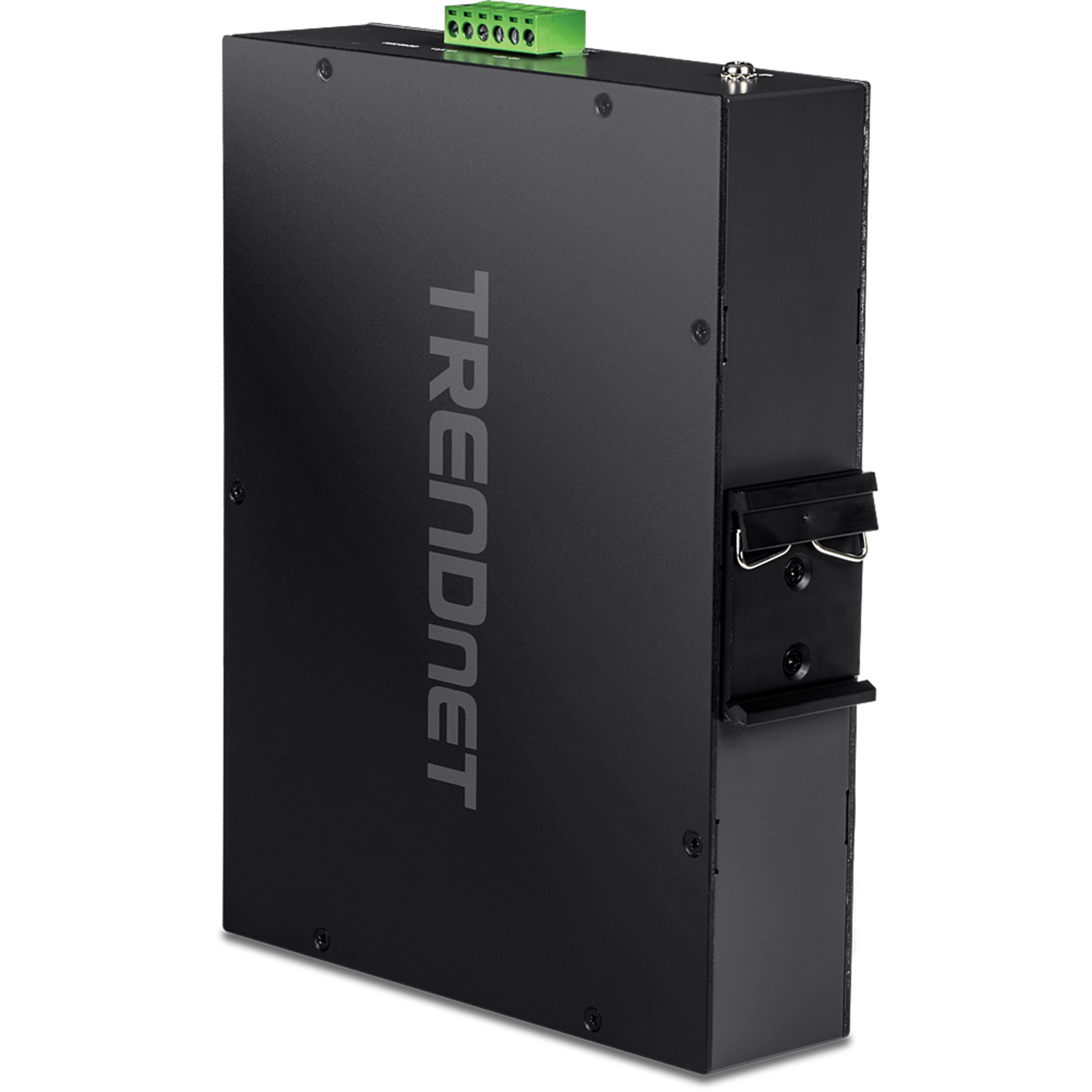

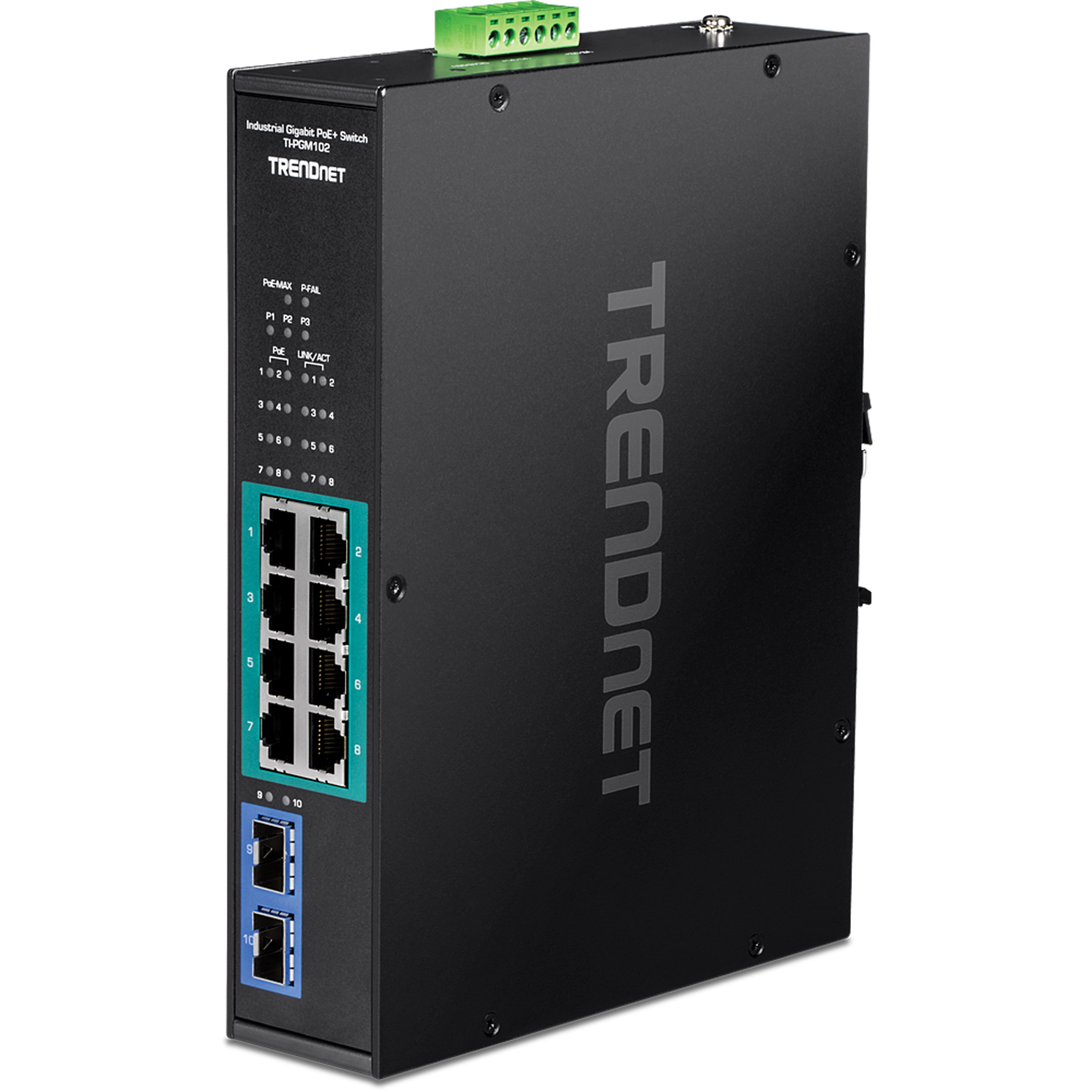

TRENDnet’s 10-Port Industrial Gigabit PoE+ DIN-Rail Switch -20° – 65°C (-4° – 149°F), model TI-PGM102, has eight gigabit PoE+ ports with a 240W PoE power budget, plus two gigabit SFP slots for long distance fiber applications. Users are able to connect eight PoE+ devices to the switch, while still providing two gigabit SFP slots for additional network connections. This switch is equipped with an IP30 rated metal enclosure, designed to operate within a wide temperature range of -20° – 65°C (-4° – 149°F) for harsh, industrial environments.

PoE Power

A 240W PoE+ power budget supplies up to eight Power over Ethernet devices with PoE+ power.

Fault Tolerance

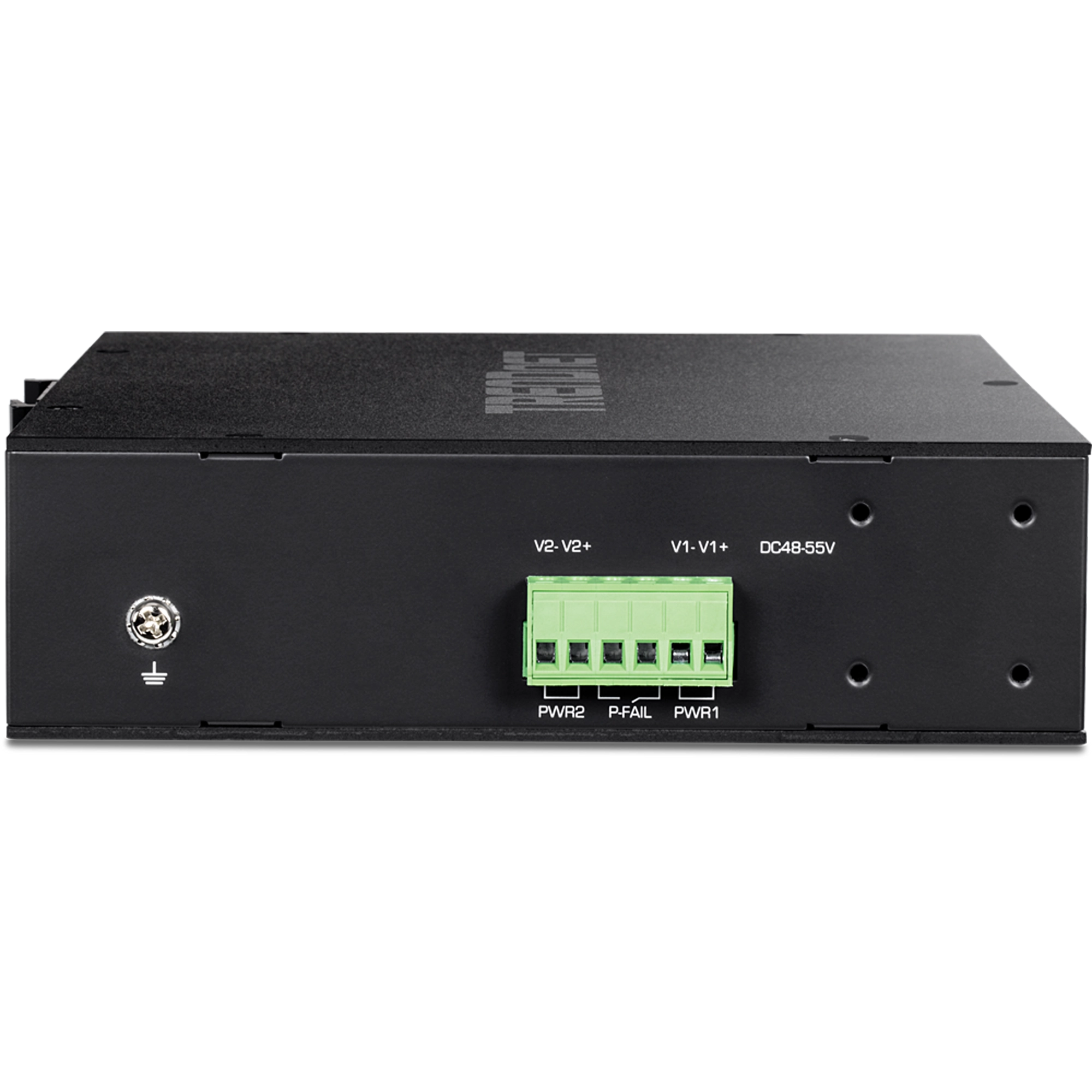

Features redundant power inputs with overload current protection and output alarm relay.

Industrial Hardened Design

Rugged IP30 rated housing is designed to operate within a wide temperature range of -20° – 65°C (-4° – 149°F).

Features:

• 8 x Gigabit PoE+ ports
• 2 x Gigabit SFP slots
• 240W PoE power budget
• 20Gbps switching capacity
• Hardened IP30 rated metal switch

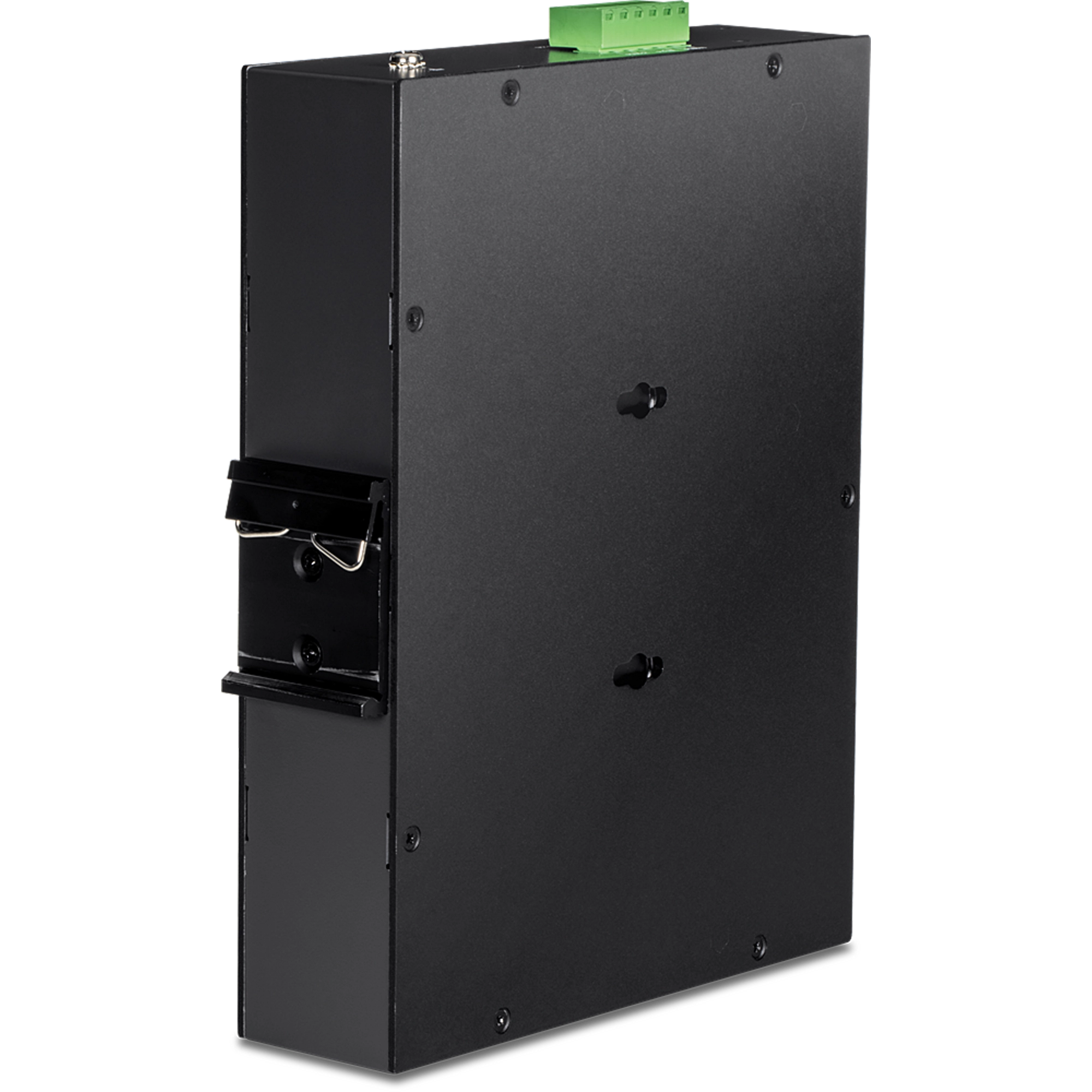

• Includes DIN-Rail and wall mounts
• Wide operating temperature range of -20° – 65°C (-4° – 149°F)
• Redundant power inputs with overload current protection
• Alarm output triggered by power failure
• Power supply sold separately (models: TI-S24052, TI-S24048)
• NDAA / TAA compliant
• Lifetime Warranty*
