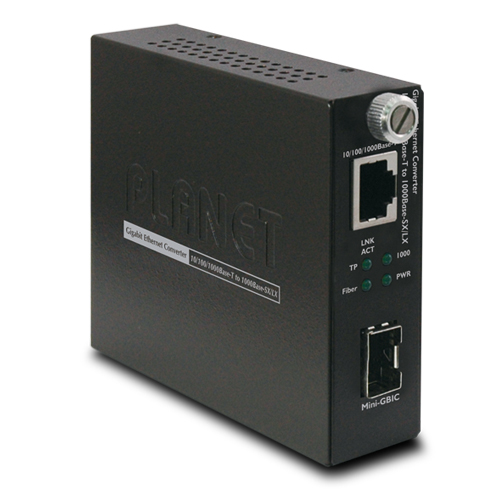

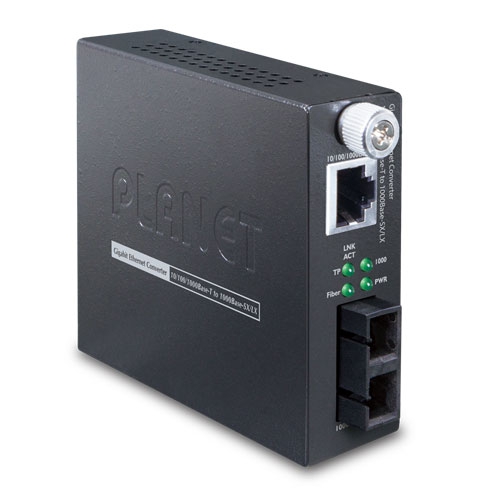

Planet - GST-805A - 10/100/1000Base-T to Mini-GBIC Smart Gigabit Converter
Product Overview
Planet GST-805A is a 10/100/1000BASE-T to 1000BASE-X SFP smart media converter featuring DIP switch configurable fiber auto-negotiation/force mode and LFP (Link Fault Pass-through with LLCF/LLR). Supports TS-1000/802.3ah OAM, 9K jumbo frames, and chassis management via MC-1610MR series (remote monitoring).
Key Configuration
• Copper port: 1 × 10/100/1000BASE-T RJ45 (auto-MDI/MDI-X)
• Fiber port: 1 × 1000BASE-X SFP slot (SFP module required, sold separately)
• DIP switches: Fiber auto-negotiation/manual, LFP enable/disable
• OAM: TS-1000, IEEE 802.3ah terminal support
• Jumbo frame: 9K bytes; power consumption: 3.1W max
• Dimensions: 81 × 94 × 26 mm
Key Features
LFP with LLCF/LLR enables link status propagation between copper and fiber for reliable fault detection. Supports DIP-switch selectable fiber auto or manual mode, TS-1000/802.3ah OAM for remote monitoring, and 9K jumbo frames for higher throughput efficiency. Compatible with the MC-1610MR series chassis and certified FCC Class A and CE Class A for industrial use.
Technical Context
The GST-805A provides Gigabit copper-to-fiber bridging with intelligent management features. It includes a manual fiber mode for forced speed and duplex settings to ensure compatibility with legacy fiber devices. The SFP interface supports both multi-mode fiber up to 550m and single-mode fiber links up to 120km, depending on transceiver type.
Installation Notes
Compact Gigabit fiber media converter (81 × 94 × 26 mm) with 0–50°C operating range and -40°C storage support for industrial use. Powered via 5V DC external adapter and supports Cat5 STP copper up to 100m with SFP-based fiber connectivity. Includes DIP switches for fiber auto/manual mode and LFP control, LED status indicators for power, copper, and fiber link/activity, and compatibility with MC-series management chassis for centralized monitoring.
| Standards | IEEE 802.3, 10Base-T IEEE 802.3u, 100Base-TX IEEE 802.3ab, 1000Base-T IEEE 802.3z, 1000Base-SX/LX IEEE 802.3ah OAM |
| Ports | 1 x 10/100/1000Base-T port 1 x 1000Base-SX/LX port |
| Copper Interface | RJ-45 port (Auto-MDI/MDI-X) Twisted Pair |
| Optic Interface | GST-802 / GST-802S: SC GST-805A: SFP GST-806A15 / GST-806B15 / GST-806A60 / GST-806B60: WDM |
| Optic Wavelength | GST-802: 850nm GST-802S: 1310nm GST-805A: N/A GST-806A15: TX:1310nm / RX:1550nm GST-806B15: TX:1550nm / RX:1310nm GST-806A60: TX:1310nm / RX:1550nm GST-806B60: TX:1550nm / RX:1310nm |
| Launch Power(dBm) Max. | GST-802: -4 dBm GST-802S: -3 dBm GST-805A: N/A GST-806A15: -3 dBm GST-806B15: +5 dBm GST-806A60: -3 dBm GST-806B60: +4 dBm |
| Launch Power(dBm) Min. | GST-802: -9.5 dBm GST-802S: -9.5dBm GST-805A: N/A GST-806A15: -9 dBm GST-806B15: 0 dBm GST-806A60: -9 dBm GST-806B60: -1 dBm |
| Receive Sensitivity | GST-802: -13.5 dBm GST-802S: -14.4 dBm GST-805A: N/A GST-806A15: -21 dBm GST-806B15: -25 dBm GST-806A60: -21 dBm GST-806B60: -25 dBm |
| Maximum Input power | GST-802: -18 dBm GST-802S: -20 dBm GST-805A: N/A GST-806A15: -3 dBm GST-806B15: -3 dBm GST-806A60: -2 dBm GST-806B60: -2 dBm |
| Speed Twisted-pair | 10/20Mbps for Half / Full-Duplex 100/200Mbps for Half / Full Duplex 2000Mbps for Full-Duplex |
| Speed Fiber-optic | 2000Mbps for Full-Duplex |
| Cable Twisted-pair | 10Base-T: 2-pair UTP Cat. 3,4,5, up to 100m 100Base-TX: 2-pair UTP Cat. 5, up to 100m 1000Base-T: 4-pair STP Cat 5 up to 100m |
| Cable Fiber-optic Cable | – 50/125μm or 62.5/125μm multi-mode fiber cable, up to 220/550m. – 9/125μm single-mode cable, provides long distance for 10/20/30/40/50/70/120km (vary on fiber transceiver or SFP module) |

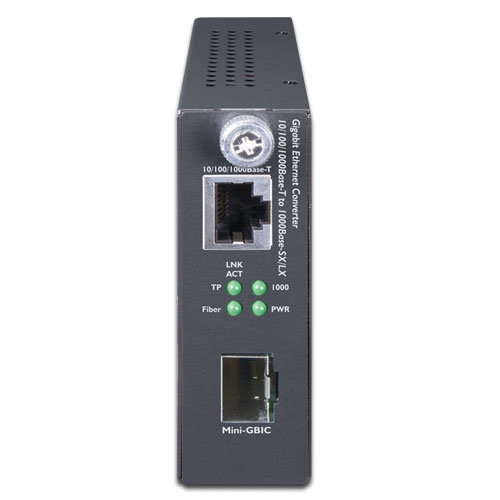

| LED Indicator | – PWR (Green) – TP: 1000, LINK/ACT – Fiber: LINK/ACT |
| DIP Switch | Fiber (Auto-negotiation / Manual), LFP (Disable / Enable) |
| Power Consumption | 3.1 Watts / 10BTU (maximum) |
| OAM | TS-1000, IEEE 802.3ah terminal |
| Jumbo Frame size | 9K |
| Power Input | DC 5V / 2A |
| Dimensions (W x D x H) | 81 x 94 x 26 mm |
| Operating Environment | Temperature: 0~50 degrees C; Humidity: 5~90% non-condensing |
| Storage Environment | Temperature: -40~70 degrees C; Humidity: 5~90% non-condensing |
| Emissions | FCC Class A, CE Class A |
