Bi-directional Media Converter

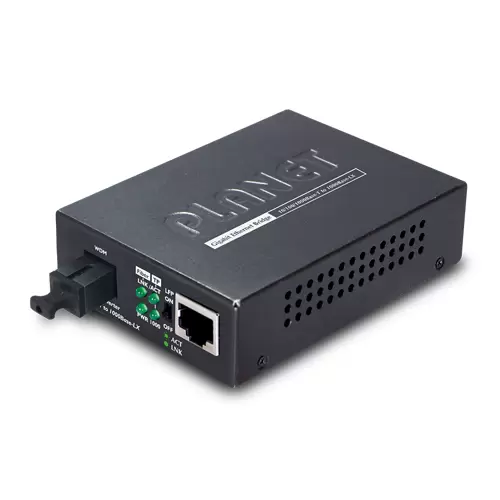

The GT-806B15 is a 10/100/1000Base-TX to 1000FX WDM Bi-directional Media Converter that supports single mode conversion. This compact unit can be used independently or can be utilized with a media converter chassis, models MC-700/MC-1500/MC-1500R by Planet Technology. The chassis can send power to the GT-806B15 to keep the unit in a single location. The GT-806B15 is compatible with IEEE 802.3 10Base-T, IEEE 802.3u 100Base-TX, IEEE 802.3ab 1000Base-T and IEEE 802.3z 1000Base-LX/SX.
Administrators can monitor the unit via the OAM (TS-1000 and IEEE 802.3ah) terminal function, such as troubleshooting, performance monitoring, port status, loop back test, and failure indication remotely, without the web UI being present. The GT-806B15 supports conversion between 10/100/1000Base-T and 1000Base-LX networks.
Features:
- Speed: 10/100/1000TX to 1000LX
- Mode: Single Mode WDM
- Wavelength: TX: 1550nm RX: 1310nm
- Distance: 15km
- Fiber Connection: SC
- TAA Compliant
| Hardware Specifications | |
| Hardware Version | 3 |
| Standards | IEEE 802.3, 10Base-T IEEE 802.3u, 100Base-TX IEEE 802.3ab, 1000Base-T IEEE 802.3z, 1000Base-SX/LX |
| Ports | 1 x 10/100/1000Base-T port, 1 x 1000Base-SX/LX port |
| Copper Interface | RJ-45 port (Auto-MDI/MDI-X) Twisted Pair |
| Optic Interface | GT-802/GT-802S: SC GT-805A: SFP GT-806A15/GT-806B15/GT-806A60/GT-806B60: WDM |
| Fiber Maximum Distance | GT-802: 220 / 550m GT-802S: 10km GT-805A: N/A GT-806A15: 15km GT-806B15: 15km GT-806A60: 60km GT-806B60: 60km |
| Optic Wavelength | GT-802: 850nm GT-802S: 1310nm GT-805A: N/A GT-806A15: TX:1310nm RX:1550nm GT-806B15: TX:1550nm RX:1310nm GT-806A60: TX:1310nm RX:1550nm GT-806B60: TX:1550nm RX:1310nm |
| Max. Optical Launch Power | GT-802: -4dBm GT-802S: -3dBm GT-805A: N/A GT-806A15: -3dBm GT-806B15: -3dBm GT-806A60: +5dBm GT-806B60: +4dBm |
| Min. Optical Launch Power | GT-802: -9.5dBm GT-802S: -9.5dBm GT-805A: N/A GT-806A15: -9dBm GT-806B15: -9dBm GT-806A60: 0dBm GT-806B60: -1dBm |
| Max. Input Power | GT-802: N/A GT-802S: -3 GT-805A: N/A GT-806A15: -3 GT-806B15: -3 GT-806A60: -2 GT-806B60: -2 |
| Min. Input Power | GT-802: -18 GT-802S: -20 GT-805A: N/A GT-806A15: -21 GT-806B15: -21 GT-806A60: -25 GT-806B60: -25 |
| Optical Link Budget | GT-802: 3dB(62.5/125μm) 4dB(50/125μm) GT-802S: 4.9dB GT-805A: N/A GT-806A15: 12dB GT-806B15: 12dB GT-806A60: 25dB GT-806B60: 24dB |
| Speed | Twisted-pair: 10/20Mbps for half/full-duplex 100/200Mbps for half/full duplex 2000Mbps for full-duplex Fiber-optic: 2000Mbps for full-duplex |
| Cable | Twisted-pair 10Base-T: 2-pair UTP Cat. 3,4,5, up to 100m 100Base-TX: 2-pair UTP Cat. 5, up to 100m 1000Base-T: 4-pair STP Cat 5 up to 100m Fiber-optic Cable 50/125μm or 62.5/125μm multi-mode fiber cable, up to 220/550m. 9/125μm single-mode cable, providing long distance for 10/15/20/30/40/50/60/70/120km (vary on fiber transceiver or SFP module) |
| LED Indicator | PWR TP LINK/ACT, 1000 Fiber LINK/ACT |
| DIP Switch | LFP function (Disable / Enable) setting |
| OAM | TS-1000 and IEEE 802.3ah Terminal mode supported |
| Jumbo Packet Size | 9K |
| Power Consumption | 4.6 watts / 15 BTU (maximum) |
| Power Input | DC 5V / 2A |
| Dimensions (W x D x H) | 26 x 70 x 97 mm |
| Weight | 0.2kg |
| Operating Environment | Operating temperature: 0 to 50 degrees C; Humidity: 5~95% non-condensing |
| Storage Environment | storage temperature: -10 to 70 degrees C; Humidity: 5~95% non-condensing |
| Emissions | FCC Class A, CE Class A |
