Bridge Media Converter

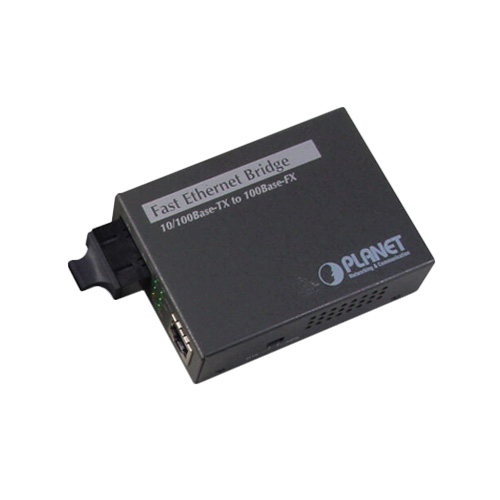

The FT-802S50 is a Fast Ethernet Bridge converter that features 100Base-FX fiber to 10/100Base-TX shielded twisted pair, or STP. The unit can either operate for half-duplex and full-duplex operations and simply supports different fiber options. The automatically adapts to a connected device’s highest performance when it is connected to the STP port. If a device that support full duplex is connected, the converter adapts to the full-duplex mode and offers a 200Mbps bandwidth. When a half duplex unit is connected, the converter adapts to the half-duplex mode and offers the standard 100Mbps bandwidth. The unit also features an override switch that offers complete manual control over half and full-duplex operation modes that are in the fiber-optic interface. The unit’s fiber port operates at 1310 nm and utilizes ST, SC, MT-RJ, VF-45 or WDM connectors.
The FT-802S50 features the Link Fault Pass Through function, (LLCF/LLR) and a DIP Switch. The LLCF/LLR features have the ability to notify administrators issues with the link media while offering effective solutions to monitor the net. The DIP Switch features a handy function that disables or enables the LFP.
Features:
- Complies with IEEE 802.3, IEEE 802.3u 10/100BASE-TX, 100BASE-FX standard
Connectors: One RJ45 (auto-MDI/MDI-X) twisted pair, EIA568
One fiber-optic, 1310nm wavelength, connector type and distance vary with model
- FT-806A20 / FT-806A60: Tx-1310nm, Rx-1550nm
- FT-806B20 / FT-806B60: Tx-1550nm, Rx-1310nm - Data Transfer Rate:
- TP: 10/100Mbps
- FX: 100Mbps - Duplex mode support:
- Full or half-duplex mode by auto-negotiation (TP)
- Full or half-duplex mode by DIP switch (FX) - LED indicators: PWR, FX LNK/ACT, FX FDX/COL, TP 100, TP LNK/ACT, TP FDX/COL
- DIP switch: 2 DIP switches
- Rear DIP switch: FX duplex mode selection
- Side DIP switch: LFP (Link Fault Pass-through) mode selection - IEEE 802.3x Full-Duplex Flow-Control and Back-Pressure in Half-Duplex eliminate the loss of packets
| Product | |
| Protocol | IEEE 802.3, 10BASE-T |
| IEEE 802.3u, 100BASE-TX | |
| IEEE 802.3u, 100BASE-FX | |
| IEEE 802.3x, Flow Control | |
| Dimensions (W x D x H) | 97 x 69 x 26 mm |
| Weight | 0.2kg |
| Power Input | 5V DC, 2A, max. |
| Power Supply | AC Adapter 100-240VAC Frequency: 50-60Hz |
| Enclosure | Compact-sized metal housing |
| Case with anticorrosion treatment | |
| Electrostatic paint | |
| Connectors and Cables | |
| Shielded Twisted-pair | RJ45, Category 5 (EIA/TIA 568) |
| Fiber-optic | FT-801 : ST / Multi-mode / 2km |
| FT-802 : SC / Multi-mode / 2km | |
| FT-803: MTRJ / Multi-mode / 2km | |
| FT-802S15 : SC / Single mode / 15km | |
| FT-802S35 : SC / Single mode / 35km | |
| FT-802S50 : SC / Single mode / 50km | |
| FT-806A20: WDM SC / Single mode / 20km | |
| FT-806B20: WDM SC / Single mode / 20km | |
| FT-806A60: WDM SC / Single mode / 60km | |
| FT-806B60: WDM SC / Single mode / 60km | |
| Multi-mode Cable | 50/125, 62.5/125 µm |
| Single-mode (SM) Cable | 9/125 µm |
| Optic Wavelength | FT-801: 1310nm |
| FT-802: 1310nm | |
| FT-803: 1310nm | |
| FT-802S15: 1310nm | |
| FT-802S35: 1310nm | |
| FT-802S50: 1310nm | |
| FT-806A20: TX: 1310nm; RX: 1550nm | |
| FT-806B20: TX: 1550nm; RX: 1310nm | |
| FT-806A60: TX: 1310nm; RX: 1550nm | |
| FT-806B60: TX: 1550nm; RX: 1310nm | |
| Max. Launch Power (dBm) | FT-801: -14 |
| FT-802: -14 | |
| FT-803: -14 | |
| FT-802S15:0 | |
| FT-802S35:-8 | |
| FT-802S50:0 | |
| FT-806A20:-8 | |
| FT-806B20:-8 | |
| FT-806A60:0 | |
| FT-806B60:0 | |
| Min. Launch Power (dBm) | FT-801: -20 (62.5/125µm), -23.5 (50/125µm) |
| FT-802: -20 (62.5/125µm), -23.5 (50/125µm) | |
| FT-803: -20 (62.5/125µm), -23.5 (50/125µm) | |
| FT-802S15: ?20 | |
| FT-802S35: -15 | |
| FT-802S50:-5 | |
| FT-806A20:-14 | |
| FT-806B20:-14 | |
| FT-806A60:-5 | |
| FT-806B60:-5 | |
| Receive Sensitivity (dBm) | FT-801: -31.8 |
| FT-802: -31.8 | |
| FT-803: -31.8 | |
| FT-802S15: -32 | |
| FT-802S35:-34 | |
| FT-802S50: -35 | |
| FT-806A20:-31 | |
| FT-806B20:-31 | |
| FT-806A60:-34 | |
| FT-806B60:-34 | |
| Maximum Input Power (dBm) | FT-801: -14 |
| FT-802: -14 | |
| FT-803: -14 | |
| FT-802S15:0 | |
| FT-802S35:0 | |
| FT-802S50:0 | |
| FT-806A20:0 | |
| FT-806B20:0 | |
| FT-806A60:0 | |
| FT-806B60:0 | |
| Supported Distances and Functions | |
| Shielded Twisted-pair | 100m (328 ft.) |
| Multi-mode Fiber Optic | 412m (1,350 ft.) (half-duplex) |
| 2km (1.2 miles) (full-duplex) | |
| Single-mode (SM) | 412m (1,350 ft.) (half-duplex) |
| 15km (9 miles) (full-duplex) | |
| 20km (12 miles) (full-duplex) | |
| 35km (21 miles) (full-duplex) | |
| 50km (31 miles) (full-duplex) | |
| 60km (37 miles) (full-duplex) | |
| Port Mode | TP: Half and full duplex, auto-negotiation |
| FX: Half and full duplex via DIP switch | |
| Environment & Emissions | |
| Operating Environment | Temperature: 0~50 degrees C |
| Humidity: 5~90% non-condensing | |
| Storage Environment | Temperature: -40~70 degrees C |
| Humidity: 5~90% non-condensing | |
| Emissions | FCC Class A, CE Class A |
