Bridge Media Converter

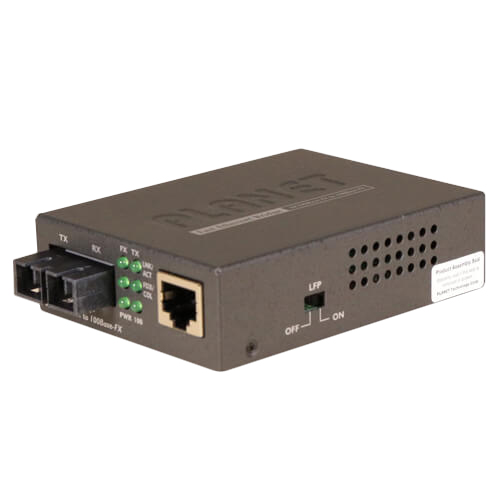

The FT-802S35 is an innovative Fast Ethernet Bridge 100Base-FX fiber to 10/100Base-TX shielded twisted pair (STP) converter. It supports selectable for half-duplex and full-duplex operations and supports a variety of fiber options. The converter auto-adapts to the highest level of performance supported by the device connected to the STP port. When the device is a switch or a workstation that supports full duplex, the converter adapts to the full-duplex mode and provides an effective 200Mbps bandwidth. When the connected device is a hub or a workstation that supports only half duplex, the converter adapts to the half-duplex mode and provides the nominal 100Mbps bandwidth. An override switch provides total manual control over the half/full-duplex operation, in fiber-optic interface. The fiber port of converter operates at 1310 nm and uses ST, SC, MT-RJ, VF-45 or WDM connectors. Multi-mode models that support distances up to 2 km and single-mode models that support distances up to 15/35/50 km are available.
The FT-80x series are with LFP (Link Fault Pass Through function) (LLCF/LLR) and the DIP Switch design. LLCF/LLR can immediately alarm administrators the problem of the link media and provide efficient solution to monitor the net. The DIP Switch provides disable or enable the LFP function.
LLCF (Link Loss Carry Forward) means when a device connected to the converter and the TP line loss the link, the converter’s fiber will disconnect the link of transmit. LLR (Link Loss Return) means when a device connected to the converter and the fiber line loss the link, the converter’s fiber will disconnect the link of transmit. Both can immediately alarm administrators the problem of the link media and provide efficient solution to monitor the net.
Features:
- Complies with IEEE 802.3, IEEE 802.3u 10/100BASE-TX, 100BASE-FX standard
Connectors: One RJ45 (auto-MDI/MDI-X) twisted pair, EIA568
One fiber-optic, 1310nm wavelength, connector type and distance vary with model
- FT-806A20 / FT-806A60: Tx-1310nm, Rx-1550nm
- FT-806B20 / FT-806B60: Tx-1550nm, Rx-1310nm - Data Transfer Rate:
- TP: 10/100Mbps
- FX: 100Mbps - Duplex mode support:
- Full or half-duplex mode by auto-negotiation (TP)

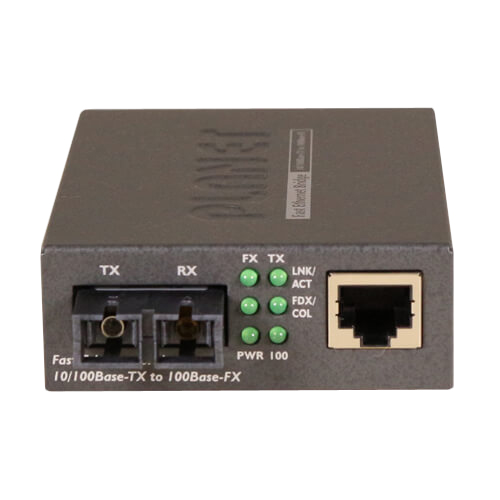

- Full or half-duplex mode by DIP switch (FX) - LED indicators: PWR, FX LNK/ACT, FX FDX/COL, TP 100, TP LNK/ACT, TP FDX/COL
- DIP switch: 2 DIP switches

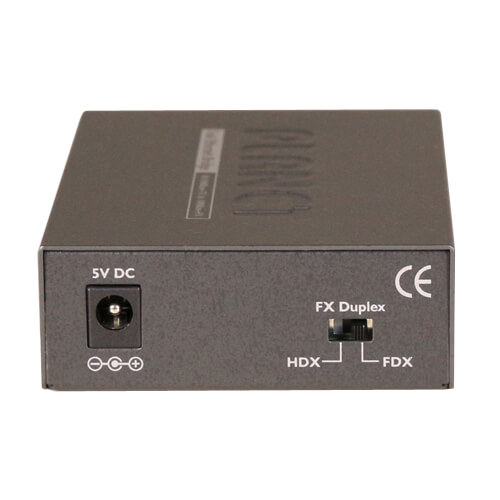

- Rear DIP switch: FX duplex mode selection
- Side DIP switch: LFP (Link Fault Pass-through) mode selection - IEEE 802.3x Full-Duplex Flow-Control and Back-Pressure in Half-Duplex eliminate the loss of packets
| Product | |
| Protocol | IEEE 802.3, 10BASE-T |
| IEEE 802.3u, 100BASE-TX | |
| IEEE 802.3u, 100BASE-FX | |
| IEEE 802.3x, Flow Control | |
| Dimensions (W x D x H) | 97 x 69 x 26 mm |
| Weight | 0.2kg |
| Power Input | 5V DC, 2A, max. |
| Power Supply | AC Adapter 100-240VAC Frequency: 50-60Hz |
| Enclosure | Compact-sized metal housing |
| Case with anticorrosion treatment | |
| Electrostatic paint | |
| Connectors and Cables | |
| Shielded Twisted-pair | RJ45, Category 5 (EIA/TIA 568) |
| Fiber-optic | FT-801 : ST / Multi-mode / 2km |
| FT-802 : SC / Multi-mode / 2km | |
| FT-803: MTRJ / Multi-mode / 2km | |
| FT-802S15 : SC / Single mode / 15km | |
| FT-802S35 : SC / Single mode / 35km | |
| FT-802S50 : SC / Single mode / 50km | |
| FT-806A20: WDM SC / Single mode / 20km | |
| FT-806B20: WDM SC / Single mode / 20km | |
| FT-806A60: WDM SC / Single mode / 60km | |
| FT-806B60: WDM SC / Single mode / 60km | |
| Multi-mode Cable | 50/125, 62.5/125 µm |
| Single-mode (SM) Cable | 9/125 µm |
| Optic Wavelength | FT-801: 1310nm |
| FT-802: 1310nm | |
| FT-803: 1310nm | |
| FT-802S15: 1310nm | |
| FT-802S35: 1310nm | |
| FT-802S50: 1310nm | |
| FT-806A20: TX: 1310nm; RX: 1550nm | |
| FT-806B20: TX: 1550nm; RX: 1310nm | |
| FT-806A60: TX: 1310nm; RX: 1550nm | |
| FT-806B60: TX: 1550nm; RX: 1310nm | |
| Max. Launch Power (dBm) | FT-801: -14 |
| FT-802: -14 | |
| FT-803: -14 | |
| FT-802S15:0 | |
| FT-802S35:-8 | |
| FT-802S50:0 | |
| FT-806A20:-8 | |
| FT-806B20:-8 | |
| FT-806A60:0 | |
| FT-806B60:0 | |
| Min. Launch Power (dBm) | FT-801: -20 (62.5/125µm), -23.5 (50/125µm) |
| FT-802: -20 (62.5/125µm), -23.5 (50/125µm) | |
| FT-803: -20 (62.5/125µm), -23.5 (50/125µm) | |
| FT-802S15: ?20 | |
| FT-802S35: -15 | |
| FT-802S50:-5 | |
| FT-806A20:-14 | |
| FT-806B20:-14 | |
| FT-806A60:-5 | |
| FT-806B60:-5 | |
| Receive Sensitivity (dBm) | FT-801: -31.8 |
| FT-802: -31.8 | |
| FT-803: -31.8 | |
| FT-802S15: -32 | |
| FT-802S35:-34 | |
| FT-802S50: -35 | |
| FT-806A20:-31 | |
| FT-806B20:-31 | |
| FT-806A60:-34 | |
| FT-806B60:-34 | |
| Maximum Input Power (dBm) | FT-801: -14 |
| FT-802: -14 | |
| FT-803: -14 | |
| FT-802S15:0 | |
| FT-802S35:0 | |
| FT-802S50:0 | |
| FT-806A20:0 | |
| FT-806B20:0 | |
| FT-806A60:0 | |
| FT-806B60:0 | |
| Supported Distances and Functions | |
| Shielded Twisted-pair | 100m (328 ft.) |
| Multi-mode Fiber Optic | 412m (1,350 ft.) (half-duplex) |
| 2km (1.2 miles) (full-duplex) | |
| Single-mode (SM) | 412m (1,350 ft.) (half-duplex) |
| 15km (9 miles) (full-duplex) | |
| 20km (12 miles) (full-duplex) | |
| 35km (21 miles) (full-duplex) | |
| 50km (31 miles) (full-duplex) | |
| 60km (37 miles) (full-duplex) | |
| Port Mode | TP: Half and full duplex, auto-negotiation |
| FX: Half and full duplex via DIP switch | |
| Environment & Emissions | |
| Operating Environment | Temperature: 0~50 degrees C |
| Humidity: 5~90% non-condensing | |
| Storage Environment | Temperature: -40~70 degrees C |
| Humidity: 5~90% non-condensing | |
| Emissions | FCC Class A, CE Class A |
