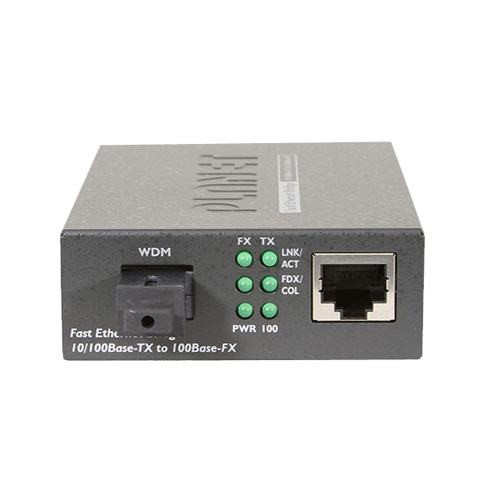

Bi-directional Fiber Converter

The FT-806B20 series includes LFP or link fault pass through function, a DIP switch design, and LLR and LLCF. The LLR and LLCF functions notify administrators the issue with the link media and offer solutions to monitor the network.

The DIP switch offers a option to either enable the LIP function or disable it. The LLCF feature works to disconnect the transmit link when a unit is connected to the FT-806B20 converter and the TP line looses the link. The LLR feature on the converter works to disconnect the transmit link when the fiber line loses the link. Both functions notify administrators of the issues and provide solutions to better help administrators monitor their network.

Features:

• Complies with IEEE 802.3, IEEE 802.3u 10/100BASE-TX, 100BASE-FX standard
  Connectors: One RJ45 (auto-MDI/MDI-X) twisted pair, EIA568
  One fiber-optic, 1310nm wavelength, connector type and distance vary with model
  　- FT-806A20 / FT-806A60: Tx-1310nm, Rx-1550nm
  　- FT-806B20 / FT-806B60: Tx-1550nm, Rx-1310nm
• Data Transfer Rate:
  　- TP: 10/100Mbps
  　- FX: 100Mbps
• Duplex mode support:
  　- Full or half-duplex mode by auto-negotiation (TP)
  　- Full or half-duplex mode by DIP switch (FX)
• LED indicators: PWR, FX LNK/ACT, FX FDX/COL, TP 100, TP LNK/ACT, TP FDX/COL
• DIP switch: 2 DIP switches
  　- Rear DIP switch: FX duplex mode selection
  　- Side DIP switch: LFP (Link Fault Pass-through) mode selection
• IEEE 802.3x Full-Duplex Flow-Control and Back-Pressure in Half-Duplex eliminate the loss of packets
