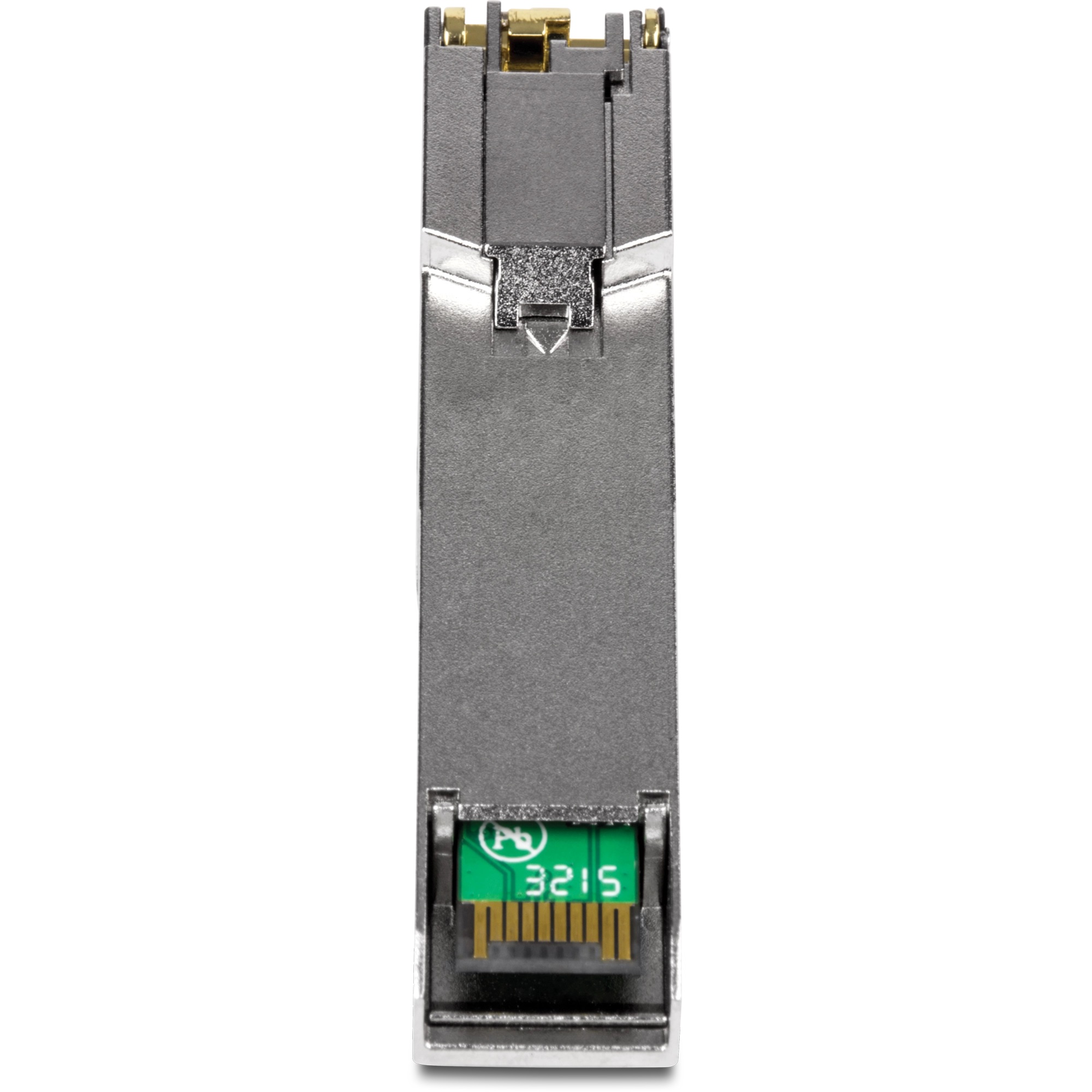

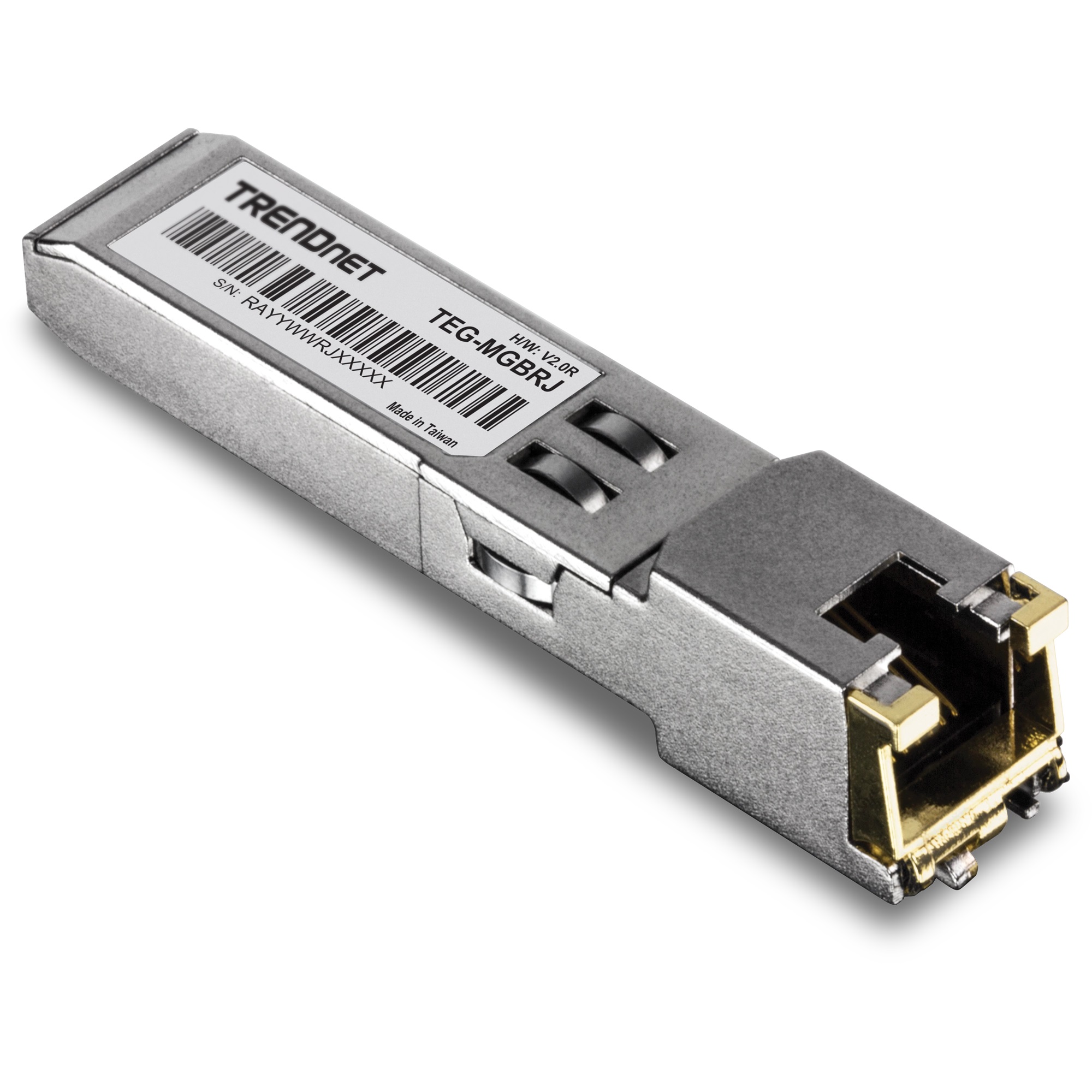

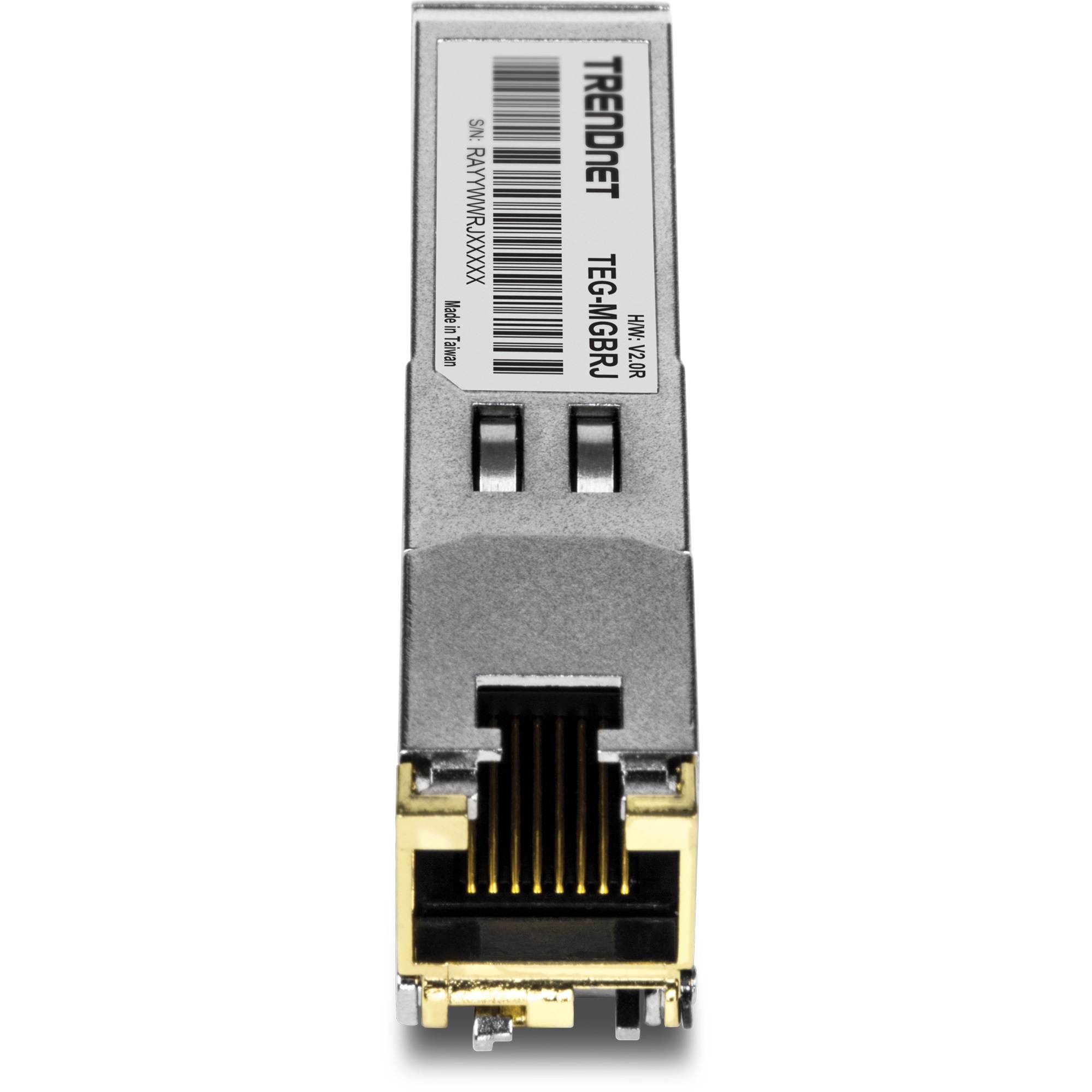

TRENDNET - TEG-MGBRJ - 1000BASE-T RJ-45 Copper SFP Module
Part number:
TEG-MGBRJ
Price:

TRENDnet's 1000BASE-T RJ-45 Copper SFP Module, model TEG-MGBRJ, converts a standard SFP slot into a RJ-45 gigabit port for additional copper connectivity. This SFP module works with standard SFP slots commonly found in network switches and fiber media converters. Save on equipment costs by repurposing a switch's unused SFP slots for copper connectivity.



Features:

  • Compliant with IEEE 802.3ab and IEEE 802.3z Gigabit Ethernet
  • Small Form-Factor Pluggable (SFP) and Multi-Source Agreement (MSA) compliant
  • Supports data rates of up to 1.25Gbps
  • Transmission distance of up to 100m (328 ft.)
  • Hot-Pluggable
  • RJ-45 connector
  • NDAA / TAA compliant (U.S. and Canada only)
  • Lifetime Warranty
Standards
  • IEEE 802.3
  • IEEE 802.3z
  • IEEE 802.3ab
Device Interface
  • SFP MSA Compliant
  • RJ-45
Data Transfer Rate
  • 1.25 Gbps
Distance
  • 100m (328 ft.)
Special Features
  • Hot pluggable
  • Metal enclosure
Power
  • Max. Consumption: 0.9W
Operating Temperature
  • 0° – 70° C (32° – 158° F)
Operating Humidity
  • Max. 95% non-condensing
Dimensions
  • 68 x 13 x 13 mm (2.67 x 0.5 x 0.5 in.)
Weight
  • 22g (0.8 oz.)
Certifications
  • CE
  • FCC
Warranty
  • Lifetime Warranty*

PACKAGE CONTENTS

  • TEG-MGBRJ
  • Quick Installation Guide
Name
Description
Size
Downloads
File
Datasheet
0.5mb
