TRENDNET - TFC-GMSC - 1000Base-T to 1000-SX
TRENDNET - TFC-GMSC - 1000Base-T to 1000-SX
TRENDNET - TFC-GMSC - 1000Base-T to 1000-SX
TRENDNET - TFC-GMSC - 1000Base-T to 1000-SX
TRENDNET - TFC-GMSC - 1000Base-T to 1000-SX TRENDNET - TFC-GMSC - 1000Base-T to 1000-SX TRENDNET - TFC-GMSC - 1000Base-T to 1000-SX

TRENDNET - TFC-GMSC - 1000Base-T to 1000-SX

Part number:
TFC-GMSC
Price:
Dealers only
Add to Quote/Project Registration
Description Specifications Downloads

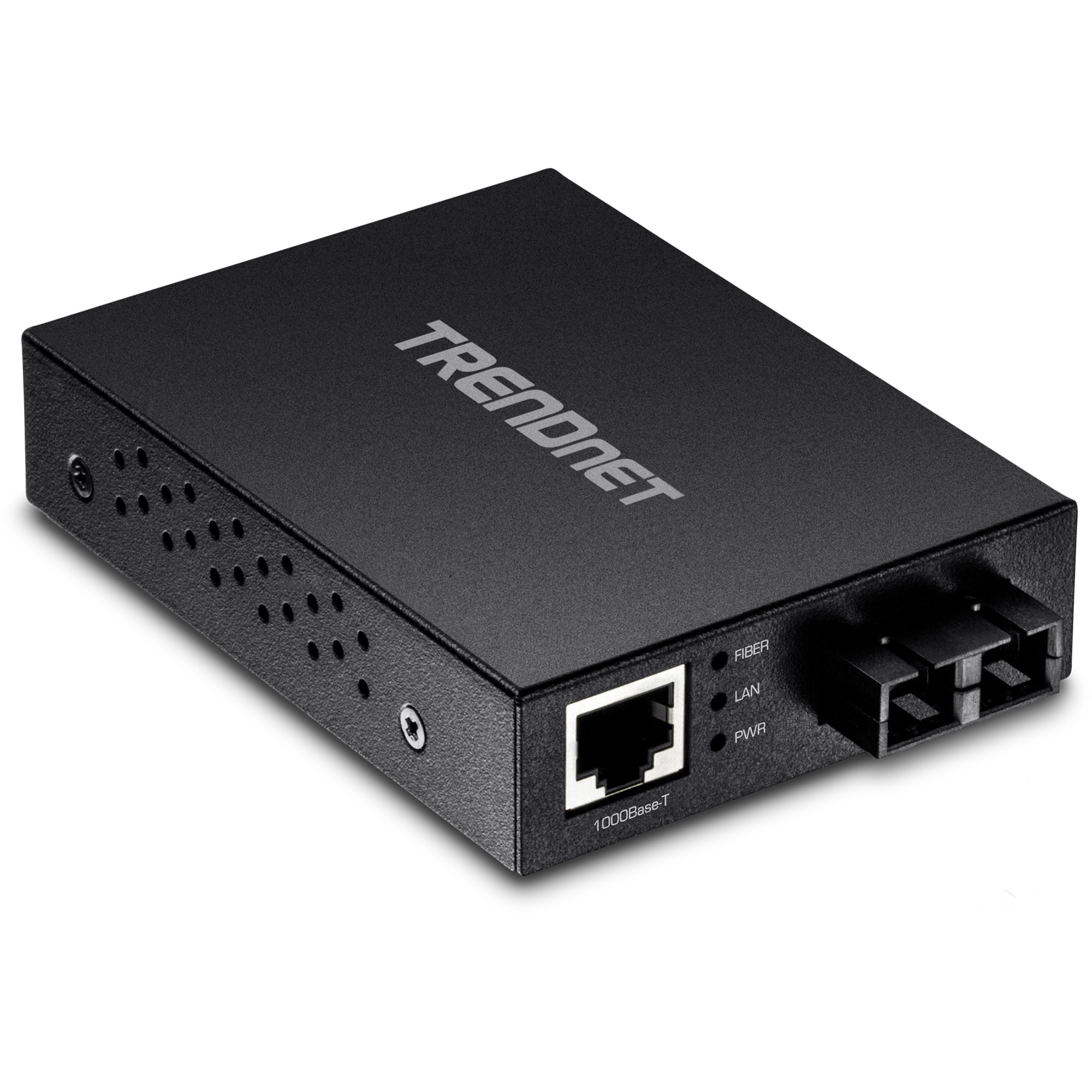

TRENDnet's TFC-GMSC, Gigabit Fiber Converter, is a Multi-Mode SC-Type fiber converter that converts 10/100/1000 Mbps ethernet to 100/1000 Mbps Fiber and spans distances up to 550 m (1,800 ft.). Ports include a 1000Base-T (RJ-45) port and a 1000Base-SX (SC-Type) fiber port.



Features:

  • Functions as a standalone converter
  • 10/100/1000 Mbps Auto-MDIX Gigabit port
  • 100/1000 Mbps SC-type multi-mode fiber port
  • Fiber networking over distances of up to 550 m (1800 ft.)
  • 2 Gbps switching capacity
  • LEDs convey power and copper / fiber link and activity
  • Not compatible with TFC-1600
  • NDAA / TAA compliant (U.S. and Canada only)
Standards
  • IEEE 802.3
  • IEEE 802.3u
  • IEEE 802.3ab
  • IEEE 802.3z
  • IEEE 802.3x

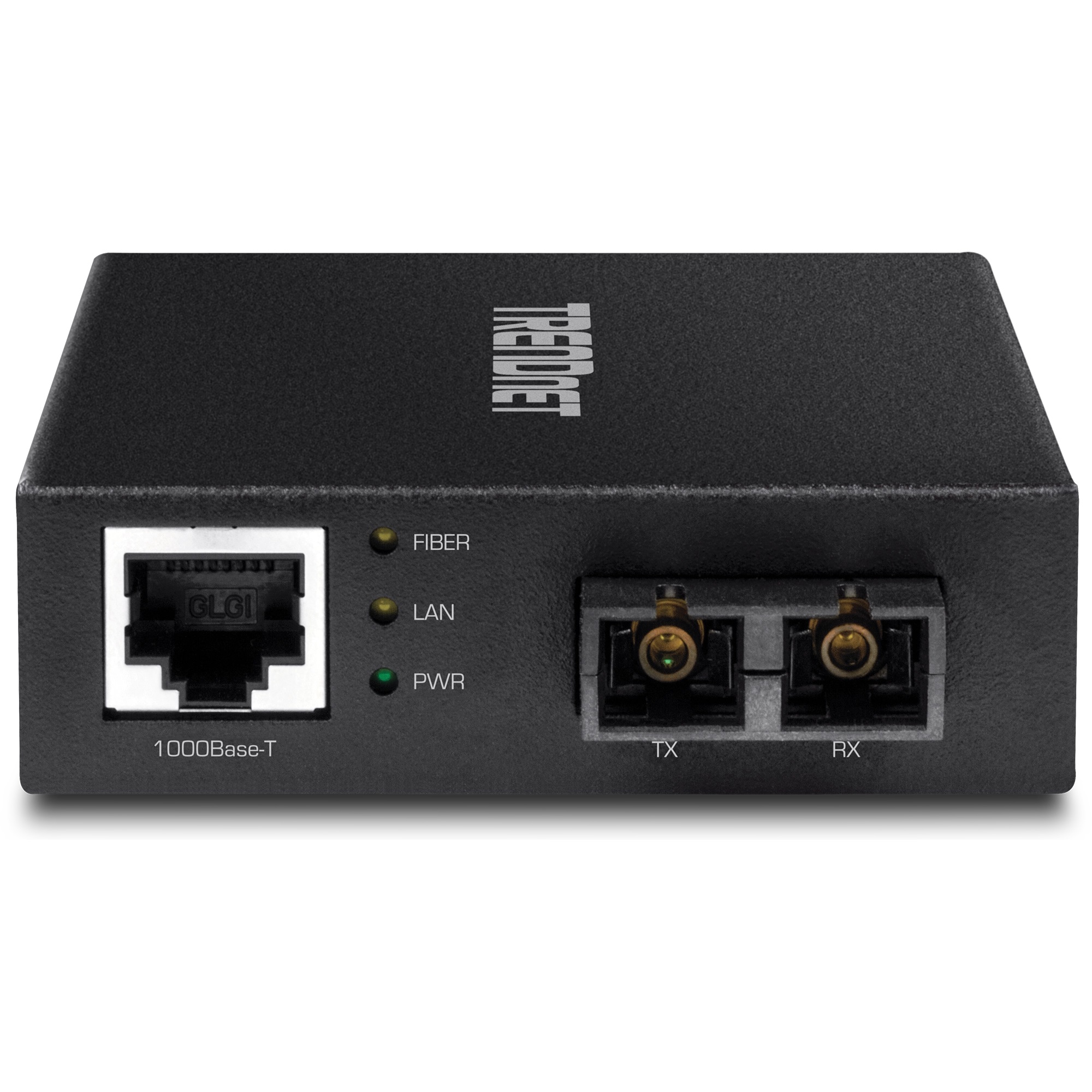

Device Interface
  • 1 x 10/100/1000 Mbps Auto-MDIX Gigabit port
  • 1 x 100/1000 Mbps SC-type multi-mode fiber port
  • LED indicators
Network Media
  • 1000Base-TX: Cat.5e, 6 EIA / TIA-568 100-ohm STP, up to 100 m
  • 1000Based-SX: 50/125 μm multi-mode SC-Type fiber optic, up to 550 m
  • 1000Based-SX: 62.5/125 μm multi-mode SC-Type fiber optic, up to 220 m
  • 100Base-SX: 50/125 μm or 62.5/125 μm multi-mode SC-Type fiber optic, up to 2 km
Protocol
  • CSMA / CD
Data Transfer Rate
  • Gigabit Ethernet: 2000 Mbps (full duplex)
  • Optical fiber: 1.25 Gbps
Jumbo Frame
  • 9 K bytes
Wavelength
  • 850 nm
Optical Output Power
  • Min: -9 dBm
  • Max: -3 dBm
Optical Input Power
  • Min. (Sensitivity): -3 dBm
  • Max: 0 dBm
  • -11 dB
Distance
  • Gigabit: up to 550 m (1800 ft.)
  • Fast Ethernet: up to 2 km (1.24 mi)

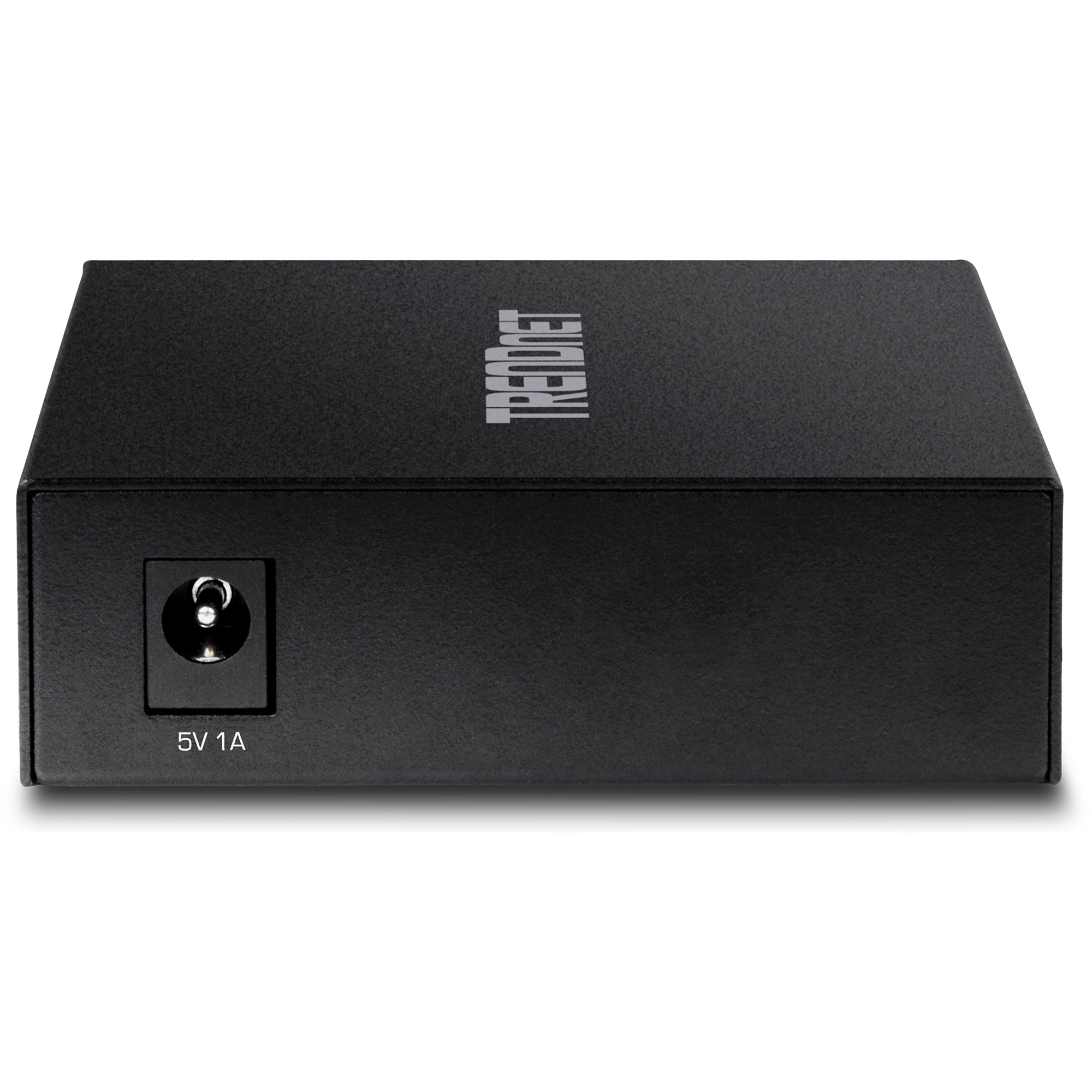

Power
  • Input: 100–240 V 50/60 Hz 0.2 A
  • Output: 5 V DC 1 A
  • Consumption: 2.6 W max.
Operating Temperature
  • 0 – 40 °C (32 – 104 °F)
Operating Humidity
  • Max. 90% non-condensing
Dimensions
  • 102 x 75 x 22.6 mm. (4 x 2.95 x 0.9 in.)
Weight
  • 191 g (6.7 oz.)
Certifications
  • CE
  • FCC
Warranty
  • 3 year limited

PACKAGE CONTENTS

  • TFC-GMSC
  • Quick Installation Guide
  • Power Adapter (5V DC, 1A)
