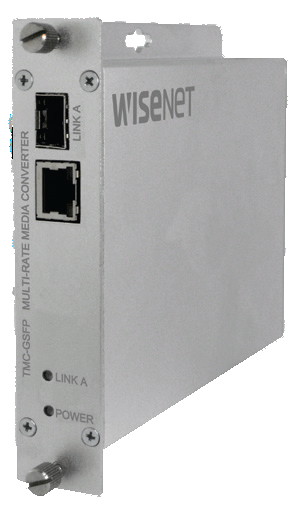

Hanwha - TMC-GSFP - 1000M Multi-Rate Media Converter

The TMC-GSFP electrical-to-optical Ethernet media converter interfaces between 10/100/1000 Mbps electrical signal and a 100/1000 Mbps optical output, selectable by dip switch. “Auto-Negotiating” is supported on the copper interface side. These devices use either one or two optical fibers, depending upon the selection of sold-separately SFP optical module. The TMC-GSFP may be directly plugged into the SBP-C14 / SBP-C03 Rack or operated as a standalone module.

Features:

• Full-duplex transmission of 10/100/1000 Mbps Ethernet
• 10/100/1000BASE-TX electrical port
• 1000BASE-FX or 100BASE-FX optical port when used with suitable SFPs
• Supports Jumbo Frames up to 10K Bytes for streaming video applications
• Bi-color LED status indicators confirm operating status
• Uses Wisenet SFPs (sold separately) for compatibility with a wide range of optical fibers, optical connector types, and optical transmission distances of up to 120 km
• Compatible with other converters in the TMC-GSFP series
• Can be directly plugged into the SBP-C14 / SBP-C03 Rack or operated as a standalone module
