Name: TRENDNET - TFC-FMSC - 10/100Base-TX to 100Base-FX
Brand: Trendnet
SKU: TFC-FMSC

Home — Brands — Trendnet — Wired —

TRENDNET - TFC-FMSC - 10/100Base-TX to 100Base-FX

Part number:

TFC-FMSC

Price:

Dealers only

Add to Quote/Project Registration

Description Specifications Downloads

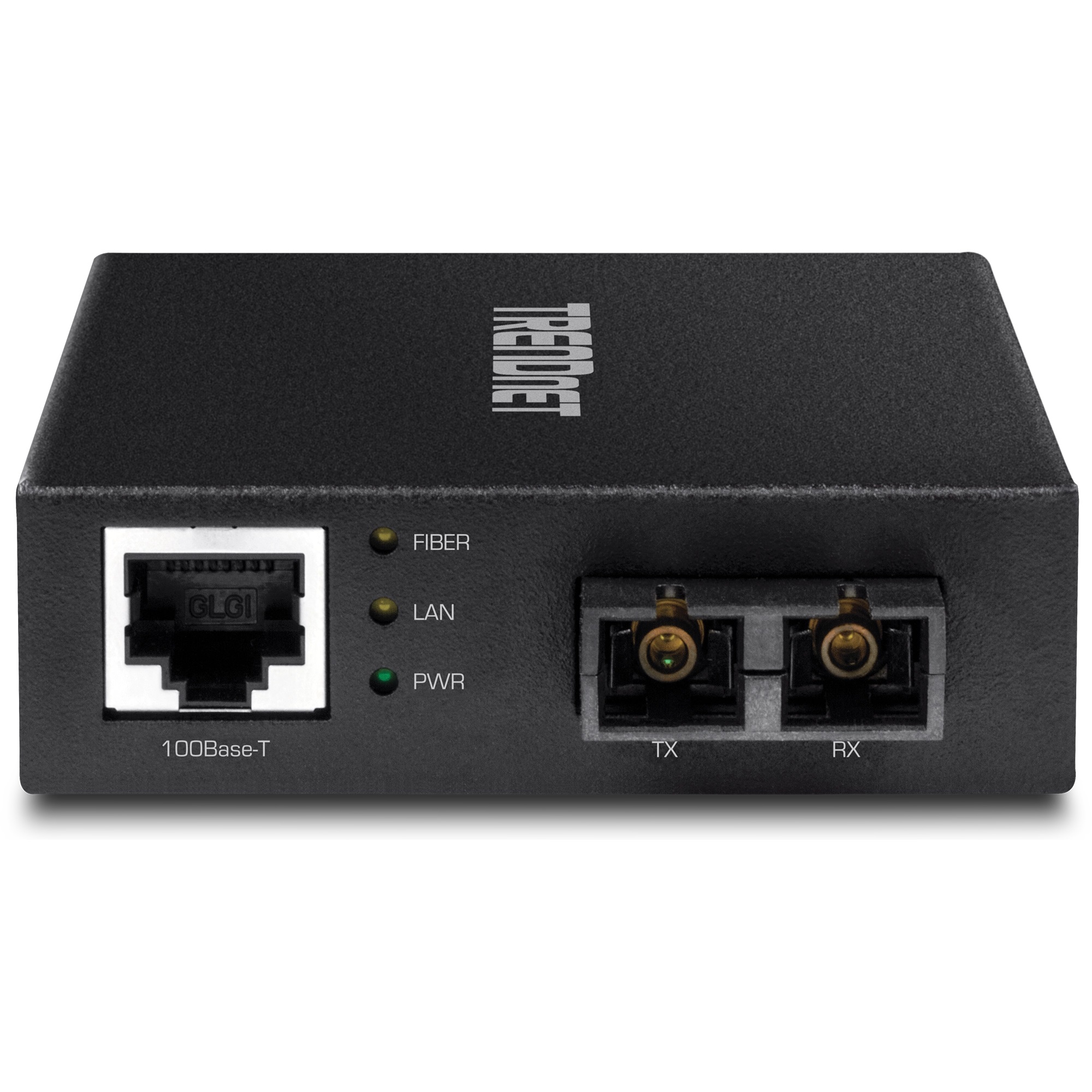

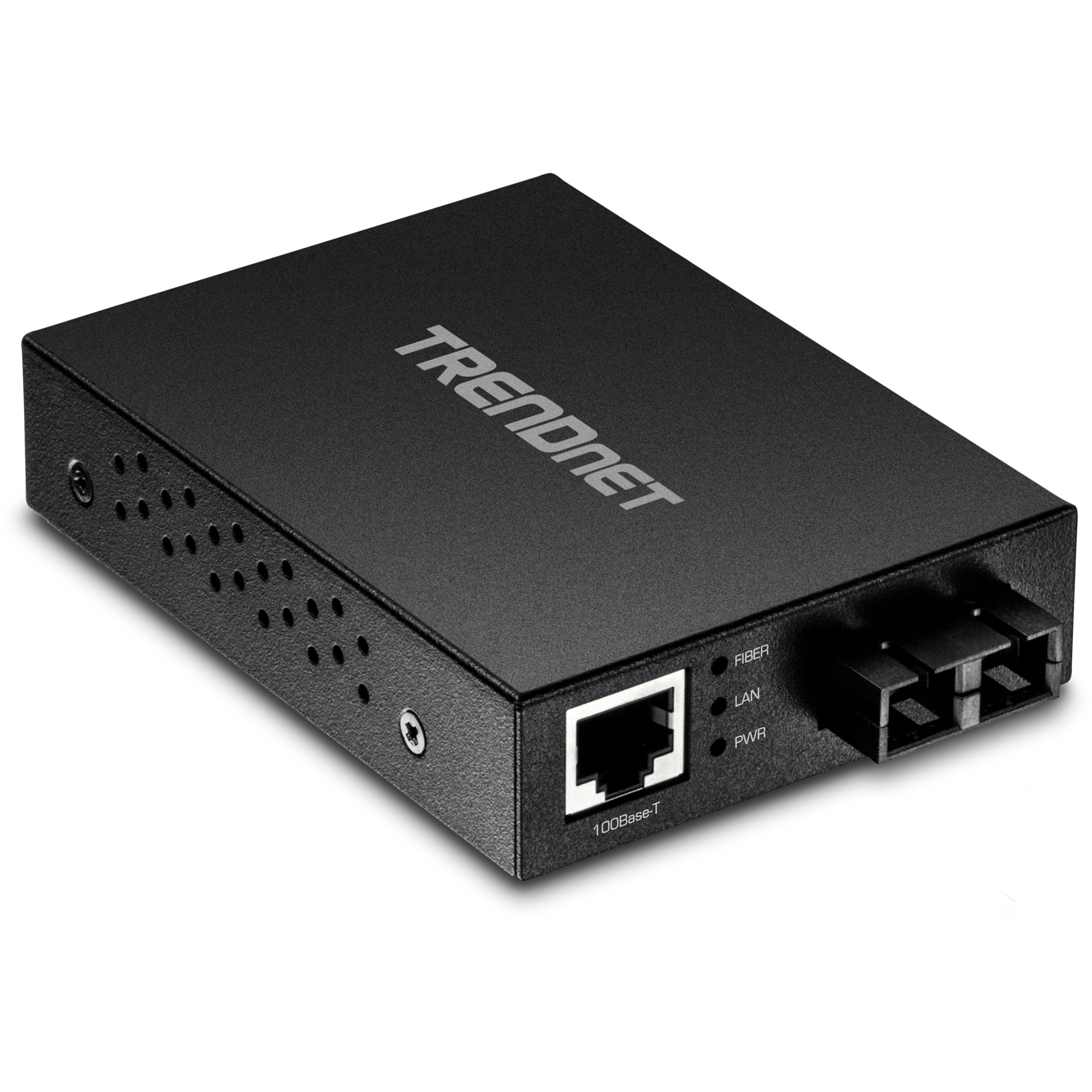

TRENDnet's TFC-FMSC, Fast Ethernet Fiber Converter, is a Multi-Mode SC-Type fiber converter that converts 10/100 Mbps Ethernet to 100 Mbps Fiber and spans distances up to 2 km (1.25 mi.). Ports include a 100Base-T (RJ-45) port and a 100Base-FX (SC-Type) fiber port.

Features:

Functions as a standalone converter
10/100 Mbps Auto-MDIX Fast Ethernet port
100 Mbps SC-type multi-mode fiber port
Fiber networking over distances of up to 2 km (1.25 mi.)
200 Mbps switching capacity
LEDs convey power and copper / fiber link and activity
Not compatible with TFC-1600

Standards	IEEE 802.3 IEEE 802.3u IEEE 802.3x
Device Interface	1 x 10/100 Mbps Fast Ethernet port 1 x 100 Mbps SC type fiber port LED indicators
Network Media	100Base-TX: Cat.5e EIA / TIA-568 100-ohm STP, up to 100 m 100Based-FX: 50 / 125 μm multi-mode SC-Type fiber optic, up to 2 km 100Based-FX: 62.5 / 125 μm multi-mode SC-Type fiber optic, up to 2 km
Protocol	CSMA / CD
Data Transfer Rate	Fast Ethernet: 200 Mbps (full duplex) Optical fiber: 155 Mbps
Wavelength	1310 nm
Optical Output Power	Min: -20 dBm Max: -10 dBm
Optical Input Power	Min. (Sensitivity): -3 dBm Max: 0 dBm
Power Budget	-14 dB
Distance	2 km (1.25 mi.)

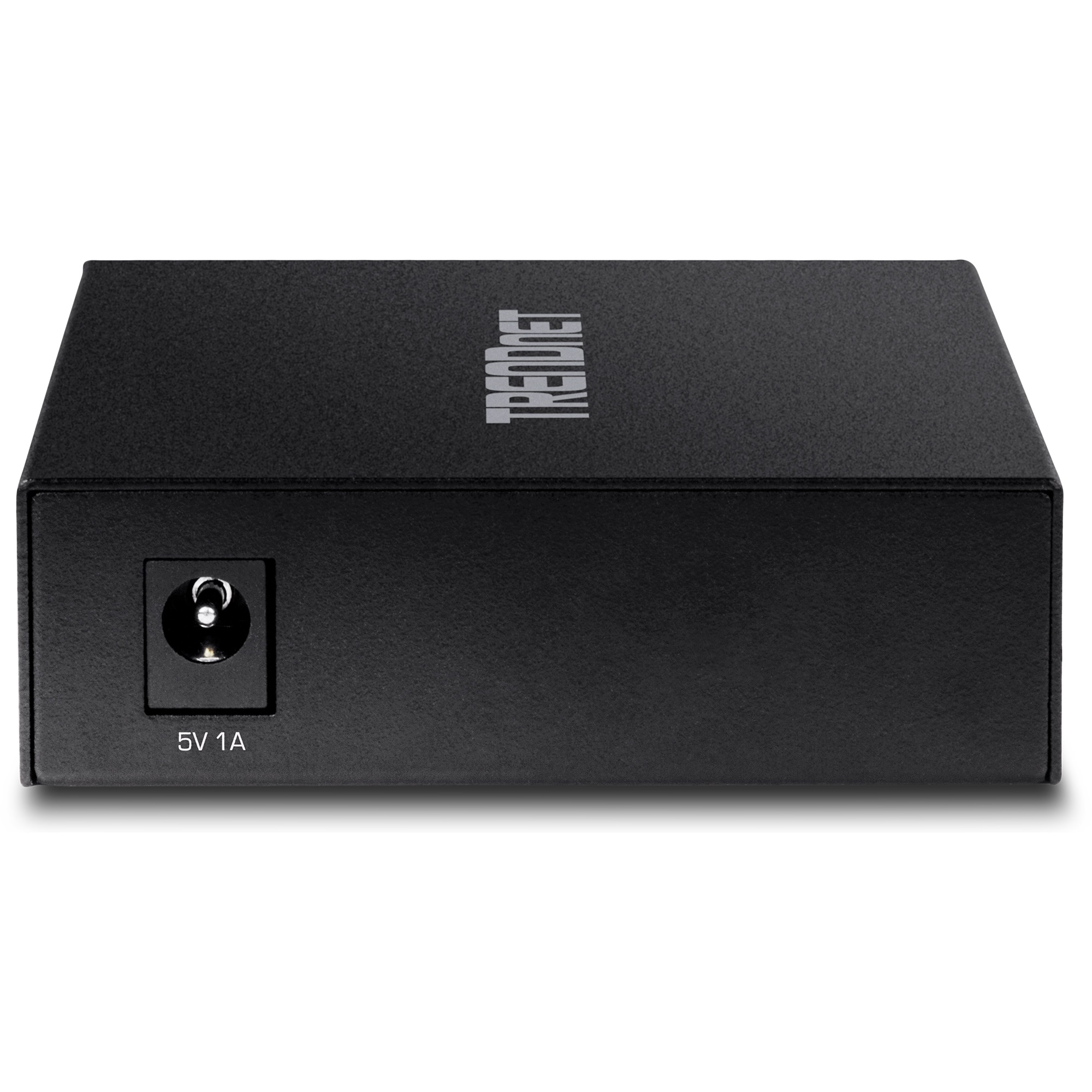

Power	Input: 100–240 V 50/60 Hz 0.2 A Output: 5 V DC 1 A Consumption: 2 W max.
Operating Temperature	0 – 40 °C (32 – 104 °F)
Operating Humidity	Max. 90% non-condensing
Dimensions	102 x 75 x 22.6 mm. (4 x 2.95 x 0.9 in.)
Weight	194 g (6.8 oz.)
Certifications	CE FCC
Warranty	3 year limited

PACKAGE CONTENTS

TFC-FMSC
Quick Installation Guide
Power Adapter (5 V DC, 1 A)
