Cyber Power - PDU10BVHVIEC20F - 10A, 200 - 230 V, 50Hz/60Hz, IEC-320 C14 plug, 16 IEC-320 C13, 0U Rackmount, 10 ft Cord
10A, 200 - 230 V, 50Hz/60Hz, IEC-320 C14 plug, 16 IEC-320 C13, 0U Rackmount, 10 ft cord, Limited lifetime warranty

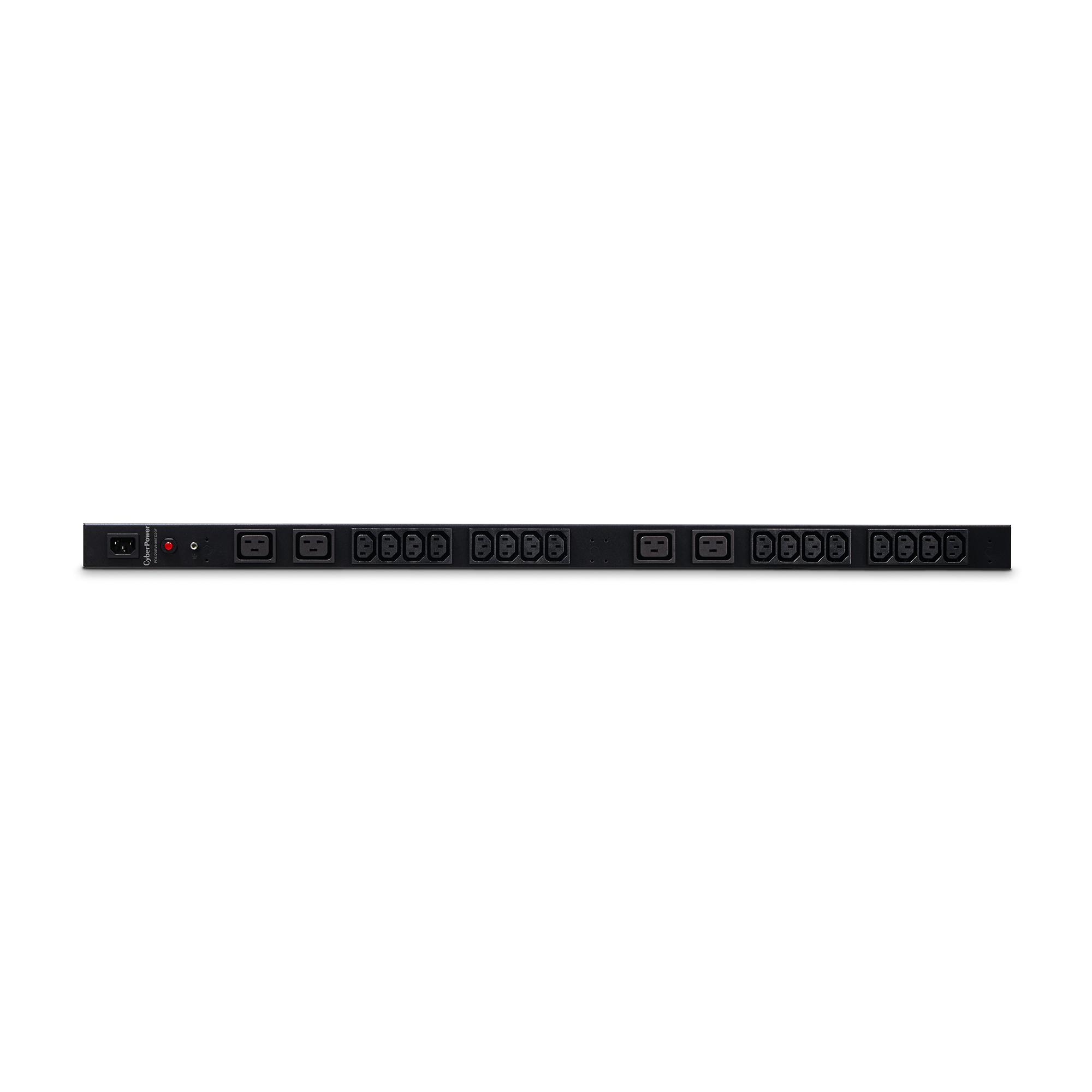

The CyberPower PDU10BVHVIEC20F, a 20-outlet (front), 0U vertical rackmount basic power distribution unit (PDU), provides 200/230V 10A output. It distributes power to 16 IEC-320 C13, 4 IEC-320 C19 receptacles from a single IEC-320 C14 plug with unfiltered electrical pass-through. Designed for datacenters and other electrically demanding applications, the PDU10BVHVIEC20F has rugged, industrial-grade metal housing and a 10-foot AC power cord. It supports vertical, horizontal, and wall mount installation, includes a cord retention tray, and is ETL/RoHS certified. A limited lifetime warranty covers defects in materials and workmanship in the product under normal use and conditions.
Features:
- Power Distribution: Delivers AC power to servers, equipment, and connected devices via a power distribution unit.
- Switch-Free Design: Safeguards against accidental power shutdown.
- Network-Grade Plugs and Outlets: Highly durable construction ensures the efficient distribution of power in demanding IT or industrial environments to servers, equipment, and connected devices.
- Long Input Power Cord: Reaches distant power sources, allowing the PDU to be placed where it’s needed.
- Cord Retention Tray: Secures power cords, keeping them organized and accessible. Helps cords stay plugged in.
- Configurable Mounting Brackets: Allow for installation of the PDU in the following configurations: 0U (vertical, under counter, and wall mount), 1U (horizontal, vertical, under counter, and wall mount), and 2U (horizontal and wall mount).
- Durable Metal Housing: Protects internal components and resists damage from impact or abrasions within challenging industrial environments. Also extends the life of the product.
- Limited Lifetime Warranty: Covers defects in materials and workmanship in the product under normal use and conditions. See warranty for details.
| Input | |
| Voltage | 200 – 230 V |
| Maximum Current | 10A (derated to 8A) |
| Frequency | 50/60 Hz |
| Plug Type | IEC-320 C14 |
| Plug Style | Straight |
| Cord Length | 10 ft |
| Output | |
| Nominal Output Voltage | 200 – 230 V |
| Outlet Type | IEC-320 C19 (4)/C13 (16) |
| Outlets – Front | 4 × C19 |
| 16 × C13 | |
| Outlets – Rear | 0 |
| Outlets – Total | 20 |
| Overload Protection | 10A |
| Physical | |
| Rack Size | 0U |
| Form Factors Supported | Vertical or horizontal mounting supported in wallmount applications |
| racks and a variety of other surface types | |
| Style | Rackmount |
| Under-Counter | |
| Cord Retention Tray/Cord Organizers | Yes |
| External Site Ground Pin | Yes |
| Adjustable Mounting Brackets | 3 sets (L-short, L-long, flat) |
| Dimensions – W×H×D (in) | 1.75 × 36 × 1.5 inches |
| Weight (lbs) | 4.3 lbs |
| Environmental | |
| Operating Temperature | 32 – 95 °F (0 – 35 °C) |
| Operating Humidity | 0 – 95% (non-condensing) |
| Storage Temperature | 5 – 113 °F (-15 – 45 °C) |
| Maximum Operating Elevation | 10,000 ft (3,000 m) |
| Maximum Storage Elevation | 50,000 ft (15,000 m) |
| Certifications | |
| Safety | UL60950_1 certified by ETL |
| CSA C22.2 | |
| Environmental | RoHS Compliant |
| Warranty | |
| Product Warranty | Limited lifetime |
