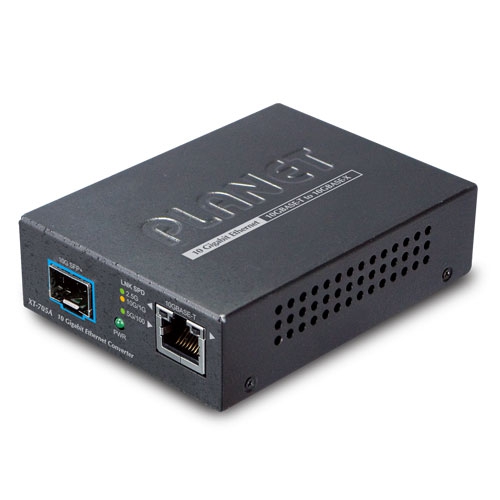

Planet - XT-705A - 10G/5G/2.5G/1G/100M Copper to 10GBASE-X SFP+ Media Converter
Product Overview
The Planet XT-705A is a 10G media converter featuring one 10G/5G/2.5G/1G/100BASE-T auto-negotiation copper port and one 10GBASE-X SFP+ slot, converting 10GBASE-T copper to fiber (SR/LR/BX) for distance extension up to 60km. Delivers 20Gbps fabric, 16K jumbo frames, and 2.48 Mpps throughput in a compact metal case with desktop, wall, or DIN-rail mounting and optional media chassis compatibility (MC-700/1500 series).
Key Configuration
• Copper Port: 1 × RJ45 supporting 10G/5G/2.5G/1G/100M auto-negotiation
• Fiber Port: 1 × 10G SFP+ slot (module sold separately)
• Performance: 20Gbps switching capacity, 2.48 Mpps forwarding rate
• Capacity: 9K MAC address table, 16K jumbo frames
• Power: 5V DC, 2A max; 3.75W power consumption
• Dimensions: 94 × 70 × 26 mm
• Weight: 180 g
Key Features
Supports multi-speed copper connectivity (10G, 5G, 2.5G, 1G, and 100M) with fiber links up to 300 m on multimode or 60 km on single-mode SFP+ modules. Features store-and-forward switching, 16K jumbo frames, ESD/surge protection, and flexible installation options, including desktop, wall-mount, DIN-rail, or media converter chassis deployment.
Technical Context
Designed to bridge copper and fiber networks at up to 10G speeds, enabling long-distance uplinks while maintaining compatibility with existing NBASE-T infrastructure. Its low power consumption and chassis compatibility make it suitable for data centers, campus networks, and remote fiber-connected deployments.
Installation Notes
Compact metal housing (94 × 70 × 26 mm, 180 g) operating from 0°C to 50°C and powered by 5V DC. Supports copper cabling up to 100 m, depending on speed and requires compatible SFP+ modules for fiber connectivity. Includes LED status indicators and supports optional DIN-rail mounting.
| Hardware Specifications | |
|---|---|
| Copper Interface | 1 x 10G/5G/2.5G/1G/100BASE-T RJ45 Auto-MDI/MDI-X, auto-negotiation |
| Fiber Optic Interface | 1 x 10GBASE-X R SFP+ interface |

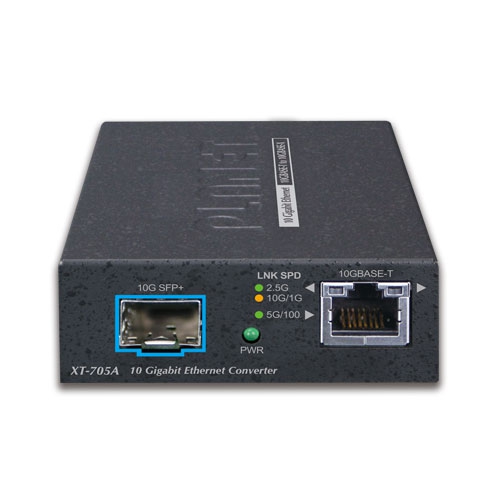

| LED | System: PWR (Green) 10G/5G/2.5G/1G/100 BASE-T RJ45 Interfaces: 1G/10G LNK (Orange) 5G/2.5G/100M LNK (Green) |
| Switch Processing Scheme | Store and Forward |
| ESD Protection | 6KV DC |
| Enclosure | Compact-sized metal case |
| Installation | Desktop, wall mountable Media convert Chassis installation Optional DIN-rail kit |
| Dimensions (WxDxH) | 94 x 70 x 26mm |
| Weight | 180g (device only) |

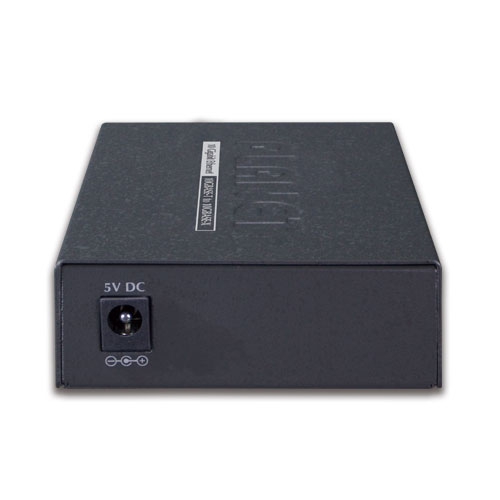

| Power Requirements | 5V DC, 2A max. |
| Power Consumption | 3.75 watts / 12.8 BTU per hour max. |
| Converter Specifications | |
| Flow Control | Back pressure for half duplex IEEE 802.3x pause frame for full duplex |
| Fabric | 20Gbps |
| Throughput(packet per second) | 2.48Mpps@64bytes |
| Address Table | 9K entries, automatic source address learning and aging |
| Jumbo Frame | 16K |
| Network Cables | 10G/5G/2.5G/1G/100M BASE-T: 10G–Cat 6A/Cat 7 5G–Cat 6/Cat 6A/Cat 7 1G/2.5G–Cat 5e/Cat 6/Cat 6A/ Cat 7 100M–Cat 5/Cat 5e/Cat 6/Cat 6A/ Cat 7 Cat 5/5e/6/6A/7 UTP cable (100 meters, max.) EIA/TIA-568 100-ohm STP (100 meters, max.) 10GBASE-LR/SR/BX: 50/125?m or 62.5/125?m multi-mode fiber optic cable, up to 300m 9/125?m single-mode fiber optic cable, up to 60km |
| Standards Conformance | |
| Regulatory Compliance | FCC Part 15 Class A, CE |
| Operating environment | 0 ~ 50 degrees C |
| Storage environment | -10 ~ 70 degrees C |
| Operating Humidity | 5 ~ 95%, relative humidity (non-condensing) |
| Storage Humidity | 5 ~ 95%, relative humidity (non-condensing) |
| Standards Compliance | IEEE 802.3u 100BASE-TX IEEE 802.3ab 1000BASE-T IEEE 802.3bz 2.5G/5GBASE-T IEEE 802.3an 10GBASE-T IEEE 802.3ae 10Gbps Ethernet IEEE 802.3x full-duplex flow control |
