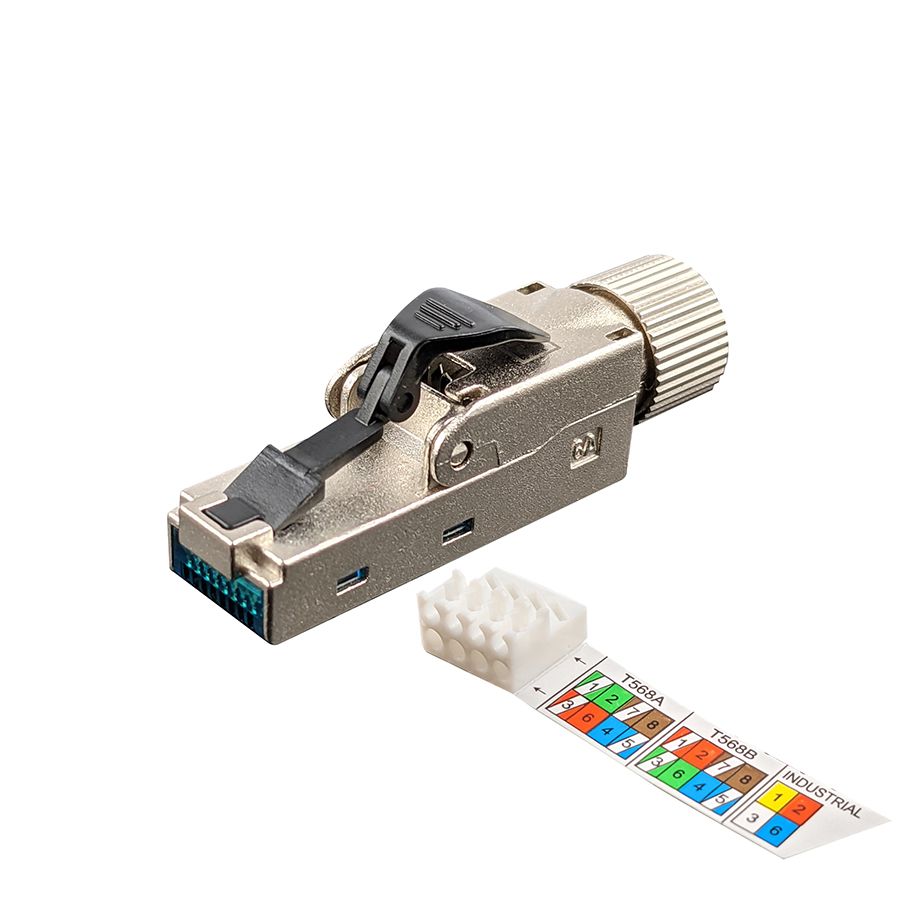

10G Rated RJ45 Field Plug – Ultra Slim – Fully Shielded 1pc Design for Cat6/6a/7a Shielded LAN cables, Toolless, Re-Usable, ANSI/TIA, ISO/IEC, PoE IEEE 802.3bt – 1 EA/BAG

Features:

• Fully Shielded One Piece Construction
• Toolless – No special tools needed.
• Improved Load Bar for faster & easier wire pattern termination
• Wiring Label: TIA 568 A/B Patterns
• Standards Compliance: ANSI/TIA 568.2-D; ISO/IEC 11801 Class Fa, Ea, E; TIA 1096-A
• All Shielded Category Cable Constructions Supported for Cat7a, Cat7, Cat6a, and Cat6
• Ideal for Large Diameter Cables and Conductors
• Supports 22-26 AWG Solid Wire/23-27 AWG Stranded Wire
• Overall Cable Diameters: 6.0mm to 9.0mm
• Reusable Termination Capability: Up to 5 Times
• PoE IEEE 802.3bt
• Protection Category: IP 20
