TRENDNET - TFC-10GSFP - 10GBASE-T to SFP+ Fiber Media Converter
Part number:
TFC-10GSFP
Price:

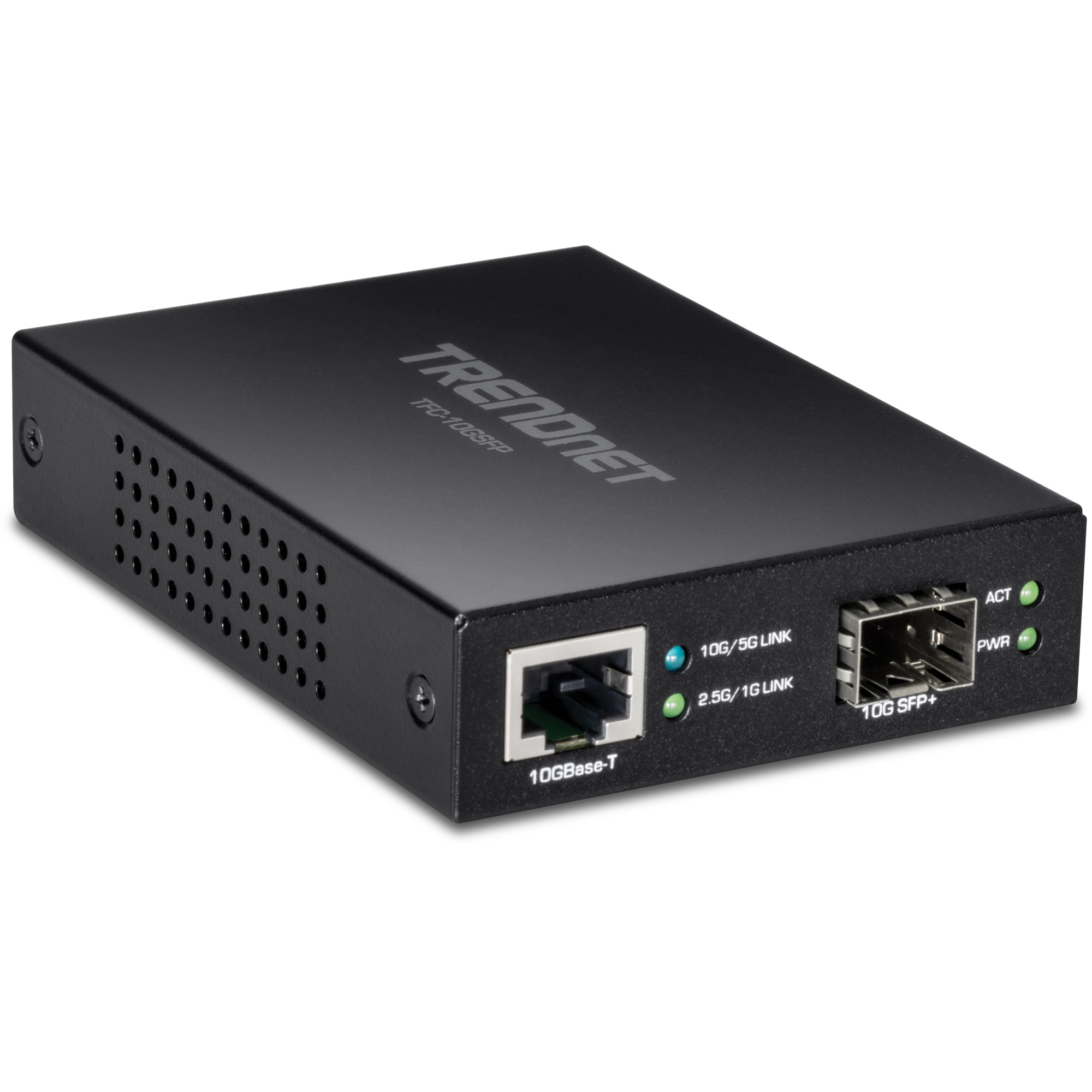

TRENDnet’s compact 10GBASE-T to SFP Fiber Media Converter, model TFC-10GSFP, converts a 10GBASE-T (Copper 10Gbps) ethernet connection to 10G BASE-SX/LX (Fiber) SFP media connection , and vice versa. The 10GBASE-T RJ-45 port on the 10G SFP+ transceiver supports a full-duplex 10G connection at wire speed. The SFP slot supports both multimode (SX) or single-mode (LX) SFP modules.



Features:

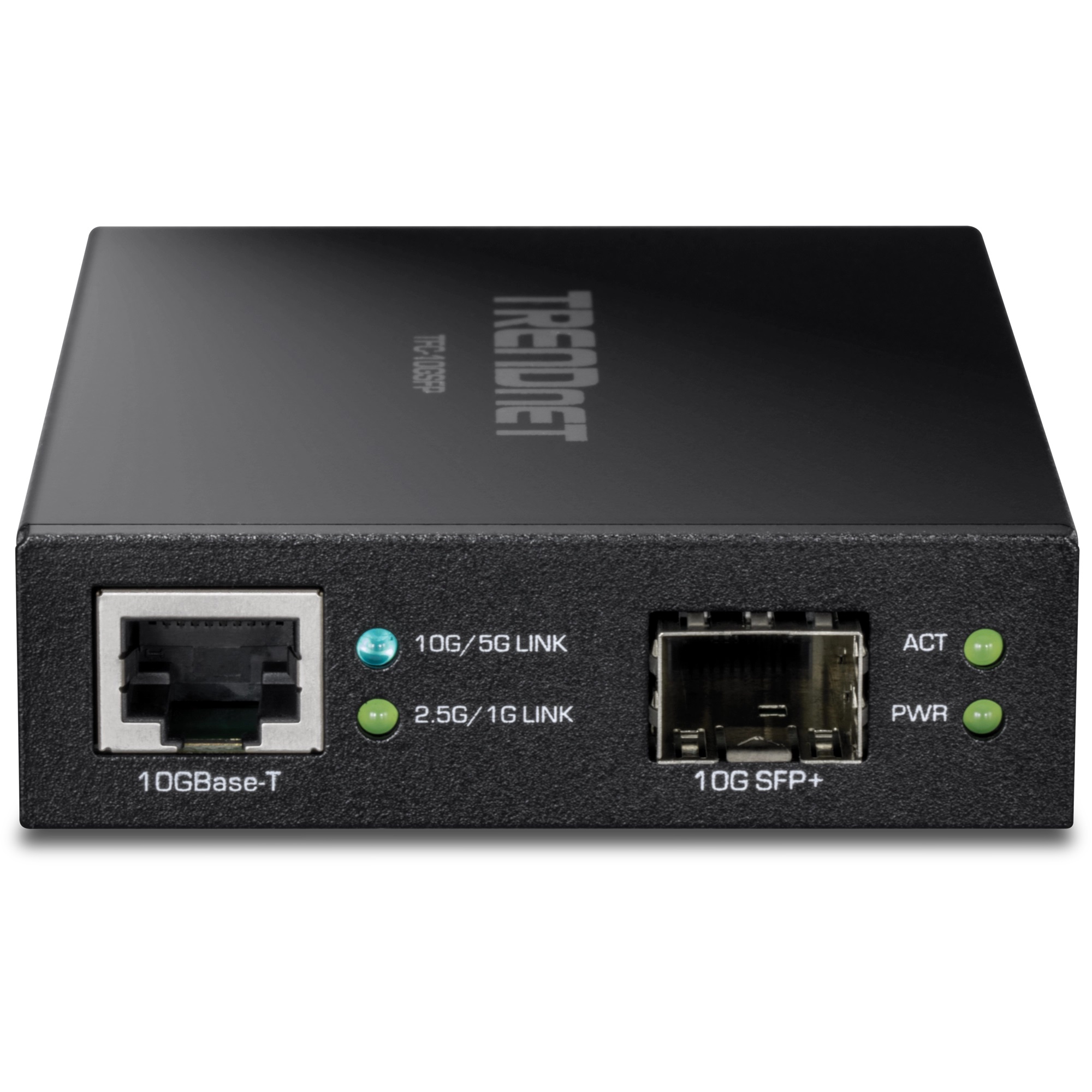

  • 1 x 10G RJ-45 port
  • 1 x 10G SFP+ Slot
  • LFPT support (Link Fault Pass Through)
  • SFP slot accommodates multimode or single-mode modules
  • RJ-45 port supports full-duplex mode
  • Functions as a standalone converter
  • NDAA / TAA compliant (U.S. and Canada only)
Standards
  • IEEE 802.3
  • IEEE 802.3u
  • IEEE 802.3ab
  • IEEE 802.3an
  • IEEE 802.3bz
  • IEEE 802.3z
Device Interface
  • 1 x 10G/1G ethernet port
  • 1 x 10G/1G SFP+ slot
  • LED indicators
Data Transfer Rate
  • Gigabit: 2000Mbps (full duplex)
  • 10G: 20Gbps (full duplex)
Special Features
  • Supports Link Fault Pass-Through (LFPT)
  • SFP slot supports Multimode and Single mode Modules
Power
  • Input: 110 – 240 V AC, 50/60 Hz 0.5A

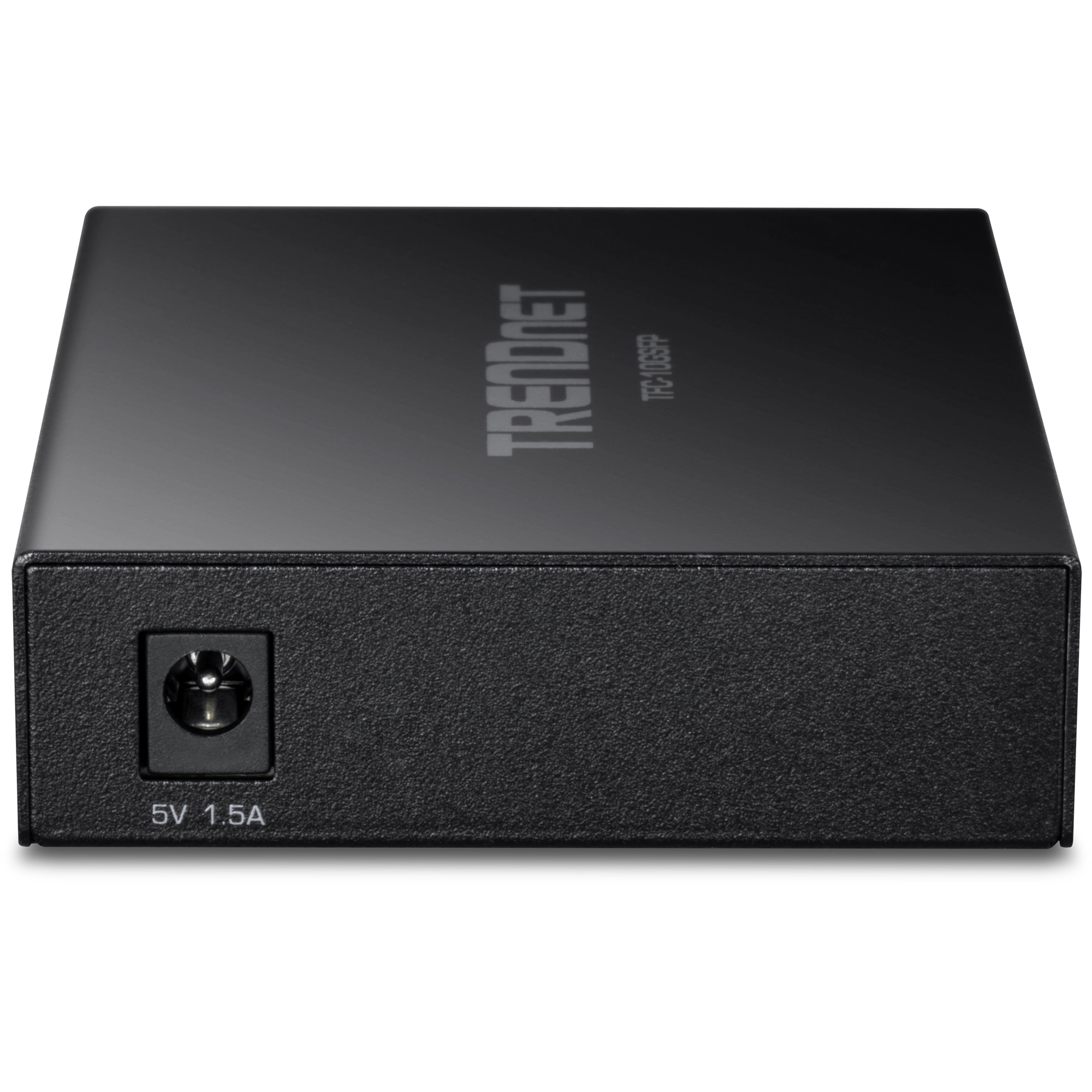

  • Output: 5V DC, 1.5A
  • Max. consumption: 4W
Operating Temperature
  • 0° C – 50° C (32° F – 122° F)
Operating Humidity
  • Max. 90% non-condensing
Dimensions
  • 105 x 75 x 22 mm (4.13 x 2.95 x 0.86 in.)
Weight
  • 188 g (6.63 oz.)
Certifications
  • CE
  • FCC
Warranty
  • 3 year

PACKAGE CONTENTS

  • TFC-10GSFP
  • Quick Installation Guide
  • Power Adapter (5V DC, 1.5A)
