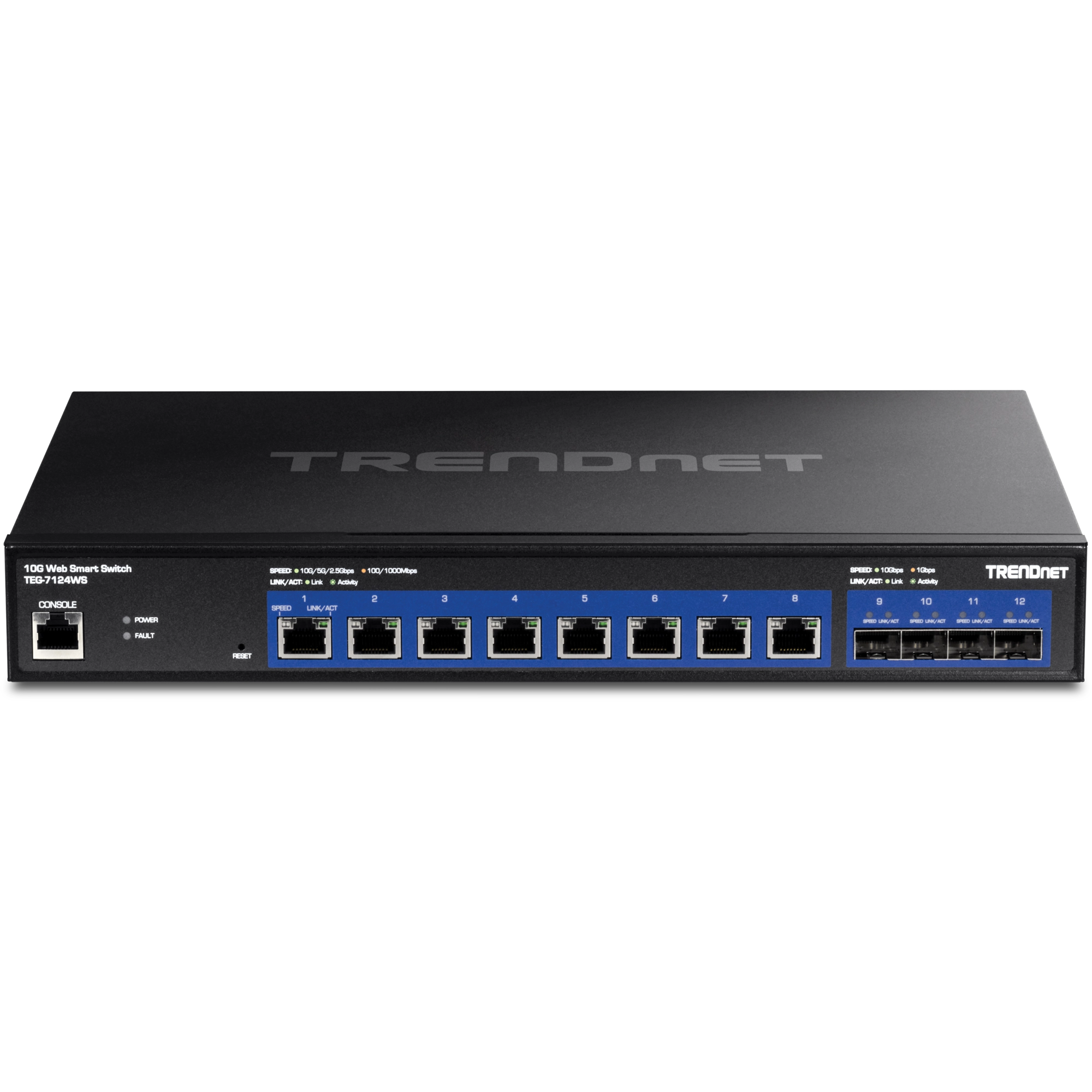

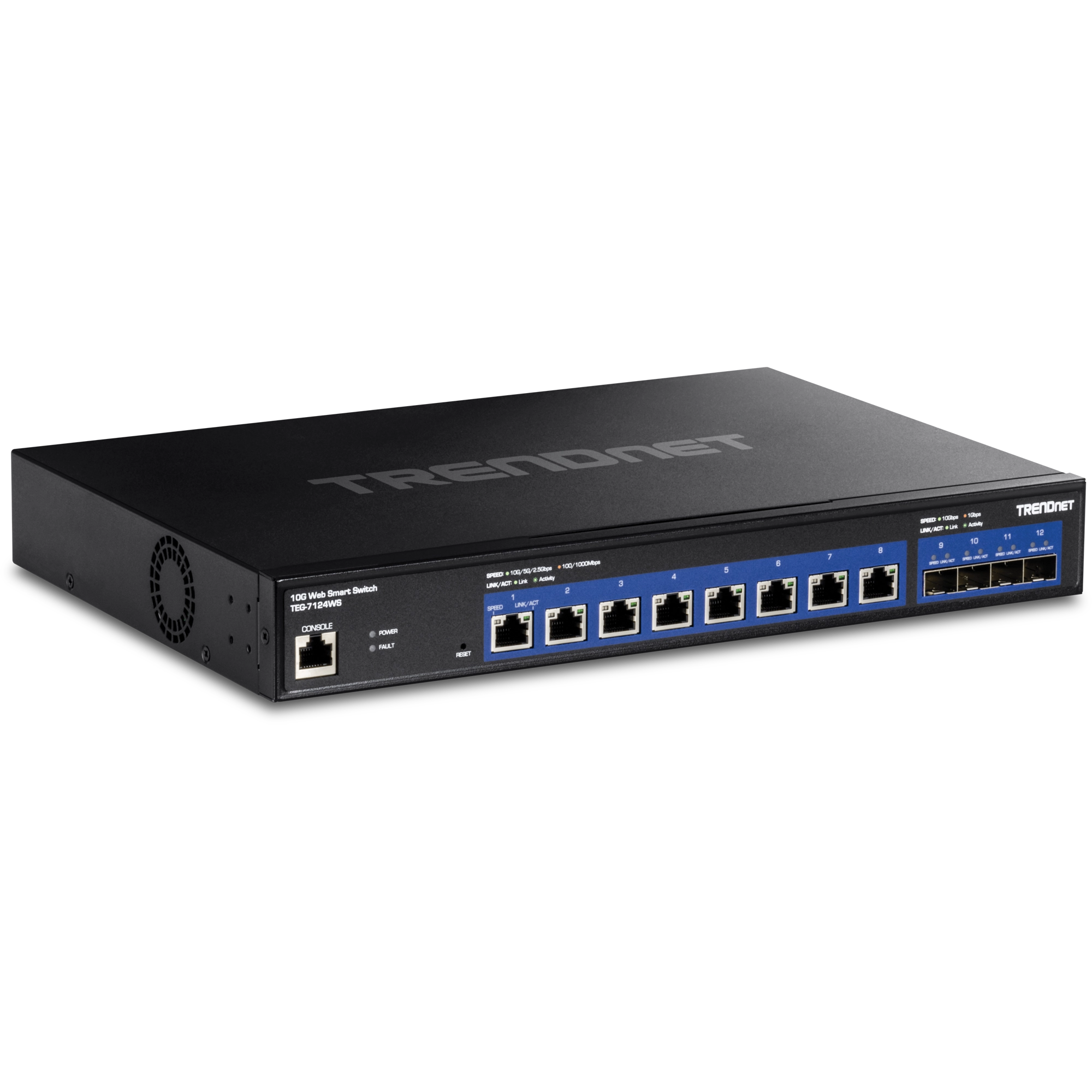

TRENDnet’s 12-Port 10G Web Smart Switch, model TEG-7124WS, offers advanced traffic management controls to meet the evolving demands of SMB networks. This rack mountable IPv6-ready 10Gb managed switch comes with an easy-to-use, intuitive web-based interface. Management features include LACP to increase bandwidth between switches, VLANs for segmenting and isolating virtual LAN groups, QoS for traffic prioritization, port bandwidth controls, and SNMP monitoring, making this a powerful solution for any SMB network. Improve voice performance by isolating and prioritizing VoIP traffic from normal data traffic with an easy-to-use voice VLAN feature.

Free up router resources by offloading routing processes to this 10Gb managed switch by using the L2+ IPv4/IPv6 static routing feature to efficiently route traffic at the switch level. The dynamic ARP inspection feature helps protect connected devices from man-in-the-middle attacks. Take advantage of the available multicast and IGMP/MLD snooping features to optimize IP surveillance system performance, and minimize network traffic.

This 12-Port 10G managed switch also features eight 10GBASE-T Ethernet ports, and four 10G SFP+ ports for long-distance, high-speed fiber network connections, providing a cost-effective solution in adding 10G link capability to an SMB network.

High-Speed 10GBASE-T and 10G SFP+

Offers eight 10GBASE-T Ethernet ports, and four 10G SFP+ ports for high-speed network connections providing a cost-effective solution in adding 10G link capability to an SMB network

Web Smart Management

Provides an easy-to-use web-based management GUI for reduced switch configuration complexity, and offers a combination of SMB management features for easy deployment

Integration Flexibility

Managed features include access control lists, VLAN, IGMP snooping, QoS, RMON, SNMP trap, and syslog for monitoring for flexible network integration

Hardware Design

Provides eight 10G ports, four 10G SFP+ ports, a 240Gbps switching capacity, a built-in power supply, and rackmount brackets

IPv6 Ready

This 10G managed switch supports IPv6 configuration and IPv6 neighbor discovery

Traffic Management

A broad range of network configurations on the 10GbE managed switch are supported by: 802.3ad link aggregation, Asymmetric VLAN, 802.1Q VLAN, Voice VLAN, RSTP, MSTP, Loopback Detection, GVRP, 802.1p Class of Service (CoS), port bandwidth management, and QoS queue scheduling

Troubleshooting

A convenient cable diagnostic test and traffic statistics aid in network troubleshooting the 10G managed switch

Access Control

Features such as ACL, SSL, MAC/port filtering, 802.1X, TACACS+, and RADIUS are compatible with layered access controls

Monitoring

The 10Gb managed switch features RMON, SNMP, SNMP Trap, and Port Mirroring, supporting administrator monitoring solutions

Features:

• 8 x 10G ports
• 4 x SFP+ ports
• Supports 1G/2.5G/10G link speeds
• Easy-to-use web-based management interface
• Supports IPv6, LACP, VLAN, QoS, and IGMP Snooping
• Bandwidth control per port
• Private and Voice VLAN support
• 240Gbps switching capacity
• IEEE 802.1p QoS with queue scheduling support
• 1U 19” rack mountable metal housing
• NDAA / TAA compliant (U.S. and Canada only)
• Lifetime Warranty*
