TRENDnet's 12-Port Cat5e Unshielded Wall Mount Patch Panel, model TC-P12C5V, provides a 100MHz connection to 12 x Gigabit RJ-45 Ethernet ports. This 10-inch patch panel is well suited for both home or SMB applications. Organize connections with the available writing surface above each port, allowing users to label respective connections. This compact 12-port patch panel also includes an 89D wall mount bracket for vertical or horizontal installations. The snap-in style wall mount bracket design provides quick and easy access to cable connections when needed for installation or troubleshooting. Use with TRENDnet's Punch Down Tool, model TC-PDT, and RJ-11/RJ-45 Crimp/Cut/Strip Tool, model TC-CT68.

Cat5e Performance

Provides performance of up to 2.5Gbps speeds at 100m for 10/100/1000/2.5GBASE-T connections

Wall Mount Design

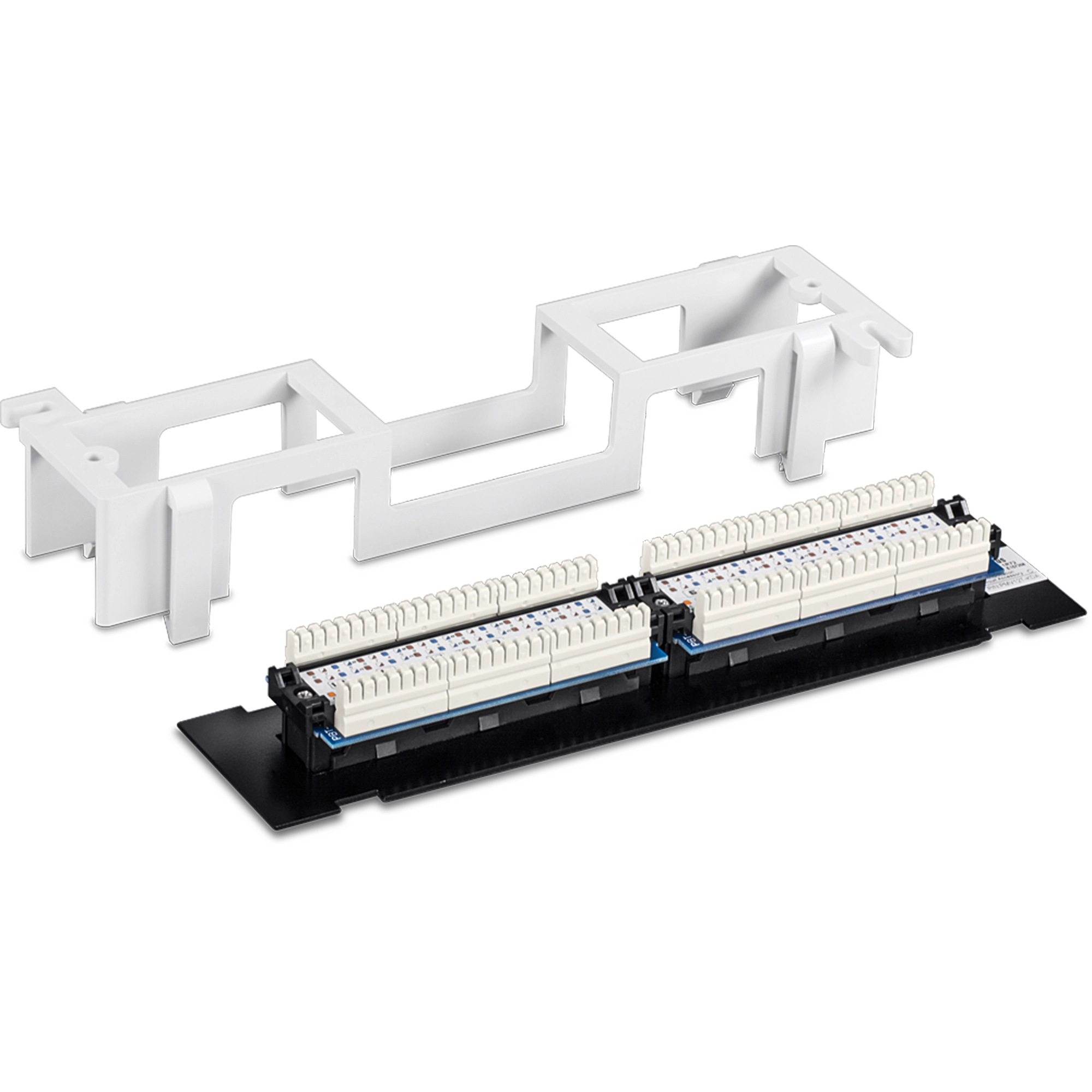

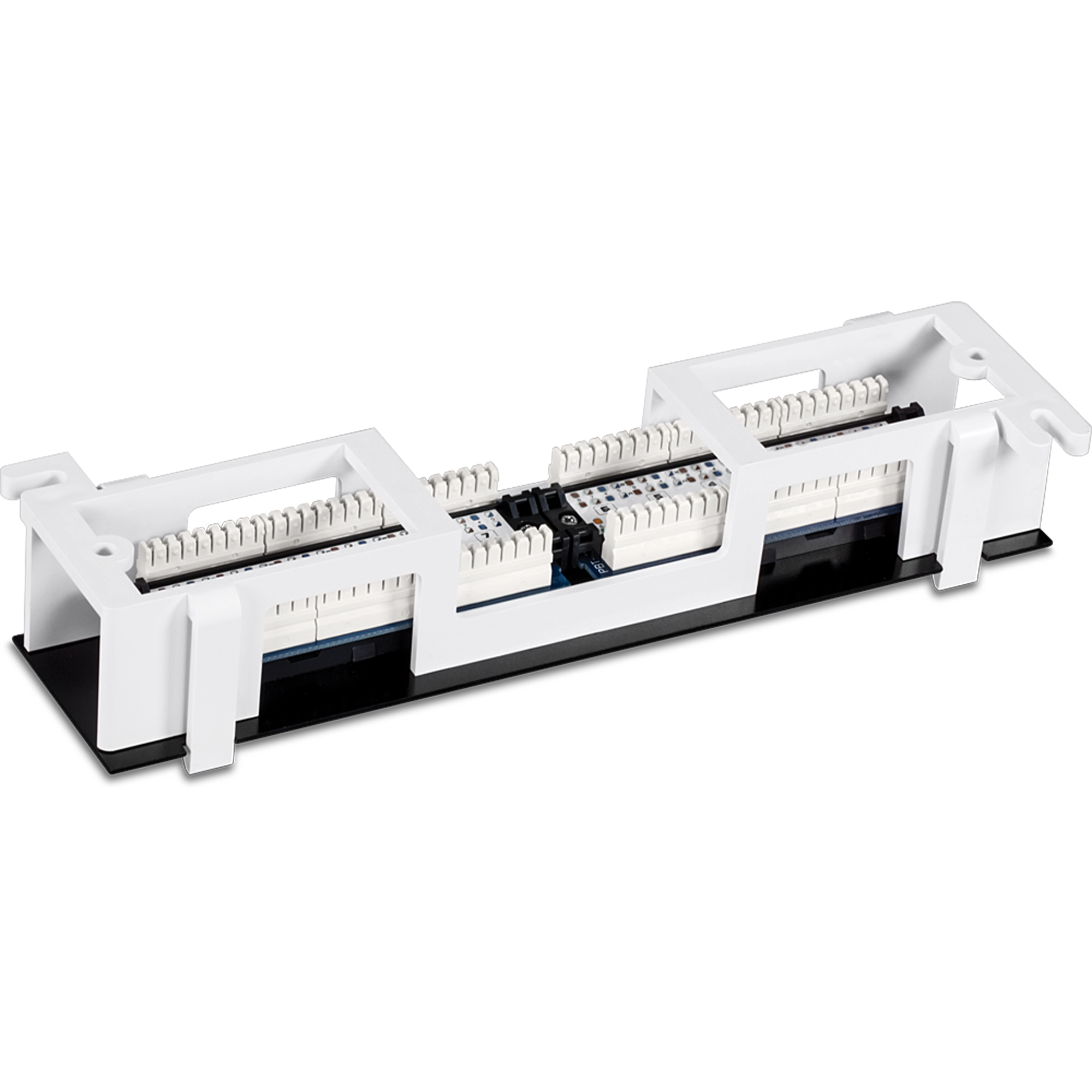

This compact patch panel includes an 89D wall mount bracket for vertical or horizontal installations. The snap-in style wall mount bracket design provides quick and easy access to cable connections when needed for installation or troubleshooting

Port Labels

The 12-port patch panel features a blank writing surface above each port, allowing users to label and organize the respective connections

Features:

• 12-Port Cat5e Wall Mount Patch Panel
• Compatible with Cat5e and Cat6
• 10-inch patch panel is well suited for home and SMB applications

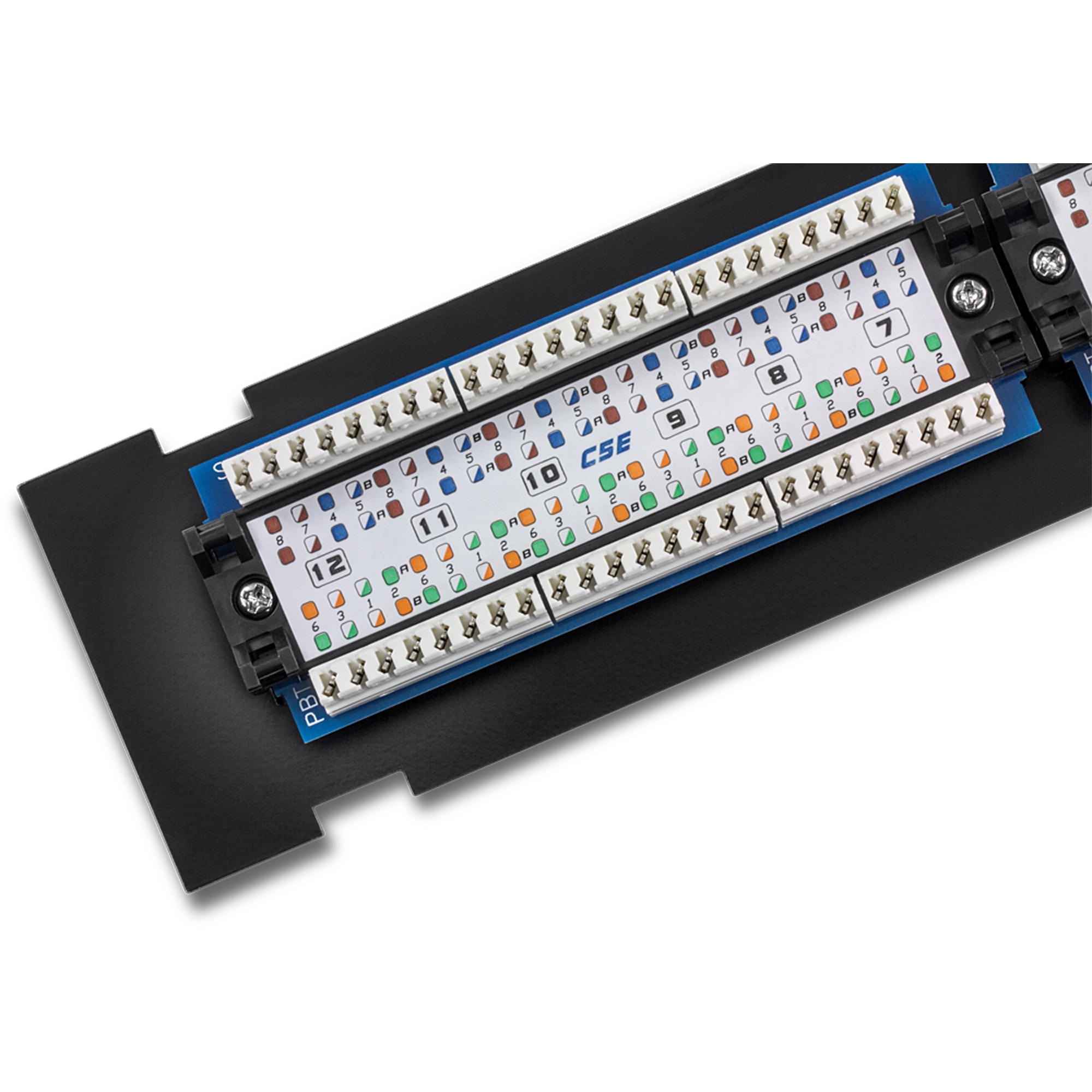

• Color-coded labeling for T568A and T568B wiring schemes
• Included 89D wall mount bracket for vertical or horizontal installations
• Organize cable connections with port labeling
• 110 IDC type terminal blocks (use 110 or Krone type tool)
• Use with TRENDnet TC-PDT Punch Down Tool (sold separately)
• Supports ANSI/EIA/TIA 568-B.2-1 and ISO/IEC 11801
• 180° angle type
• Operating temperature: -10° – 60° C (14° – 140° F)
• 3-year warranty
• NDAA compliant
