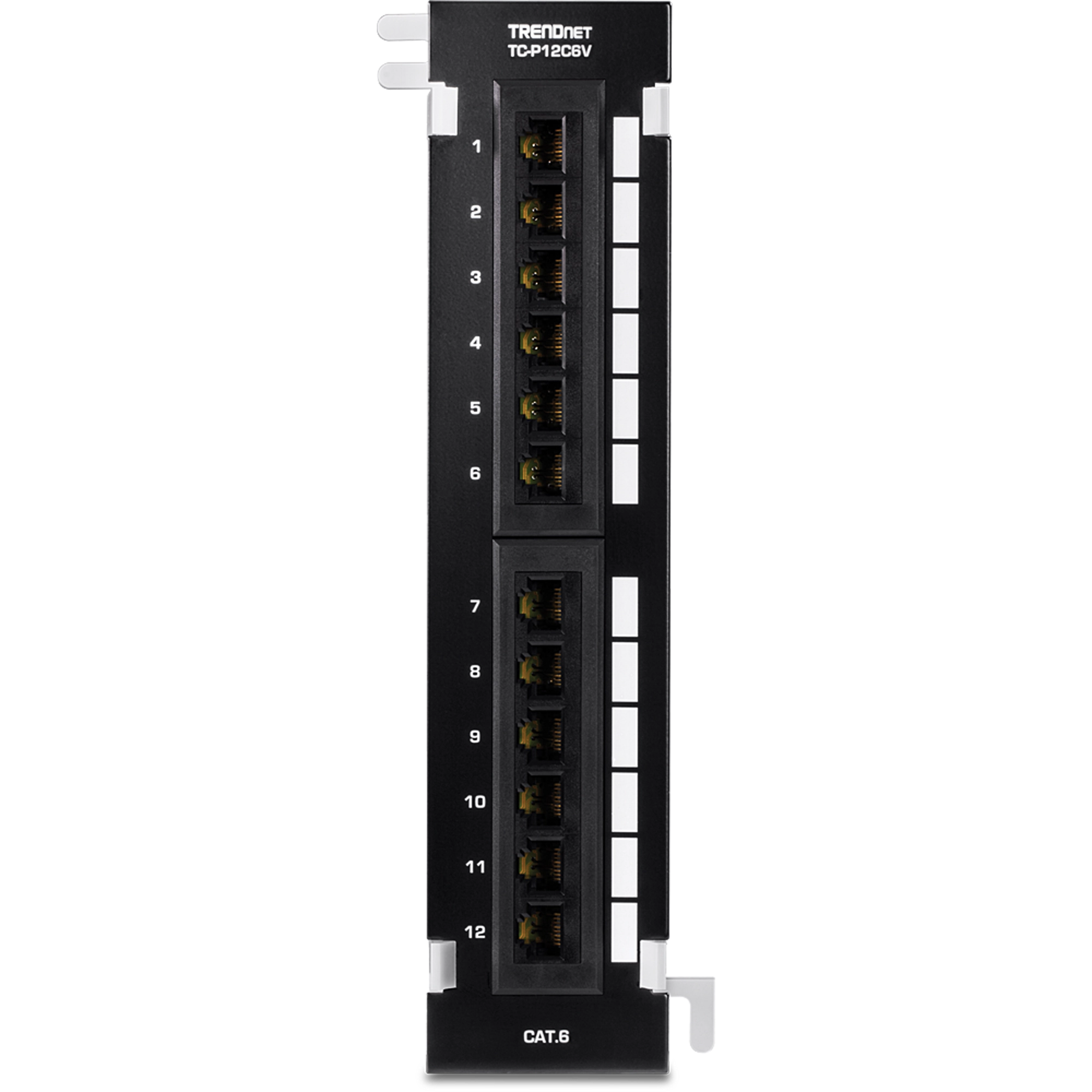

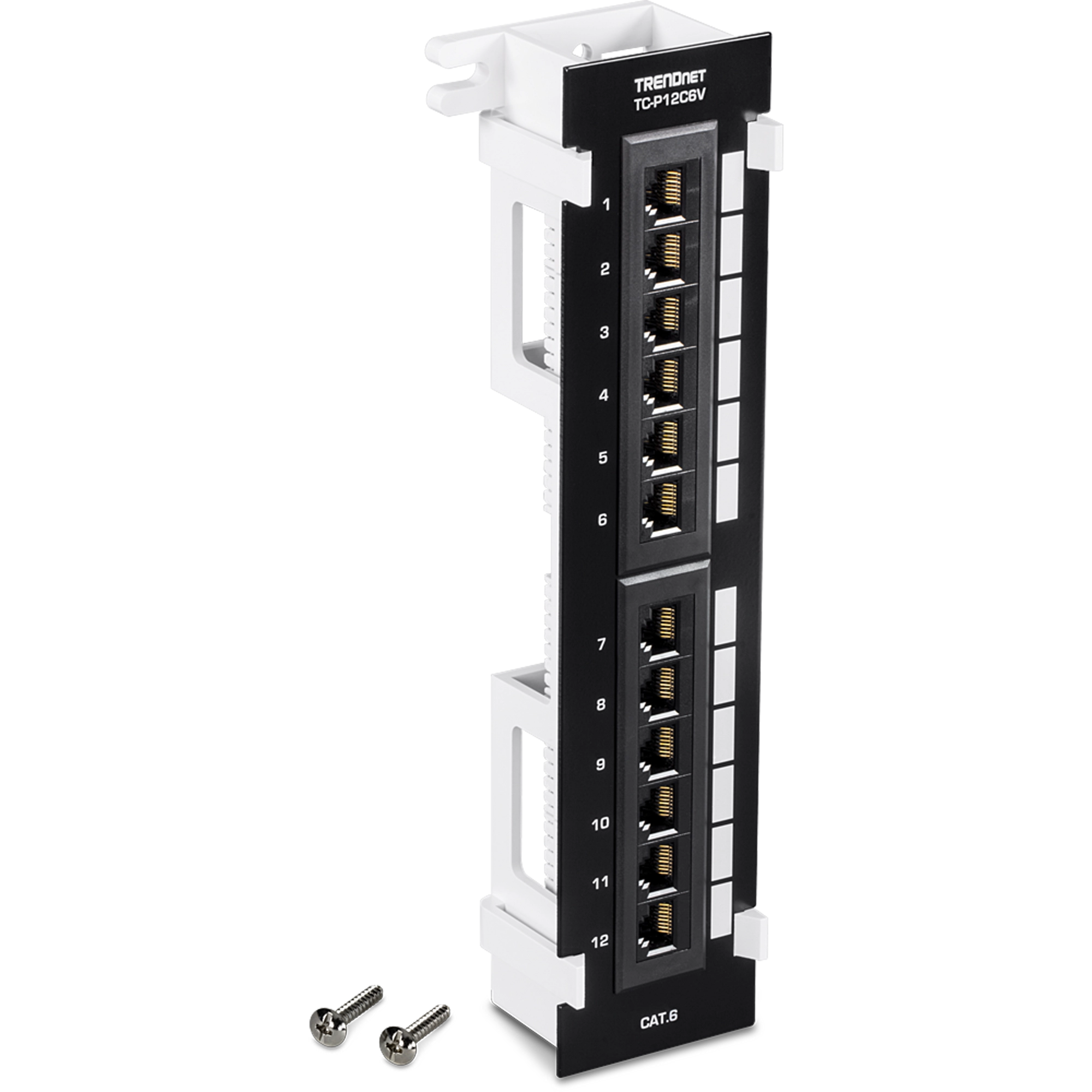

TRENDnet's 12-Port Cat6 Unshielded Wall Mount Patch Panel with Included 89D Bracket, model TC-P12C6V, provides a 250MHz connection to 12 x Gigabit RJ-45 Ethernet ports. This 10-inch, Cat6 wall mount patch panel is well suited for both home or SMB applications. Control cable clutter with included removable cable pass-through holders and cable ties. A writing surface above each port allows users to label respective connections. This compact/mini patch panel also includes an 89D wall mount bracket for vertical or horizontal installations. The snap-in style wall mount bracket design provides quick and easy access to cable connections when needed for installation or troubleshooting. Use the Cat6 wall mount patch panel with TRENDnet's Punch Down Tool with 110 and Krone Blades, model TC-PDT, and RJ-11/RJ-45 Crimp/Cut/Strip Tool, model TC-CT68.
Cat6 Performance
Provides performance of up to 5Gbps speeds at 100m for 10/100/1000/25G/5GBASE-T connections, and 10Gbps speeds at 55m for 10GBASE-T connections
Wall Mount Design

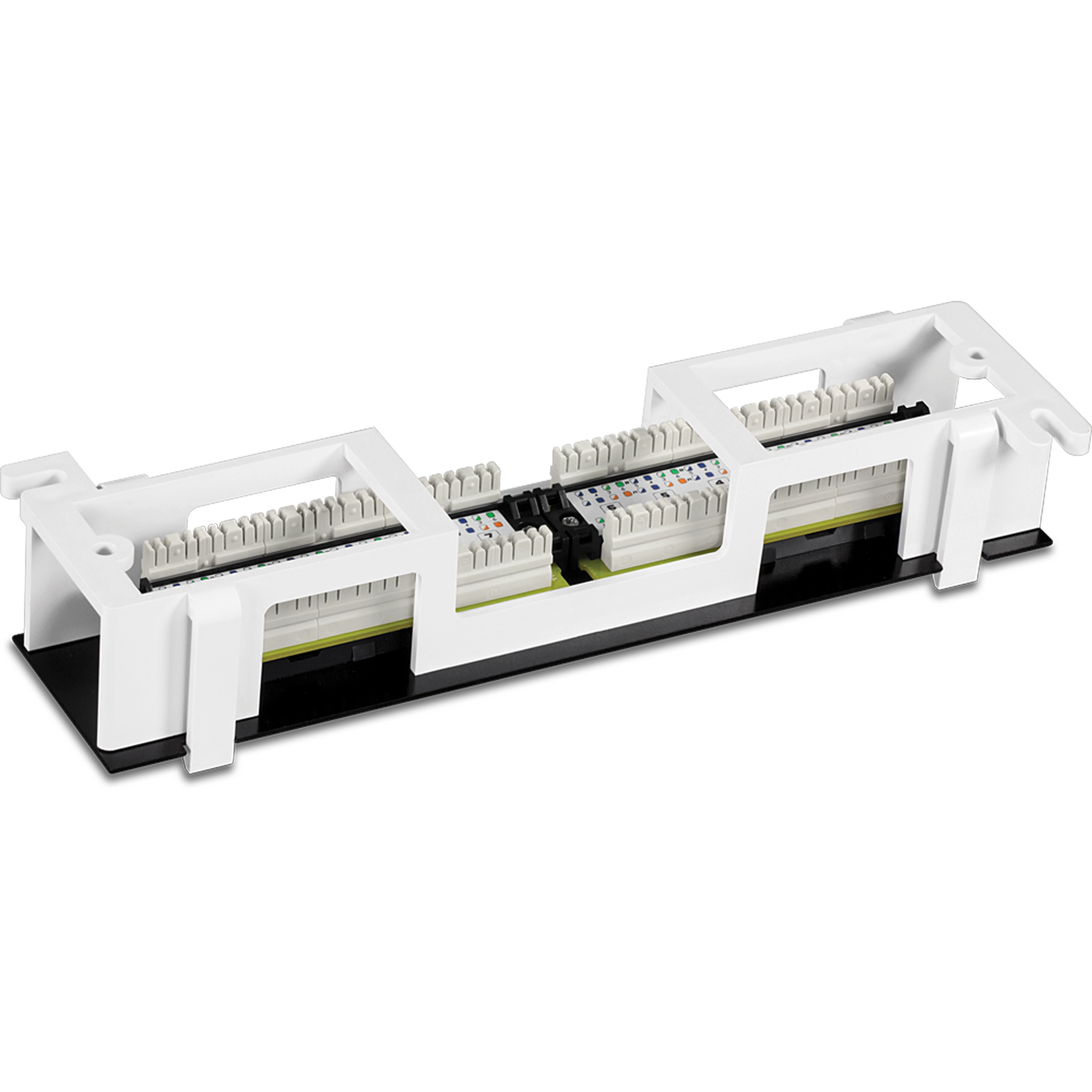

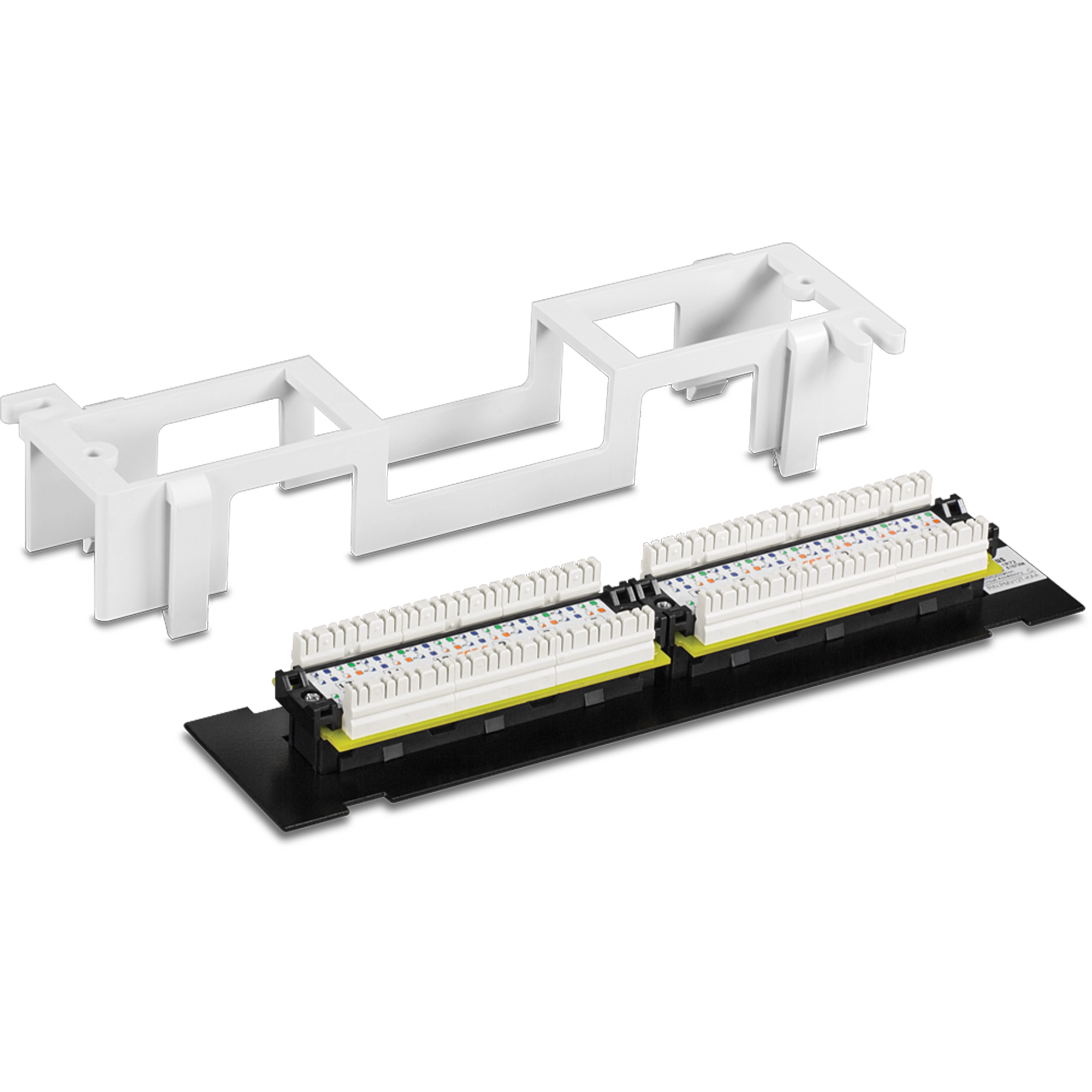

This compact patch panel includes an 89D wall mount bracket for vertical or horizontal installations The snap-in style wall mount bracket design provides quick and easy access to cable connections when needed for installation or troubleshooting
Cable Management
Control cable clutter with included removable cable pass-through holders and cable ties A writing area above each port allows users to label respective connections on the Cat6 wall mount patch panel
Features:
- 12-Port Cat6 Wall Mount Patch Panel
- Compatible with Cat5e and Cat6
- 10-inch-wide patch panel is well suited for home and SMB applications
- Color-coded labeling for T568A and T568B wiring schemes
- Included 89D wall mount bracket for vertical or horizontal installations
- Organize cable connections with included ties, and port labeling
- 110 IDC type terminal blocks (use 110 or Krone type tool)
- Use with TRENDnet TC-PDT Punch Down Tool (sold separately)
- Supports ANSI/EIA/TIA 568-B.2-1 and ISO/IEC 11801
- 90° angle type
- Operating temperature: -25° – 50° C (-13° – 122° F)
- Designed for Category 6 cabling
- 3-year warranty
- NDAA compliant
| Technical Specification | |
| Standards | ANSI/TIA/EIA-568-C.2 |
| ISO/IEC 11801 2nd edition: 2002 | |
| Interface | 12 x Cat6 RJ-45 ports with gold-plated 8P/8C contacts |
| T568A/T568B wiring for Krone 110 termination with color-coded wiring diagram | |
| 180° IDC terminals | |
| Compatible with 22 – 26 AWG solid or stranded wire | |
| SPCC steel construction | |
| Mounting Options | Wall mountable with included 89D bracket |
| Electrical Specification | Insulation resistance: >= 500 MΩ |
| Dielectric Withstand Voltage: 500V DC | |
| Contact resistance: <= 35 MΩ | |
| Current rating: 1.5A at 20° C (68° F) | |
| Mechanical Specification | Contact force 99.2g (3.5 oz.) |
| Plug retention force: 13.3kg (29 lb.) | |
| 110/ Krone IDC insertion force: min. 4.5kg (9.9 lb.) | |
| 110/ Krone IDC retention force: min. 0.5kg (1.1 lb.) | |
| Operating Temperature | -10° – 60° C (-50° – 140° F) |
| Operating Humidity | Max. 90% non-condensing |
| Dimensions | 57 x 253 x 49mm (2.24 x 9.96 x 1.92 in.) |
| Weight | 292g (10.3 oz.) |
| Warranty | 3 year |
