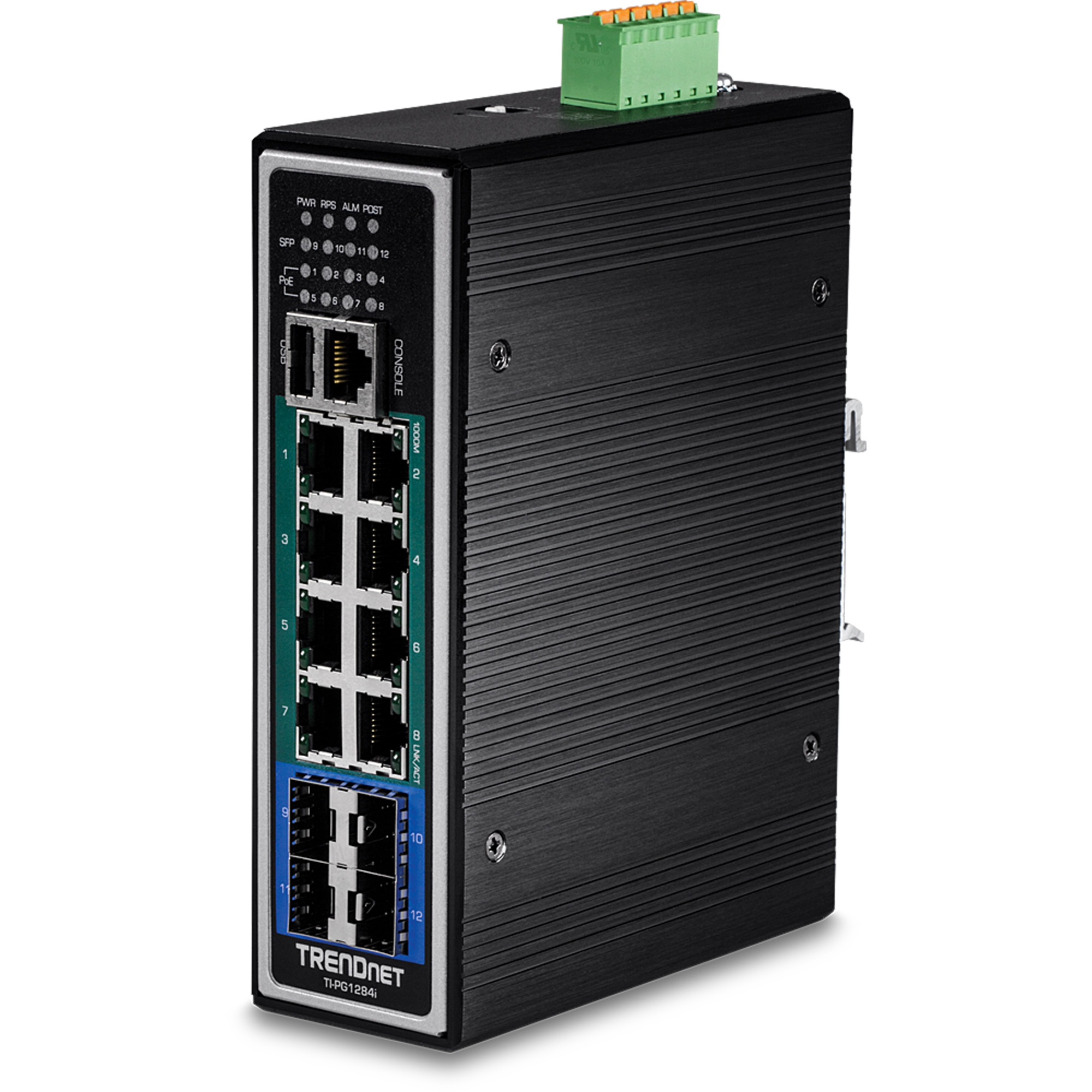

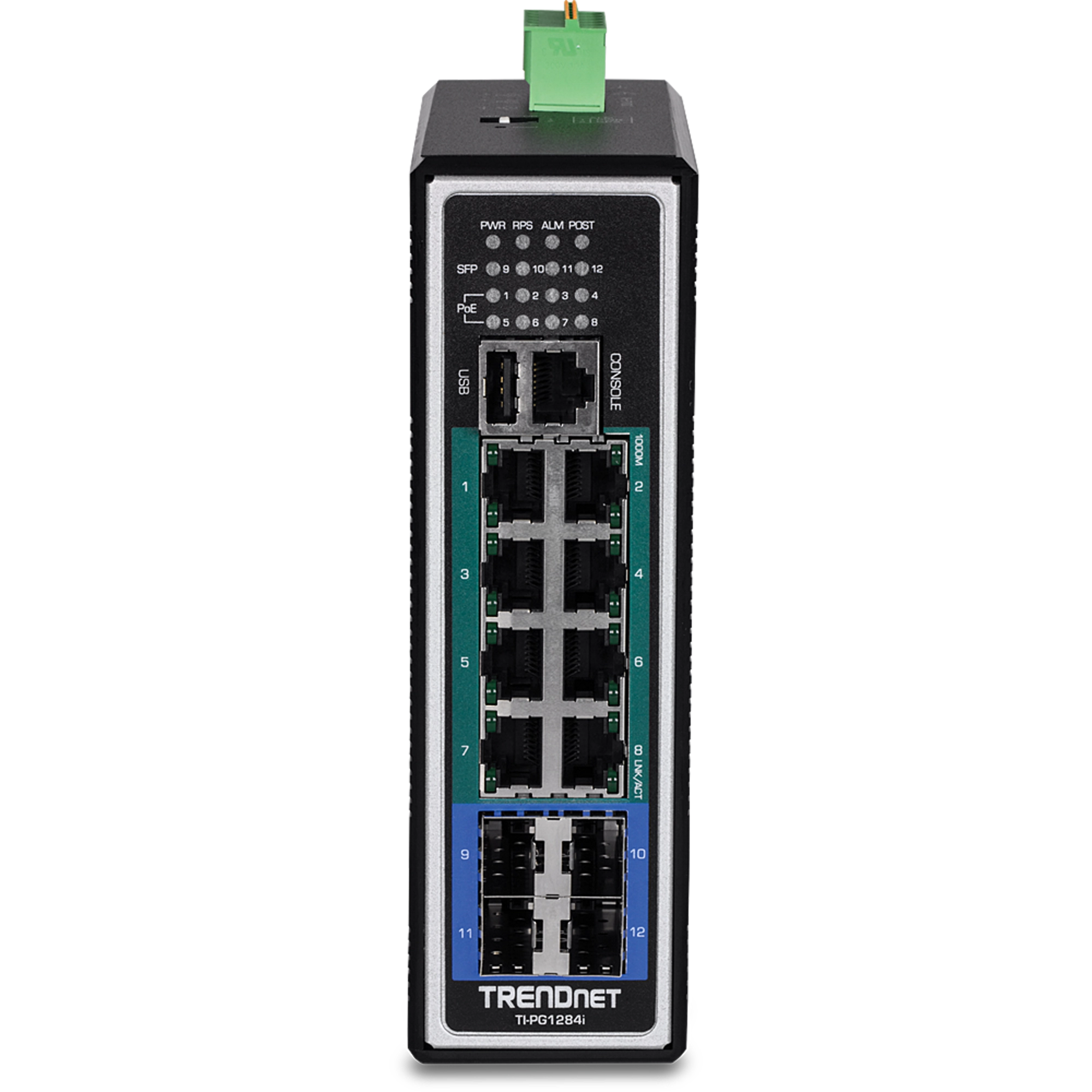

TRENDnet's Industrial Gigabit L2+ Managed DIN-Rail Switch series offers advanced layer 2 managed features with enhanced traffic controls to meet the evolving demands of today's SMB networks. Each industrial layer 2 managed switch is equipped with an IP30 rated metal enclosure, designed to withstand a high degree of vibration and shock, while operating within a wide temperature range of -40° – 75° C (-40° – 167° F) for industrial environments. Our industrial layer 2 managed switch models feature copper Gigabit ports for high-speed device connections, and SFP slots that support 1000Base-FX modules for long distance fiber networking applications.

These industrial layer 2 managed DIN-Rail switches provide an intuitive web-based management interface. Each TRENDnet industrial layer 2 managed switch supports advanced traffic management controls, troubleshooting, and SNMP monitoring. Advanced managed switch features include LACP to group ports together to increase bandwidth between switches, VLANs for segmenting and isolating virtual LAN groups, QoS for traffic prioritization, port bandwidth controls, and SNMP monitoring making each TRENDnet industrial layer 2 managed switch a powerful solution for SMB networks.

L2+ Management

Provides an easy to use web management interface for traffic management controls such as VLAN, QoS, access controls, link aggregation, troubleshooting, SNMP monitoring, and per port MAC restriction.

PoE Power

A 240W PoE power budget supplies up to eight Power over Ethernet devices, and includes advanced PoE port controls such as enabling / disabling PoE, power priority, PD alive check, and power scheduling.

Industrial Design

Equipped with an IP30 rated metal enclosure, designed to withstand a high degree of vibration and shock, while operating within a wide temperature range of -40° – 75° C (-40° – 167° F) for industrial environments.

Features:

• 8 x Gigabit PoE+ ports
• 4 x SFP slots
• Supports 1000Base-FX fiber SFP modules
• 240W PoE power budget
• PoE alive check restarts unresponsive PoE powered devices
• 24Gbps switching capacity
• Hardened IP30 rated metal housing

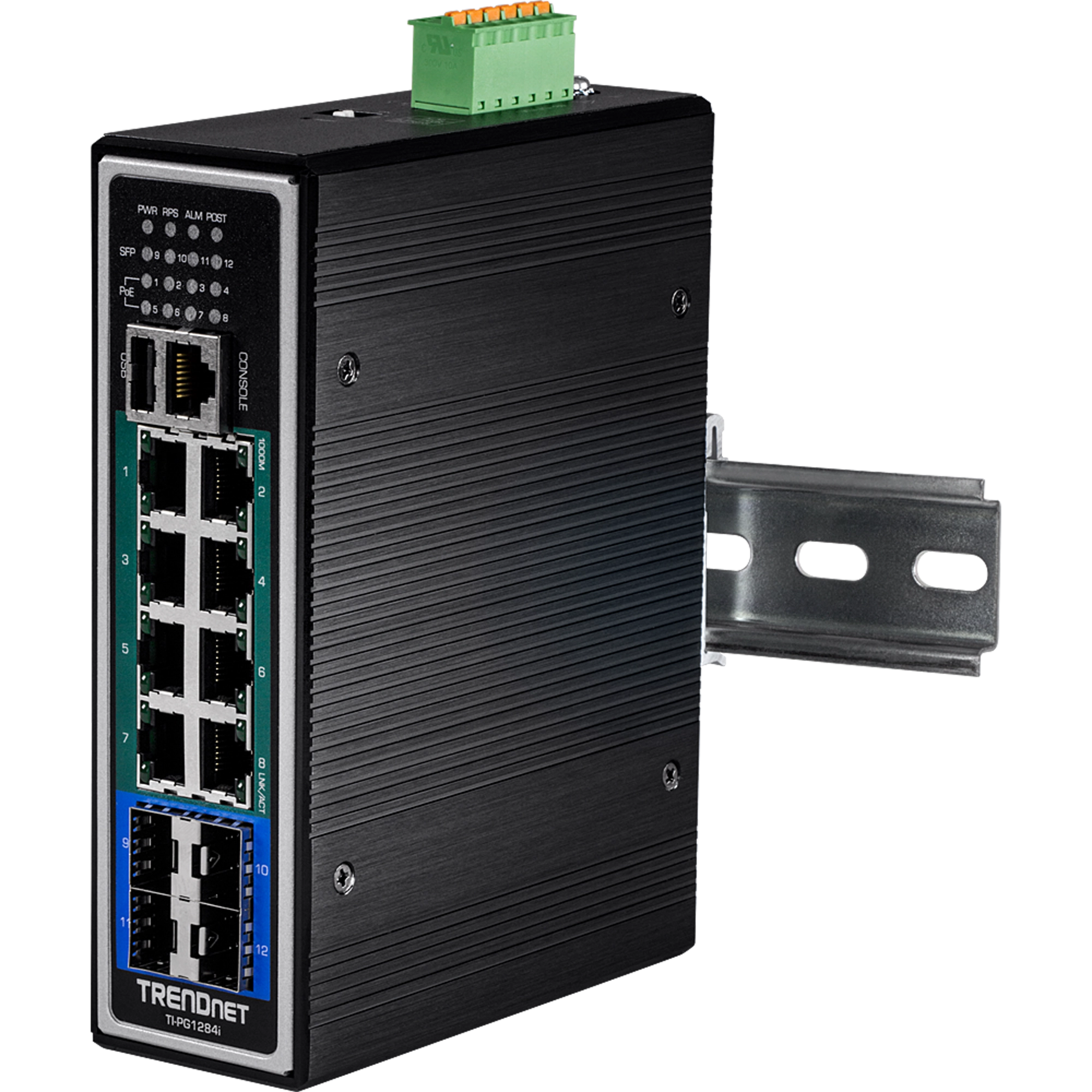

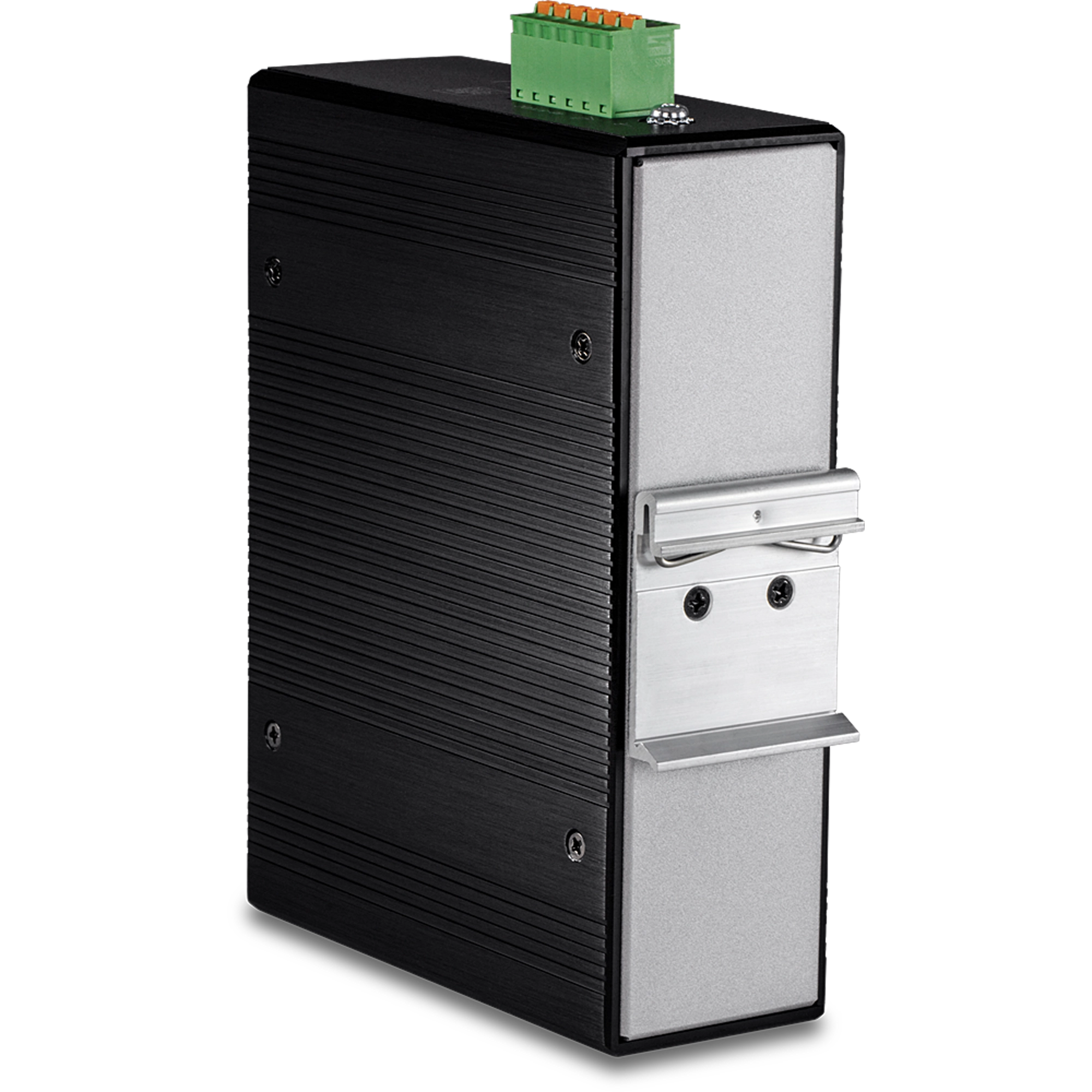

• Includes DIN-rail mounting bracket
• Operating temperature range of -40° – 75° C (-40° – 167° F)
• Supports LACP, STP/RSTP, VLAN, and IGMP Snooping
• IEEE 802.1p QoS with queue scheduling support

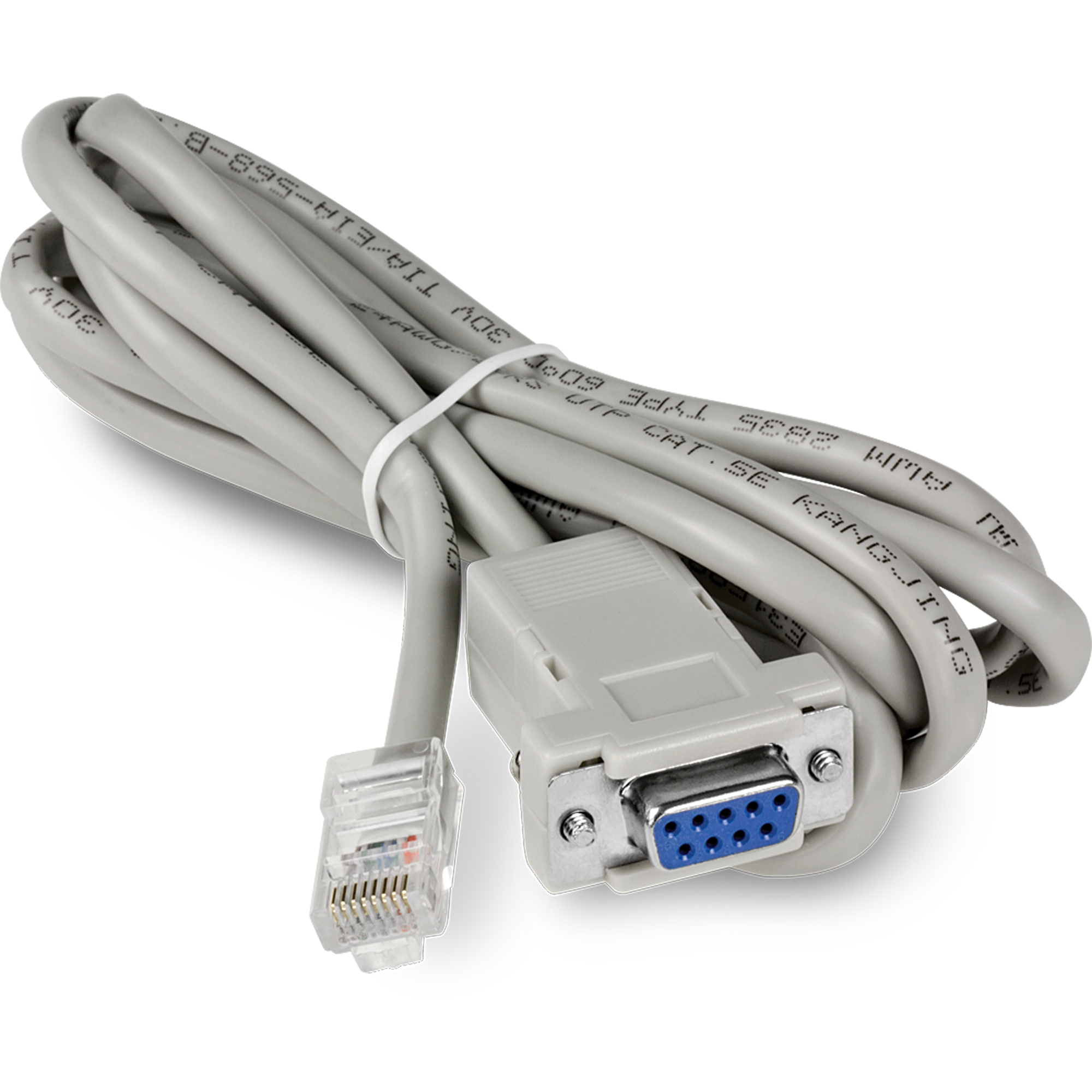

• CLI (Console / Telnet / SSH), Web (HTTP / HTTPS), SNMP v1 / 2c / 3 management
• 802.1Q / Q-in-Q VLAN and IGMP Snooping / MLD / MVR support
• 802.1p / DSCP / Queue Scheduling (SPQ / WRR) QoS support
• Bandwidth control per port

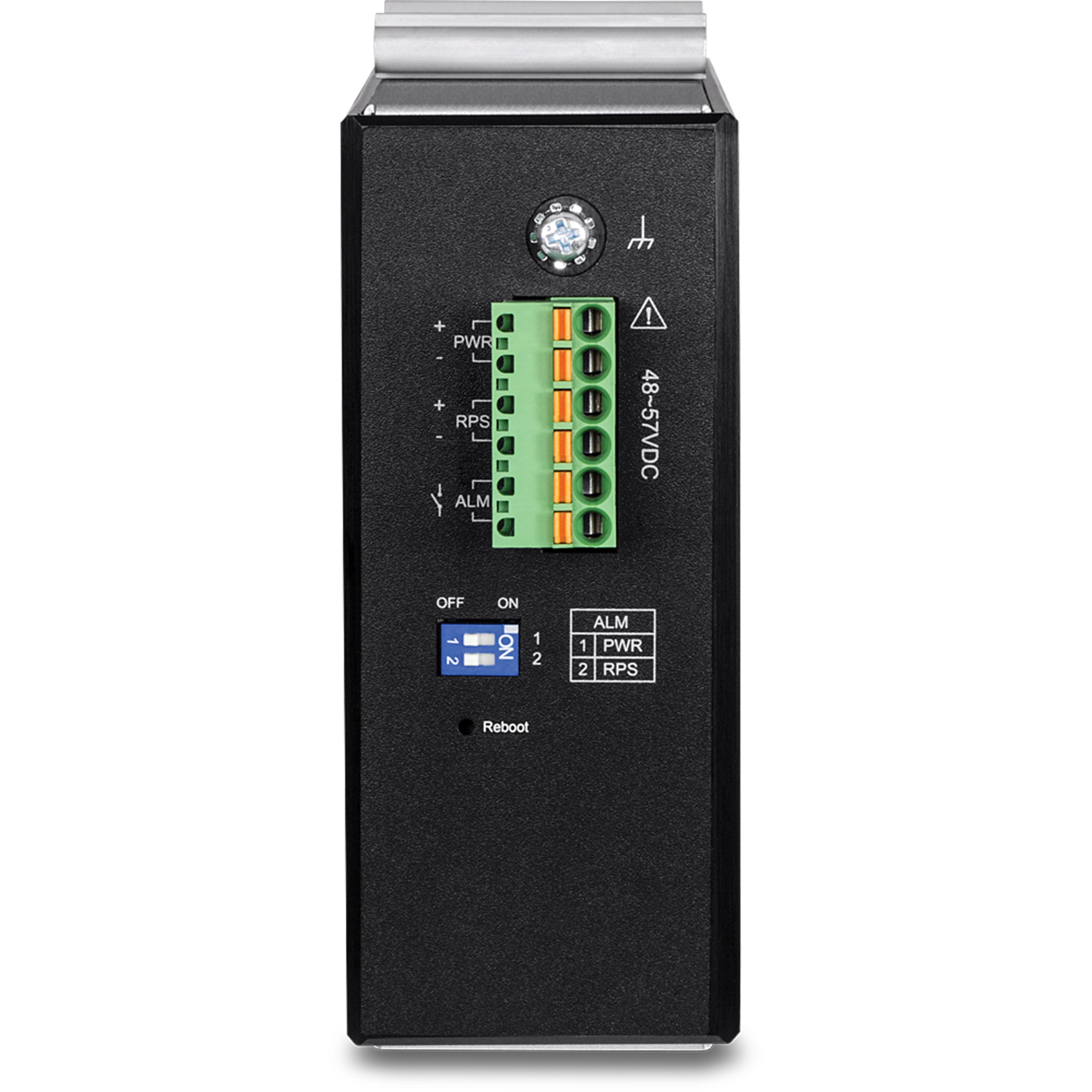

• Dual inputs provide redundant power with overload current protection
• Alarm output triggered by power failure
• Supports Ethernet Ring Protection Switching (ERPSv2)
• Power supply sold separately (models: TI-S48048)
• NDAA / TAA compliant
• Lifetime Warranty*
