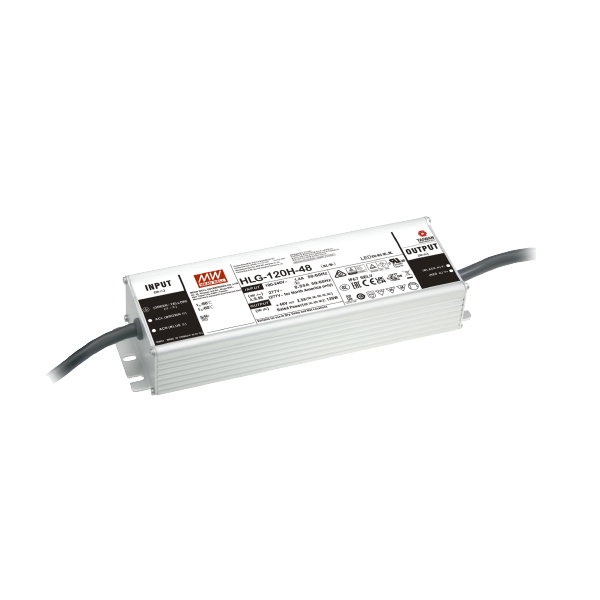

Vivotek - HLG-120H-48 - 120W Single Output Switching Power Supply 48V
Part number:
HLG-120H-48
Price:
120W Single Output Switching Power Supply 48V
Features:
- 120W Single Output Switching Power Supply
| Technical Specification | |
| Power Input Range | 90~305VAC |
| Input Frequency Range | 47~63 Hz |
| Input Current | 1.4A/115VAC, 0.6A/230VAC |
| Output Voltage Adjustment Range | 48VDC |
| Output Current | 2.5A |
| Output Power | 120W max |
| Operating Temperature | 40°C to +80°C |
| Operating Humidity | 20 to 90% RH (Non-Condensing) |
| Dimensions | 220 (L) x 68 (W) x 38.8(H) mm |
| Certifications | CE/CB/TUV/UL/BIS/PSE/KC/EAC |
Name
Description
Size
Downloads
File
Specification Sheet
0.3mb
