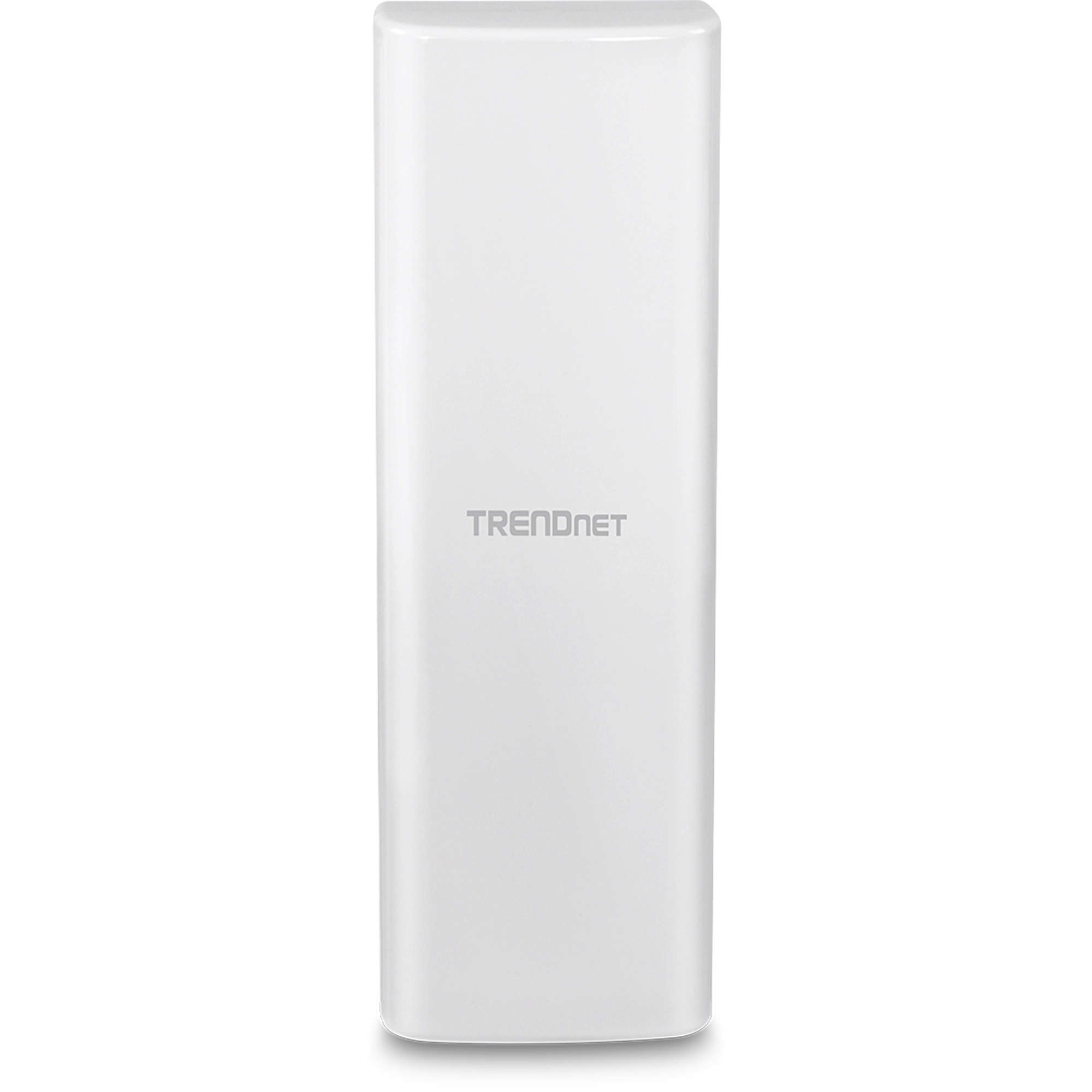

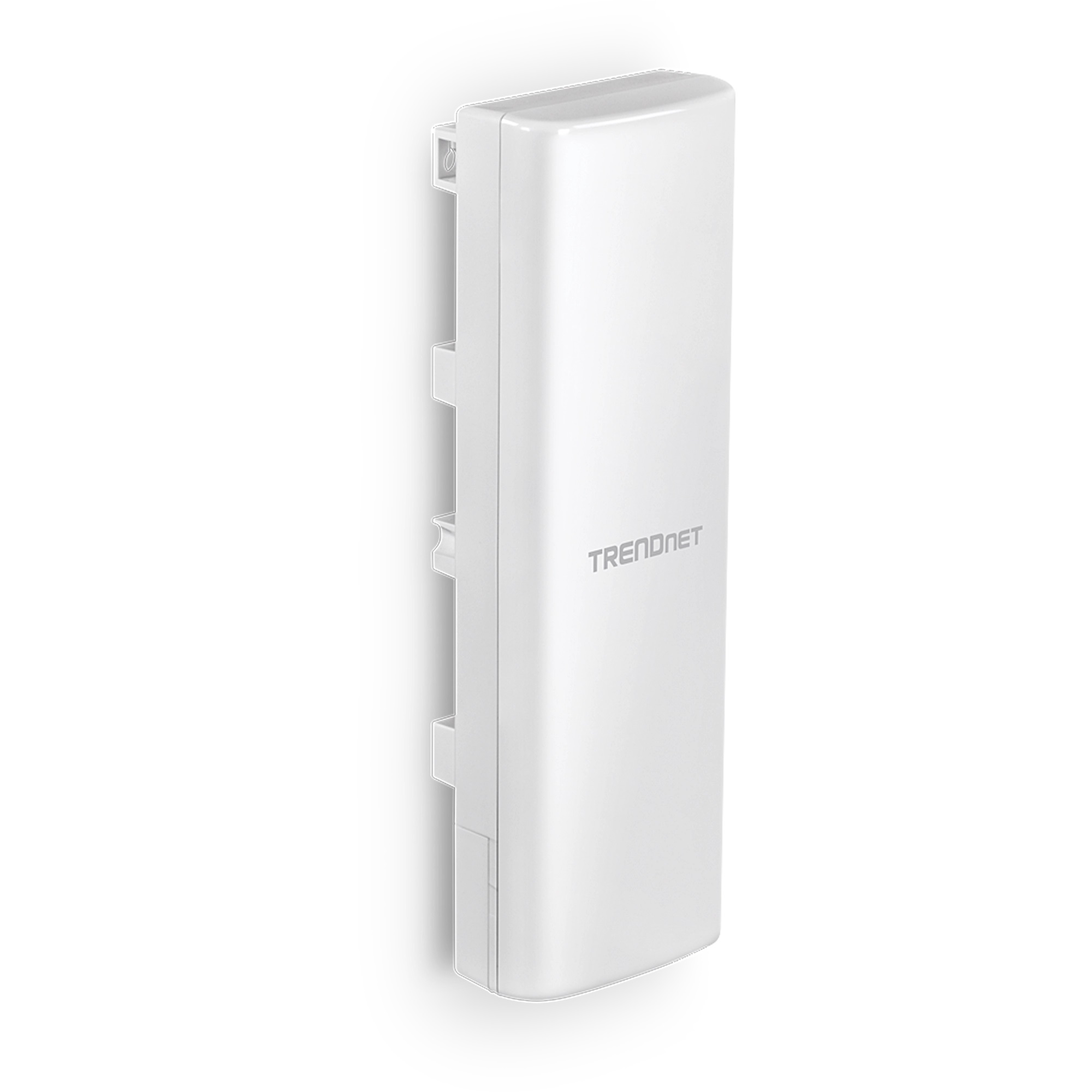

TRENDNET - TEW-940APBO2K - 14 dBi WiFi 6 AX1200 Outdoor PoE Preconfigured Point-to-Point Bridge Kit
Part number:
TEW-940APBO2K
Price:

TRENDnet’s 14 dBi WiFi 6 AX1200 Outdoor PoE Preconfigured Point-to-Point Bridge Kit, model TEW-940APBO2K, provides reliable, long-range wireless AX1200 point-to-point connectivity. This preconfigured 5GHz outdoor WiFi 6 bridge kit provides installers the simplest way to create a long-distance wireless point-to-point bridge. The outdoor WiFi 6 bridge kit conveniently links two locations together with WiFi 6 AX1200 speed and performance. Faster speeds are possible with this outdoor point-to-point WiFi 6 bridge kit with OFDMA and MU-MIMO technologies. MU-MIMO technology processes multiple data streams simultaneously, increasing real-time WiFi performance on the outdoor wireless access point when multiple devices access the network. The IP55 rated housing is designed for outdoor environments, and includes wall and pole mounting hardware.



Features:

  • 5GHz WiFi 6 AX1200 point-to-point bridge kit

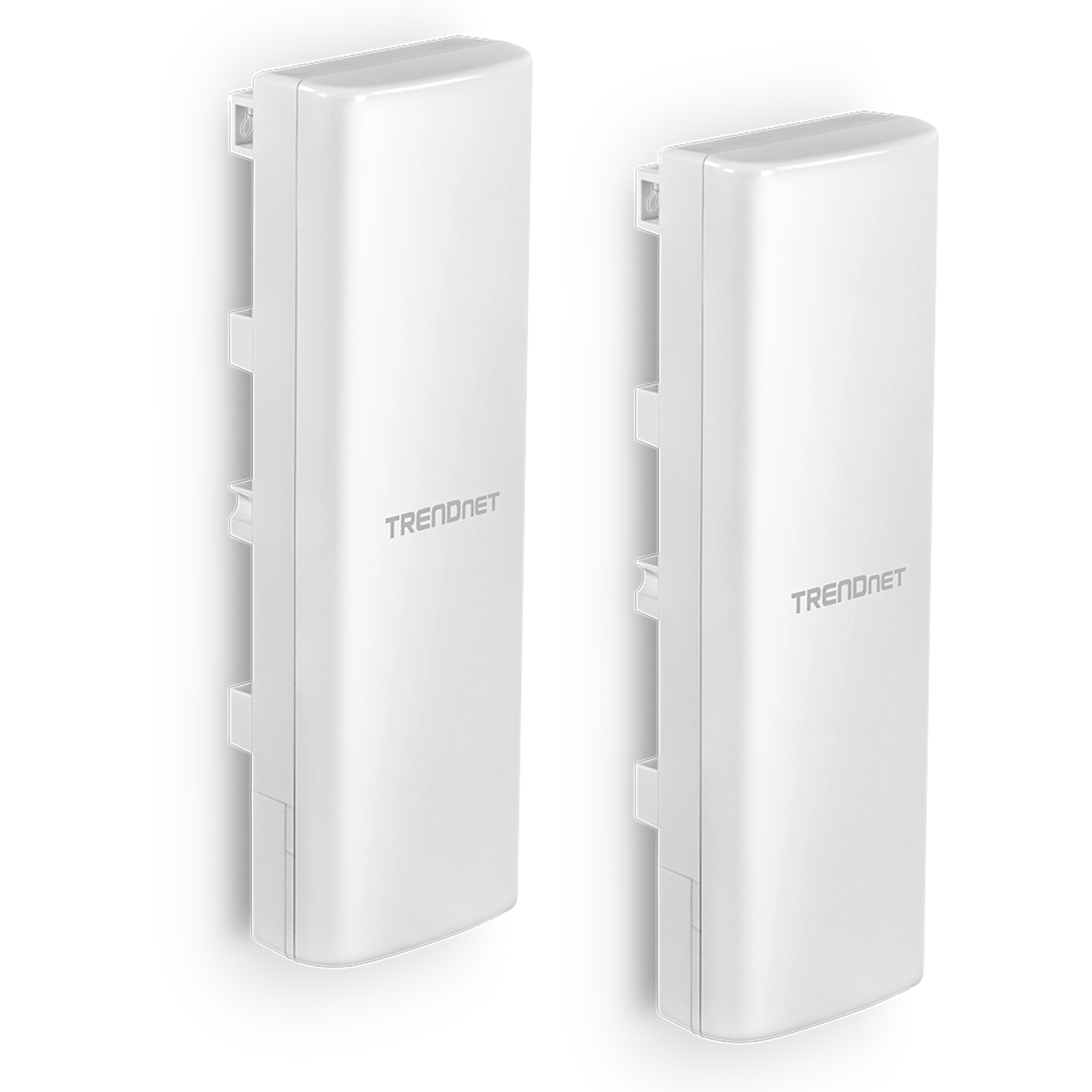

  • Includes two preconfigured TEW-940APBO access points
  • 1 x Gigabit PoE (in) port, and 1 x Gigabit port each
  • 14 dBi directional antennas
  • Supports Access Point, Client Bridge, and Repeater modes
  • IP55 outdoor weather rated housing

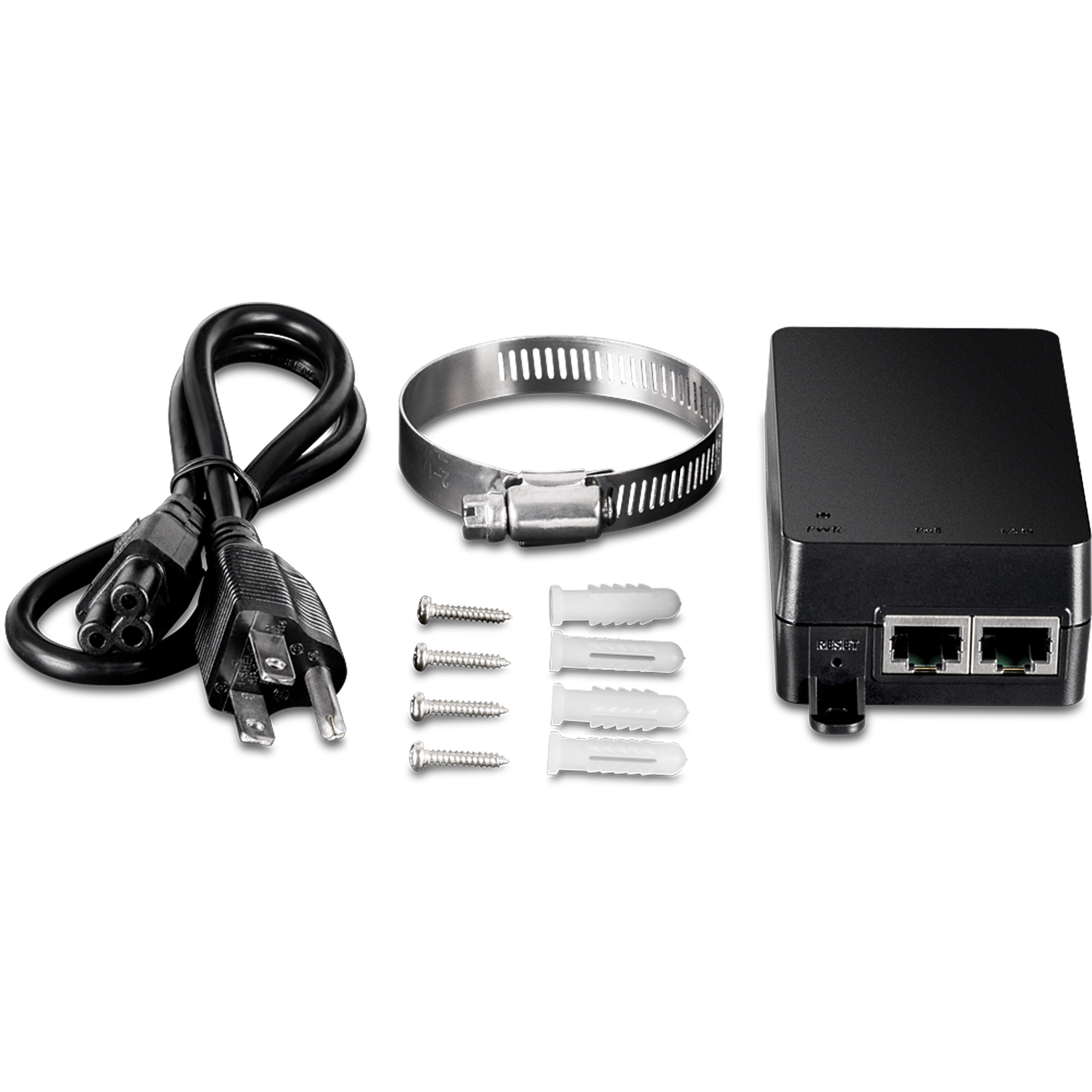

  • Proprietary PoE power adapters included
  • NDAA / TAA compliant (U.S. and Canada only)
Standards
  • IEEE 802.3
  • IEEE 802.3u
  • IEEE 802.3ab
  • IEEE 802.1d
  • IEEE 802.1Q
  • IEEE 802.1X
  • IEEE 802.11a
  • IEEE 802.11k
  • IEEE 802.11n (5GHz: up to 300Mbps)*
  • IEEE 802.11ac (5GHz: up to 867Mbps)*
  • IEEE 802.11ax (5GHz: up to 1201Mbps)*

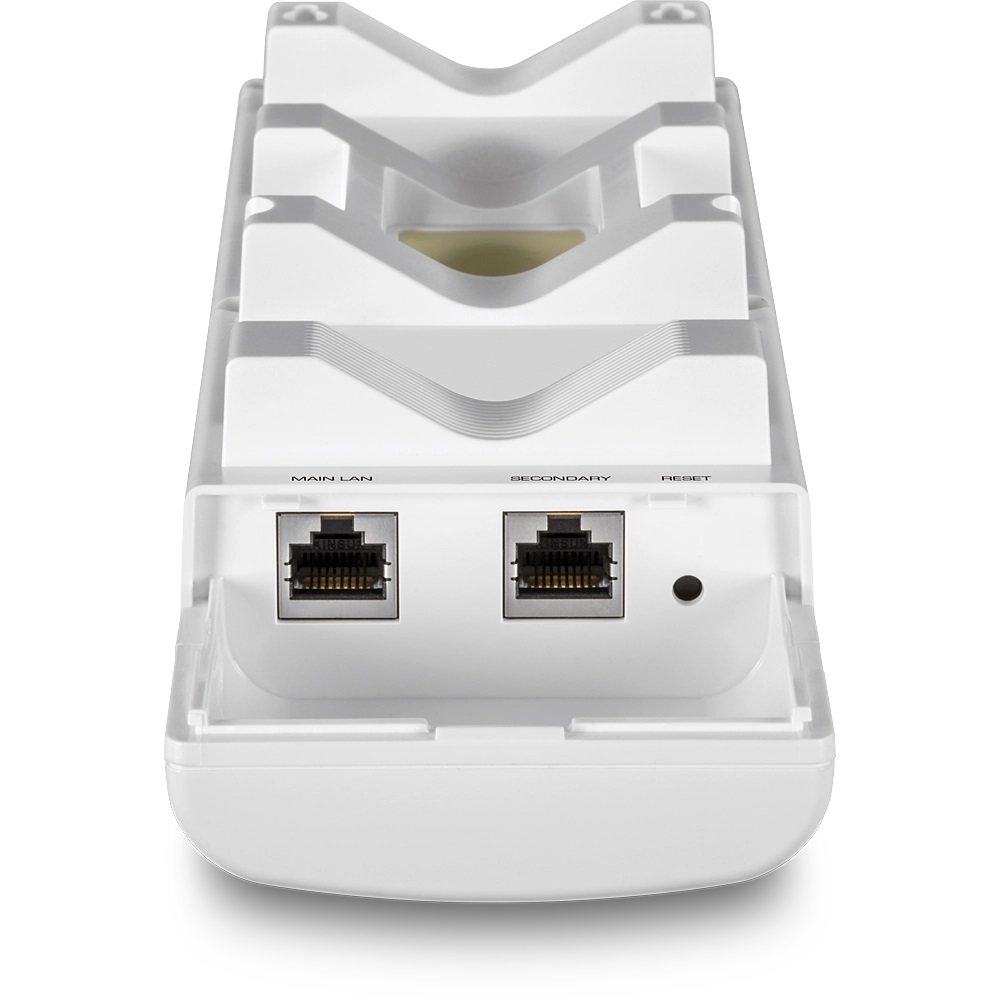

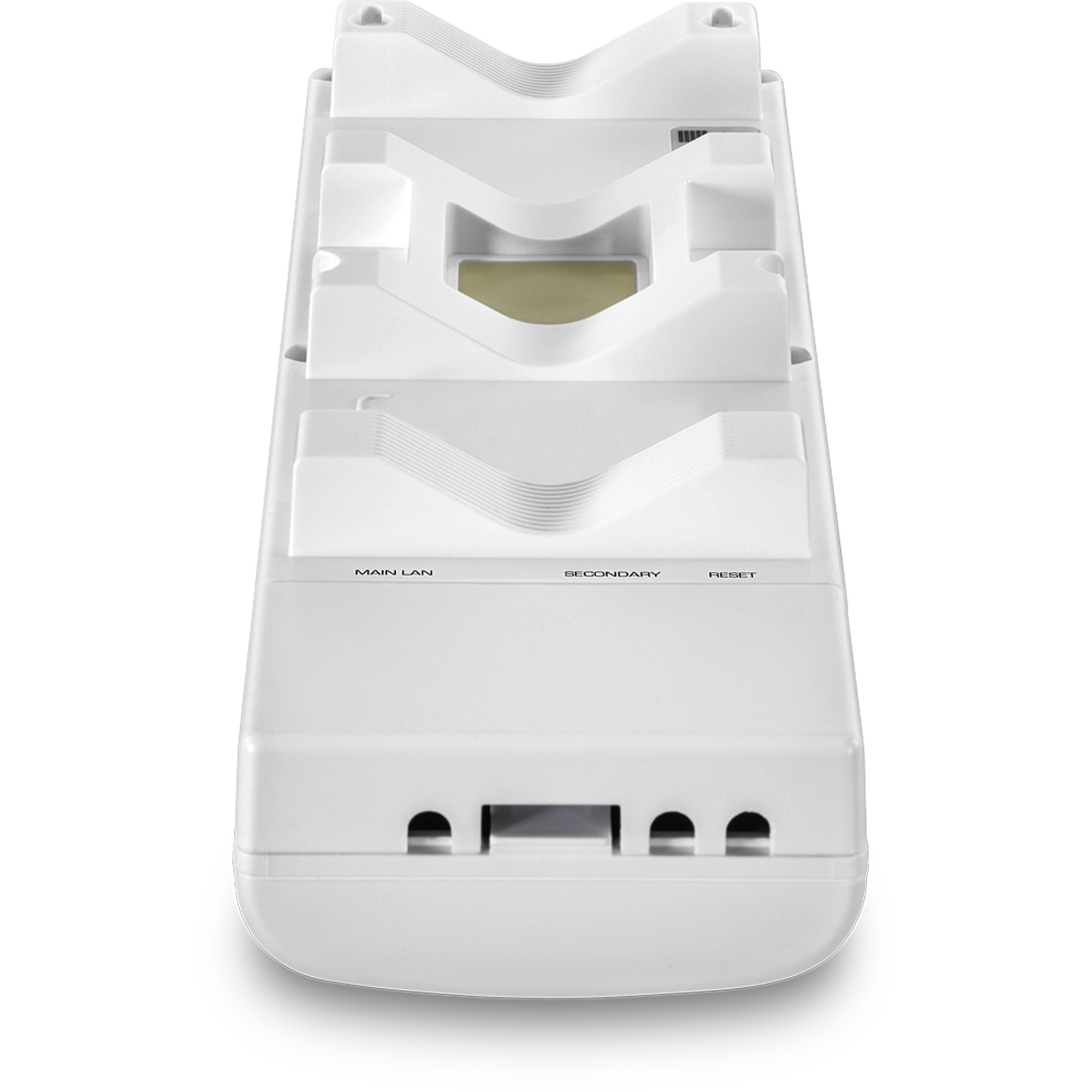

Hardware Interface
  • 1 x Gigabit PoE-in LAN port (proprietary PoE max. cable length 60m (197 ft.))
  • 1 x Gigabit LAN port

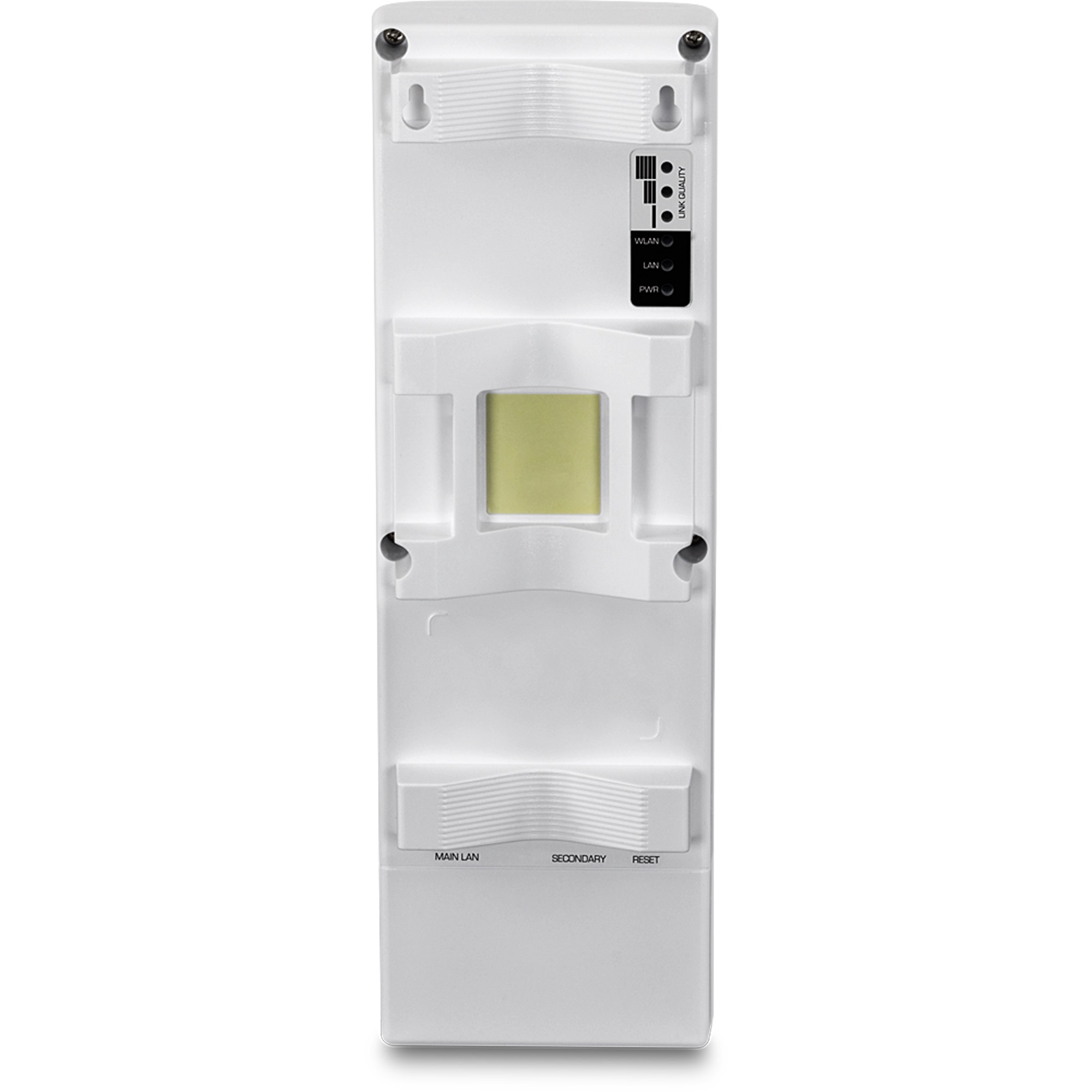

  • LED indicators
  • Reset button
Features
  • 802.11ax WiFi 6 support
  • IP55 rated housing
  • MU-MIMO
  • Band steering
  • Airtime fairness
  • 802.1Q VLAN assignment per SSID
  • IPv6 support
  • LEDs on/off
  • 802.11k intelligent radio resource management
  • RSSI Threshold (client signal strength and connectivity control)
  • LLDP
  • Bonjour/UPnP
Operation Modes
  • Access Point
  • Client Bridge
  • Repeater
Management/Monitoring
  • Web based management (HTTP/HTTPS)
  • Command Line Interface (SSH)
  • SNMP v2c/v3
  • Spanning Tree Protocol (STP)
  • Event logging
  • Ping test
  • Traceroute
  • Performance throughput test
  • Schedule WiFi radio enable/disable
  • Ping watchdog/gateway connection monitor
  • Reboot & scheduled automatic reboot
  • Channel utilization scan/AP detection
Access Control
  • Wireless encryption: OWE (Opportunistic Wireless Encryption), WPA/WPA2/WPA3-RADIUS (Enterprise), WPA-PSK/WPA2-PSK/WPA3-SAE (Personal)
  • MAC filter (max entries: 32)
  • Maximum client limit
  • Client isolation/separate stations
QoS
  • WMM
  • Bandwidth control per SSID
SSID
  • Up to 8 SSIDs
Frequency
  • 5.150GHz – 5.250GHz, 5.725GHz – 5.850GHz
Wireless Channels
  • 5 GHz: 36, 40, 44, 48, 149, 153, 157, 161, 165
Modulation
  • BPSK/QPSK/16-QAM/64-QAM/256-QAM/1024-QAM for OFDM/OFDMA
Antenna Gain
  • 14 dBi internal directional patch antenna
Antenna Pattern
  • 5G Antenna 1
  • 5G Antenna 2
Distance
  • Up to 1km**
Wireless Output Power
  • 802.11a: 23 dBm (max.)
  • 802.11n: 22 dBm (max.)
  • 802.11ac: 22 dBm (max.)
  • 802.11ax: 22 dBm (max.)
Receiving Sensitivity (per chain)
  • 802.11a: -71 dBm (typical) @ 54Mbps
  • 802.11n: -66 dBm (typical) @ 300Mbps
  • 802.11ac: -55 dBm (typical) @ 867Mbps
  • 802.11ax: -54 dBm (typical) @ 1201Mbps
Power
  • Input: 100 – 240V AC, 50/60Hz, 0.8A
  • Output: 54V DC, 0.6A proprietary/passive PoE injector
  • Max. Consumption: 10.1W
Operating Temperature
  • -20° – 60° C (-4° – 140° F)
Operating Humidity
  • Max. 90% non-condensing
Certifications
  • FCC
Dimensions
  • 82 x 257 x 50mm (7.3 x 3.9 x 1.4 in.) per access point
Weight
  • 598g (21.09 oz.) per access point
Warranty
  • 3 year
