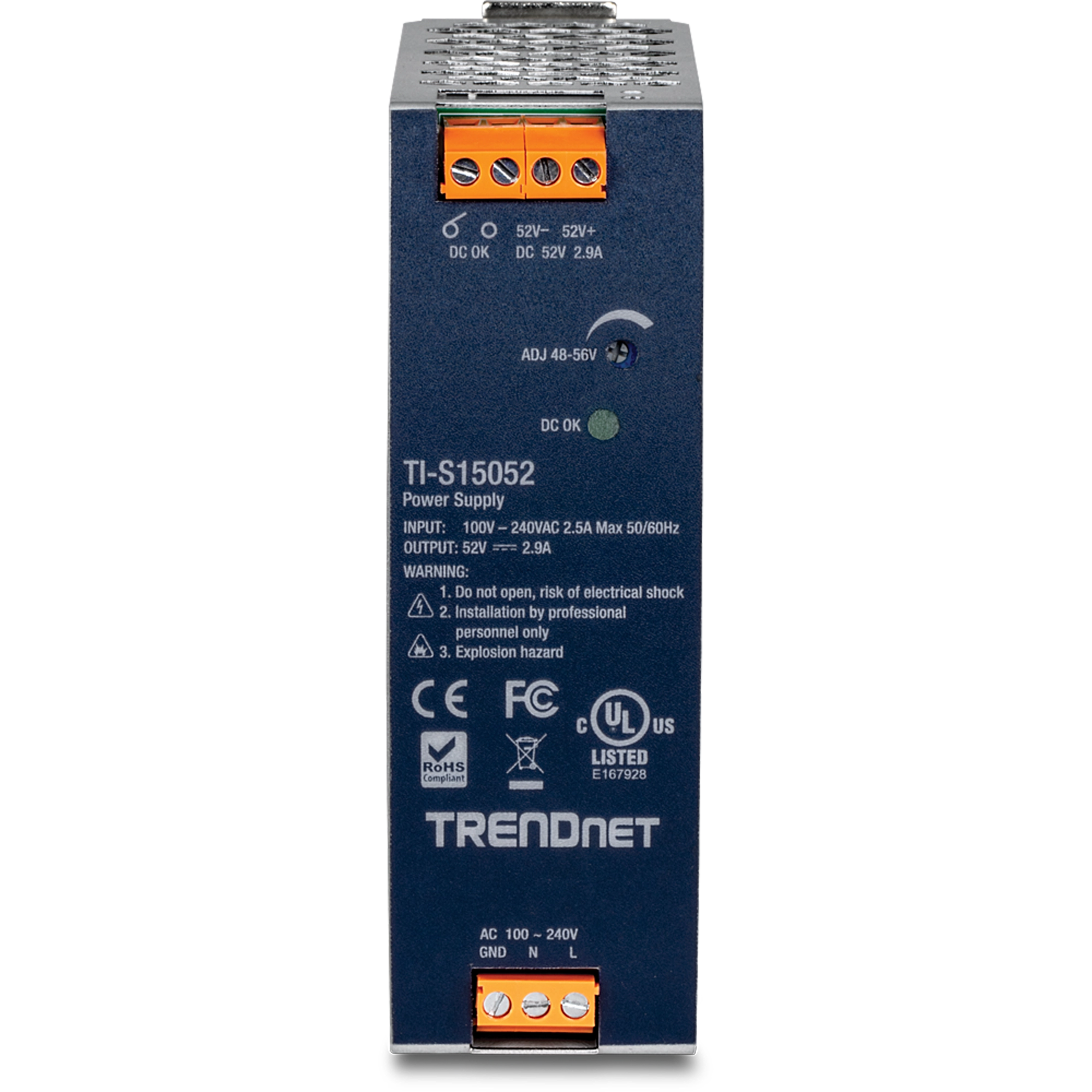

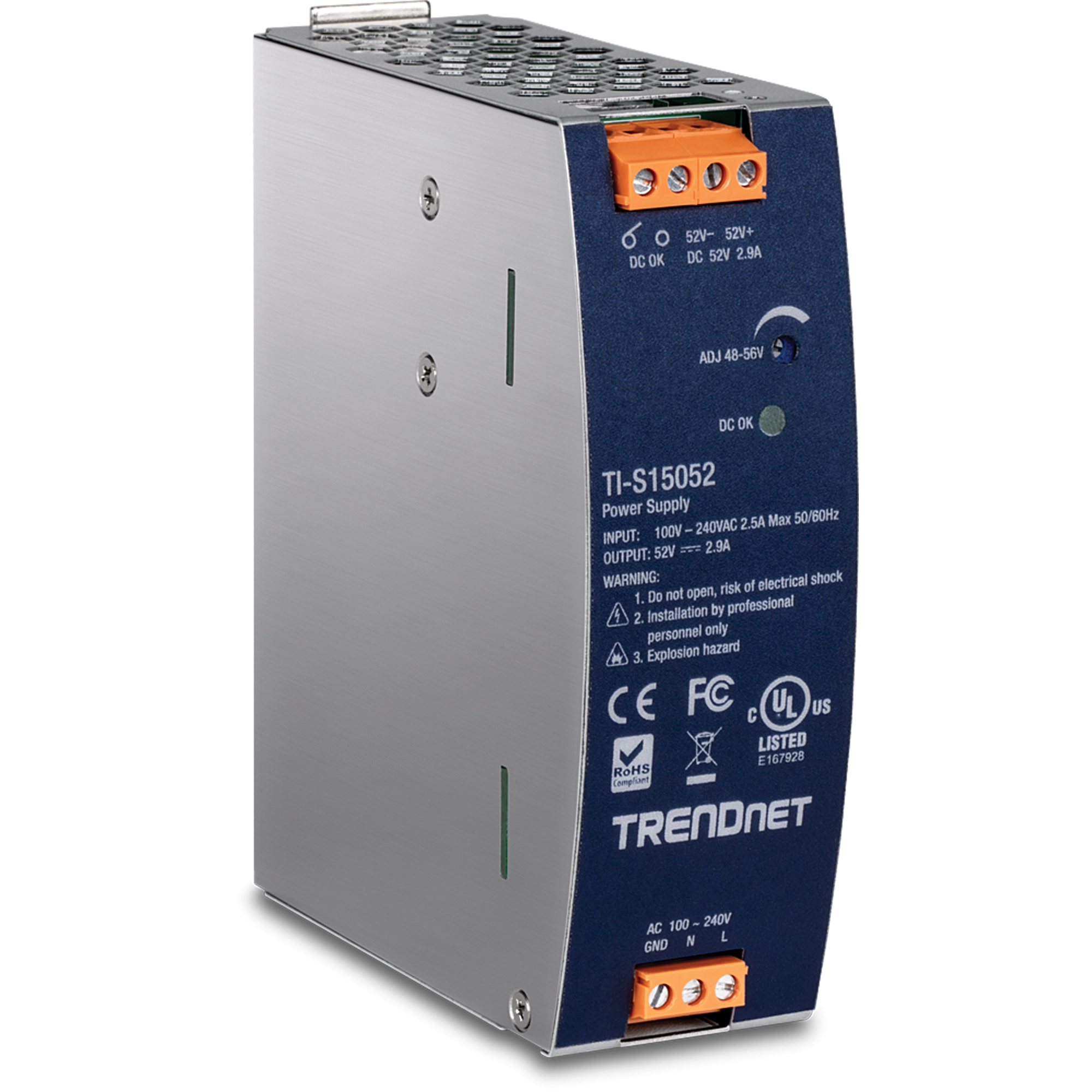

TRENDnet’s AC to DC Industrial DIN-Rail Power Supply with PFC Function, model TI-S15052, supplies up to 150W (52V DC, 2.89A) of power to industrial equipment, such as PoE switches, injectors, and WiFi access points. This DIN-Rail power supply comes with active PFC, an integrated DIN-rail mount, overload current protection.

Industrial Applications

Power network devices for manufacturing, general industrial, warehousing, surveillance, and corporate applications.

150W Power

Provides up to 150W (52V DC, 2.89A) of power for PoE devices, such as switches, injectors, and access points.

Wide Operating Temperature

Designed for industrial environments with an operating temperature range of -25° – 70° C (-13° – 158° F).

Features:

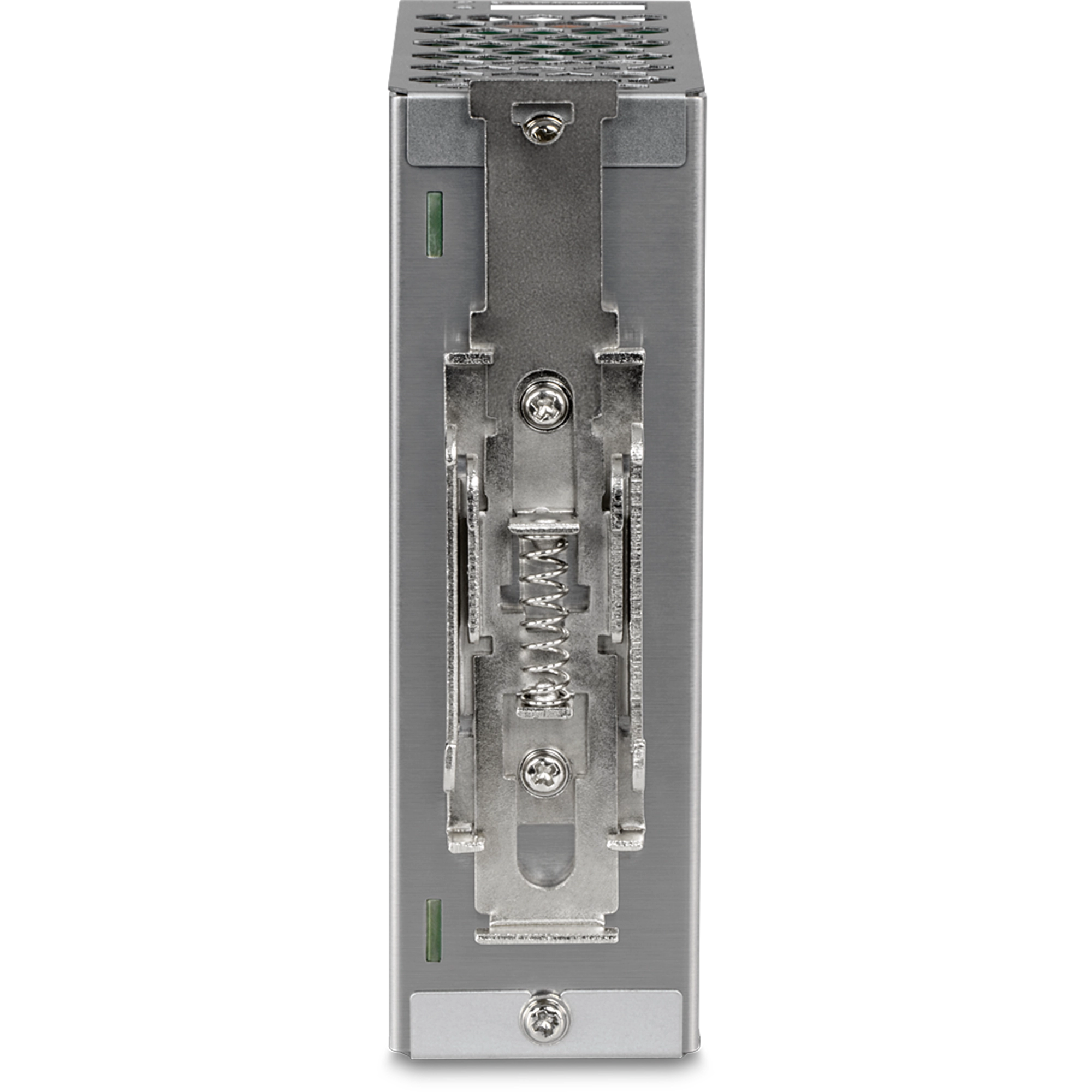

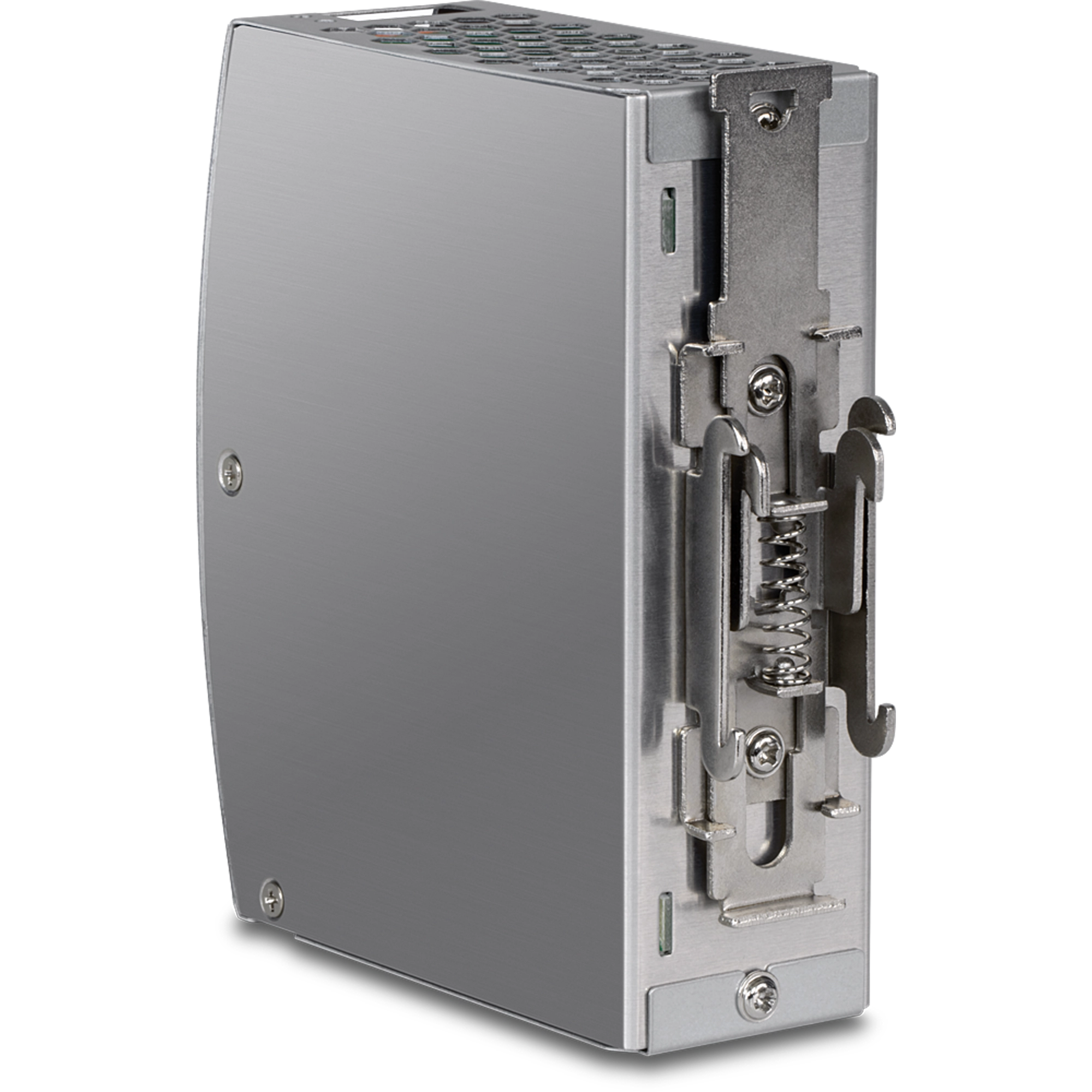

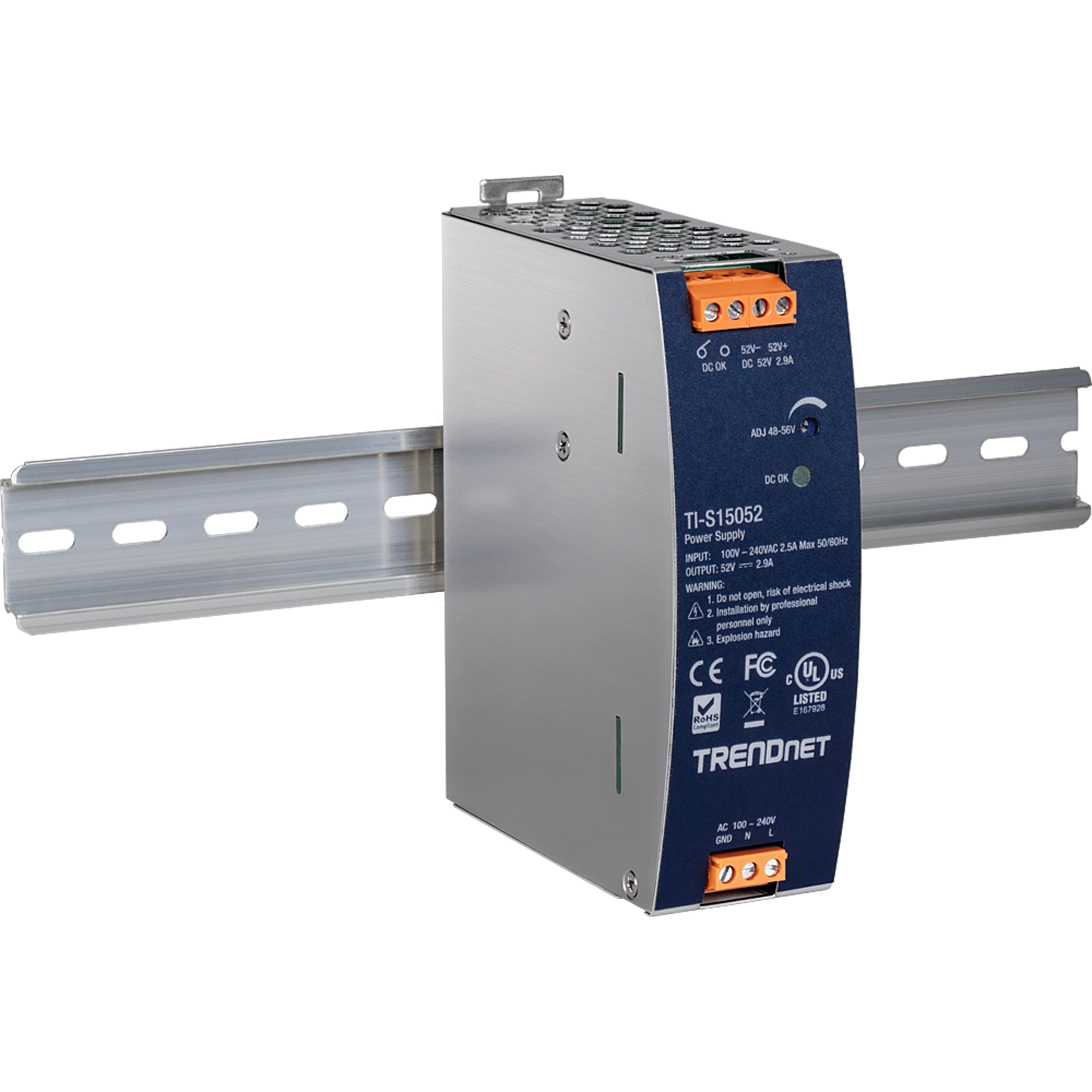

• Industrial power supply with integrated DIN-Rail mount
• Provides up to 150W of power (52V DC, 2.89A)
• Supported output voltage 48 – 56V DC
• High efficiency 93% and low power dissipation
• 150% peak load capability
• Built-in active Power Factor Controller (PF > 0.96)
• Cooling by natural air convection
• Protections: Overload, short circuit, over power, over voltage, over current, over temperature
• UL 508 approved
• Built-in DC OK relay contact
• -25° – 70° C (-13° – 158° F) wide operating temperature range
• NDAA / TAA compliant
