Cyber Power - PDU15B6F12R - 15A (Derated to 12A), 120 V, 50Hz/60Hz, NEMA 5-15P plug, 18 NEMA 5-15R, 1U Rackmount, 15 ft Cord
15A (Derated to 12A), 120 V, 50Hz/60Hz, NEMA 5-15P plug, 18 NEMA 5-15R, 1U Rackmount, 15 ft cord, Limited lifetime warranty

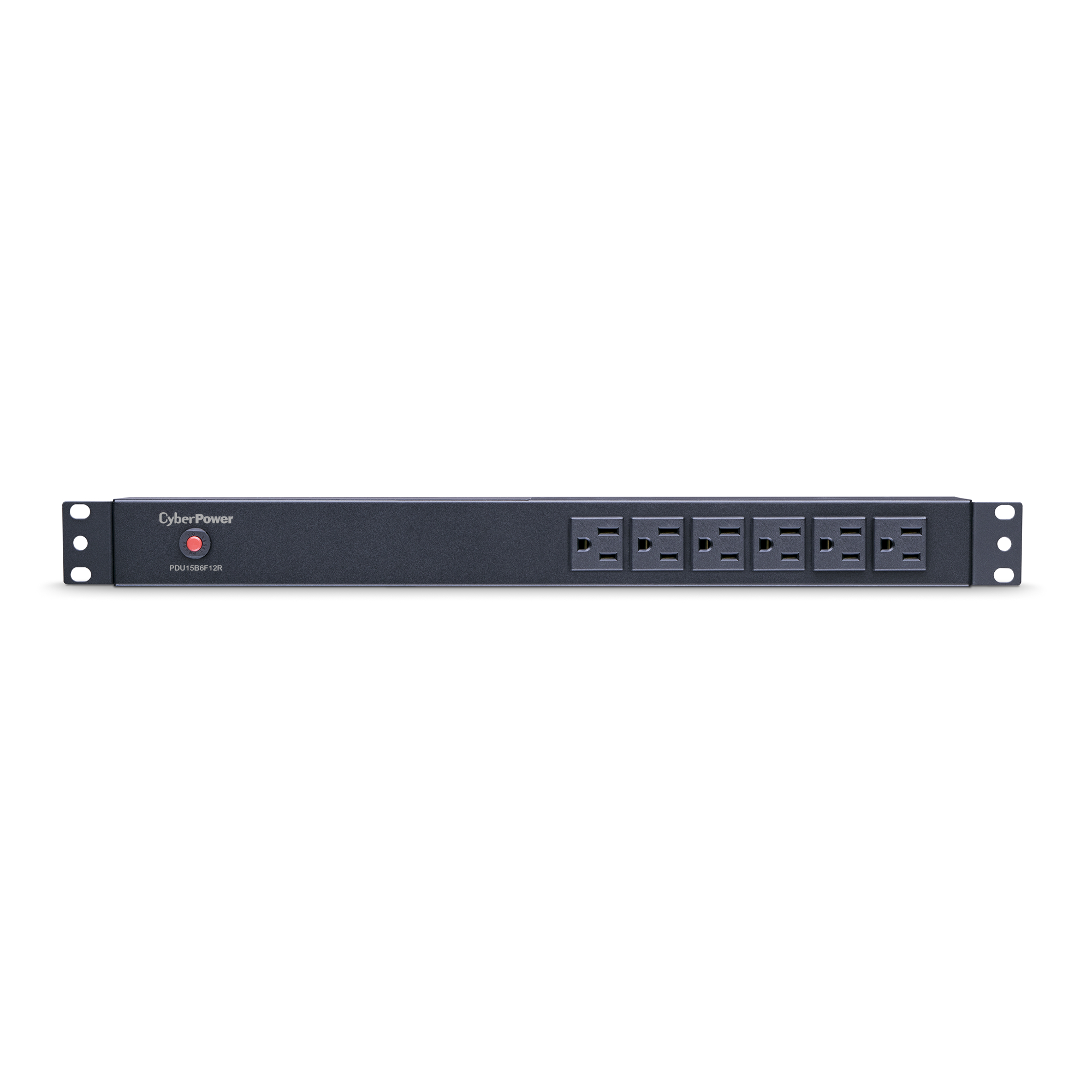

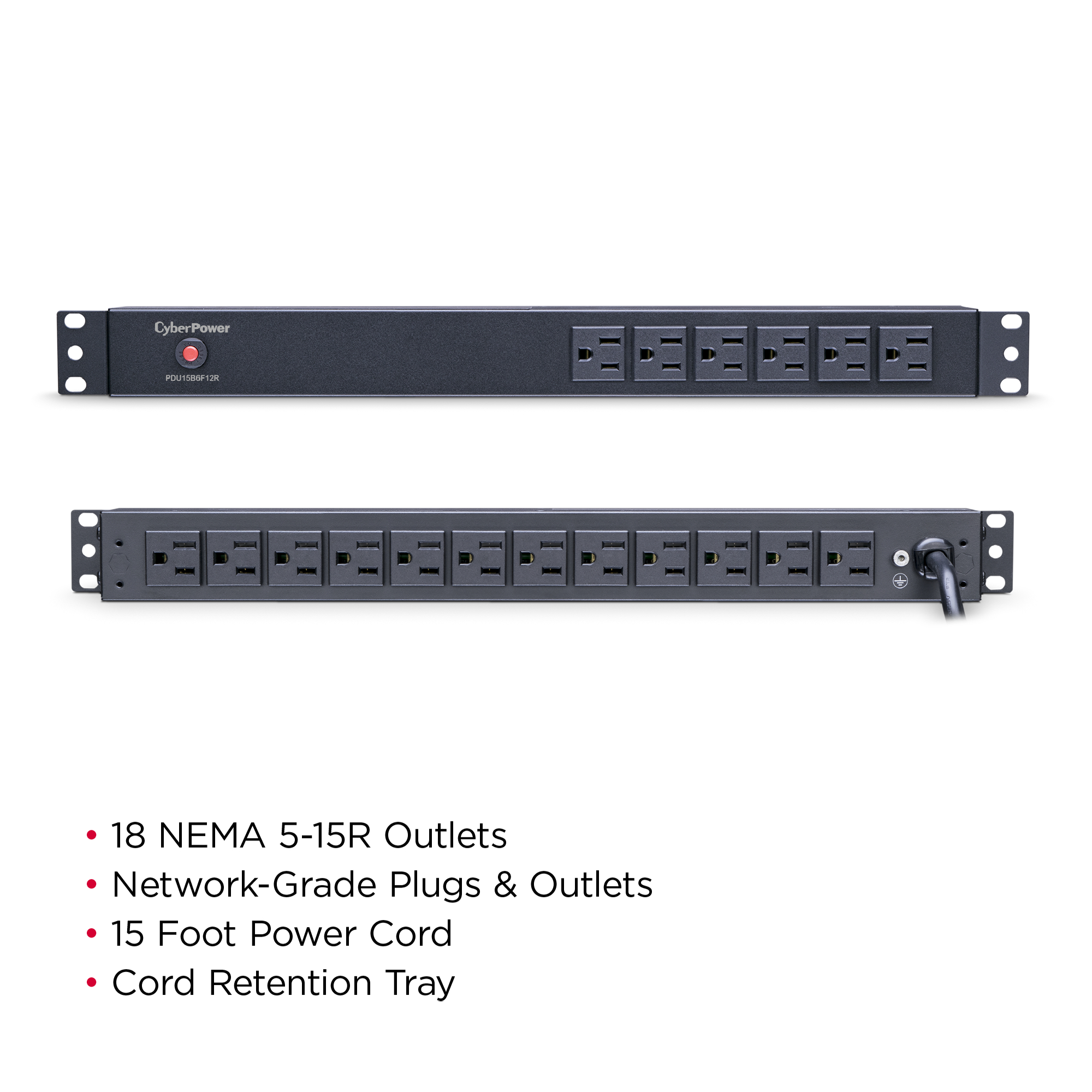

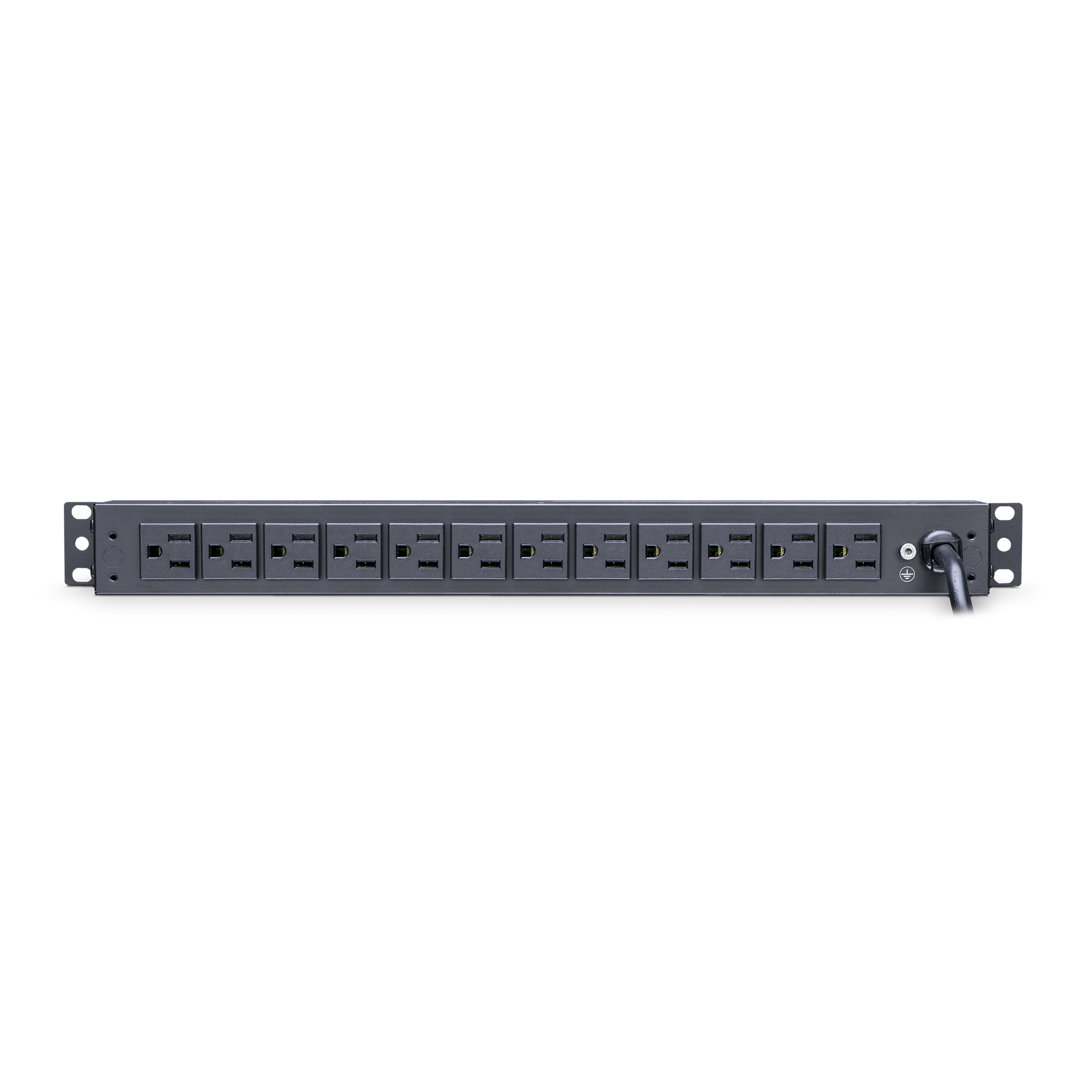

The CyberPower PDU15B6F12R, an 18-outlet (6 front, 12 rear) rackmount basic power distribution unit (PDU), provides 100 – 125 V 15A output. It distributes power to 18 NEMA 5-15R receptacles from a single NEMA 5-15P input with unfiltered electrical pass-through. Designed for datacenters and other electrically demanding applications, the PDU15B6F12R has rugged, industrial-grade metal housing and a 15-foot AC power cord. It can be mounted either horizontally or vertically, includes a cord retention tray, and is ETL/RoHS certified. A limited lifetime warranty covers defects in materials and workmanship in the product under normal use and conditions.
Features:
- Power Distribution: Delivers AC power to servers, equipment, and connected devices via a power distribution unit.
- Switch-Free Design: Safeguards against accidental power shutdown.
- Network-Grade Plugs and Outlets: Highly durable construction ensures the efficient distribution of power in demanding IT or industrial environments to servers, equipment, and connected devices.
- Long Input Power Cord: Reaches distant power sources, allowing the PDU to be placed where it’s needed.
- Cord Retention Tray: Secures power cords, keeping them organized and accessible. Helps cords stay plugged in.
- Configurable Mounting Brackets: Allow for installation of the PDU in the following configurations: 0U (vertical, under counter, and wall mount), 1U (horizontal, vertical, under counter, and wall mount), and 2U (horizontal and wall mount).
- Durable Metal Housing: Protects internal components and resists damage from impact or abrasions within challenging industrial environments. Also extends the life of the product.
- Limited Lifetime Warranty: Covers defects in materials and workmanship in the product under normal use and conditions. See warranty for details.
| Input | |
| Cord Length | 15 ft (4.6 m) |
| Derated Input Current | 12:00 AM |
| Input Frequency Range | 50 Hz – 60 Hz |
| Input Plug Type | NEMA 5-15P |
| Maximum Input Current | 15A |
| Plug Style | Straight |
| Output | |
| Nominal Output Voltage | 100 – 125 VAC |
| Outlet Type | 18 – NEMA 5-15R |
| Outlets – Front | 6 |
| Outlets – Rear | 12 |
| Outlets – Total | 18 |
| Overload Protection | 15A |
| USB Charge Port | No |
| Physical | |
| Adjustable Mounting Brackets | 2 sets (L-Short, L-Long) |
| Color | Black |
| Cord Retention Tray/Cord Organizers | Yes |
| External Site Ground Pin | Yes |
| Form Factors Supported | 1U Rackmount |
| 0U Vertical Rackmount | |
| Undercounter Installation Supported | |
| Material of Construction | Metal |
| Rack Height | 1U |
| Style | Rackmount |
| Vertical Rackmount | |
| Under-Counter | |
| Dimensions | |
| Physical Dimensions – (WxHxD) (cm) | 44.45 x 4.45 x 5.72 (cm) |
| Physical Dimensions – (WxHxD) (in) | 17.5 x 1.75 x 2.25 (in) |
| Physical Dimensions – (WxHxD) (mm) | 445 x 44 x 57 (mm) |
| Physical Weight (kg) | 1.68 |
| Physical Weight (lb) | 3.7 |
| Dimensions – Shipping | |
| Shipping – Weight (kg) | 9.41 |
| Shipping – Weight (lb) | 20.75 |
| Shipping Dimensions – (WxHxD) (cm) | 17.93 x 6.35 x 46.99 (cm) |
| Shipping Dimensions – (WxHxD) (in) | 7.06 x 2.5 x 18.5 (in) |
| Shipping Dimensions – (WxHxD) (mm) | 179.32 x 63.5 x 469.9 (mm) |
| Environmental | |
| Operating Elevation | 0 – 10000 ft (0 – 3048 m) |
| Operating Relative Humidity | 0 – 95 % (non-condensing) |
| Operating Temperature | 32 – 95 °F (0 – 35 °C) |
| Storage Elevation | 0 – 50000 ft (0 – 15239 m) |
| Storage Temperature | 5 – 113 °F (-15 – 45 °C) |
| Certifications | |
| Environmental | RoHS Compliant |
| Safety | UL1363 certified by ETL |
| Warranty | |
| Product Warranty | Limited Lifetime Warranty |
