Digital Watchdog - DW-HDSPOTMOD16 - 16-channel DW Spot Monitoring Module

Product Overview

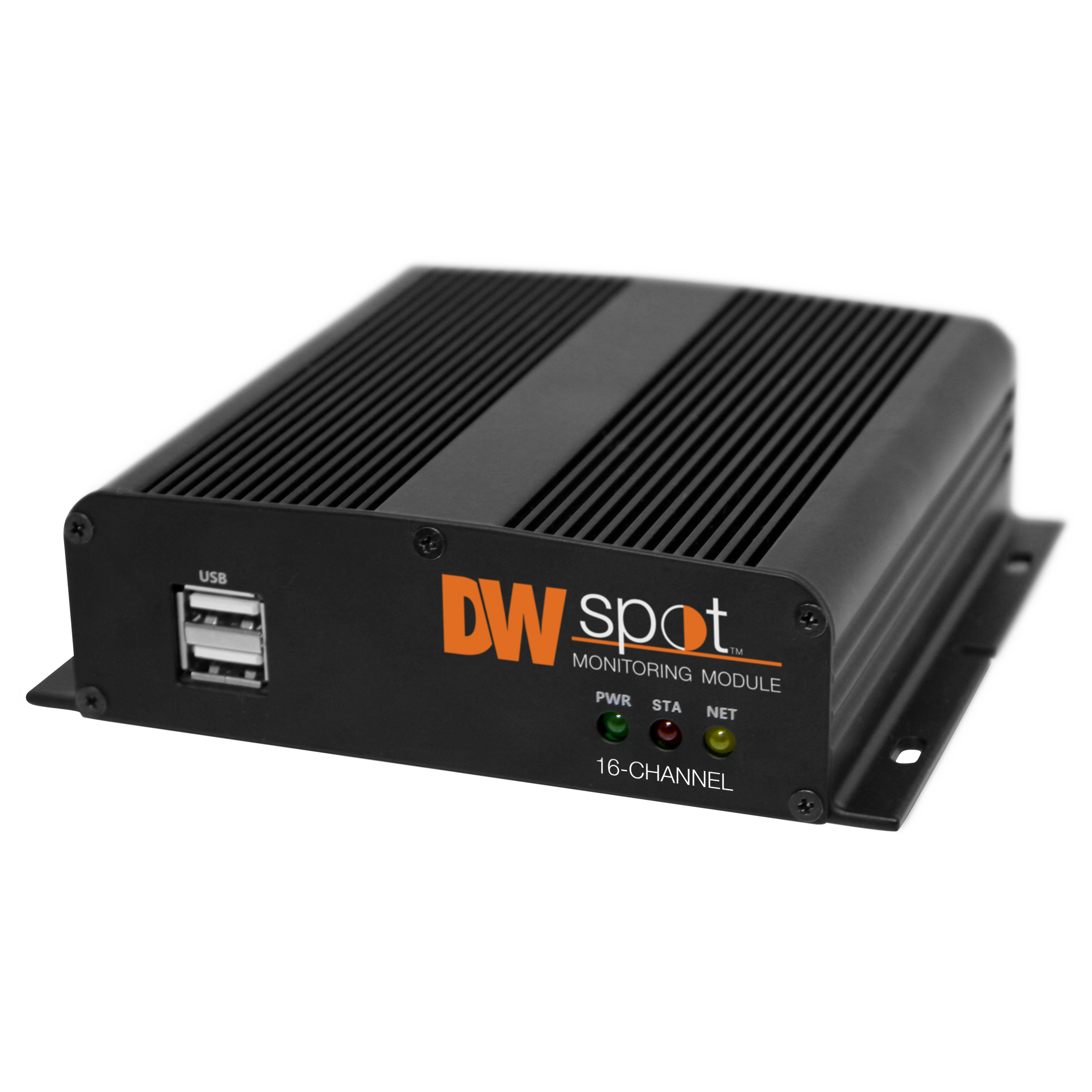

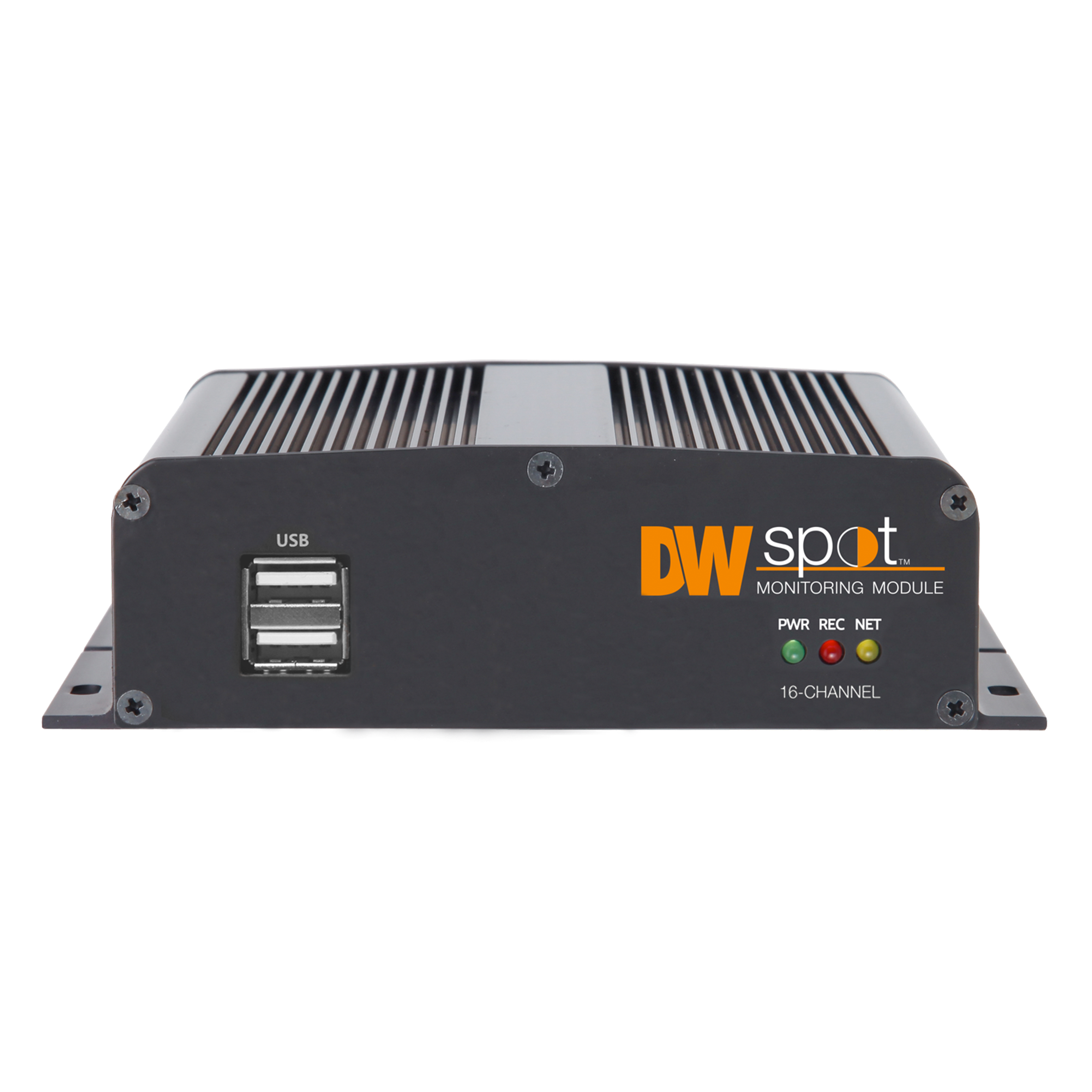

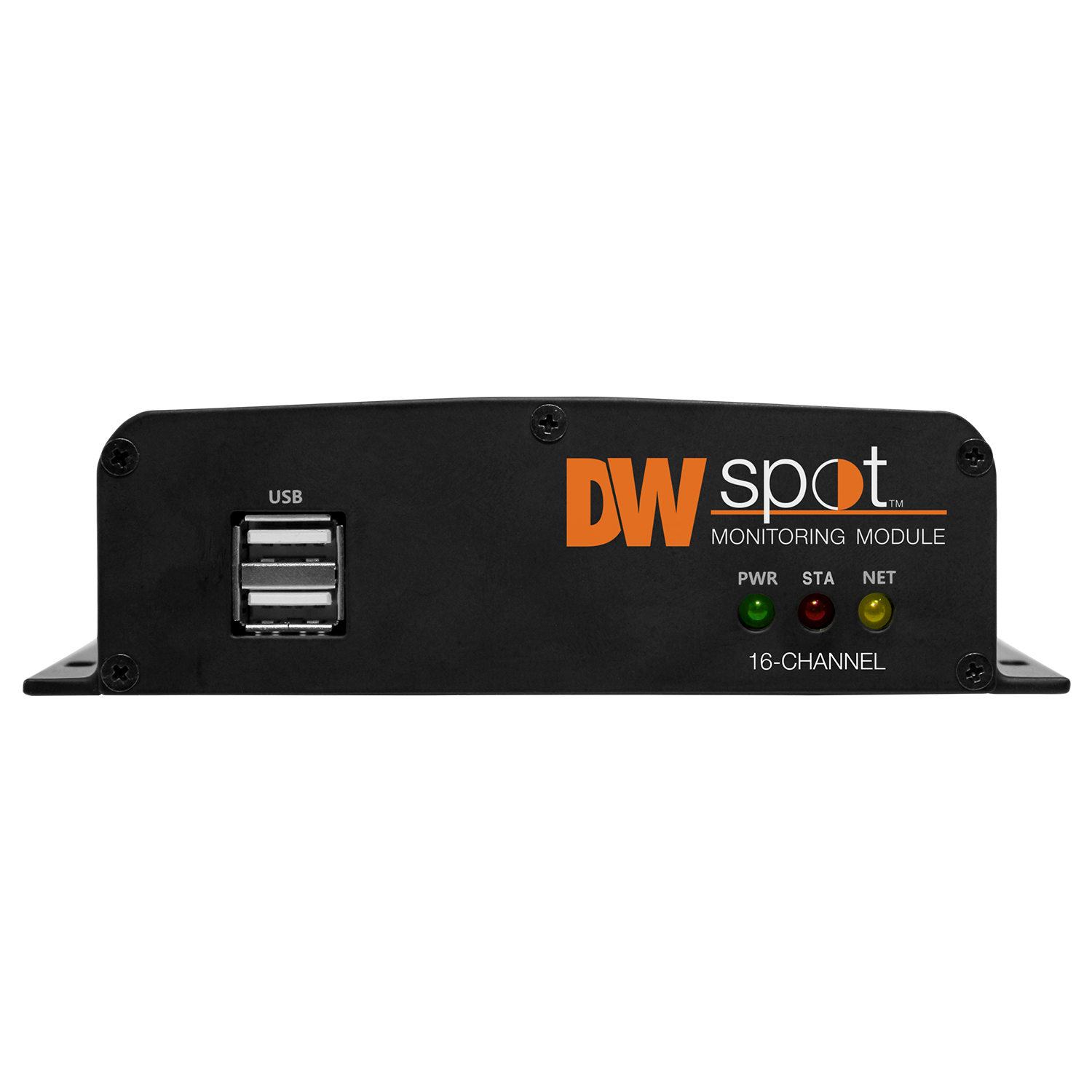

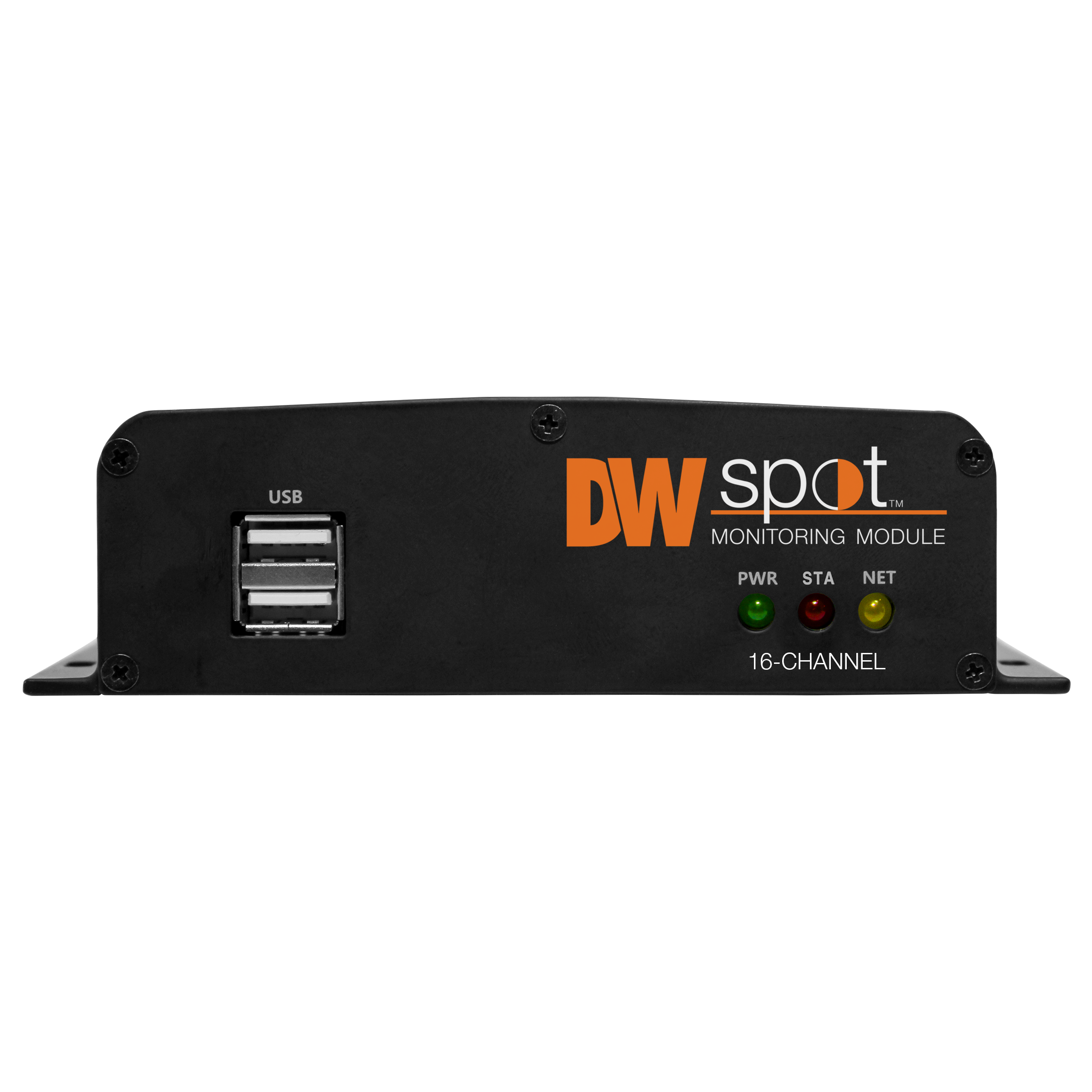

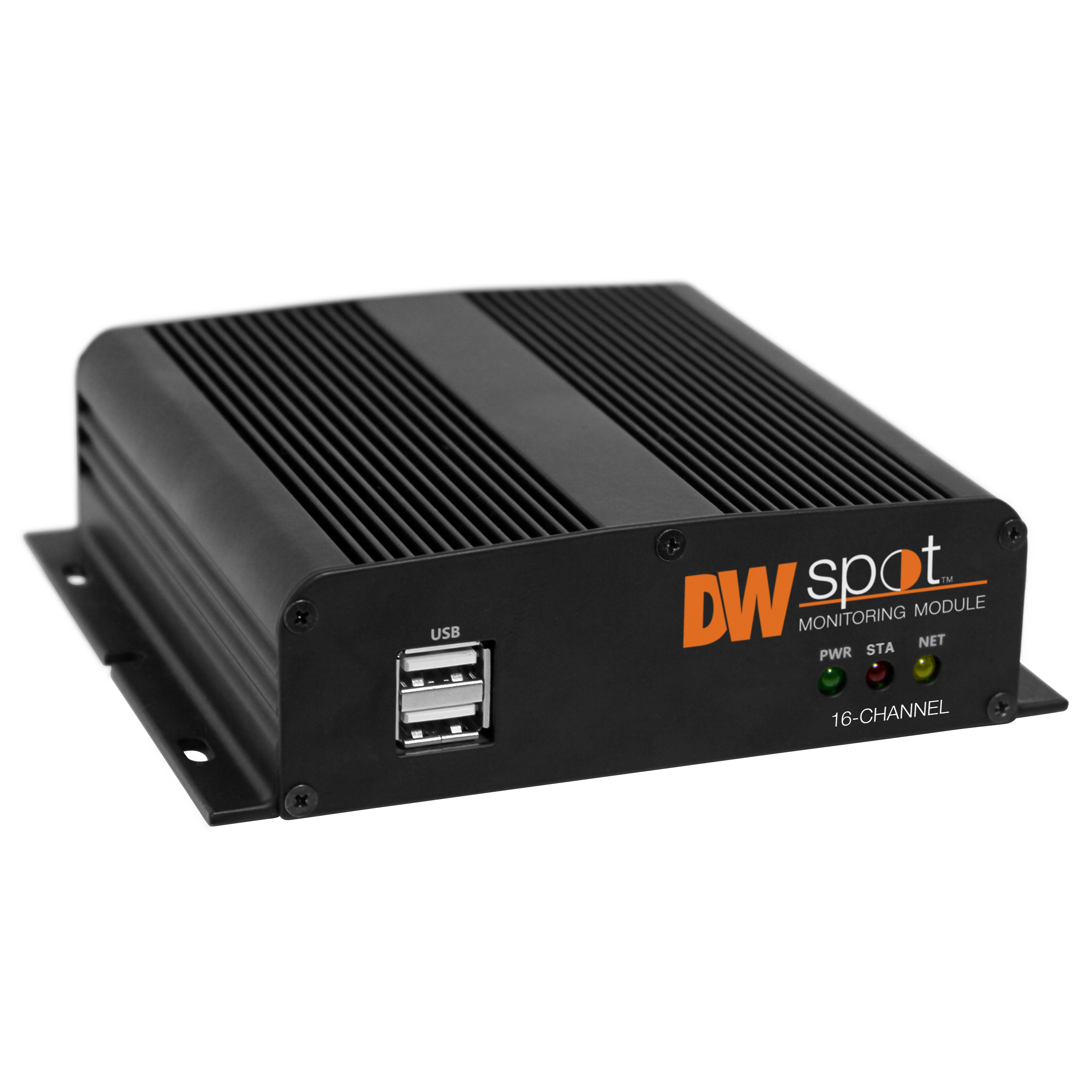

The Digital Watchdog DW-HDSPOTMOD16 is a dedicated 16-channel spot monitoring module designed for high-definition live viewing of up to 16 cameras simultaneously. Supporting resolutions up to 4K (3840×2160) with a robust 80 Mbps throughput, it provides crystal-clear video via True HD and VGA outputs. The device simplifies deployment through automatic network search and device registration, while offering convenient remote configuration via web browser and an included USB mouse for local navigation.

Key Configuration

• • Channels: 16; video inputs: IP cameras (up to 4K/3840×2160), VMAX A1 DVRs, VMAX IP Plus NVRs (H.264 format only)
• • Display speed: up to 480 fps; display splits: single, quad, 9, 16, sequence

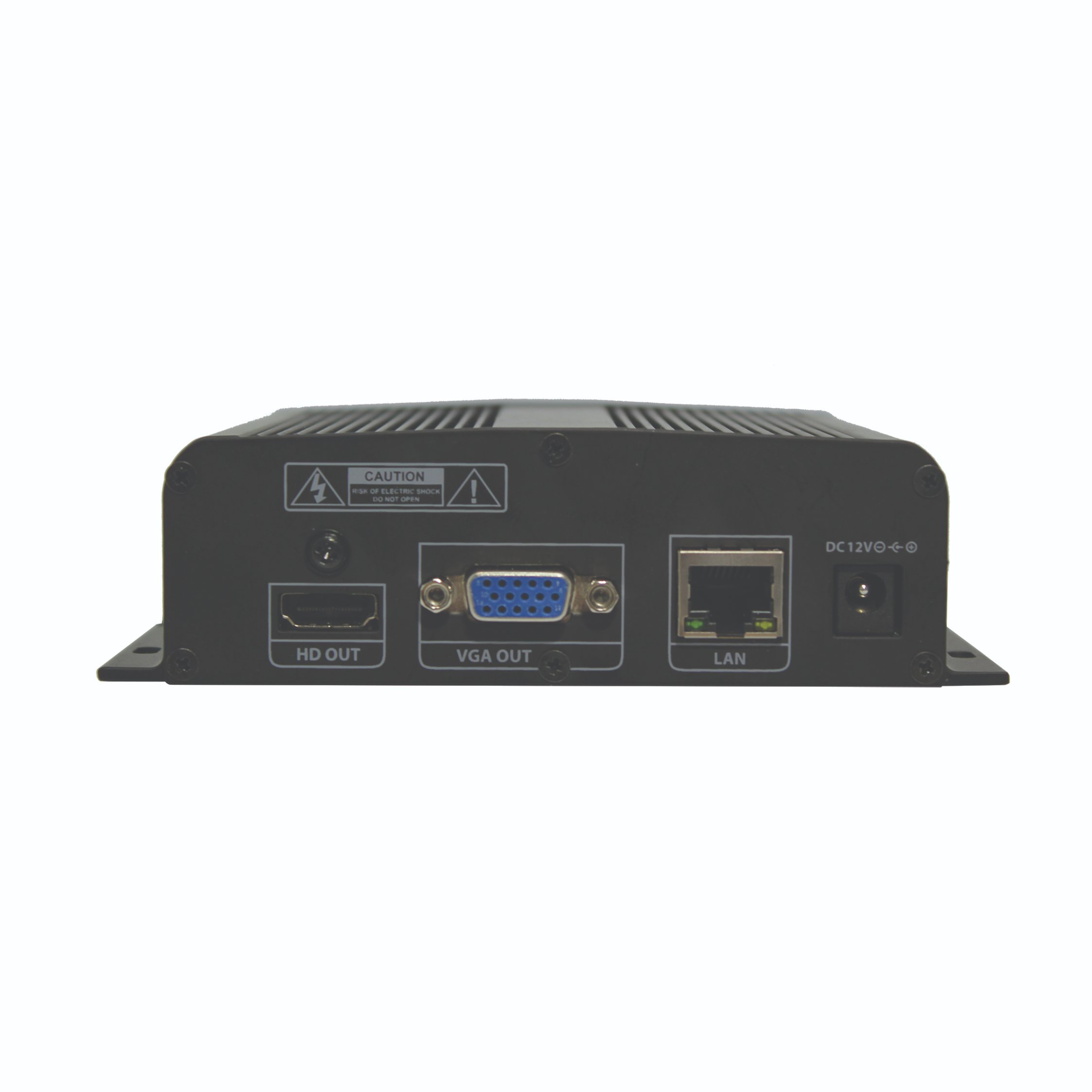

• • Video outputs: True HD (3840×2160, 1920×1080, 1280×720, 1024×768) and VGA (1920×1080, 1280×720, 1024×768)
• • Max throughput: 80 Mbps
• • Power: DC12V, 1A; dimensions: 5.47" × 4.84" × 1.25" (139 × 123 × 32 mm)

Key Features

This NDAA/TAA-compliant device features an intuitive drag-and-drop interface for camera selection from VMAX A1 and IP series recorders. It automates setup with automatic network search and registration for ONVIF-conformant devices. For added utility, the module includes digital zoom support, an auto-reboot function with a log file system, and is fully compatible with C3 CMS and DW Spectrum software.

Technical Context

Optimized for H.264 video formats, the module ensures secure and stable operation with integrated surge and ESD protection (up to ±15KV). It supports standard network protocols like UPnP and DHCP, utilizing NTP servers for precise time synchronization across all channels. Remote management is handled via a web browser, allowing for easy import/export of settings and firmware upgrades through USB or CMS.

Installation Notes

Designed for space-saving deployment, the compact 5.47" × 4.84" unit includes Velcro strips for direct mounting to the back of a monitor. The package comes complete with a USB mouse for local navigation and requires a DC12V power supply. To ensure compatibility, cameras should be set to H.264 output prior to registration. This professional monitoring tool is backed by a 5-year warranty.
